XZU322D-TMPMS3 (1999)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ﾌﾚ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51002-37590 |
XZU321,322..(DM7,DM8)..4NO |
1 | ||
| 51003-37710 |
XZU321,322..(DM7,DM8)..4NO |
1 | ||
| 51002-3V340 |
XZU32#..DM7,DM8 |
1 | ||
ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｻｽﾍﾟﾝｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10446 | ||||
| 90105-14065 | ||||
| 90119-10740 | ||||
| 90119-14100 | ||||
| 90119-14104 | ||||
| 90119-14107 | ||||
| 90119-16008 | ||||
| 90119-16012 | ||||
| 90179-14061 | ||||
| 90179-16029 | ||||
| 90182-10003 | ||||
| 91612-61030 | ||||
| 91642-81235 | ||||
| 94622-11400 | ||||
| 94622-41400 | ||||
| 94622-41600 | ||||
ILLUST NO. 4 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄ ｶﾞ-ﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37240 |
XZU32# |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37240 |
XZU32# |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37240 |
XZU32# |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37240 |
XZU32# |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37240 |
XZU32# |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37240 |
XZU32# |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37240 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51569-37310 |
XZU32# |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||

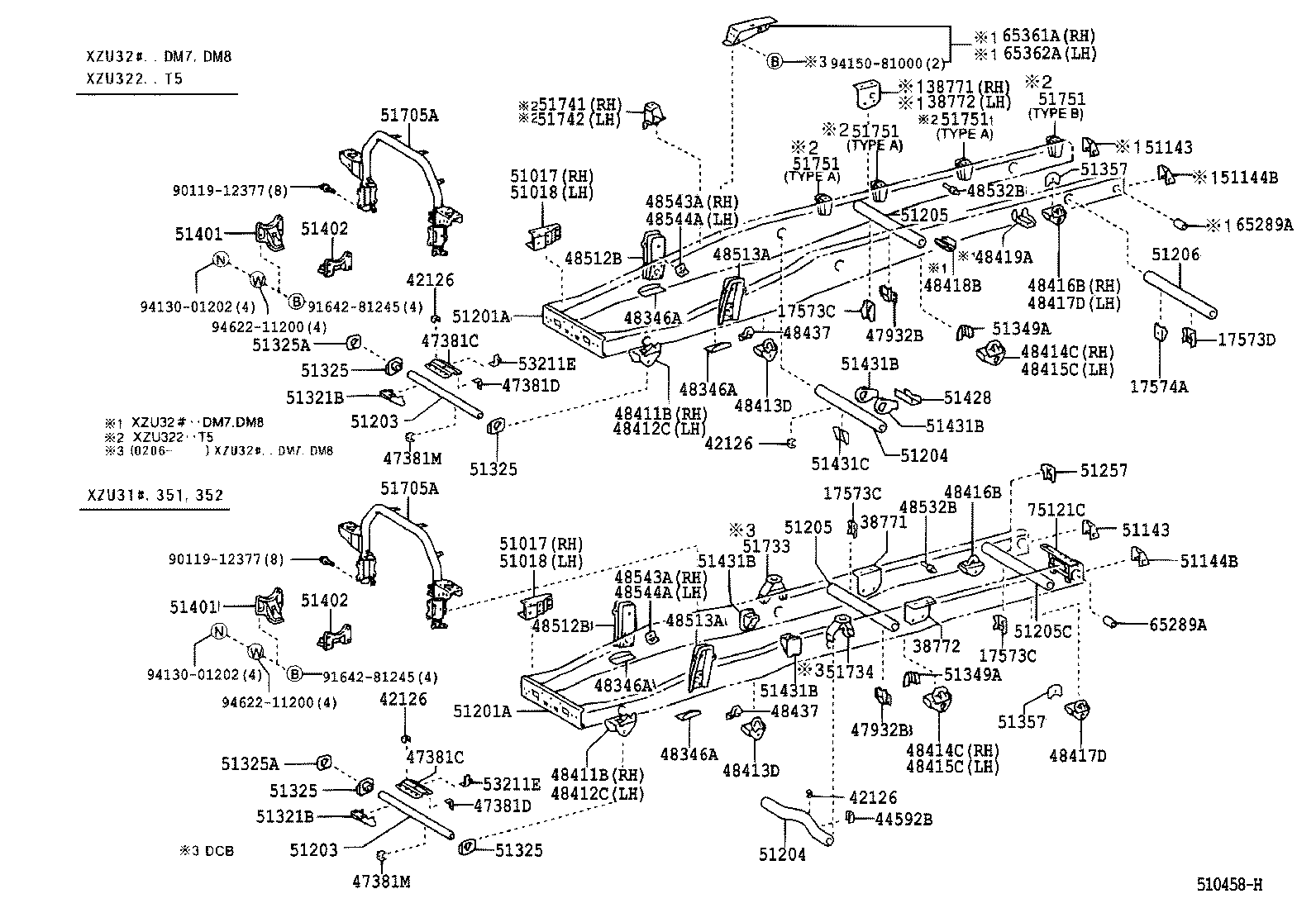

ILLUST NO. 2 OF 4(9905-0406)XZU31#,32#,351,352
ﾌﾚ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17573C - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78040 |
J05C,S05#..XZU32# |
1 | ||
| 17573C - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78040 |
J05C,S05#..XZU32# |
1 | ||
| 17573C - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78040 |
J05C,S05#..XZU32# |
1 | ||
| 17573D - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78030 |
J05C,S05#..XZU32# |
2 | ||
| 17574A - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78060 |
J05C,S05#..XZU32# |
1 | ||
| 38771 - STAY, TRUNNION BRACKET, RH | ||||
| 38771-37010 |
XZU31#,32#,351,352..DM2,DM5,DM7,DM8 |
1 | ||
| 38771 - STAY, TRUNNION BRACKET, RH | ||||
| 38771-37010 |
XZU31#,32#,351,352..DM2,DM5,DM7,DM8 |
1 | ||
| 38772 - STAY, TRUNNION BRACKET, LH | ||||
| 38772-37010 |
XZU31#,32#,351,352..DM2,DM5,DM7,DM8 |
1 | ||
| 38772 - STAY, TRUNNION BRACKET, LH | ||||
| 38772-37010 |
XZU31#,32#,351,352..DM2,DM5,DM7,DM8 |
1 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37020 |
XZU31#,32#..DSL;XZU351,352..DM2 |
4 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37020 |
XZU31#,32#..DSL;XZU351,352..DM2 |
4 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37020 |
XZU31#,32#..DSL;XZU351,352..DM2 |
4 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37020 |
XZU31#,32#..DSL;XZU351,352..DM2 |
4 | ||
| 47381C - BRACKET, TUBE CLAMP | ||||
| 47381-37060 |
XZU31#,32#,351,352 |
1 | ||
| 47381C - BRACKET, TUBE CLAMP | ||||
| 47381-37060 |
XZU31#,32#,351,352 |
1 | ||
| 47381D - BRACKET, TUBE CLAMP | ||||
| 47381-37180 |
XZU31#,32#,351,352 |
1 | ||
| 47381D - BRACKET, TUBE CLAMP | ||||
| 47381-37180 |
XZU31#,32#,351,352 |
1 | ||
| 47381M - BRACKET, TUBE CLAMP | ||||
| 47381-37300 |
XZU31#,32#,351,352 |
1 | ||
| 47381M - BRACKET, TUBE CLAMP | ||||
| 47381-37300 |
XZU31#,32#,351,352 |
1 | ||
| 47932B - BRACKET, LOAD SENSING VALVE, NO.2 | ||||
| 47932-37020 |
XZU31#,32#,351,352 |
1 | ||
| 47932B - BRACKET, LOAD SENSING VALVE, NO.2 | ||||
| 47932-37020 |
XZU31#,32#,351,352 |
1 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZU31#,32#,351,352 |
2 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZU31#,32#,351,352 |
2 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZU31#,32#,351,352 |
2 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZU31#,32#,351,352 |
2 | ||
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37051 |
XZU31#,32#,351,352 |
1 | ||
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37051 |
XZU31#,32#,351,352 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37041 |
XZU31#,32#,351,352 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37041 |
XZU31#,32#,351,352 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37040 |
XZU32# |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37040 |
XZU32# |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37090 |
XZU32# |
1 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37090 |
XZU32# |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37010 |
XZU32# |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37010 |
XZU32# |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37070 |
XZU31#,32#,351,352..DM5,DM7,DM8,T5 |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37070 |
XZU31#,32#,351,352..DM5,DM7,DM8,T5 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37070 |
XZU31#,32#,351,352..DM5,DM7,DM8,T5 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37070 |
XZU31#,32#,351,352..DM5,DM7,DM8,T5 |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37020 |
XZU322..DM7,DM8;XZU321..DM7..4NO |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37020 |
XZU32#..DM7,DM8 |
2 | ||
| 48437 - ATTACHMENT, SPRING BRACKET | ||||
| 48437-37010 |
XZU31#,32#,351,352 |
2 | ||
| 48437 - ATTACHMENT, SPRING BRACKET | ||||
| 48437-37010 |
XZU31#,32#,351,352 |
2 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU301..T3..LPG;XZU31#,32#,351,352;XZU301..DM3..4FC..30T;XZU302,341,342..CNG,LPG;XZU301,302..T4..DSL..1NO;XZU301,331..5F..DSLL..IV4 |
1 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU301..T3..LPG;XZU31#,32#,351,352;XZU301..DM3..4FC..30T;XZU302,341,342..CNG,LPG;XZU301,302..T4..DSL..1NO;XZU301,331..5F..DSLL..IV4 |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37050 |
XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU31#..30T..4NO;XZU321,351,352..(DM2,DM5,DM7)..4NO |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37050 |
XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU31#..30T..4NO;XZU321,351,352..(DM2,DM5,DM7)..4NO |
1 | ||
| 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT | ||||
| 48532-37010 |
XZU31#,32#,351,352 |
2 | ||
| 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT | ||||
| 48532-37010 |
XZU31#,32#,351,352 |
2 | ||
| 48543A - REINFORCEMENT, FRONT ABSORBER BRACKET, RH | ||||
| 48543-37010 |
XZU31#,32#,351,352 |
1 | ||
| 48543A - REINFORCEMENT, FRONT ABSORBER BRACKET, RH | ||||
| 48543-37010 |
XZU31#,32#,351,352 |
1 | ||
| 48544A - REINFORCEMENT, FRONT ABSORBER BRACKET, LH | ||||
| 48543-37010 |
XZU31#,32#,351,352 |
1 | ||
| 48544A - REINFORCEMENT, FRONT ABSORBER BRACKET, LH | ||||
| 48543-37010 |
XZU31#,32#,351,352 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37050 |
XZU31#,32#,351,352 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37050 |
XZU31#,32#,351,352 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37040 |
XZU31#,32#,351,352 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37040 |
XZU31#,32#,351,352 |
1 | ||
| 51143 - REINFORCEMENT, SIDE RAIL, REAR RH | ||||
| 51143-37040 |
XZU32#..DM7,DM8 |
1 | ||
| 51143 - REINFORCEMENT, SIDE RAIL, REAR RH | ||||
| 51143-37040 |
XZU32#..DM7,DM8 |
1 | ||
| 51144B - REINFORCEMENT, SIDE RAIL, REAR LH | ||||
| 51143-37040 |
XZU32#..DM7,DM8 |
1 | ||
| 51144B - REINFORCEMENT, SIDE RAIL, REAR LH | ||||
| 51143-37040 |
XZU32#..DM7,DM8 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37101 |
XZU31#,32#,351,352 |
1 | ||
| 51211-37100 |
XZU31#,32#,351,352 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37101 |
XZU31#,32#,351,352 |
1 | ||
| 51211-37100 |
XZU31#,32#,351,352 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51221-37120 |
XZU31#,32#,351,352 |
1 | ||
| 51221-37060 |
XZU31#,32#,351,352 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51221-37120 |
XZU31#,32#,351,352 |
1 | ||
| 51221-37060 |
XZU31#,32#,351,352 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51241-37030 |
XZU32# |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51241-37030 |
XZU32# |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51241-37030 |
XZU32# |
1 | ||
| 51241-37030 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
2 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51241-37030 |
XZU32# |
1 | ||
| 51241-37030 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
2 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51241-37030 |
XZU32# |
1 | ||
| 51321B - GUSSET, CROSSMEMBER, NO.2 | ||||
| 51321-37040 |
XZU31#,32#,351,352 |
1 | ||
| 51321B - GUSSET, CROSSMEMBER, NO.2 | ||||
| 51321-37040 |
XZU31#,32#,351,352 |
1 | ||
| 51325 - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37021 |
XZU31#,32#,351,352 |
2 | ||
| 51325-37020 |
XZU31#,32#,351,352 |
2 | ||
| 51325 - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37021 |
XZU31#,32#,351,352 |
2 | ||
| 51325-37020 |
XZU31#,32#,351,352 |
2 | ||
| 51325 - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37021 |
XZU31#,32#,351,352 |
2 | ||
| 51325-37020 |
XZU31#,32#,351,352 |
2 | ||
| 51325 - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37021 |
XZU31#,32#,351,352 |
2 | ||
| 51325-37020 |
XZU31#,32#,351,352 |
2 | ||
| 51325A - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37040 |
XZU31#,32#,351,352 |
2 | ||
| 51325A - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37040 |
XZU31#,32#,351,352 |
2 | ||
| 51349A - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 | ||||
| 51349-37012 |
XZU32#,351,352..DM2,DM7,DM8,T5 |
2 | ||
| 51349A - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 | ||||
| 51349-37012 |
XZU32#,351,352..DM2,DM7,DM8,T5 |
2 | ||
| 51357 - REINFORCEMENT, REAR SPRING REAR BRACKET, RH | ||||
| 51357-37020 |
XZU31#,32# |
2 | ||
| 51357 - REINFORCEMENT, REAR SPRING REAR BRACKET, RH | ||||
| 51357-37020 |
XZU31#,32# |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37100 |
XZU31#,32#,351,352 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37100 |
XZU31#,32#,351,352 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37080 |
XZU31#,32#,351,352 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37080 |
XZU31#,32#,351,352 |
1 | ||
| 51428 - REINFORCE, ENGINE MOUNTING, REAR | ||||
| 51428-37010 |
XZU32# |
1 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-37020 |
XZU32# |
2 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-37020 |
XZU32# |
2 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-37020 |
XZU32# |
2 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-37020 |
XZU32# |
2 | ||
| 51431C - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-37040 |
XZU32# |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37090 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37090 |
XZU322..T5..5F;XZU322..DM7,DM8;XZU321..DM7..4NO |
1 | ||
| 53211E - SUPPORT, RADIATOR | ||||
| 53211-37030 |
XZU31#,32#,351,352 |
1 | ||
| 53211E - SUPPORT, RADIATOR | ||||
| 53211-37030 |
XZU31#,32#,351,352 |
1 | ||
| 65289A - SUPPORT, VESSEL HINGE | ||||
| 65289-37010 |
XZU31#,32#,351,352..DM2,DM5,DM7,DM8 |
2 | ||
| 65289A - SUPPORT, VESSEL HINGE | ||||
| 65289-37010 |
XZU31#,32#,351,352..DM2,DM5,DM7,DM8 |
2 | ||
| 65361A - STAY, VESSEL LOCK, RH | ||||
| 65361-37010 |
XZU32#..DM7,DM8 |
1 | ||
| 65361-37011 |
XZU32#..DM7,DM8 |
1 | ||
| 65362A - STAY, VESSEL LOCK, LH | ||||
| 65362-37010 |
XZU32#..DM7,DM8 |
1 | ||
| 65362-37011 |
XZU32#..DM7,DM8 |
1 | ||
| Common parts | ||||
| 90119-12377 | ||||
| 91642-81245 | ||||
| 94130-01202 | ||||
| 94150-81000 | ||||
| 94622-11200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
