XZU321D-TMMMS (1999)
Toyota Dyna/Toyoace

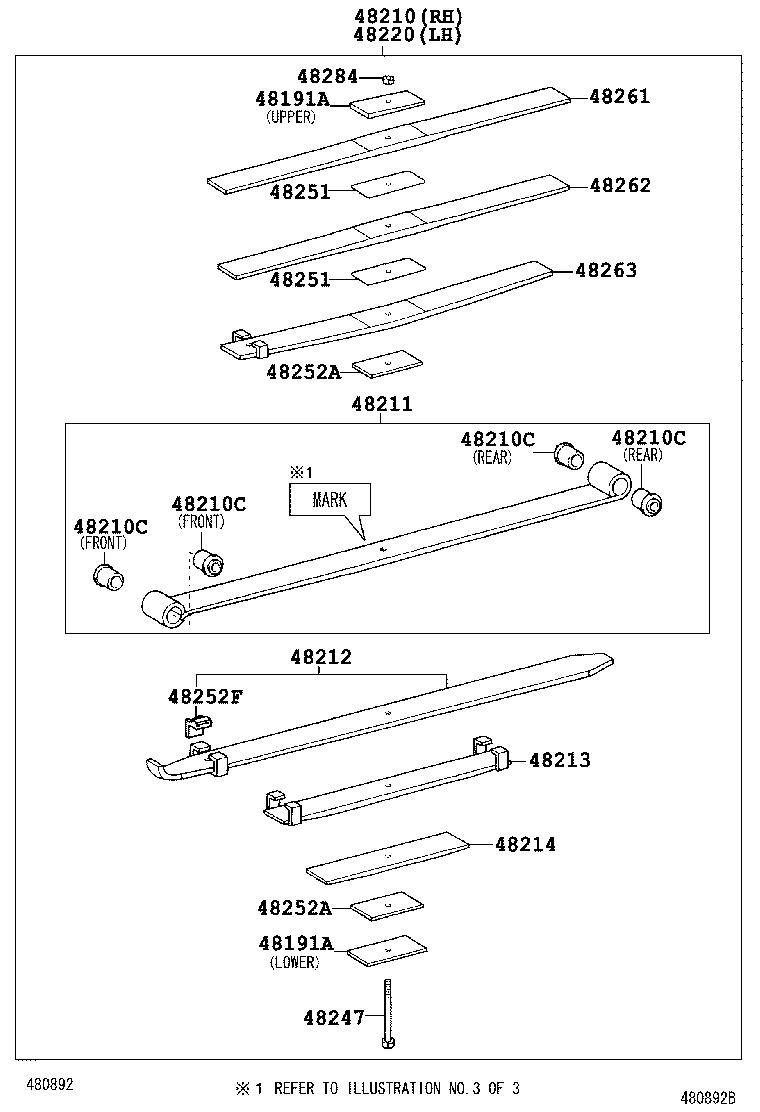

ILLUST NO. 2 OF 3(9905-0406)DM7,DM8..4NO ; (0406- )XZU321..20T
MAIN 4+HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37020 |
XZU32#..DM7,DM8 下側 |
2 | ||
| 48192-37040 |
XZU32#..DM7,DM8 上側 |
2 | ||
| 48192-37040 |
XZU321..20T 上側 |
2 | ||
| 48192-37020 |
XZU321..20T 下側 |
2 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37020 |
XZU32#..DM7,DM8 下側 |
2 | ||
| 48192-37040 |
XZU32#..DM7,DM8 上側 |
2 | ||
| 48192-37040 |
XZU321..20T 上側 |
2 | ||
| 48192-37020 |
XZU321..20T 下側 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37820 |
XZU321,322..(DM7,DM8)..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,MARK=R-37820:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37780 |
XZU321,322..(DM7,DM8)..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37780 |
XZU321..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU304..IV7..4NO;XZU301,304..T5..ST;XZU301..DM3..20T..CBU;XZU301..30T..CBU..4NO;XZU308..SCB..T4..5F..IV3;XZU301..(T4,T5)..30T..IV3;BZU300,XZU31#,321..CNG,DCRL,DSL,DSLL;XZU304,306..SCB..T4..(DCRL,DSL)..IV3;BZU300,RZU300,XZU304,368..(T4,T5)..30T;RZU301,XZU301,305..(DM3,DM6,T4)..20T..(IV3,IV6);BZU300,RZU300,XZU304..(DM5,DM6,T1)..(DCRL,DSL,DSLL,EFI,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU304..IV7..4NO;XZU301,304..T5..ST;XZU301..DM3..20T..CBU;XZU301..30T..CBU..4NO;XZU308..SCB..T4..5F..IV3;XZU301..(T4,T5)..30T..IV3;BZU300,XZU31#,321..CNG,DCRL,DSL,DSLL;XZU304,306..SCB..T4..(DCRL,DSL)..IV3;BZU300,RZU300,XZU304,368..(T4,T5)..30T;RZU301,XZU301,305..(DM3,DM6,T4)..20T..(IV3,IV6);BZU300,RZU300,XZU304..(DM5,DM6,T1)..(DCRL,DSL,DSLL,EFI,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU304..IV7..4NO;XZU301,304..T5..ST;XZU301..DM3..20T..CBU;XZU301..30T..CBU..4NO;XZU308..SCB..T4..5F..IV3;XZU301..(T4,T5)..30T..IV3;BZU300,XZU31#,321..CNG,DCRL,DSL,DSLL;XZU304,306..SCB..T4..(DCRL,DSL)..IV3;BZU300,RZU300,XZU304,368..(T4,T5)..30T;RZU301,XZU301,305..(DM3,DM6,T4)..20T..(IV3,IV6);BZU300,RZU300,XZU304..(DM5,DM6,T1)..(DCRL,DSL,DSLL,EFI,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU304..IV7..4NO;XZU301,304..T5..ST;XZU301..DM3..20T..CBU;XZU301..30T..CBU..4NO;XZU308..SCB..T4..5F..IV3;XZU301..(T4,T5)..30T..IV3;BZU300,XZU31#,321..CNG,DCRL,DSL,DSLL;XZU304,306..SCB..T4..(DCRL,DSL)..IV3;BZU300,RZU300,XZU304,368..(T4,T5)..30T;RZU301,XZU301,305..(DM3,DM6,T4)..20T..(IV3,IV6);BZU300,RZU300,XZU304..(DM5,DM6,T1)..(DCRL,DSL,DSLL,EFI,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37820 |
XZU321,322..(DM7,DM8)..20T MARK=R-37820:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37780 |
XZU321,322..(DM7,DM8)..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37780 |
XZU321..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37780 |
XZU321..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-37820 |
XZU321,322..(DM7,DM8)..20T MARK=R-37820:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-37780 |
XZU321,322..(DM7,DM8)..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-37820 |
XZU321,322..(DM7,DM8)..20T MARK=R-37820:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48203-37780 |
XZU321,322..(DM7,DM8)..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48203-37780 |
XZU321..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37820 |
XZU321,322..(DM7,DM8)..20T MARK=R-37820:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48214-37780 |
XZU321,322..(DM7,DM8)..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48214-37780 |
XZU321..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37820 |
XZU321,322..(DM7,DM8)..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,MARK=R-37820:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37780 |
XZU321,322..(DM7,DM8)..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37780 |
XZU321..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37780 |
XZU32#..DM7,DM8 |
2 | ||
| 48247-37780 |
XZU321 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
BZU300,XZU32#..DM6,DM7,DM8;BU346,BZU340,RZU340,XZU341,342,346,347,362,372,382..(DM5,T2,T3,T4)..20T |
4 | ||
| 48251-36530 |
XZU368;BZU340,RZU340,XZU34#,378,388..20T;BZU300,XZU30#,321..03S,06S,DM6,DM7 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
BZU300,XZU32#..DM6,DM7,DM8;BU346,BZU340,RZU340,XZU341,342,346,347,362,372,382..(DM5,T2,T3,T4)..20T |
4 | ||
| 48251-36530 |
XZU368;BZU340,RZU340,XZU34#,378,388..20T;BZU300,XZU30#,321..03S,06S,DM6,DM7 |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48214-3B070 |
XZU321..20T |
4 | ||
| 48214-3B070 |
XZU321,322..(DM7,DM8)..20T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48214-3B070 |
XZU321..20T |
4 | ||
| 48214-3B070 |
XZU321,322..(DM7,DM8)..20T |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU301..T4..IV6;XZU321,322..(DM7,DM8)..4NO |
4 | ||
| 48252-37380 |
XZU321 |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48215-37820 |
XZU321,322..(DM7,DM8)..20T MARK=R-37820:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48215-37780 |
XZU321,322..(DM7,DM8)..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48215-37780 |
XZU321..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48216-37820 |
XZU321,322..(DM7,DM8)..20T MARK=R-37820:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48216-37780 |
XZU321,322..(DM7,DM8)..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48216-37780 |
XZU321..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-37780 |
XZU321,322..(DM7,DM8)..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37820 |
XZU321,322..(DM7,DM8)..20T MARK=R-37820:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37780 |
XZU321..20T MARK=R-37780:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=130:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
XZU301,304..ST;BZU340,RZU340,XZU321,34#,378,388..20T |
2 | ||
| 48299-27620 |
XZU32# |
2 | ||
| 48284-37130 |
XZU320,321..1NO;XZU321,322..20T |
2 | ||

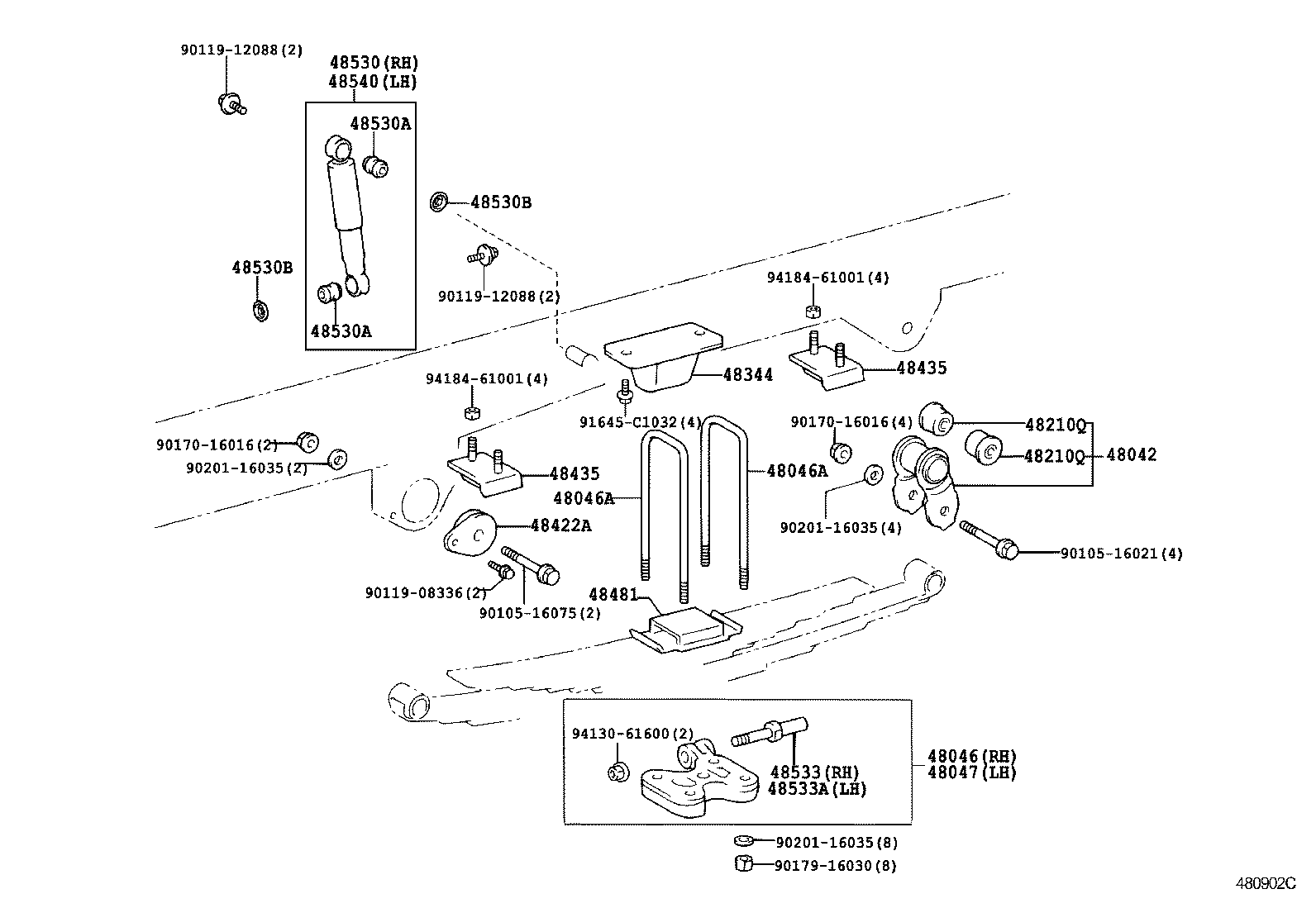

ILLUST NO. 1 OF 3(9905-0406)XZU32# ; (0406- )XZU321
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37140 |
XZU32#..DM7,DM8 |
1 | ||
| 48046-37140 |
XZU321 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU32#..DM7,DM8 長さ=320 |
4 | ||
| 90117-16040 |
XZU321 長さ=320 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU32#..DM7,DM8 長さ=320 |
4 | ||
| 90117-16040 |
XZU321 長さ=320 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37140 |
XZU32#..DM7,DM8 |
1 | ||
| 48047-37140 |
XZU321 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37230 |
XZU32# |
2 | ||
| 48344-37230 |
XZU321 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37010 |
XZU32#..DM7,DM8 |
4 | ||
| 48435-37010 |
XZU321 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37010 |
XZU32#..DM7,DM8 |
4 | ||
| 48435-37010 |
XZU321 |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37060 |
XZU32#..DM7,DM8 |
2 | ||
| 48481-37060 |
XZU321 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80674 |
XZU32# ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80674 |
XZU321 ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80746 |
XZU321 ﾏｰｸ 48531−37230 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80674 |
XZU32# ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80674 |
XZU321 ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80746 |
XZU321 ﾏｰｸ 48531−37230 |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91645-C1032 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
ILLUST NO. 1 OF 3(9905-0406)XZU341..LPG ; (9905-0406)XZU302..CNG,DSL ; (9905-0406)RZU300,XZU300,301,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37140 |
XZU32#..DM7,DM8 |
1 | ||
| 48046-37140 |
XZU32#..DM7,DM8 |
1 | ||
| 48046-37140 |
XZU321 |
1 | ||
| 48046-37140 |
XZU321 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU32#..DM7,DM8 長さ=320 |
4 | ||
| 90117-16040 |
XZU32#..DM7,DM8 長さ=320 |
4 | ||
| 90117-16040 |
XZU321 長さ=320 |
4 | ||
| 90117-16040 |
XZU321 長さ=320 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU32#..DM7,DM8 長さ=320 |
4 | ||
| 90117-16040 |
XZU32#..DM7,DM8 長さ=320 |
4 | ||
| 90117-16040 |
XZU321 長さ=320 |
4 | ||
| 90117-16040 |
XZU321 長さ=320 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37140 |
XZU32#..DM7,DM8 |
1 | ||
| 48047-37140 |
XZU32#..DM7,DM8 |
1 | ||
| 48047-37140 |
XZU321 |
1 | ||
| 48047-37140 |
XZU321 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37230 |
XZU32# |
2 | ||
| 48344-37230 |
XZU32# |
2 | ||
| 48344-37230 |
XZU321 |
2 | ||
| 48344-37230 |
XZU321 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37230 |
XZU32# |
2 | ||
| 48344-37230 |
XZU32# |
2 | ||
| 48344-37230 |
XZU321 |
2 | ||
| 48344-37230 |
XZU321 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80674 |
XZU32# ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80674 |
XZU32# ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80674 |
XZU321 ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80674 |
XZU321 ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80746 |
XZU321 ﾏｰｸ 48531−37230 |
1 | ||
| 48531-80746 |
XZU321 ﾏｰｸ 48531−37230 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80674 |
XZU32# ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80674 |
XZU32# ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80674 |
XZU321 ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80674 |
XZU321 ﾏｰｸ 48531−37030 |
1 | ||
| 48531-80746 |
XZU321 ﾏｰｸ 48531−37230 |
1 | ||
| 48531-80746 |
XZU321 ﾏｰｸ 48531−37230 |
1 | ||
| Common parts | ||||
| 90101-20001 | ||||
| 90101-20002 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90179-20007 | ||||
| 90201-16035 | ||||
| 91645-C1032 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
| 94622-42000 | ||||
ILLUST NO. 3 OF 3(9905- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0206-0406)BU410,420,BZU410,XZU402,410,412,414,421..T4,T5..20T..IV3 ; (0406-0610)XZ
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0406-0610)XZU413,414,421,424..20T..IV3 ; (0406-0610)XZU401,411,423..T4..20T..IV3 ;
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU401,410,411,412,42#..30T,35T..IV3 ; (0406-0705)X
MAIN 2+HELPER 2-LEAF,TYPE:B
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0406-0610)XZU40#,411,413,414,42#,433..T4..30T,35T ; (0406-0705)BZU410..30T ; (0610
MAIN 2+HEALPER 2-LEAF,TYPE:A
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0406-0505)XZU414..40T..IV3 ; (0406-0610)XZU414..40T..CBU ; (0406-0610)XZU413,423,4
MAIN 2+HELPER 3-LEAF ｷﾖｳｶ
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
