3602 - POWER TAKE-OFF CASE & GEAR

XZU314D-TWMQL3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

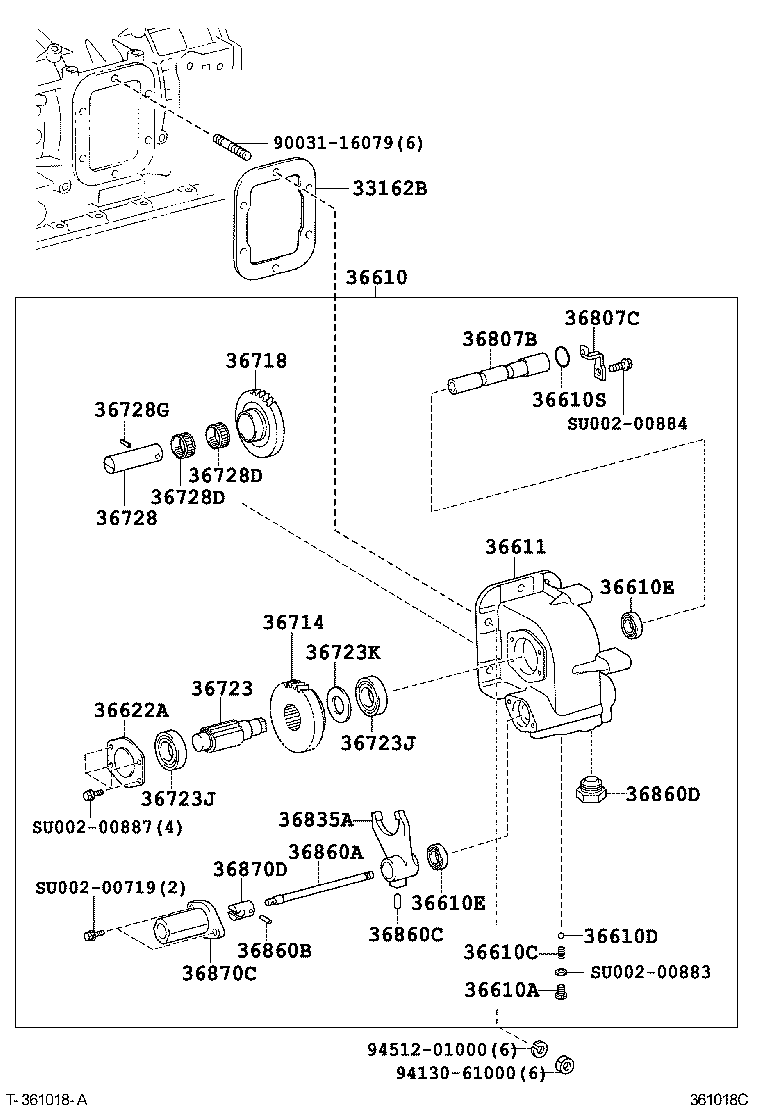

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU302..DM3,T3;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..T5..DSLL;XZU301,341..CNG,LPG;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);BZU300,XZU362..DM5,DM6,DM7,T3;XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,RZU301,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36610 - POWER TAKE-OFF ASSY
36610-37080	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F ﾄﾗﾝｽﾐｯｼｮﾝﾀｲﾌﾟ = H350	05/1999 - 06/2002	1
36610-37240	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F ﾄﾗﾝｽﾐﾂｼﾖﾝﾀｲﾌﾟ=MYY5A	06/2004 - 09/2005	1
36610-37241	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F ﾄﾗﾝｽﾐﾂｼﾖﾝﾀｲﾌﾟ=MYY5A	10/2005 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37050	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36631-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-37010	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37120	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
SU002-00764	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36718 - GEAR, POWER TAKE-OFF IDLER
SU002-00765	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36718-37070	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37060	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
SU002-00832	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
97100-06205	XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F	05/1999 - 06/2002	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
97100-06205	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
SU002-00741	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
SU002-00741	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU302..DM3,T3;XZU301..CNG,LPG;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
SU002-00850	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
SU002-00728	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
SU002-00728	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
SU002-00725	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2	05/1999 - 06/2004	1
90564-25002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1	05/1999 - 06/2004	1
90564-25001	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05	05/1999 - 06/2004	1
90564-25004	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5	05/1999 - 06/2004	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90562-43002	XZU312..DCB;XZU321..DM7..5F..4NO;XZU31#..30T..DSL..4NO;XZU301,302,322,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F..DSL 厚さ=6.4	05/1999 - 06/2004	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-37020	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37040	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.1	05/1999 - 06/2002	1
36814-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.2	05/1999 - 06/2002	1
Common parts
84210-12040
90031-19132
90031-70107
90033-87011
90101-08156
90119-08124
90119-10372
90179-14066
90201-08091
90201-15011
90407-51002
90501-29040
92132-81025
94130-61000
94512-01000
94531-01400

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ15KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU302..DM3,T3;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..T5..DSLL;XZU301,341..CNG,LPG;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);BZU300,XZU362..DM5,DM6,DM7,T3;XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,RZU301,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36610 - POWER TAKE-OFF ASSY
36610-37080	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F ﾄﾗﾝｽﾐｯｼｮﾝﾀｲﾌﾟ = H350	05/1999 - 06/2002	1
36610-37240	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F ﾄﾗﾝｽﾐﾂｼﾖﾝﾀｲﾌﾟ=MYY5A	06/2004 - 09/2005	1
36610-37241	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F ﾄﾗﾝｽﾐﾂｼﾖﾝﾀｲﾌﾟ=MYY5A	10/2005 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37050	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36631-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-37010	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37120	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
SU002-00764	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36718 - GEAR, POWER TAKE-OFF IDLER
SU002-00765	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36718-37070	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37060	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
SU002-00832	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
97100-06205	XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F	05/1999 - 06/2002	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
97100-06205	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
SU002-00741	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
SU002-00741	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00834	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU302..DM3,T3;XZU301..CNG,LPG;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
SU002-00850	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
SU002-00728	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
SU002-00728	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
SU002-00725	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2	05/1999 - 06/2004	1
90564-25002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1	05/1999 - 06/2004	1
90564-25001	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05	05/1999 - 06/2004	1
90564-25004	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5	05/1999 - 06/2004	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90562-43002	XZU312..DCB;XZU321..DM7..5F..4NO;XZU31#..30T..DSL..4NO;XZU301,302,322,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F..DSL 厚さ=6.4	05/1999 - 06/2004	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-37020	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37040	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.1	05/1999 - 06/2002	1
36814-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.2	05/1999 - 06/2002	1
Common parts
82716-37480
90031-70107
90032-01147
90101-08156
90116-10103
90119-08124
90179-14066
90201-08091
90201-15011
90214-14001
90389-25003
90407-51002
90501-29040
94130-61000
94512-01000
94531-01400
Linked diagrams
8413

(0406- )XZU31#,321,35#,368..DM2,DM5,DM7..5F

Click highlighted areas on diagram

ﾎﾟﾝﾌﾟﾁｮｸﾂﾞｹﾀｲﾌﾟ10KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
36610 - POWER TAKE-OFF ASSY
36610-37080	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F ﾄﾗﾝｽﾐｯｼｮﾝﾀｲﾌﾟ = H350	05/1999 - 06/2002	1
36610-37240	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F ﾄﾗﾝｽﾐﾂｼﾖﾝﾀｲﾌﾟ=MYY5A	06/2004 - 09/2005	1
36610-37241	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F ﾄﾗﾝｽﾐﾂｼﾖﾝﾀｲﾌﾟ=MYY5A	10/2005 - 10/2006	1
36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF)
SU002-00877	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	10/2005 - 10/2006	1
SU002-00786	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2005	1
36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
SU002-00746	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
SU002-00729	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20010	XZU321..DM8;XZU301..T4..IV6;XZU321..5F..1NO;XZU306..T4..5F..CBU;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
SU002-00775	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20010	XZU321..DM8;XZU301..T4..IV6;XZU321..5F..1NO;XZU306..T4..5F..CBU;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
SU002-00775	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36610S - RING, O (FOR POWER TAKE-OFF)
SU002-00860	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36611 - CASE, POWER TAKE-OFF
SU002-00763	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36622A - COVER, POWER TAKE-OFF
SU002-00880	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	10/2005 - 10/2006	1
SU002-00830	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2005	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37120	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
SU002-00764	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36718 - GEAR, POWER TAKE-OFF IDLER
SU002-00765	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36718-37070	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37060	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
SU002-00832	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
SU002-00741	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
SU002-00741	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00834	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU302..DM3,T3;XZU301..CNG,LPG;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
SU002-00850	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
SU002-00728	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
SU002-00728	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
SU002-00725	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36807B - ROD SUB-ASSY, POWER TAKE-OFF SHIFT
SU002-00836	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36807C - BRACKET, POWER TAKE-OFF SHIFT ROD
SU002-00797	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2005	1
SU002-00879	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	10/2005 - 10/2006	1
36835A - ARM, POWER TAKE-OFF SHIFT
SU002-00778	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36860A - ROD, POWER TAKE-OFF INNER
SU002-00881	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	10/2005 - 10/2006	1
SU002-00835	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2005	1
36860B - PIN, SPRING (FOR POWER TAKE-OFF INNER ROD)
SU002-00726	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36860C - PIN, INTER LOCK (FOR POWER TAKE-OFF INNER ROD)
SU002-00738	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36860D - PLUG, INTER LOCK (FOR POWER TAKE-OFF INNER ROD)
SU002-00787	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2005	1
SU002-00878	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	10/2005 - 10/2006	1
36870C - COVER, POWER TAKE-OFF CONTROL CABLE
SU002-00844	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2006	1
36870D - CONNECTOR, POWER TAKE-OFF CONTROL CABLE
SU002-00882	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	10/2005 - 10/2006	1
SU002-00845	XZU31#,321,35#,368..(DM2,DM5,DM7)..5F	06/2004 - 10/2005	1
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00883
SU002-00884
SU002-00887

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ20KG

Part #	Description	Period	Qty	Price
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00731
SU002-00737
SU002-00786
SU002-00861
SU002-00863

XZU314D-TWMQL3 (2004)

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU

(0406- )XZU31#,321,35#,368..DM2,DM5,DM7..5F

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

Part Price Details
