XZU314D-TWMQD3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XZU304,314,334,344,354..DCRTK,DCRTM

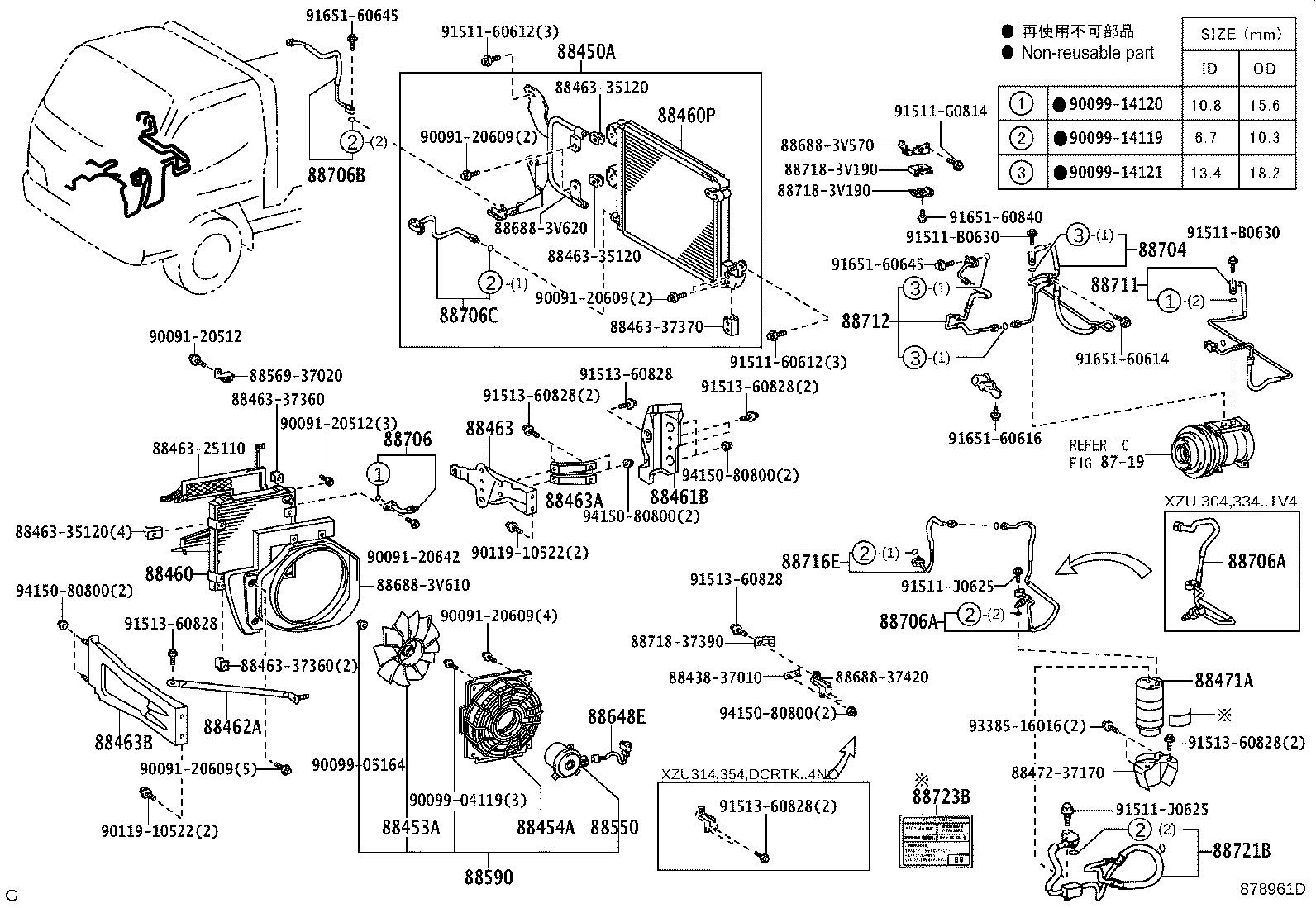

Click highlighted areas on diagram

diagram 8719 8843837010 88450A 88453A 88454A 88460 88460P 88461B 88462A 88463 8846325110 8846335120 8846335120 8846335120 8846337360 8846337360 8846337370 88463A 88463B 88471A 8847237170 88550 8856937020 88590 88648E 8868837420 886883V570 886883V610 886883V620 88704 88706 88706A 88706A 88706B 88706C 88711 88712 88716E 8871837390 887183V160 887183V190 887183V190 88721B 88721B 88723B 9009120512 9009120512 9009120609 9009120609 9009120609 9009120609 9009120642 9009904119 9009905164 9009914119 9009914120 9009914121 9011910522 9011910522 9151160612 9151160612 91511B0630 91511B0630 91511G0814 91511J0625 91511J0625 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9165160614 9165160616 9165160616 9165160645 9165160645 9165160840 9338516016 9415080800 9415080800 9415080800 9415080800
Part # Description Qty Price
88450A - SUB CONDENSER ASSY
88450-37041

XZU308,348,508..DCB,VAN;TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI

 1
88453A - FAN, COOLING
88453-37010

BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
88454A - SHROUD, FAN
88454-37031

BZU300,340,XZU304,314,334,344,354..DCRTK,DCRTM,LPG

 1
88460 - CONDENSER ASSY, COOLER
88460-37640

TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI

 1
88461B - COVER, COOLER CONDENSER
53715-37180

BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
88462A - HOLDER, CONDENSER
88462-37130

BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
88462-37110

XZU304,314,334,344,354..DCRTK

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37140

BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37150

BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37160

BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
88471A - TANK, RECEIVER
88471-34010

XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI,LPG

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060

XZU304,314,334,344,354..DCRTK,DCRTM

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37051

XZU304,314,334,344,354..DCRTK,DCRTM

 1
88648E - WIRING, COOLER
88648-37130

TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-37100

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88704-37030

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88706 - PIPE SUB-ASSY, LIQUID
88716-3V550

TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-37240

XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);XZU368,378,388,568..CBU,IV3;TRU300,340,500,XZU30#,314,334,344,354..(DCRTH,DCRTK,DCRTM,EFI)..(CBU,IV3,IV6,IV7)

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-37240

XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);XZU368,378,388,568..CBU,IV3;TRU300,340,500,XZU30#,314,334,344,354..(DCRTH,DCRTK,DCRTM,EFI)..(CBU,IV3,IV6,IV7)

 1
88706B - TUBE SUB-ASSY, LIQUID, B
88706-37171

TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI

 1
88706C - TUBE SUB-ASSY, LIQUID, C
88716-3V620

TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V060

XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V430

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-3V570

TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI

 1
88721B - HOSE, LIQUID, B
88721-3V030

XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU368,378,388,568..SCB;XZU308..DCB..(DCRTJ,DCRUE);TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI

 1
88721B - HOSE, LIQUID, B
88721-3V030

XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU368,378,388,568..SCB;XZU308..DCB..(DCRTJ,DCRUE);TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010

XZU308,348,508..DCB,VAN;BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
Common parts
88438-37010
88463-25110
88463-35120
88463-37360
88463-37370
88472-37170
88569-37020
88688-37420
88688-3V570
88688-3V610
88688-3V620
88718-37390
88718-3V160
88718-3V190
90091-20512
90091-20609
90091-20642
90099-04119
90099-05164
90099-14119
90099-14120
90099-14121
90119-10522
91511-60612
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
91651-60840
93385-16016
94150-80800
Linked diagrams
8719

(0610- )XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..DCRTH,DCRTJ,DCRUD,D

Click highlighted areas on diagram

diagram 8843837010 88461A 88463 88463A 88463B 8868837420 886883V570 88704 88710 88711 88712 8871837390 887183V160 887183V190 887183V190 88721B 88723B 9009120619 9009120619 9009120619 9009120642 9009914119 9009914120 9009914121 9151160612 9151160612 9151160612 9151160612 91511B0630 91511B0630 91511G0814 91511J0625 9151360828 9151360828 9165160614 9165160616 9165160645 9165160840 9165160840 9338515010 9415010801 9415080600
Part # Description Qty Price
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37140

BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37150

BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37160

BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-37100

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88704-37030

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V060

XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V430

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88721B - HOSE, LIQUID, B
88721-3V030

XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU368,378,388,568..SCB;XZU308..DCB..(DCRTJ,DCRUE);TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010

XZU308,348,508..DCB,VAN;BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG

 1
Common parts
88438-37010
88688-37420
88688-3V570
88718-37390
88718-3V160
88718-3V190
90091-20619
90091-20642
90099-14119
90099-14120
90099-14121
91511-60612
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
91651-60840
93385-15010
94150-10801
94150-80600
