XZU314D-TWMQD3 (2006)
Toyota Dyna/Toyoace

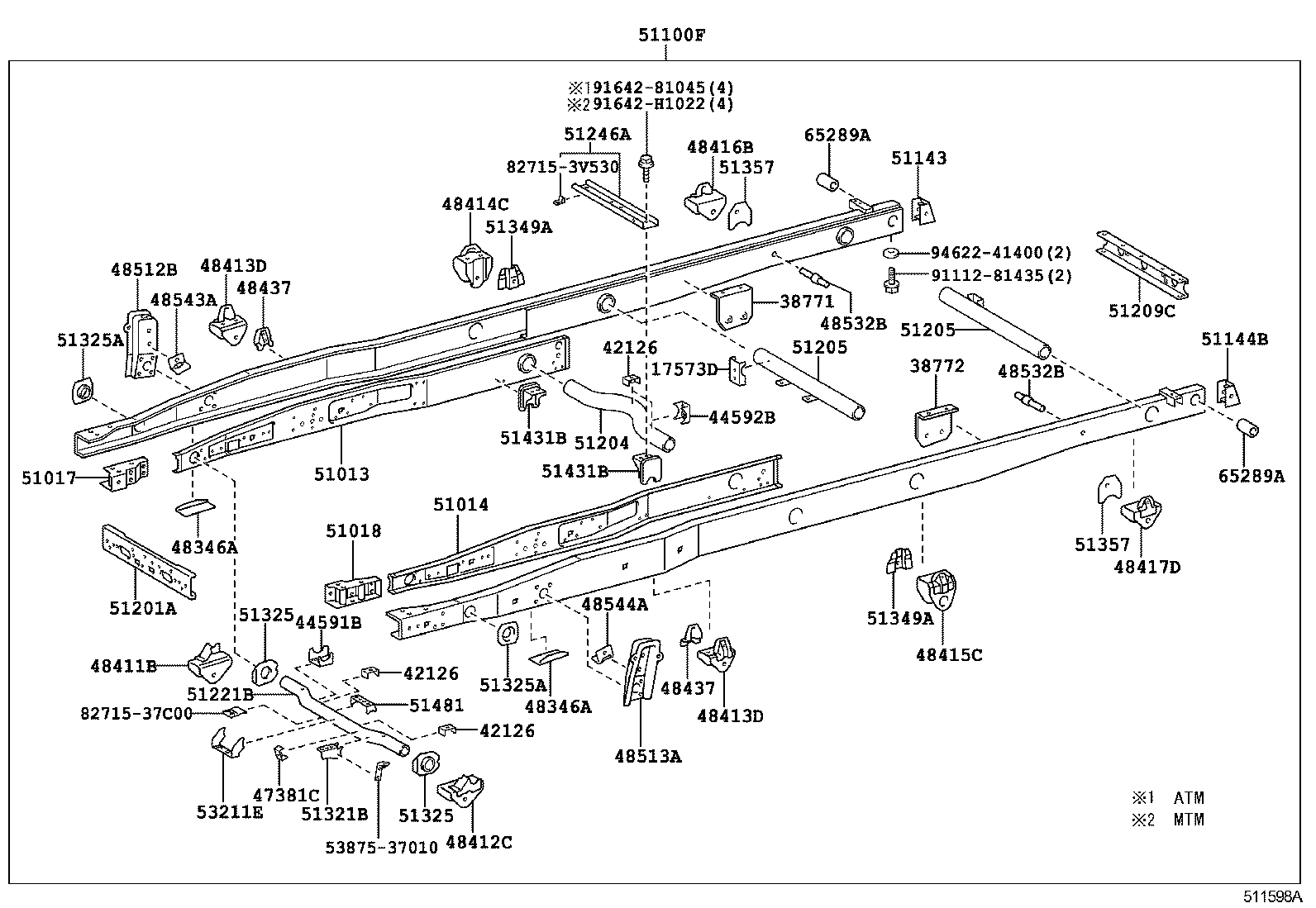

ILLUST NO. 2 OF 4(0610- )XZU314,354,554..4NO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17573D - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78030 |
N04C..XZU314,354,554..4NO |
1 | ||
| 38771 - STAY, TRUNNION BRACKET, RH | ||||
| 38771-37010 |
XZU314,324,354,524,554..4NO |
1 | ||
| 38772 - STAY, TRUNNION BRACKET, LH | ||||
| 38772-37010 |
XZU314,324,354,524,554..4NO |
1 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37020 |
XZU314,354,554..4NO ﾘﾔ |
2 | ||
| 42126-37070 |
XZU314,354,554..4NO ﾌﾛﾝﾄ |
2 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37020 |
XZU314,354,554..4NO ﾘﾔ |
2 | ||
| 42126-37070 |
XZU314,354,554..4NO ﾌﾛﾝﾄ |
2 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37020 |
XZU314,354,554..4NO ﾘﾔ |
2 | ||
| 42126-37070 |
XZU314,354,554..4NO ﾌﾛﾝﾄ |
2 | ||
| 44591B - BRACKET, BRAKE ACTUATOR | ||||
| 44591-37220 |
XZU314,324,354,524,554..4NO |
1 | ||
| 44592B - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-37060 |
XZU314,354,554..4NO |
1 | ||
| 47381C - BRACKET, TUBE CLAMP | ||||
| 47381-37310 |
XZU314,324,354,524,554..4NO |
1 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZU314,324,354,524,554..4NO |
2 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZU314,324,354,524,554..4NO |
2 | ||
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37051 |
XZU314,324,354,524,554..4NO |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37041 |
XZU314,324,354,524,554..4NO |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37050 |
XZU314,354,554..4NO |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37050 |
XZU314,354,554..4NO |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37080 |
XZU314,354,554..4NO |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37080 |
XZU314,354,554..4NO |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37070 |
XZU314,324,354,524,554..4NO |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37070 |
XZU314,324,354,524,554..4NO |
1 | ||
| 48437 - ATTACHMENT, SPRING BRACKET | ||||
| 48437-37010 |
XZU314,324,354,524,554..4NO |
2 | ||
| 48437 - ATTACHMENT, SPRING BRACKET | ||||
| 48437-37010 |
XZU314,324,354,524,554..4NO |
2 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
BZU300..T3;BZU300..T4..20T;TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 |
1 | ||
| 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT | ||||
| 48532-37010 |
XZU314,324,354,368,524,554,568..DM5,DM7 |
2 | ||
| 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT | ||||
| 48532-37010 |
XZU314,324,354,368,524,554,568..DM5,DM7 |
2 | ||
| 48543A - REINFORCEMENT, FRONT ABSORBER BRACKET, RH | ||||
| 48543-37010 |
XZU314,324,354,524,554..4NO |
1 | ||
| 48544A - REINFORCEMENT, FRONT ABSORBER BRACKET, LH | ||||
| 48543-37010 |
XZU314,324,354,524,554..4NO |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37341 |
XZU314,354,554..4NO |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37311 |
XZU314,354,554..4NO |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37050 |
XZU314,324,354,524,554..4NO |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37050 |
XZU314,324,354,524,554..4NO |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37G42 |
XZU314 |
1 | ||
| 51143 - REINFORCEMENT, SIDE RAIL, REAR RH | ||||
| 51143-37030 |
XZU314,354,368,554,568..DM5 |
1 | ||
| 51144B - REINFORCEMENT, SIDE RAIL, REAR LH | ||||
| 51143-37030 |
XZU314,354,368,554,568..DM5 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-37140 |
XZU314,324,354,524,554..4NO |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51231-37060 |
XZU314,354,554..4NO |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37090 |
XZU314,354,554..4NO ﾘﾔ |
1 | ||
| 51241-37030 |
XZU314,324,354,524,554..4NO ﾌﾛﾝﾄ |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37090 |
XZU314,354,554..4NO ﾘﾔ |
1 | ||
| 51241-37030 |
XZU314,324,354,524,554..4NO ﾌﾛﾝﾄ |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37160 |
XZU314,354,554..4NO |
1 | ||
| 51221B - CROSSMEMBER, FRONT SUSPENSION | ||||
| 51221-37161 |
XZU314,324,354,524,554..4NO |
1 | ||
| 51246A - MEMBER, ENGINE REAR SUPPORT | ||||
| 51022-37010 |
XZU314,354,554..MTM..4NO |
1 | ||
| 51321B - GUSSET, CROSSMEMBER, NO.2 | ||||
| 51321-37080 |
XZU314,324,354,524,554..4NO |
1 | ||
| 51325 - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37021 |
XZU314,324,354,524,554..4NO |
2 | ||
| 51325 - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37021 |
XZU314,324,354,524,554..4NO |
2 | ||
| 51325A - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37040 |
XZU314,324,354,524,554..4NO |
2 | ||
| 51325A - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37040 |
XZU314,324,354,524,554..4NO |
2 | ||
| 51349A - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 | ||||
| 51349-37022 |
XZU314,354,554..4NO |
2 | ||
| 51349A - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 | ||||
| 51349-37022 |
XZU314,354,554..4NO |
2 | ||
| 51357 - REINFORCEMENT, REAR SPRING REAR BRACKET, RH | ||||
| 51357-37020 |
XZU314,324,524 |
2 | ||
| 51357 - REINFORCEMENT, REAR SPRING REAR BRACKET, RH | ||||
| 51357-37020 |
XZU314,324,524 |
2 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-37030 |
XZU314,354,554..4NO |
2 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-37030 |
XZU314,354,554..4NO |
2 | ||
| 51481 - BRACKET, POWER STEERING TUBE CLAMP | ||||
| 51481-37070 |
XZU314,324,354,524,554..4NO |
1 | ||
| 53211E - SUPPORT, RADIATOR | ||||
| 53211-37050 |
XZU314,324,354,524,554..4NO |
1 | ||
| 65289A - SUPPORT, VESSEL HINGE | ||||
| 65289-37010 |
XZU314,324,354,524,554..4NO |
2 | ||
| 65289A - SUPPORT, VESSEL HINGE | ||||
| 65289-37010 |
XZU314,324,354,524,554..4NO |
2 | ||
| Common parts | ||||
| 53875-37010 | ||||
| 82715-37C00 | ||||
| 82715-3V530 | ||||
| 91112-81435 | ||||
| 91642-81045 | ||||
| 91642-H1022 | ||||
| 94622-41400 | ||||
ILLUST NO. 1 OF 4(0610- )DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37G42 |
XZU314 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37081 |
XZU304..(T4,T5)..20T;XZU314,324,344,354,504,524,554..20T,30T TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37141 |
XZU304..(T4,T5)..20T;XZU314,324,344,354,504,524,554..20T,30T TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37401 |
XZU304,314,334,344,354,504,554..SCB |
1 | ||
| 51705-37402 |
XZU304,314,334,344,354,504,554..SCB |
1 | ||
| Common parts | ||||
| 90119-12377 | ||||
| 90179-12070 | ||||
| 90179-12087 | ||||
| 90467-09101 | ||||
| 91642-81245 | ||||
ILLUST NO. 4 OF 4(0610- )
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90179-08233 | ||||
