Toyota Dyna/toyoace XZU312 SPARE WHEEL CARRIER

XZU312D-TWPMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2002

Engine S05C

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0406)XZU31#,322,351,352..DM5,T5 ; (0406-0610)XZU31#,35#..DM5

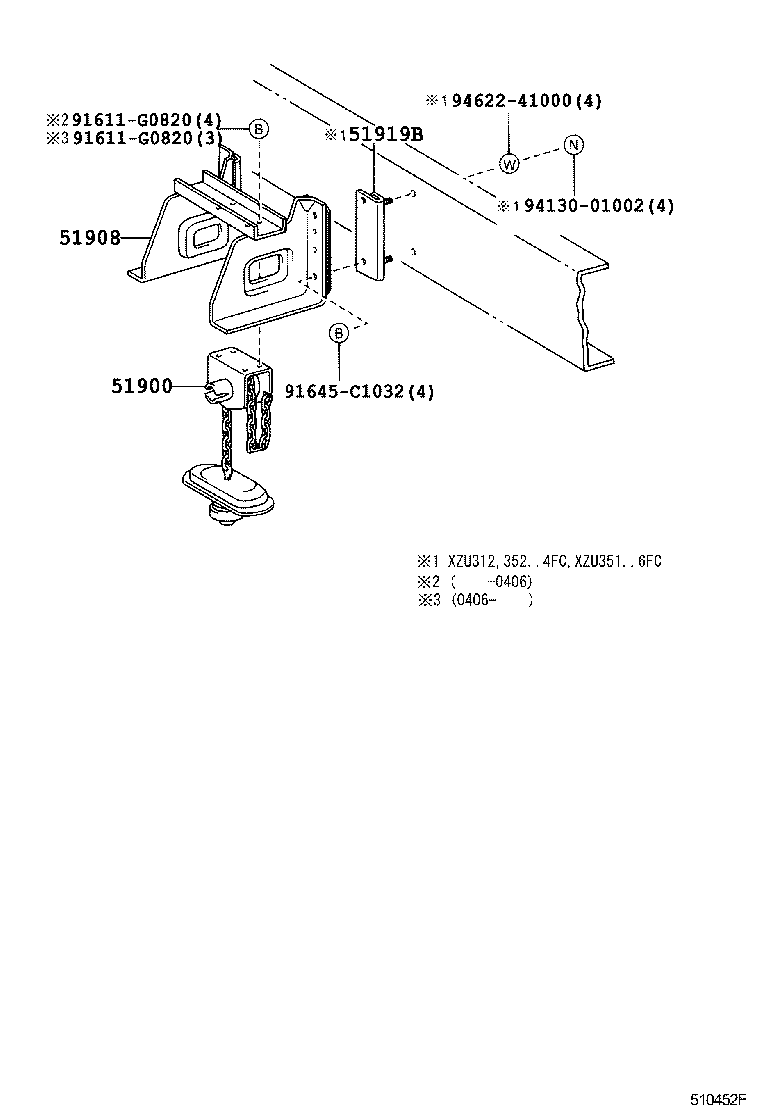

Click highlighted areas on diagram

ﾚﾌﾄ

Part #	Description	Period	Qty
51900 - CARRIER ASSY, SPARE WHEEL
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-37050	XZU312..4FC;XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU300,307,337..SCB..(T4,T5);XZU301,302..T4..DSL..(CBU,IV3)..1NO 左側	05/1999 - 06/2002	1
51908-37060	XZU312..4FC	11/2001 - 06/2002	1
51919B - SPACER, SPARE WHEEL CARRIER
51919-37010	XZU312..4FC	05/1999 - 06/2002	2
Common parts
91611-G0820
91645-C1032
94130-01002
94622-41000

(9905- )BZU300,RZU300,XZU300,301,302..T3..CBU,IV3,IV7 ; (9905- )BU30#,BZU300,

Click highlighted areas on diagram

ﾘﾔ,ｼｬﾘｮｳｺｳﾎｳｿｳｻｼﾖｳ

Part #	Description	Period	Qty
51900 - CARRIER ASSY, SPARE WHEEL
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
Common parts
91611-G0820
91645-C1032
94150-81000

(9905-0206)XZU306..T4..CBU ; (9905-0206)XZU302,307..SCB..T4..4FC..CBU ; (9905-0610)

Click highlighted areas on diagram

ﾘﾔ,ｼｬﾘｮｳｺｳﾎｳｿｳｻｼﾖｳ

Part #	Description	Period	Qty
51900 - CARRIER ASSY, SPARE WHEEL
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
Common parts
91611-G0820
91645-C1032
94150-81000

(9905-0610)RZU300,XZU331..SCB..5F,6FC..30T ; (0306-0406)BZU300..T4..LPG ; (0406-061

Click highlighted areas on diagram

ﾚﾌﾄ

Part #	Description	Period	Qty
51900 - CARRIER ASSY, SPARE WHEEL
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51900-37030	XZU307..T5;RZU300..30T;RZU301..5F..IV3;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU307..SCB..T4..CBU;XZU306..4FC..DSLL..IV3;XZU307..SCB..T4..4FC..IV3;BU306,XZU301,306,362..SCB..(DM5,DM7,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV7);BU301,BZU300,XZU300,302,31#,322,331,337,351,352,372..(DM5,T1,T3,T4,T5)..(CBU,IV3) 左側	05/1999 - 06/2004	1
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-37050	XZU312..4FC;XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU300,307,337..SCB..(T4,T5);XZU301,302..T4..DSL..(CBU,IV3)..1NO 左側	05/1999 - 06/2002	1
51908-37050	XZU312..4FC;XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU300,307,337..SCB..(T4,T5);XZU301,302..T4..DSL..(CBU,IV3)..1NO 左側	05/1999 - 06/2002	1
51908-37050	XZU312..4FC;XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU300,307,337..SCB..(T4,T5);XZU301,302..T4..DSL..(CBU,IV3)..1NO 左側	05/1999 - 06/2002	1
51908-37060	XZU312..4FC	11/2001 - 06/2002	1
51908-37060	XZU312..4FC	11/2001 - 06/2002	1
51908-37060	XZU312..4FC	11/2001 - 06/2002	1
Common parts
91611-G0820
91645-C1032
94150-81000

XZU312D-TWPMS3 (1999)

(9905-0406)XZU31#,322,351,352..DM5,T5 ; (0406-0610)XZU31#,35#..DM5

(9905- )BZU300,RZU300,XZU300,301,302..T3..CBU,IV3,IV7 ; (9905- )BU30#,BZU300,

(9905-0206)XZU306..T4..CBU ; (9905-0206)XZU302,307..SCB..T4..4FC..CBU ; (9905-0610)

(9905-0610)RZU300,XZU331..SCB..5F,6FC..30T ; (0306-0406)BZU300..T4..LPG ; (0406-061
