Toyota Dyna/toyoace XZU311 BRAKE TUBE & CLAMP

XZU311D-TWMQS3 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(9905-0406)BU30#,346,RZU30#,340,XZU300,311,320,330,340,346,352,362,372,382..MTM..DS

Click highlighted areas on diagram

ｱﾘ(LSPV)

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-37010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
04477-37010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
04477-37010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
04477-37010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-37090	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47910-37090	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47910-37090	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47910-37090	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47920 - SPRING ASSY, LOAD SENSING
47920-37010	XZU301,302,31#,351,352,362..DM2,DM3,DM5,DM7	05/1999 - 11/2000	1
47920-37010	XZU301,302,31#,351,352,362..DM2,DM3,DM5,DM7	05/1999 - 11/2000	1
47920-37010	XZU301,302,31#,351,352,362..DM2,DM3,DM5,DM7	05/1999 - 11/2000	1
47920-37010	XZU301,302,31#,351,352,362..DM2,DM3,DM5,DM7	05/1999 - 11/2000	1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90467-31110	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90467-31110	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90467-31110	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47931 - BRACKET, LOAD SENSING VALVE
47931-37010	XZU31#,32#,351,352	05/1999 - 11/2000	1
47931-37010	XZU31#,32#,351,352	05/1999 - 11/2000	1
47931-37010	XZU31#,32#,351,352	05/1999 - 11/2000	1
47931-37010	XZU31#,32#,351,352	05/1999 - 11/2000	1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-37030	XZU322;XZU301,302,31#,320,321,351,352,362..DM2,DM3,DM5,DM7,DM8	05/1999 - 11/2000	1
47933-37030	XZU322;XZU301,302,31#,320,321,351,352,362..DM2,DM3,DM5,DM7,DM8	05/1999 - 11/2000	1
47933-37030	XZU322;XZU301,302,31#,320,321,351,352,362..DM2,DM3,DM5,DM7,DM8	05/1999 - 11/2000	1
47933-37030	XZU322;XZU301,302,31#,320,321,351,352,362..DM2,DM3,DM5,DM7,DM8	05/1999 - 11/2000	1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47935-35030	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47935-35030	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47935-35030	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-26020	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47936-26020	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47936-26020	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47936-26020	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47937-60010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47937-60010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47937-60010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
Common parts
90119-08A33
90170-08016
90179-08204
90201-08062
90201-23360
91131-50840
91611-B0816
94130-00802
94612-10800

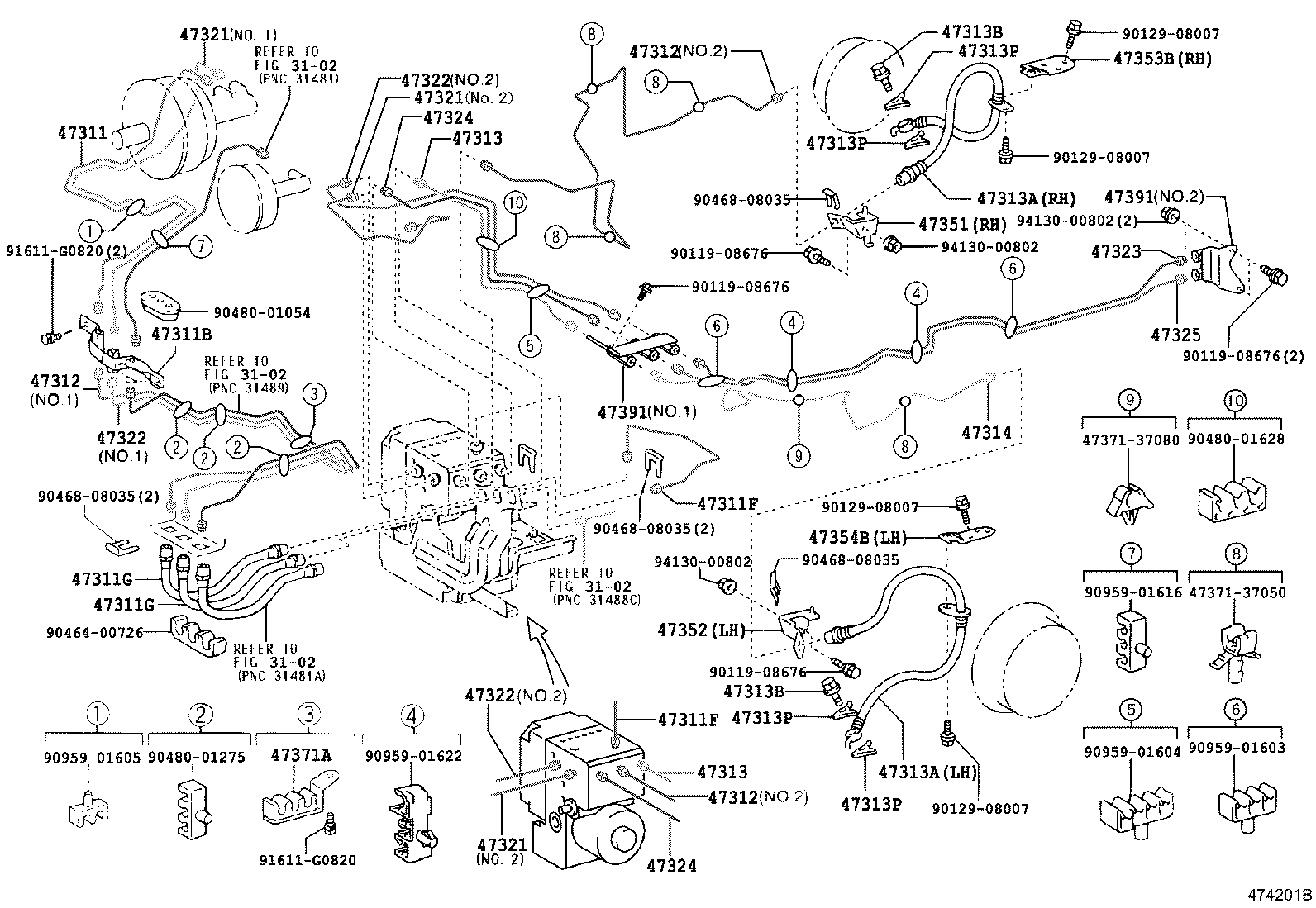

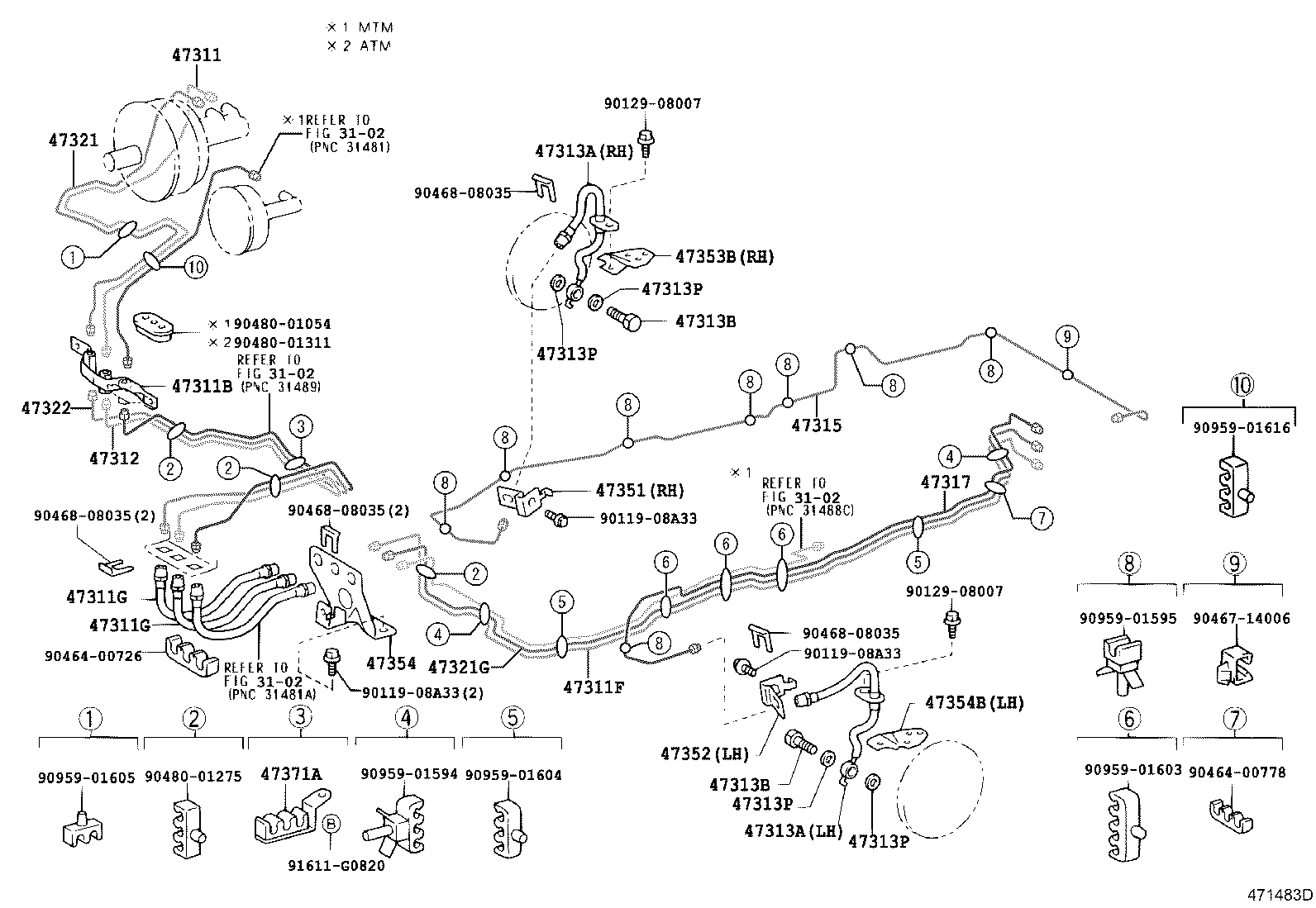

ILLUST NO. 1 OF 4(9905-0406)XZU31#,32#,351,352

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37161	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
47311-37160	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47391-37010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37240	XZU31#,351,352	05/1999 - 06/2004	1
47311-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37111	XZU31#,351,352	03/2002 - 06/2004	1
47315-37110	XZU31#,351,352	05/1999 - 03/2002	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37100	XZU31#,351,352	05/1999 - 03/2002	1
47317-37101	XZU31#,351,352	03/2002 - 06/2004	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37240	XZU31#,351,352	05/1999 - 06/2004	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-37121	XZU31#,32#,351,352	03/2002 - 06/2004	1
47351-37250	XZU31#,32#,35#	05/1999 - 06/1999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
Common parts
90119-08A33
90129-08007
90464-00726
90464-00778
90467-14006
90468-08035
90480-01054
90480-01275
90480-01311
90959-01594
90959-01595
90959-01603
90959-01604
90959-01605
90959-01616
91611-G0820
Linked diagrams
3102

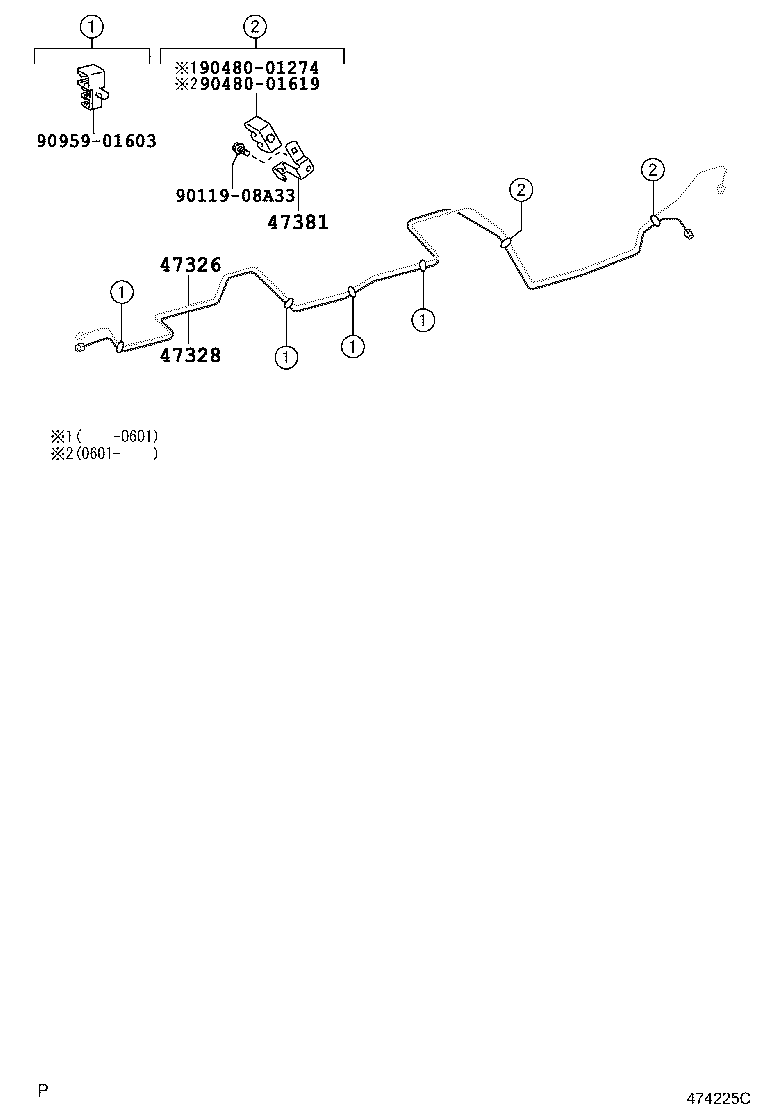

ILLUST NO. 2 OF 4(9905-0406)XZU302,306..CNG,DSL ; (9905-0406)XZU306..5F..DSLL..IV3 ; (9905-0406)XZU3

Click highlighted areas on diagram

Part #	Description	Period	Qty
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37120	XZU31#,351,352	05/1999 - 11/2000	1
47312-37120	XZU31#,351,352	05/1999 - 11/2000	1
47312-37120	XZU31#,351,352	05/1999 - 11/2000	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37120	XZU31#,351,352	05/1999 - 11/2000	1
47312-37120	XZU31#,351,352	05/1999 - 11/2000	1
47312-37120	XZU31#,351,352	05/1999 - 11/2000	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37180	XZU31#,351,352	05/1999 - 11/2000	1
47313-37180	XZU31#,351,352	05/1999 - 11/2000	1
47313-37180	XZU31#,351,352	05/1999 - 11/2000	1
47313-37400	XZU31#,351,352	11/2000 - 06/2004	1
47313-37400	XZU31#,351,352	11/2000 - 06/2004	1
47313-37400	XZU31#,351,352	11/2000 - 06/2004	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	11/2000 - 06/2002	1
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	11/2000 - 06/2002	1
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	11/2000 - 06/2002	1
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382	05/1999 - 11/2000	1
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382	05/1999 - 11/2000	1
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382	05/1999 - 11/2000	1
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6	10/2002 - 06/2003	1
90904-12076	XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6	10/2002 - 06/2003	1
90904-12076	XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6	10/2002 - 06/2003	1
90904-12076	XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)	06/2002 - 10/2002	1
90904-12076	XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)	06/2002 - 10/2002	1
90904-12076	XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)	06/2002 - 10/2002	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-37570	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T) ｱﾘ(ABS)	06/2004 - 12/2999	1
47314-37570	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T) ｱﾘ(ABS)	06/2004 - 12/2999	1
47314-37570	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T) ｱﾘ(ABS)	06/2004 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
47318 - TUBE, FRONT BRAKE, NO.8
47318-37100	XZU31#,351,352	05/1999 - 11/2000	1
47318-37100	XZU31#,351,352	05/1999 - 11/2000	1
47318-37100	XZU31#,351,352	05/1999 - 11/2000	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37100	XZU31#,351,352	05/1999 - 11/2000	1
47318-37100	XZU31#,351,352	05/1999 - 11/2000	1
47318-37100	XZU31#,351,352	05/1999 - 11/2000	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13054	XZU31#,32#,351,352	05/1999 - 11/2000	1
90904-13054	XZU31#,32#,351,352	05/1999 - 11/2000	1
90904-13054	XZU31#,32#,351,352	05/1999 - 11/2000	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37100	XZU31#,351,352	05/1999 - 11/2000	1
47323-37100	XZU31#,351,352	05/1999 - 11/2000	1
47323-37100	XZU31#,351,352	05/1999 - 11/2000	1
47323-37380	XZU31#,351,352	11/2000 - 06/2004	1
47323-37380	XZU31#,351,352	11/2000 - 06/2004	1
47323-37380	XZU31#,351,352	11/2000 - 06/2004	1
47323-37550	XZU31#,321,35#..4NO	06/2004 - 10/2006	1
47323-37550	XZU31#,321,35#..4NO	06/2004 - 10/2006	1
47323-37550	XZU31#,321,35#..4NO	06/2004 - 10/2006	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37100	XZU31#,351,352	05/1999 - 11/2000	1
47323-37100	XZU31#,351,352	05/1999 - 11/2000	1
47323-37100	XZU31#,351,352	05/1999 - 11/2000	1
47323-37380	XZU31#,351,352	11/2000 - 06/2004	1
47323-37380	XZU31#,351,352	11/2000 - 06/2004	1
47323-37380	XZU31#,351,352	11/2000 - 06/2004	1
47323-37550	XZU31#,321,35#..4NO	06/2004 - 10/2006	1
47323-37550	XZU31#,321,35#..4NO	06/2004 - 10/2006	1
47323-37550	XZU31#,321,35#..4NO	06/2004 - 10/2006	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47324-37240	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47324-37240	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37180	XZU31#,351,352	05/1999 - 11/2000	1
47325-37180	XZU31#,351,352	05/1999 - 11/2000	1
47325-37180	XZU31#,351,352	05/1999 - 11/2000	1
47325-37330	XZU31#,321,35#..4NO NO.2	06/2004 - 10/2006	1
47325-37330	XZU31#,321,35#..4NO NO.2	06/2004 - 10/2006	1
47325-37330	XZU31#,321,35#..4NO NO.2	06/2004 - 10/2006	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37210	XZU31#,351,352	11/2000 - 06/2004	1
47326-37210	XZU31#,351,352	11/2000 - 06/2004	1
47326-37210	XZU31#,351,352	11/2000 - 06/2004	1
47326-37520	XZU31#,35#..4NO NO.3	06/2004 - 10/2006	1
47326-37520	XZU31#,35#..4NO NO.3	06/2004 - 10/2006	1
47326-37520	XZU31#,35#..4NO NO.3	06/2004 - 10/2006	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37481	XZU31#,368..DM5	06/2004 - 10/2006	1
47327-37481	XZU31#,368..DM5	06/2004 - 10/2006	1
47327-37481	XZU31#,368..DM5	06/2004 - 10/2006	1
47327-37481	XZU31#..30T	06/2002 - 06/2004	1
47327-37481	XZU31#..30T	06/2002 - 06/2004	1
47327-37481	XZU31#..30T	06/2002 - 06/2004	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37060	XZU31#,351,352	11/2000 - 06/2004	1
47328-37060	XZU31#,351,352	11/2000 - 06/2004	1
47328-37060	XZU31#,351,352	11/2000 - 06/2004	1
47328-37370	XZU31#,35#..4NO NO.4	06/2004 - 10/2006	1
47328-37370	XZU31#,35#..4NO NO.4	06/2004 - 10/2006	1
47328-37370	XZU31#,35#..4NO NO.4	06/2004 - 10/2006	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37320	XZU31#,368..DM5	06/2004 - 10/2006	1
47329-37320	XZU31#,368..DM5	06/2004 - 10/2006	1
47329-37320	XZU31#,368..DM5	06/2004 - 10/2006	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37050	XZU31#,351,352	05/1999 - 06/2004	1
47353-37050	XZU31#,351,352	05/1999 - 06/2004	1
47353-37050	XZU31#,351,352	05/1999 - 06/2004	1
47353-37050	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	1
47353-37050	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	1
47353-37050	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-37070	XZU31#,35#..4NO	06/2004 - 10/2006	2
47381-37070	XZU31#,35#..4NO	06/2004 - 10/2006	2
47381-37070	XZU31#,35#..4NO	06/2004 - 10/2006	2
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37011	XZU306..T5..4FC..IV3;XZU301..T4..4FC..IV3..1NO;BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)	05/1999 - 06/2004	1
47390-37011	XZU306..T5..4FC..IV3;XZU301..T4..4FC..IV3..1NO;BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)	05/1999 - 06/2004	1
47390-37011	XZU306..T5..4FC..IV3;XZU301..T4..4FC..IV3..1NO;BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)	05/1999 - 06/2004	1
47931 - BRACKET, LOAD SENSING VALVE
47931-37010	XZU31#,32#,351,352	05/1999 - 11/2000	1
47931-37010	XZU31#,32#,351,352	05/1999 - 11/2000	1
47931-37010	XZU31#,32#,351,352	05/1999 - 11/2000	1
Common parts
90034-61046
90119-08676
90119-08A33
90464-00778
90464-00833
90467-14006
90468-08035
90480-01577
90949-01006
90949-01970
90959-01594
90959-01595
91612-B1020
91615-60816
91641-K0816
91651-60614
94130-00802

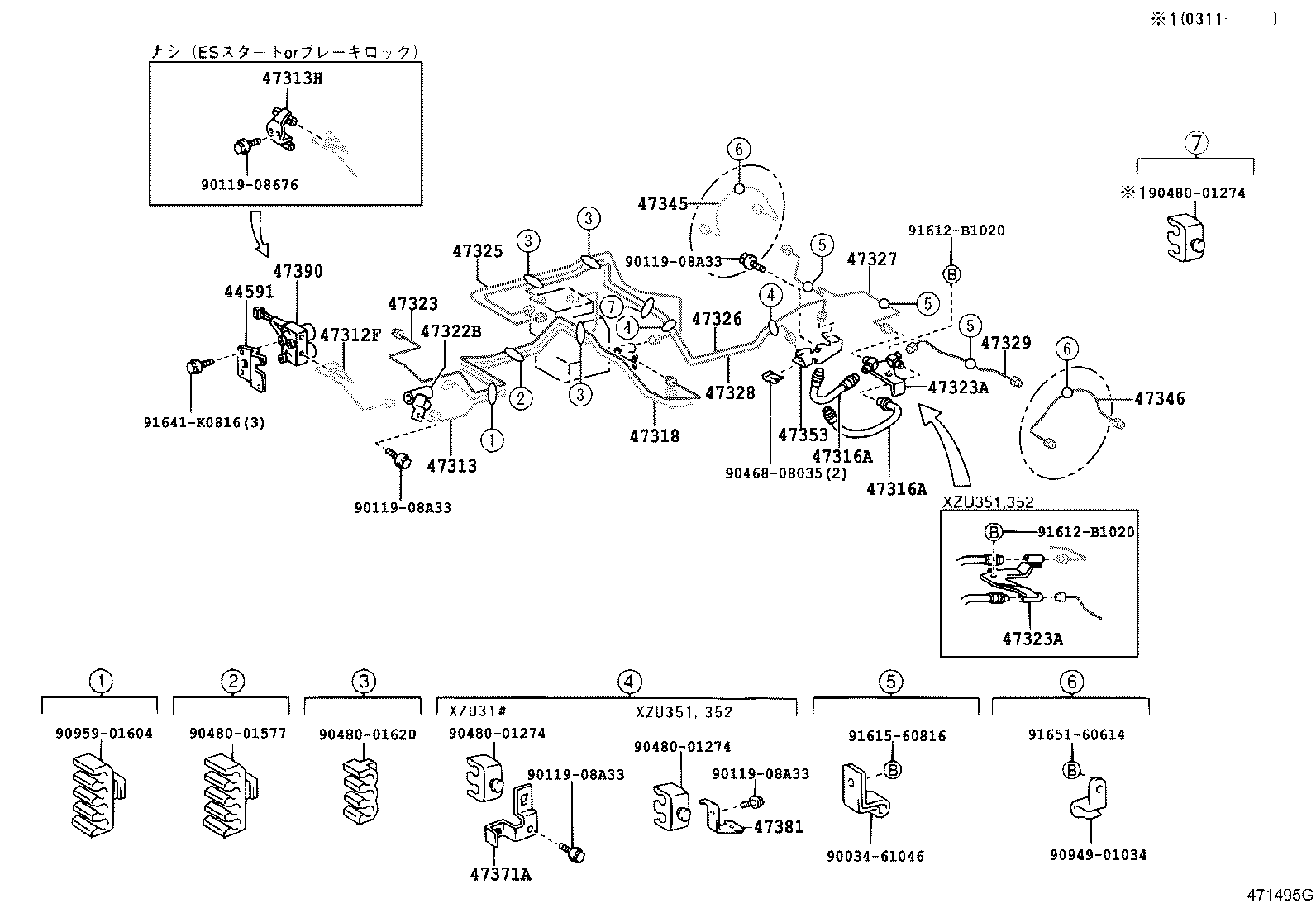

ILLUST NO. 2 OF 4(9905-0406)XZU31#,351,352

Click highlighted areas on diagram

Part #	Description	Period	Qty
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37120	XZU31#,351,352	05/1999 - 11/2000	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37180	XZU31#,351,352	05/1999 - 11/2000	1
47313-37400	XZU31#,351,352	11/2000 - 06/2004	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	11/2000 - 06/2002	1
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382	05/1999 - 11/2000	1
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6	10/2002 - 06/2003	1
90904-12076	XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)	06/2002 - 10/2002	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
47318 - TUBE, FRONT BRAKE, NO.8
47318-37100	XZU31#,351,352	05/1999 - 11/2000	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13054	XZU31#,32#,351,352	05/1999 - 11/2000	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37100	XZU31#,351,352	05/1999 - 11/2000	1
47323-37380	XZU31#,351,352	11/2000 - 06/2004	1
47323-37550	XZU31#,321,35#..4NO	06/2004 - 10/2006	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37180	XZU31#,351,352	05/1999 - 11/2000	1
47325-37330	XZU31#,321,35#..4NO NO.2	06/2004 - 10/2006	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37210	XZU31#,351,352	11/2000 - 06/2004	1
47326-37520	XZU31#,35#..4NO NO.3	06/2004 - 10/2006	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37481	XZU31#,368..DM5	06/2004 - 10/2006	1
47327-37481	XZU31#..30T	06/2002 - 06/2004	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37060	XZU31#,351,352	11/2000 - 06/2004	1
47328-37370	XZU31#,35#..4NO NO.4	06/2004 - 10/2006	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37320	XZU31#,368..DM5	06/2004 - 10/2006	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37050	XZU31#,351,352	05/1999 - 06/2004	1
47353-37050	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-37070	XZU31#,35#..4NO	06/2004 - 10/2006	2
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37011	XZU306..T5..4FC..IV3;XZU301..T4..4FC..IV3..1NO;BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)	05/1999 - 06/2004	1
Common parts
90034-61046
90119-08676
90119-08A33
90468-08035
90480-01274
90480-01577
90480-01620
90949-01034
90959-01604
91612-B1020
91615-60816
91641-K0816
91651-60614

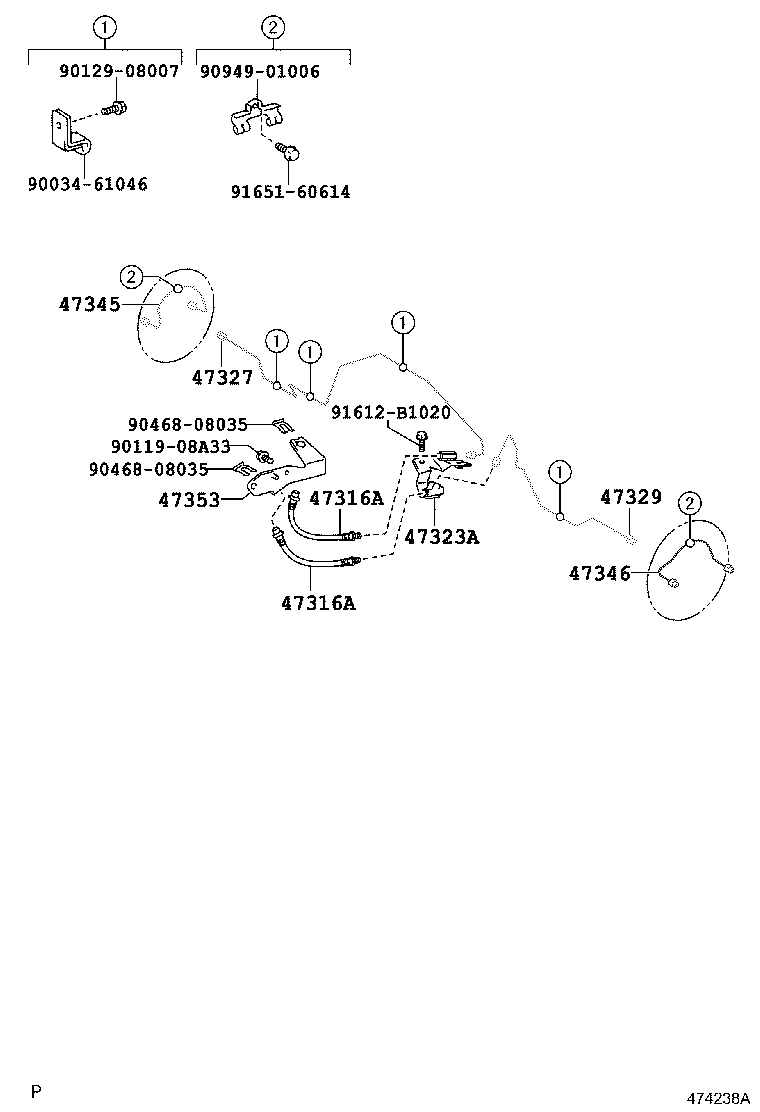

ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｱﾘ(ABS)

Part #	Description	Period	Qty
44540 - ACTUATOR ASSY, ABS & TRACTION
44540-37010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2000	1
44050-37040	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37010	XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
Common parts
90099-05277
90119-08676

ILLUST NO. 1 OF 4(0206-0406)IV6..4NO ; (0206-0406)4FC..295T..DSL; (0206-0406)XZU307..SCB..T4..5F ;

Click highlighted areas on diagram

ﾅｼ(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37161	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
47311-37160	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47391-37010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37240	XZU31#,351,352	05/1999 - 06/2004	1
47311-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37180	XZU31#,351,352	05/1999 - 11/2000	1
47313-37400	XZU31#,351,352	11/2000 - 06/2004	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37110	XZU31#,351,352	05/1999 - 03/2002	1
47315-37111	XZU31#,351,352	03/2002 - 06/2004	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37100	XZU31#,351,352	05/1999 - 03/2002	1
47317-37101	XZU31#,351,352	03/2002 - 06/2004	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37240	XZU31#,351,352	05/1999 - 06/2004	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-37121	XZU31#,32#,351,352	03/2002 - 06/2004	1
47351-37250	XZU31#,32#,35#	05/1999 - 06/1999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37280	XZU31#,321,35#,368,378,388..20T,30T NO.2	06/2004 - 10/2006	1
47391-37300	XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
Common parts
90119-08676
90119-08A33
90129-08007
90464-00531
90464-00726
90467-14006
90468-08035
90480-01054
90480-01275
90480-01621
90959-01593
90959-01594
90959-01595
90959-01602
90959-01604
90959-01605
90959-01616
91611-G0820
Linked diagrams
3102

ILLUST NO. 1 OF 5(0406- )XZU31#,321,35#..4NO

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37161	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
47311-37160	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47391-37010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37240	XZU31#,351,352	05/1999 - 06/2004	1
47311-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1	06/2004 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37240	XZU31#,351,352	05/1999 - 06/2004	1
47311-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37180	XZU31#,351,352	05/1999 - 11/2000	1
47313-37400	XZU31#,351,352	11/2000 - 06/2004	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37180	XZU31#,351,352	05/1999 - 11/2000	1
47313-37400	XZU31#,351,352	11/2000 - 06/2004	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37570	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T) ｱﾘ(ABS)	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37100	XZU31#,351,352	05/1999 - 11/2000	1
47323-37380	XZU31#,351,352	11/2000 - 06/2004	1
47323-37550	XZU31#,321,35#..4NO	06/2004 - 10/2006	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37180	XZU31#,351,352	05/1999 - 11/2000	1
47325-37330	XZU31#,321,35#..4NO NO.2	06/2004 - 10/2006	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37280	XZU31#,321,35#,368,378,388..20T,30T NO.2	06/2004 - 10/2006	1
47391-37300	XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37280	XZU31#,321,35#,368,378,388..20T,30T NO.2	06/2004 - 10/2006	1
47391-37300	XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
Common parts
47371-37050
47371-37080
90119-08676
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90480-01628
90959-01603
90959-01604
90959-01605
90959-01616
90959-01622
91611-G0820
94130-00802
Linked diagrams
3102

ILLUST NO. 2 OF 5(0406- )XZU31#,35#..4NO

Click highlighted areas on diagram

W(ABS) L/BOX

Part #	Description	Period	Qty
47326 - TUBE, REAR BRAKE, NO.6
47326-37210	XZU31#,351,352	11/2000 - 06/2004	1
47326-37520	XZU31#,35#..4NO NO.3	06/2004 - 10/2006	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37060	XZU31#,351,352	11/2000 - 06/2004	1
47328-37370	XZU31#,35#..4NO NO.4	06/2004 - 10/2006	1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-37070	XZU31#,35#..4NO	06/2004 - 10/2006	2
Common parts
90119-08A33
90480-01274
90480-01619
90959-01603

ILLUST NO. 3 OF 5(0406- )XZU31#,35#,368..DM5

Click highlighted areas on diagram

W(ABS) CLAMP:LH SIDE=1,RH SIDE=3

Part #	Description	Period	Qty
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37481	XZU31#,368..DM5	06/2004 - 10/2006	1
47327-37481	XZU31#..30T	06/2002 - 06/2004	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37320	XZU31#,368..DM5	06/2004 - 10/2006	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37050	XZU31#,351,352	05/1999 - 06/2004	1
47353-37050	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	1
Common parts
90034-61046
90119-08A33
90129-08007
90468-08035
90949-01006
91612-B1020
91651-60614

ILLUST NO. 3 OF 5(0406- )03S..ATM ; (0406- )XZU306..SCB,VAN..03S,T4..5F..CBU,IV3 ; (0406- )

Click highlighted areas on diagram

W/O(ABS) CLAMP:LH SIDE=2,RH SIDE=3

Part #	Description	Period	Qty
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B73	BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4	05/1999 - 10/1999	2
90947-02D25	XZU31#,351,352	06/2002 - 06/2004	2
90947-02D25	XZU31#,35#,368..DM2,DM5	06/2004 - 10/2006	2
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37070	XZU31#..4NO	05/1999 - 07/1999	1
47391-37071	XZU31#,351,352..DM5	06/2002 - 06/2004	1
47391-37071	XZU31#,35#,368..DM5	06/2004 - 10/2006	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37481	XZU31#,368..DM5	06/2004 - 10/2006	1
47327-37481	XZU31#..30T	06/2002 - 06/2004	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37320	XZU31#,368..DM5	06/2004 - 10/2006	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
90949-01006
91612-B1020
91651-60614

ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44540 - ACTUATOR ASSY, ABS & TRACTION
44540-37010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2000	1
44050-37040	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37010	XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
Common parts
90099-05277
90119-08676

ILLUST NO. 2 OF 4(9905-0406)XZU410..4FC ; (9905-0406)XZU412..CNG; (9905-0406)XZU430..40TOV ; (9905-

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸ & LSPV)

Part #	Description	Period	Qty	Price
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90464-00778
90467-14006
90468-08035
90480-01577
90949-01006
90949-01871
90949-01970
90959-01593
90959-01594
90959-01595
91611-G0820
91612-B1020
91651-60614
94130-00802

ILLUST NO. 2 OF 4(9905-0406)BZU410 ; (9905-0406)XZU410..40T ; (9905-0406)XZU400..40T..IV3,IV6 ; (001

Click highlighted areas on diagram

ﾅｼ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ & LSPV)

Part #	Description	Period	Qty	Price
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90464-00778
90467-14006
90468-08035
90480-01577
90949-01970
90959-01593
90959-01594
90959-01595
91611-G0820
91612-B1020
91641-K0816

ILLUST NO. 2 OF 4(9905-0406)5F..DSLL ; (9905-0406)T4..30T..DSLL ;(9905-0406)XZU421..5F..IV3 ; (9905

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ) & ﾅｼ(LSPV)

Part #	Description	Period	Qty	Price
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90464-00778
90467-14006
90468-08035
90480-01577
90949-01970
90959-01593
90959-01594
90959-01595
91611-G0820
91612-B1020
91641-K0816

ILLUST NO. 1 OF 4(0310-0406)XZU414..30T..DCRL,DSLL ; (0406- )XZU424..6F..35T..DCRL,DCRTK..IV3 ; (

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸ)

Part #	Description	Period	Qty	Price
Common parts
90119-08676
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90480-01311
90480-01621
90949-01540
90959-01595
90959-01602
90959-01603
90959-01605
90959-01616
91551-80814
91611-B0816
91611-G0820
91641-K0816
94130-00802
Linked diagrams
3102

ILLUST NO. 4 OF 4(9905-0011)XZU382 ; (9905-0012)DSL,DSLL,TDEFI..CBU,IV3

Click highlighted areas on diagram

ｱﾘ(LSPV)

Part #	Description	Period	Qty	Price
Common parts
90119-08A33
90170-08016
90179-08204
90201-08062
90201-23360
91131-50840
91611-B0816
94110-40800
94612-10800

XZU311D-TWMQS3 (2000)

ILLUST NO. 4 OF 4(9905-0406)BU30#,346,RZU30#,340,XZU300,311,320,330,340,346,352,362,372,382..MTM..DS

ILLUST NO. 1 OF 4(9905-0406)XZU31#,32#,351,352

ILLUST NO. 2 OF 4(9905-0406)XZU302,306..CNG,DSL ; (9905-0406)XZU306..5F..DSLL..IV3 ; (9905-0406)XZU3

ILLUST NO. 2 OF 4(9905-0406)XZU31#,351,352

ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 1 OF 4(0206-0406)IV6..4NO ; (0206-0406)4FC..295T..DSL; (0206-0406)XZU307..SCB..T4..5F ;

ILLUST NO. 1 OF 5(0406- )XZU31#,321,35#..4NO

ILLUST NO. 2 OF 5(0406- )XZU31#,35#..4NO

ILLUST NO. 3 OF 5(0406- )XZU31#,35#,368..DM5

ILLUST NO. 3 OF 5(0406- )03S..ATM ; (0406- )XZU306..SCB,VAN..03S,T4..5F..CBU,IV3 ; (0406- )

ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

ILLUST NO. 2 OF 4(9905-0406)XZU410..4FC ; (9905-0406)XZU412..CNG; (9905-0406)XZU430..40TOV ; (9905-

ILLUST NO. 2 OF 4(9905-0406)BZU410 ; (9905-0406)XZU410..40T ; (9905-0406)XZU400..40T..IV3,IV6 ; (001

ILLUST NO. 2 OF 4(9905-0406)5F..DSLL ; (9905-0406)T4..30T..DSLL ;(9905-0406)XZU421..5F..IV3 ; (9905

ILLUST NO. 1 OF 4(0310-0406)XZU414..30T..DCRL,DSLL ; (0406- )XZU424..6F..35T..DCRL,DCRTK..IV3 ; (

ILLUST NO. 4 OF 4(9905-0011)XZU382 ; (9905-0012)DSL,DSLL,TDEFI..CBU,IV3

Part Price Details
