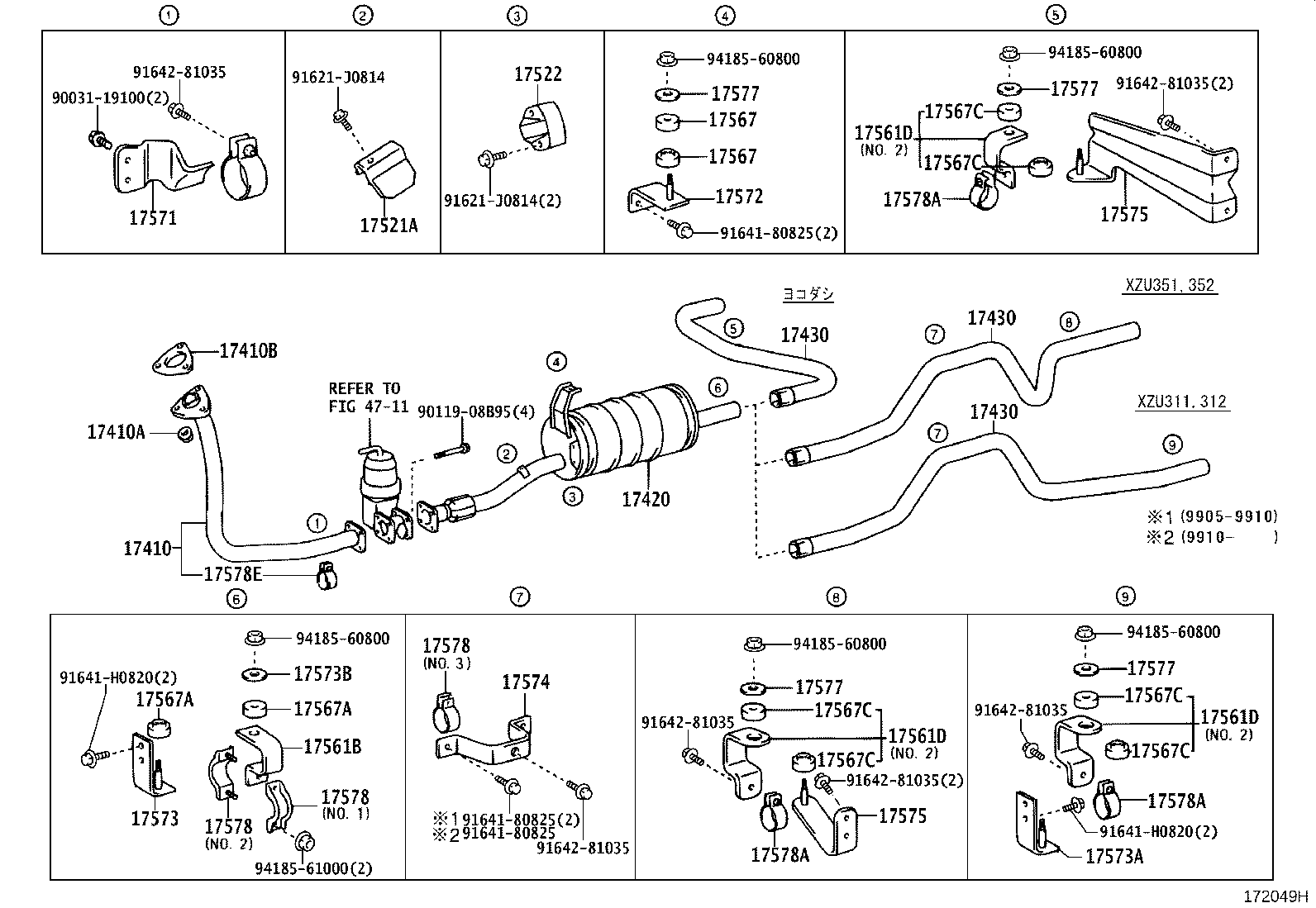

XZU311D-TWMMS3 (1999)
Toyota Dyna/Toyoace
(9905-0003)S05#..XZU31#,351,352
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78060 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78072 |
S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,306,31#,321,322,331,341,342,346,347,351,352..DSL..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17403-78070 |
S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,302,306,31#,321,322,331,341,346,347,351,352..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 17403-78071 |
S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,306,31#,321,322,331,341,342,346,347,351,352..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78290 |
S05#..XZU31# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78290 |
S05#..XZU31# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78290 |
S05#..XZU31# |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-78010 |
S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,306,31#,321,322,331,341,342,346,347,351,352..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2 | ||||
| 17522-78010 |
S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05D..XZU306,331..DSL;S05D..XZU321..5F..1NO;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D..XZU301..(DM3,T4,T5)..5F..(295T,30T);S05D..XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);J05C,S05#..XZU301,302,307,321,322,337,340..(4FC,6F)..DSL;J05C,S05#,15B#,1BZ#..BZU340,XZU300,31#,320,330,341,342,346,347,351,352,37#..20T,295T,30T |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,382 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78040 |
S05#..XZU31#,351,352 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78060 |
J05C,S05#..XZU31#,32#,351,352 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78060 |
J05C,S05#..XZU31#,32#,351,352..DM5,DM7,DM8,T5 |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78030 |
S05#..XZU31#,351,352 |
1 | ||
| 17574-78031 |
S05#..XZU31#,351,352 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.1 |
1 | ||
| 17578-78040 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.2 |
1 | ||
| 17578-78020 |
S05#..XZU31#,351,352 NO.3 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.1 |
1 | ||
| 17578-78040 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.2 |
1 | ||
| 17578-78020 |
S05#..XZU31#,351,352 NO.3 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.1 |
1 | ||
| 17578-78040 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.2 |
1 | ||
| 17578-78020 |
S05#..XZU31#,351,352 NO.3 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| Common parts | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 91621-J0814 | ||||
| 91641-80825 | ||||
| 91641-H0820 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
(0003- )S05D..XZU311..20T ; (0003- )S05D..XZU311..1NO ; (0003- )S05D..XZU3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78060 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 |
1 | ||
| 17401-78060 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90917-06087 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78072 |
S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,306,31#,321,322,331,341,342,346,347,351,352..DSL..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17403-78072 |
S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,306,31#,321,322,331,341,342,346,347,351,352..DSL..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17403-78070 |
S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,302,306,31#,321,322,331,341,346,347,351,352..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 17403-78070 |
S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,302,306,31#,321,322,331,341,346,347,351,352..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 17403-78071 |
S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,306,31#,321,322,331,341,342,346,347,351,352..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17403-78071 |
S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,306,31#,321,322,331,341,342,346,347,351,352..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78290 |
S05#..XZU31# |
1 | ||
| 17405-78290 |
S05#..XZU31# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78290 |
S05#..XZU31# |
1 | ||
| 17405-78290 |
S05#..XZU31# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78290 |
S05#..XZU31# |
1 | ||
| 17405-78290 |
S05#..XZU31# |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-78010 |
S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,306,31#,321,322,331,341,342,346,347,351,352..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17521-78010 |
S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;S05#..XZU301,306,31#,321,322,331,341,342,346,347,351,352..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2 | ||||
| 17522-78010 |
S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05D..XZU306,331..DSL;S05D..XZU321..5F..1NO;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D..XZU301..(DM3,T4,T5)..5F..(295T,30T);S05D..XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);J05C,S05#..XZU301,302,307,321,322,337,340..(4FC,6F)..DSL;J05C,S05#,15B#,1BZ#..BZU340,XZU300,31#,320,330,341,342,346,347,351,352,37#..20T,295T,30T |
1 | ||
| 17522-78010 |
S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05D..XZU306,331..DSL;S05D..XZU321..5F..1NO;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D..XZU301..(DM3,T4,T5)..5F..(295T,30T);S05D..XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);J05C,S05#..XZU301,302,307,321,322,337,340..(4FC,6F)..DSL;J05C,S05#,15B#,1BZ#..BZU340,XZU300,31#,320,330,341,342,346,347,351,352,37#..20T,295T,30T |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,382 |
1 | ||
| 17561-78010 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,382 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17571-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78040 |
S05#..XZU31#,351,352 |
1 | ||
| 17572-78040 |
S05#..XZU31#,351,352 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78060 |
J05C,S05#..XZU31#,32#,351,352 |
1 | ||
| 17573-78060 |
J05C,S05#..XZU31#,32#,351,352 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78060 |
J05C,S05#..XZU31#,32#,351,352..DM5,DM7,DM8,T5 |
1 | ||
| 17573-78060 |
J05C,S05#..XZU31#,32#,351,352..DM5,DM7,DM8,T5 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78060 |
J05C,S05#..XZU31#,32#,351,352..DM5,DM7,DM8,T5 |
1 | ||
| 17573-78060 |
J05C,S05#..XZU31#,32#,351,352..DM5,DM7,DM8,T5 |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
1 | ||
| 16721-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78030 |
S05#..XZU31#,351,352 |
1 | ||
| 17574-78030 |
S05#..XZU31#,351,352 |
1 | ||
| 17574-78031 |
S05#..XZU31#,351,352 |
1 | ||
| 17574-78031 |
S05#..XZU31#,351,352 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78030 |
S05#..XZU31#,351,352 |
1 | ||
| 17574-78030 |
S05#..XZU31#,351,352 |
1 | ||
| 17574-78031 |
S05#..XZU31#,351,352 |
1 | ||
| 17574-78031 |
S05#..XZU31#,351,352 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.1 |
1 | ||
| 17578-78030 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.1 |
1 | ||
| 17578-78040 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.2 |
1 | ||
| 17578-78040 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.2 |
1 | ||
| 17578-78020 |
S05#..XZU31#,351,352 NO.3 |
1 | ||
| 17578-78020 |
S05#..XZU31#,351,352 NO.3 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.1 |
1 | ||
| 17578-78030 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.1 |
1 | ||
| 17578-78040 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.2 |
1 | ||
| 17578-78040 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.2 |
1 | ||
| 17578-78020 |
S05#..XZU31#,351,352 NO.3 |
1 | ||
| 17578-78020 |
S05#..XZU31#,351,352 NO.3 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.1 |
1 | ||
| 17578-78030 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.1 |
1 | ||
| 17578-78040 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.2 |
1 | ||
| 17578-78040 |
J05C,S05#,4B..BU30#,XZU300,301,302,306,307,31#,32#,33#,35#,37#,382 NO.2 |
1 | ||
| 17578-78020 |
S05#..XZU31#,351,352 NO.3 |
1 | ||
| 17578-78020 |
S05#..XZU31#,351,352 NO.3 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| Common parts | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 90179-06007 | ||||
| 90179-08233 | ||||
| 91621-J0814 | ||||
| 91641-80825 | ||||
| 91641-H0820 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
(9905- )J05C,S05C..XZU410,412 ; (9905- )S05D..XZU411..4FC,6F..DSL ; (9905-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
