XZU311D-PWMMS3 (1999)

Toyota Dyna/Toyoace

Production Aug 1999 - Jun 2002
Engine S05D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

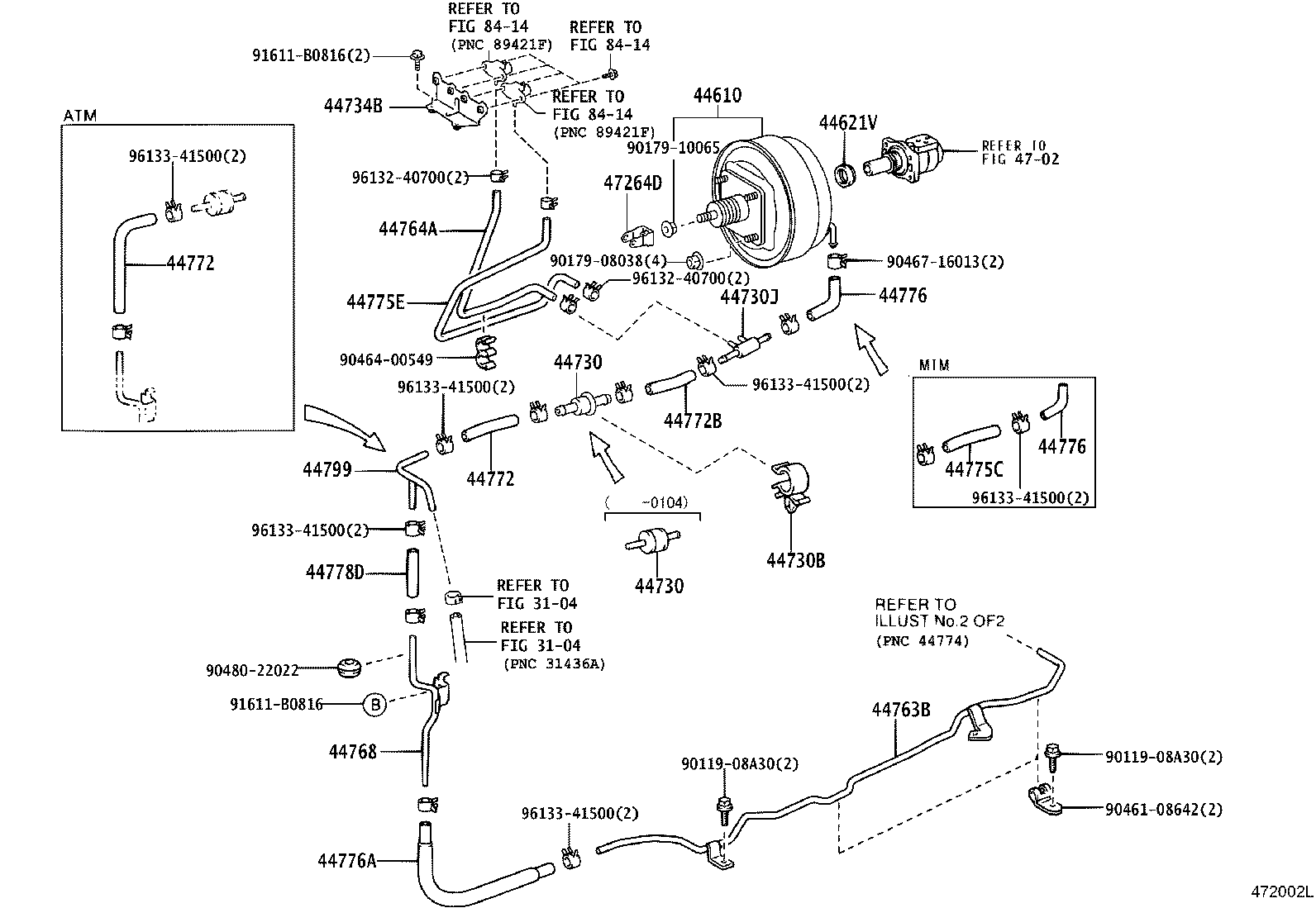

ILLUST NO. 1 OF 2(9905-0406)XZU31#,32#,351,352

Click highlighted areas on diagram

diagram 3104 3104 44610 44621V 44730 44730 44730B 44730J 44734B 44763B 44764A 44768 44772 44772 44772B 44775C 44775E 44776 44776 44776A 44778D 44799 4702 47264D 8414 8414 8414 9011908A30 9011908A30 9017908038 9017910065 9046108642 9046400549 9046716013 9048022022 91611B0816 91611B0816 9613240700 9613240700 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37170

BU30#,346,XZU301,302,306,307,31#,321,322,337,341,346,347,351,352,362,372,382..175T,20T

 1
44621V - SEAL, BOOSTER BODY
44621-36070

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-35010

RZU300..EFI;XZU302..CNG,LPG;XZU307..T4..4FC;BU306,XZU307..DCB..5F;RZU300,XZU302..T4..(295T,30T)..(DSL,LPG);BU346,RZU340,XZU300,301,306,331,337,34#,362,372,382;BU30#,XZU302,307,31#,32#,330,35#,371..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T5

 1
44730-20070

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-35010

RZU300..EFI;XZU302..CNG,LPG;XZU307..T4..4FC;BU306,XZU307..DCB..5F;RZU300,XZU302..T4..(295T,30T)..(DSL,LPG);BU346,RZU340,XZU300,301,306,331,337,34#,362,372,382;BU30#,XZU302,307,31#,32#,330,35#,371..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T5

 1
44730-20070

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
44730B - CLAMP, VACUUM HOSE
44597-37010

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
44734B - BRACKET, BOOSTER SUPPORT
44734-37010

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
44734-37011

XZU312..SCB..20T;XZU306,322..T5..4FC;XZU301,306,331..DSLL;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU311,321..(DM5,DM8)..20T

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37200

XZU31#,351,352

 1
44764A - HOSE, BOOSTER VACUUM
44776-37090

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
44768 - TUBE, BOOSTER VACUUM
44768-37110

XZU301,31#,331,37#,382;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,306,307,32#,330,337,340,341,342,346,347,35#,362..SCB,VAN

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37020

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37020

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-37030

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
44772-37060

XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN

 1
44775E - HOSE, WAY TO CONNECTOR
44776-37100

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
44776 - HOSE, BRAKE BOOSTER
44776-37050

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
44776 - HOSE, BRAKE BOOSTER
44776-37050

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37150

BU301..(DM6,T1)..20T;XZU300,301,302,31#,32#,330,331,340,341,35#

長さ=420

 1
44776-37170

XZU302..DM3..30T;XZU306..DSLL..CBU;XZU311,331..DCB..DSL;BZU300,XZU301..CNG,LPG;XZU341..4FC..295T..DSL;XZU302..(T4,T5)..WT..4NO;XZU301..5F..30T..(IV4,IV6);XZU301,306..(T4,T5)..20T..DSL;XZU306,331..(T3,T5)..5F..DSLL;XZU301..4FC..30T..DSL..(IV4,IV6);XZU306,341..(4FC,6F)..(DSLL,LPG)..IV3;XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU30#,346,BZU340,RZU30#,340,XZU307,337,342,346,347,351,352..(SCB,VAN)..(03S,06S,DM5,T2,T3,T4,T5)

長さ=380

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37170

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-37010

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
Common parts
90119-08A30
90179-08038
90179-10065
90461-08642
90464-00549
90467-16013
90480-22022
91611-B0816
96132-40700
96133-41500
Linked diagrams
3104
4702
8414
