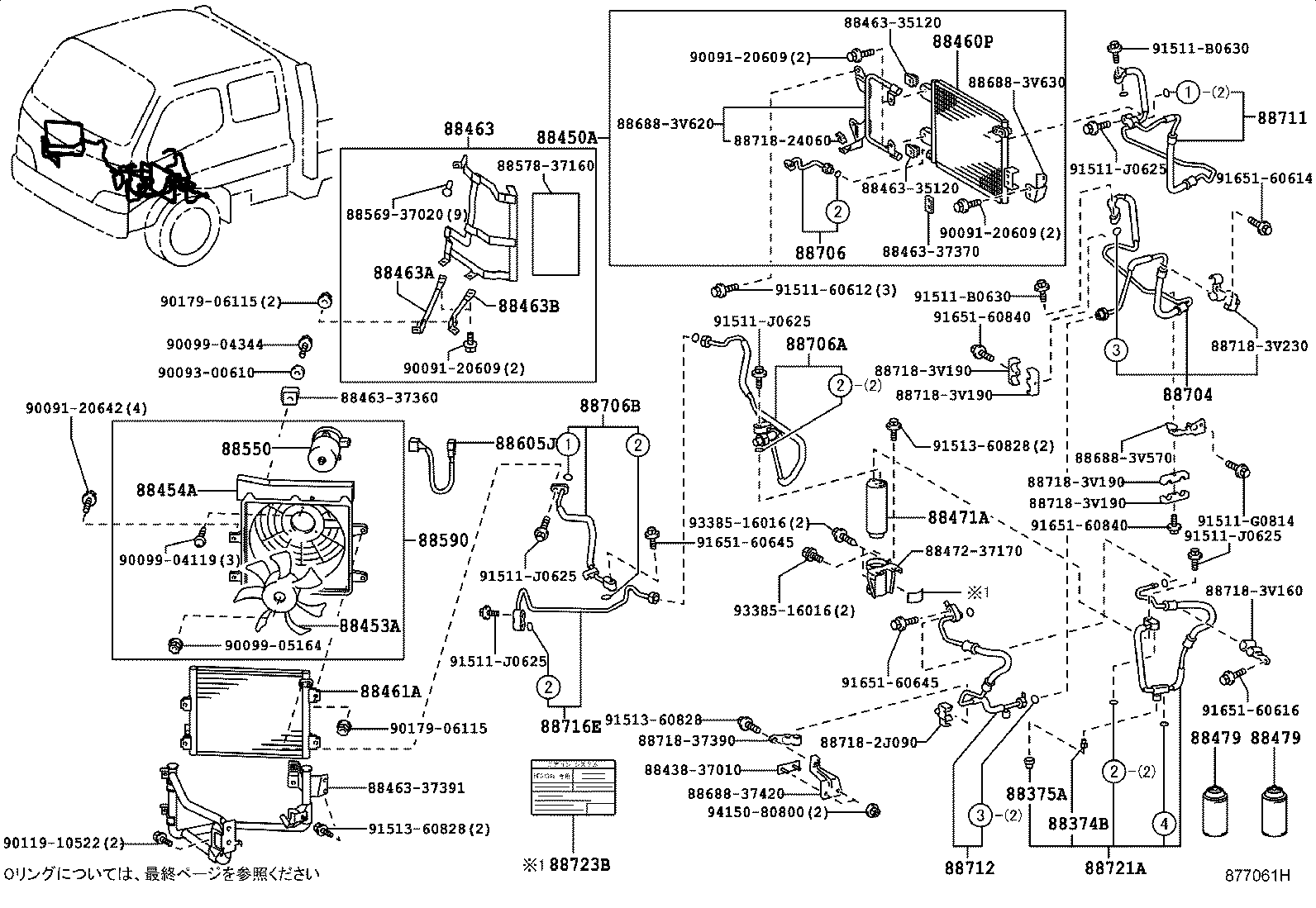

Toyota Dyna/toyoace XZU308 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88450A - SUB CONDENSER ASSY
88450-37041	XZU306,308,346..DCB,VAN;XZU304,305,314,334,344,354..DCRL,DSLL	06/2004 - 12/2999	1
88453A - FAN, COOLING
88453-37030	XZU368,378,388;XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88454A - SHROUD, FAN
88454-37090	XZU368,378,388;XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88461A - CORE, COOLER CONDENSER
88461-37080	XZU368,378,388;XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37410	XZU368,378,388;XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88471A - TANK, RECEIVER
88471-34010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	XZU306,308..VAN 200G	06/2004 - 10/2006	2
90986-02007	XZU306,308..VAN 250G	06/2004 - 10/2006	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	XZU306,308..VAN 200G	06/2004 - 10/2006	2
90986-02007	XZU306,308..VAN 250G	06/2004 - 10/2006	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37120	XZU368,378,388;XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88590 - BLOWER ASSY, W/SHROUD
88590-37180	XZU368,378,388;XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-37270	XZU368,378,388;XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88704 - HOSE SUB-ASSY, SUCTION
88704-37030	XZU304,305,308,314,334,338,344,348,354	06/2004 - 12/2999	1
88706 - PIPE SUB-ASSY, LIQUID
88716-3V620	XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-37161	XZU368,378,388..CBU,IV3;XZU304,306,308,346..(DCB,VAN)..DSL;XZU304,305,314,334,344,354..SCB..(DCRL,DSLL)	06/2004 - 09/2006	1
88706B - TUBE SUB-ASSY, LIQUID, B
88706-37220	XZU368,378,388;XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37860	XZU304,305,308,314,334,338,344,348,354	06/2004 - 09/2006	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V430	XZU30#,31#,321,33#,34#,35#	06/2004 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-3V651	XZU368,378,388;XZU306,308,346..DCB,VAN	06/2004 - 10/2006	1
88721A - HOSE, LIQUID, A
88721-37870	XZU308..DCB,VAN	06/2004 - 09/2006	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	XZU304,306,308,346..(DCB,VAN)..DSL;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG	06/2004 - 12/2999	1
Common parts
88438-37010
88463-35120
88463-37360
88463-37370
88463-37391
88472-37170
88569-37020
88578-37160
88688-37420
88688-3V570
88688-3V620
88688-3V630
88718-24060
88718-2J090
88718-37390
88718-3V160
88718-3V190
88718-3V230
90091-20609
90091-20642
90093-00610
90099-04119
90099-04344
90099-05164
90119-10522
90179-06115
91511-60612
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
91651-60840
93385-16016
94150-80800

Part #	Description	Period	Qty	Price
Common parts
88688-95416
88688-95417
88688-95418
88688-95419
88688-95422
88718-95426
88718-95A06
88718-95A21
90179-08123
93385-16016
93385-18014
93385-18020
93385-18025

Part #	Description	Period	Qty	Price
Common parts
88714-14010
88714-95401
88714-95402
88714-95403
88718-22170
88718-95400
88718-95402
88718-95403
88718-95404
88718-95406
88899-95405
90950-01060
93315-14012
93315-16016
93315-40616
93385-18016
93385-18020
93385-40820
94110-40800
94612-10601
94612-10800

XZU308V-REPMS (2004)

ILLUST NO. 1 OF 2(8409- )

ILLUST NO. 1 OF 2(8708- )

ILLUST NO. 2 OF 2(9905- )

ILLUST NO. 1 OF 2(0406- )XZU308..DCB,VAN

(7708- )RU2#,3#

ILLUST NO. 3 OF 3(9905- )
