XZU308V-REPMS (2004)
Toyota Dyna/Toyoace
(8708- )V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67771-20022 | ||||
| 67772-20021 | ||||
| 68961-92605 | ||||
| 90950-01006 | ||||
| 93315-16016 | ||||
| 93540-14008 | ||||
| 94612-10400 | ||||
(8808- )V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67771-20022 | ||||
| 67772-22010 | ||||
| 67867-95401 | ||||
| 67868-95401 | ||||
| 68961-92605 | ||||
| 90950-01006 | ||||
| 93315-16016 | ||||
| 93540-14008 | ||||
| 94612-10400 | ||||

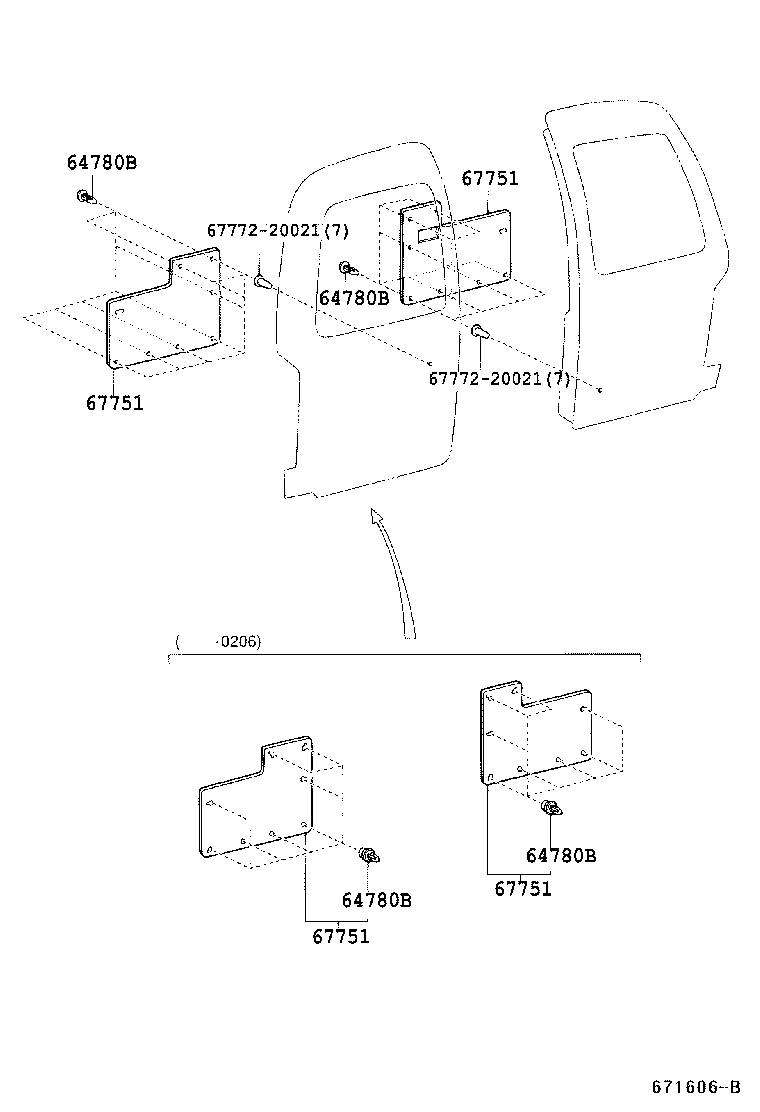

ILLUST NO. 2 OF 2(0406- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-08037N8 |
XZU306,308..VAN CREAM YELLOW,TRIM1# |
14 | ||
| 90467-08037N8 |
XZU306,308..VAN CREAM YELLOW,TRIM1# |
14 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-08037N8 |
XZU306,308..VAN CREAM YELLOW,TRIM1# |
14 | ||
| 90467-08037N8 |
XZU306,308..VAN CREAM YELLOW,TRIM1# |
14 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-08037N8 |
XZU306,308..VAN CREAM YELLOW,TRIM1# |
14 | ||
| 90467-08037N8 |
XZU306,308..VAN CREAM YELLOW,TRIM1# |
14 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-08037N8 |
XZU306,308..VAN CREAM YELLOW,TRIM1# |
14 | ||
| 90467-08037N8 |
XZU306,308..VAN CREAM YELLOW,TRIM1# |
14 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-95J04 |
XZU306,308..VAN 左側 |
1 | ||
| 67751-95J04 |
XZU306,308..VAN 左側 |
1 | ||
| 67751-95J03 |
XZU306,308..VAN 右側 |
1 | ||
| 67751-95J03 |
XZU306,308..VAN 右側 |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-95J04 |
XZU306,308..VAN 左側 |
1 | ||
| 67751-95J04 |
XZU306,308..VAN 左側 |
1 | ||
| 67751-95J03 |
XZU306,308..VAN 右側 |
1 | ||
| 67751-95J03 |
XZU306,308..VAN 右側 |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-95J04 |
XZU306,308..VAN 左側 |
1 | ||
| 67751-95J04 |
XZU306,308..VAN 左側 |
1 | ||
| 67751-95J03 |
XZU306,308..VAN 右側 |
1 | ||
| 67751-95J03 |
XZU306,308..VAN 右側 |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-95J04 |
XZU306,308..VAN 左側 |
1 | ||
| 67751-95J04 |
XZU306,308..VAN 左側 |
1 | ||
| 67751-95J03 |
XZU306,308..VAN 右側 |
1 | ||
| 67751-95J03 |
XZU306,308..VAN 右側 |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||

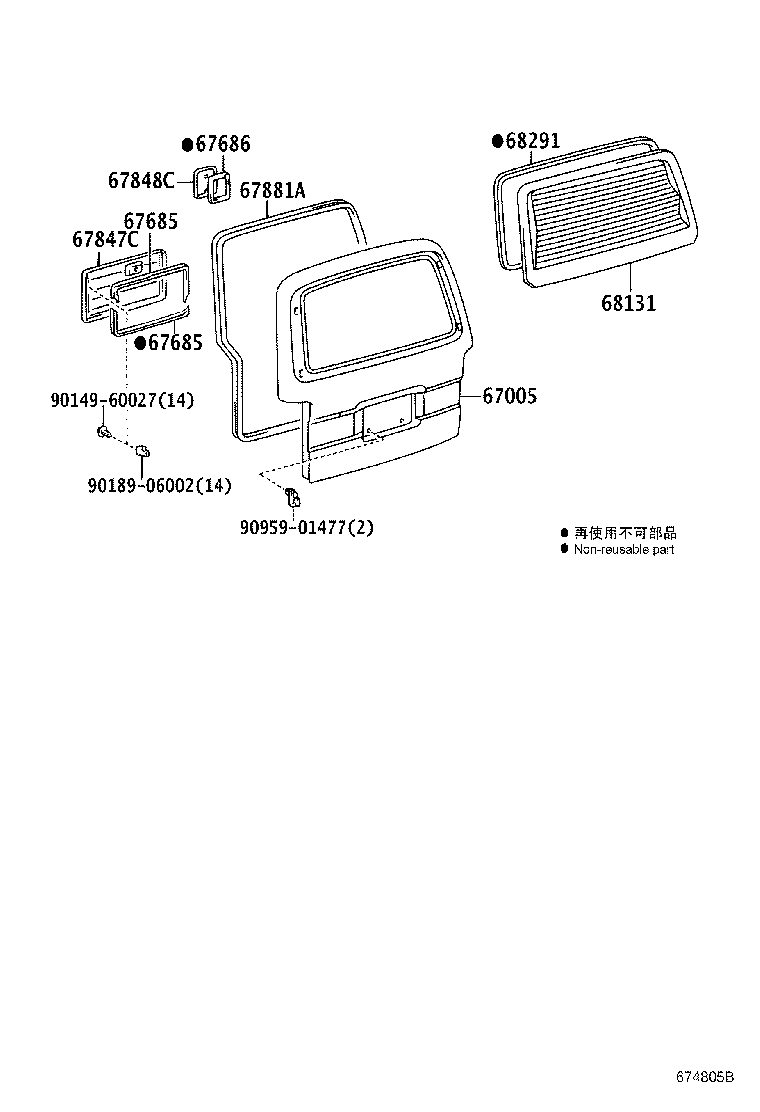

(9905- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-37080 |
XZU306,308..VAN ﾊｲﾙ-ﾌ |
1 | ||
| 67005-95N65 |
XZU306,308..VAN ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-37090 |
XZU306,308..VAN ﾊｲﾙ-ﾌ & ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-95N89 |
XZU306,308..VAN |
1 | ||
| 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67685-95J01 |
XZU306,308..VAN |
2 | ||
| 67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67526-95A00 |
XZU306,308..VAN |
2 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95J05 |
XZU306,308..VAN |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-95J00 |
XZU306,308..VAN |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-26010 |
XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 67881-95J16 |
XZU306,308..VAN |
1 | ||
| 67881-95J15 |
XZU306,308..VAN ﾊｲﾙ-ﾌ |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-26180 |
XZU306,308..VAN *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68131-37020 |
XZU306,308..VAN *EHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95J05 |
XZU306,308..VAN |
1 | ||
| Common parts | ||||
| 90149-60027 | ||||
| 90189-06002 | ||||
| 90333-20001 | ||||
| 90959-01477 | ||||

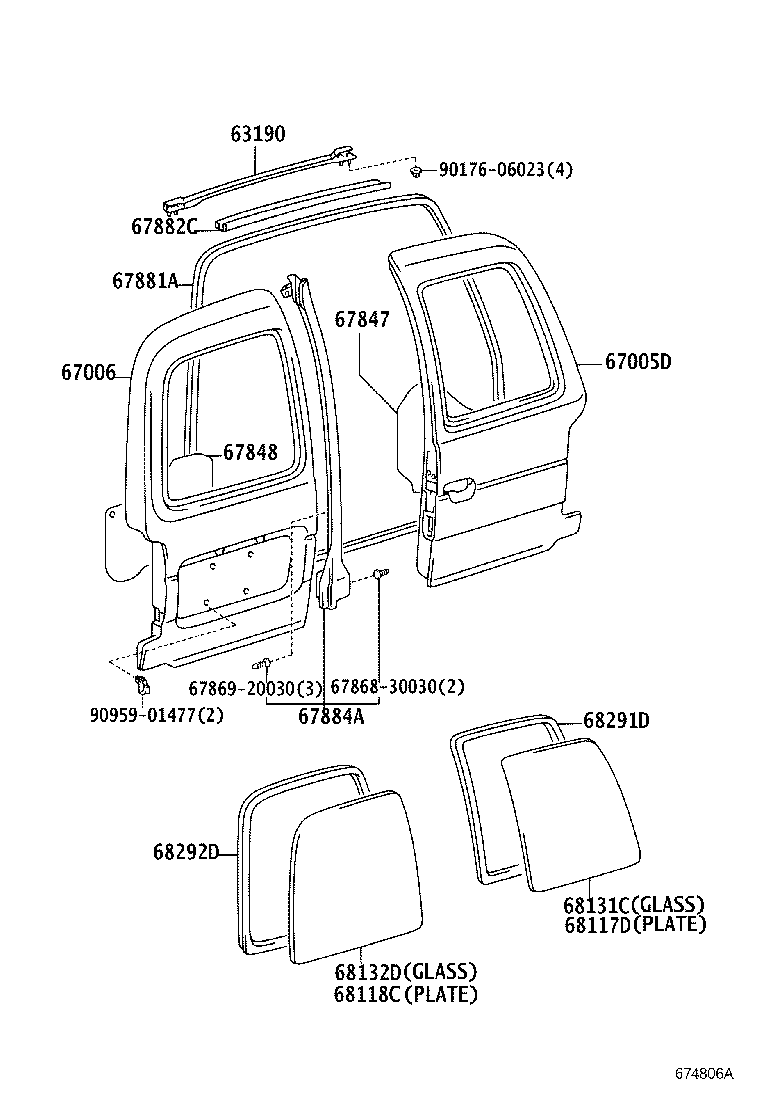

ILLUST NO. 1 OF 2(9905- )VAN
ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63190 - BRACKET ASSY, BACK DOOR WEATHERSTRIP | ||||
| 63190-95J00 |
XZU306,308..VAN |
1 | ||
| 67005D - PANEL SUB-ASSY, BACK DOOR, RH | ||||
| 67005-37050 |
XZU306,308..VAN |
1 | ||
| 67006 - DOOR SUB-ASSY, BACK, LH | ||||
| 67006-37020 |
XZU306,308..VAN |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-95J07 |
XZU306,308..VAN |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-95J01 |
XZU306,308..VAN |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-26010 |
XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 67881-95J16 |
XZU306,308..VAN |
1 | ||
| 67881-95J15 |
XZU306,308..VAN ﾊｲﾙ-ﾌ |
1 | ||
| 67882C - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-95J00 |
XZU306,308..VAN |
1 | ||
| 67884A - WEATHERSTRIP, BACK DOOR, CENTER | ||||
| 67884-95J00 |
XZU306,308..VAN |
1 | ||
| 68117D - PLATE, BACK DOOR GLASS, RH | ||||
| 68117-37020 |
XZU308..03S..4FC |
1 | ||
| 68118C - PLATE, BACK DOOR GLASS, LH | ||||
| 68118-37020 |
XZU308..03S..4FC |
1 | ||
| 68131C - GLASS, BACK DOOR, RH | ||||
| 68131-37030 |
XZU306,308..VAN *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68132D - GLASS, BACK DOOR, LH | ||||
| 68132-37020 |
XZU306,308..VAN *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68291D - WEATHERSTRIP, BACK DOOR GLASS, RH | ||||
| 68291-95J07 |
XZU306,308..VAN |
1 | ||
| 68292D - WEATHERSTRIP, BACK DOOR GLASS, LH | ||||
| 68292-95J00 |
XZU306,308..VAN |
1 | ||
| Common parts | ||||
| 67868-30030 | ||||
| 67869-20030 | ||||
| 90176-06023 | ||||
| 90959-01477 | ||||

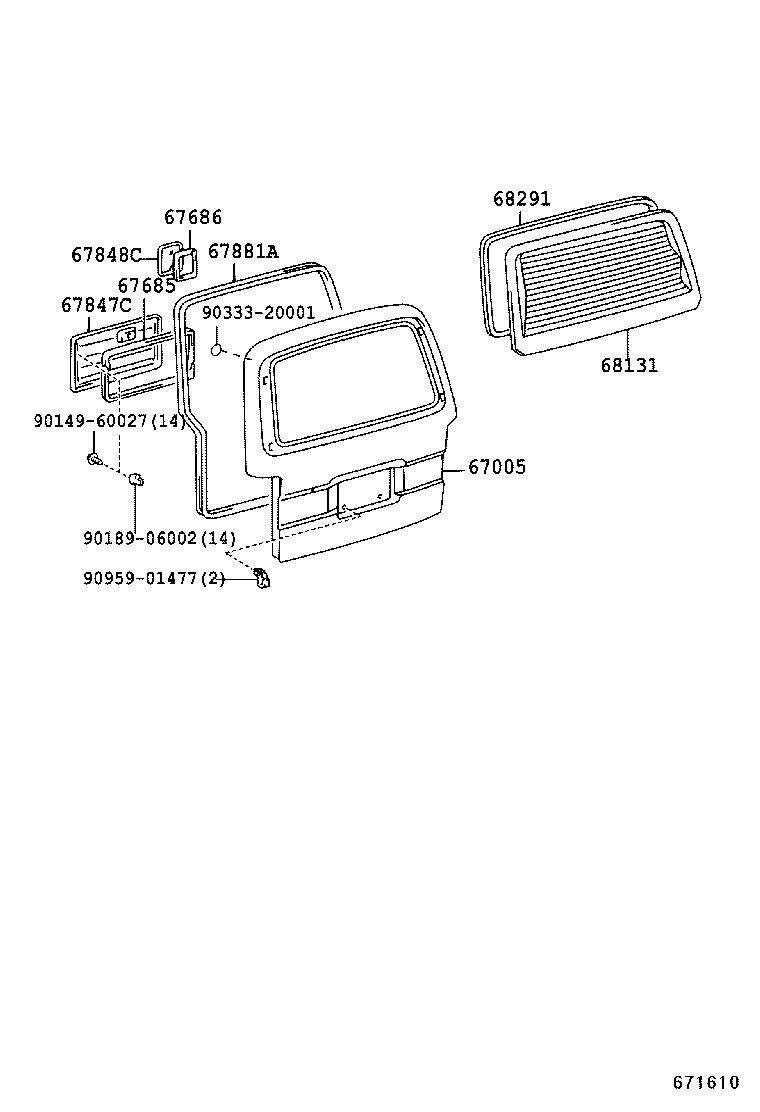

ILLUST NO. 1 OF 2(0610- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-60027 | ||||
| 90189-06002 | ||||
| 90959-01477 | ||||
ILLUST NO. 1 OF 2(0610- )VAN
ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67868-30030 | ||||
| 67869-20030 | ||||
| 90176-06023 | ||||
| 90959-01477 | ||||

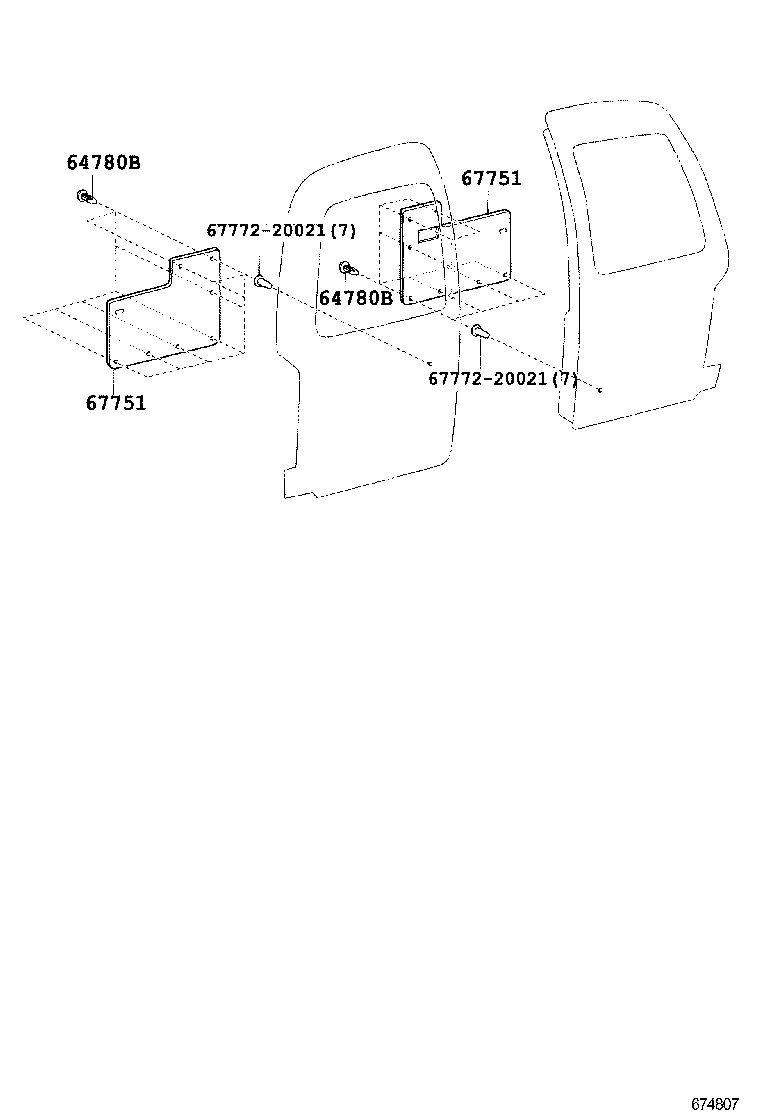

ILLUST NO. 2 OF 2(0610- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67772-20021 | ||||
