Toyota Dyna/toyoace XZU308 SIDE MEMBER

XZU308V-REPMS (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8409- )BU6#,77,8#,9#..03S

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90159-60058
90333-35002
90950-01011
90950-01454

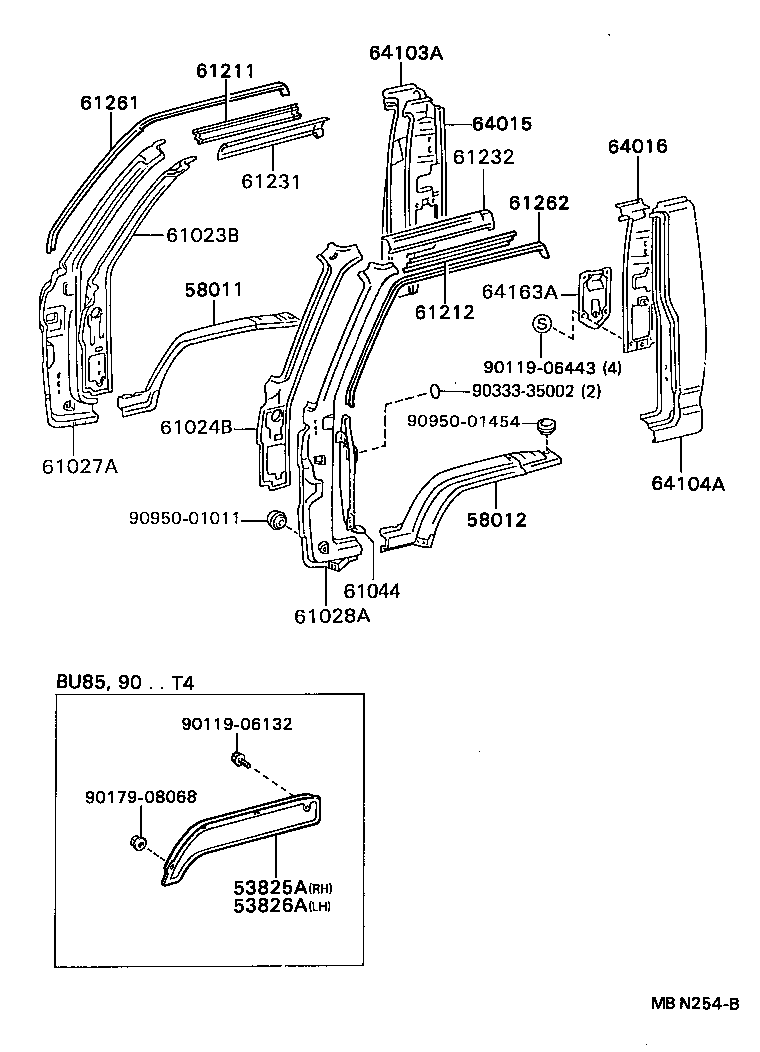

(8708- )BU6#,8#,9#..03S

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06132
90119-06443
90179-08068
90333-35002
90950-01011
90950-01454

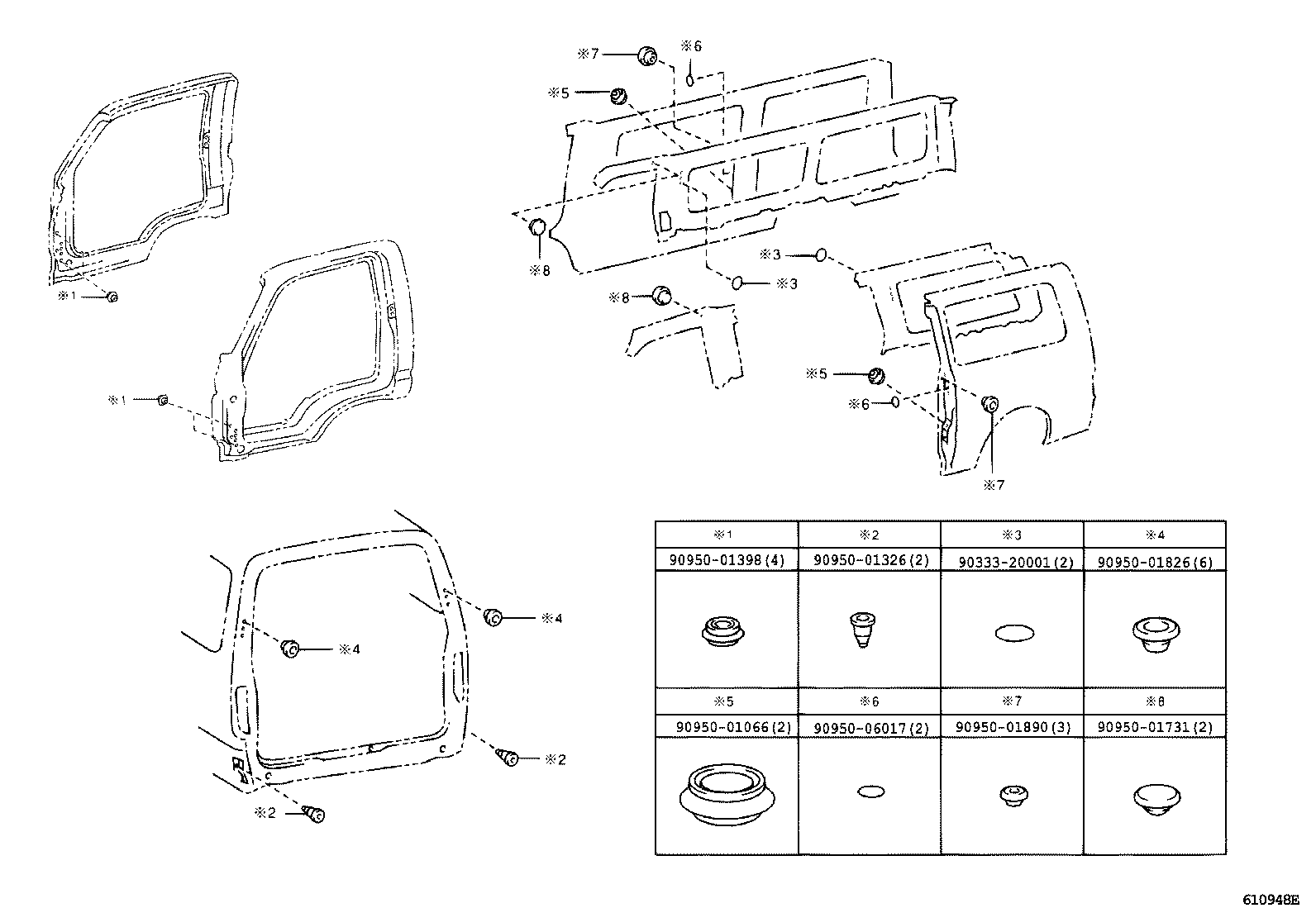

(8708- )V

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90168-60004
90179-06162
90950-01006
90950-01011
90950-01029
90950-01306
91651-40614
91651-40616
93560-15010
Linked diagrams
5852

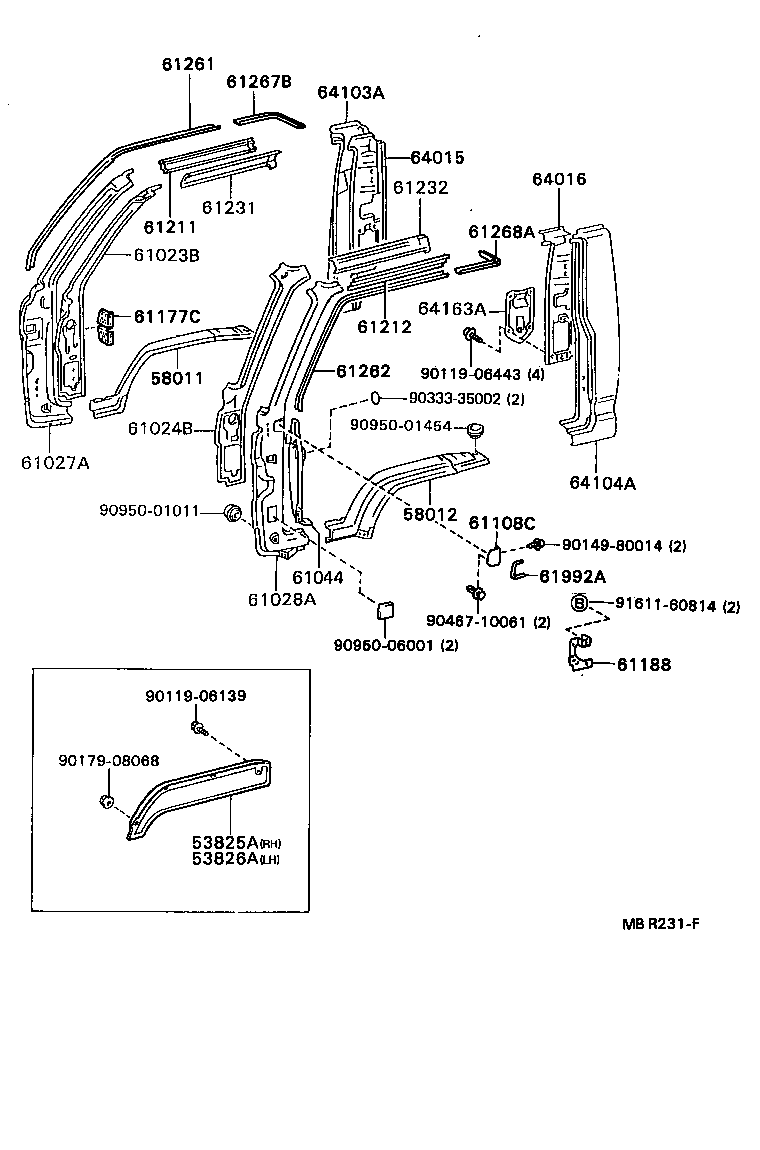

(8808- )BU6#,72,73,74,78,8#,9#..03S

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06139
90119-06443
90149-80014
90179-08068
90333-35002
90467-10061
90950-01011
90950-01454
90950-06001
91611-60814

(8808- )V

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90168-60004
90179-06164
90950-01006
90950-01011
90950-01029
90950-01306
91651-40614
93210-16010
93510-15010
Linked diagrams
5852

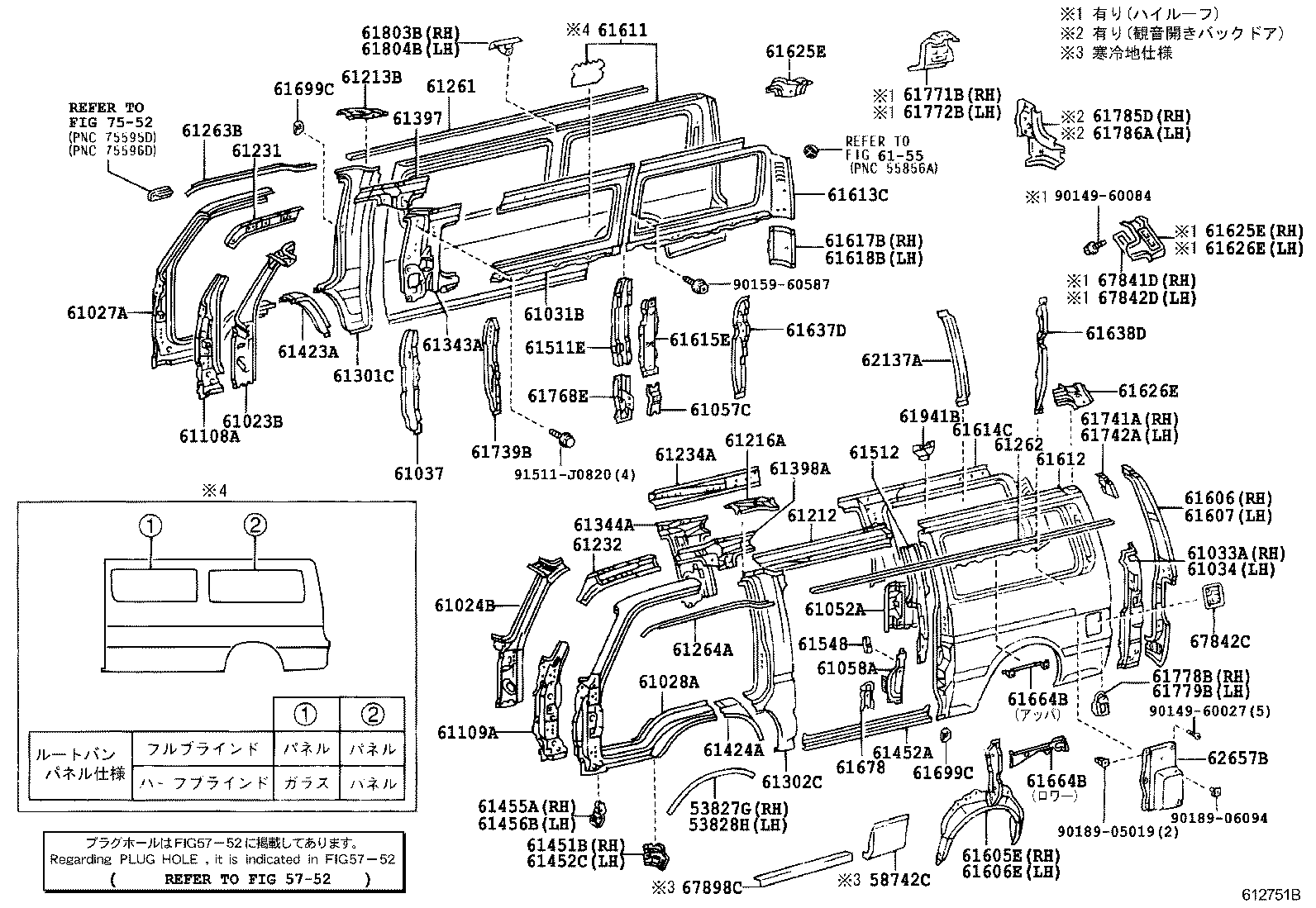

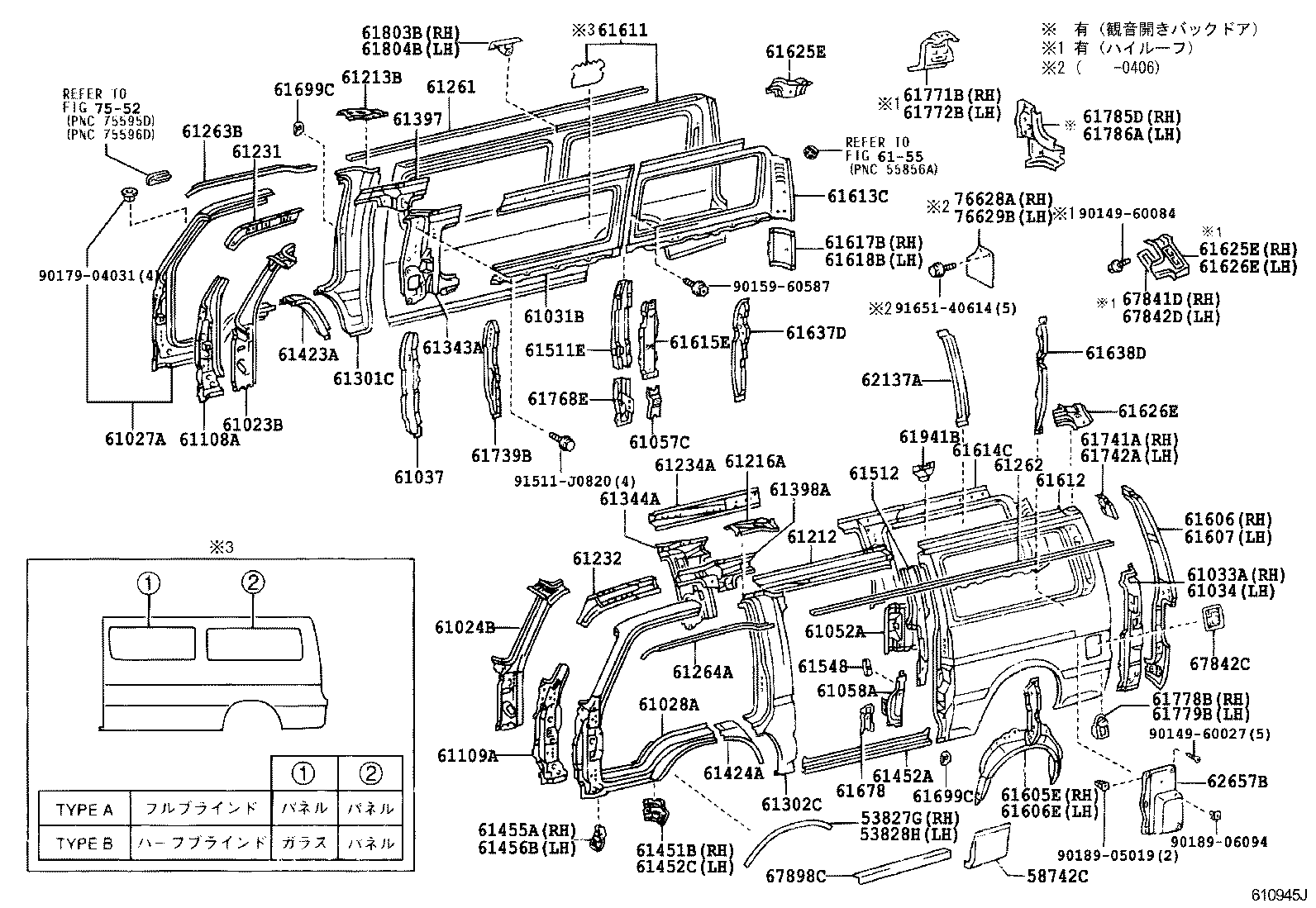

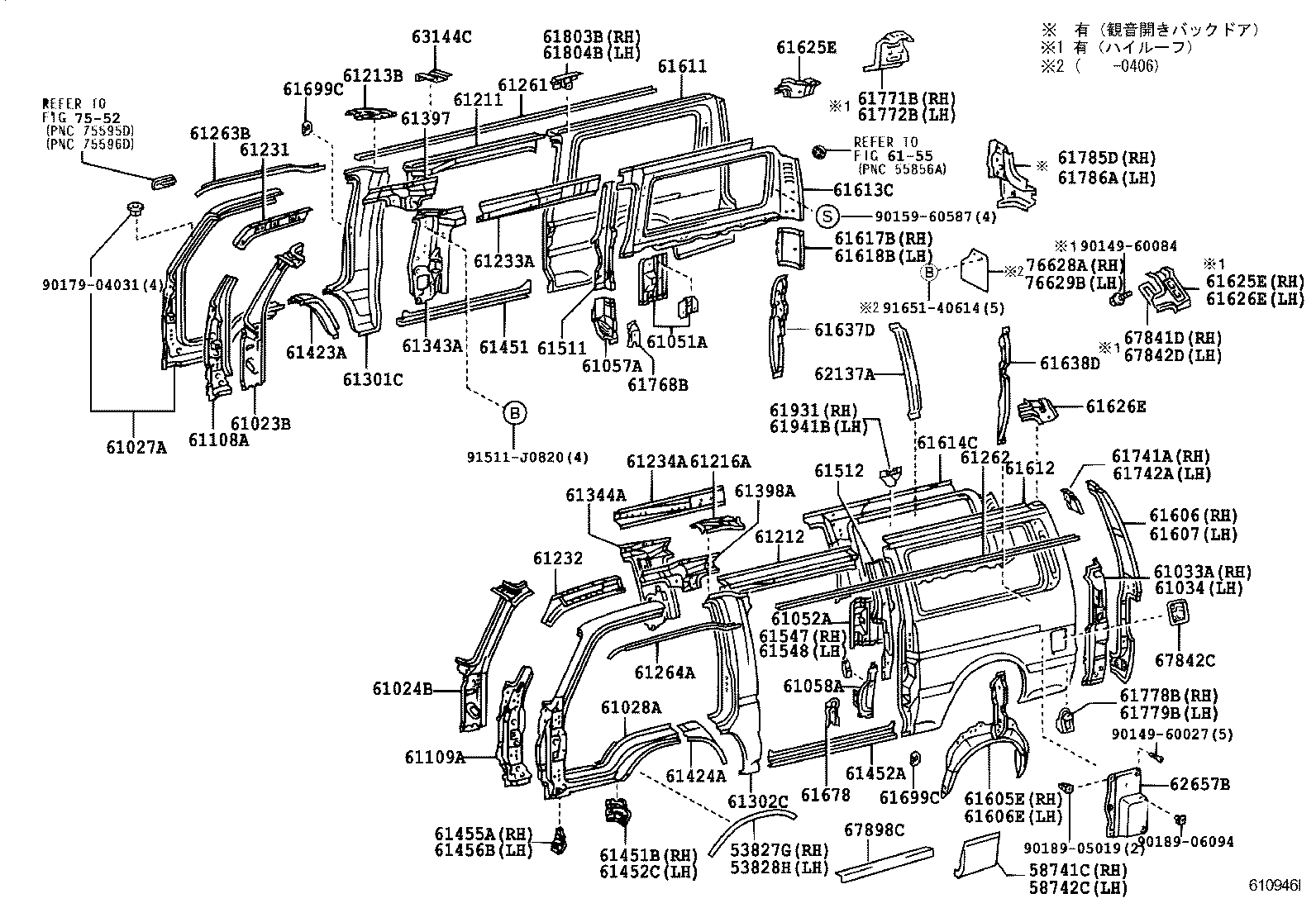

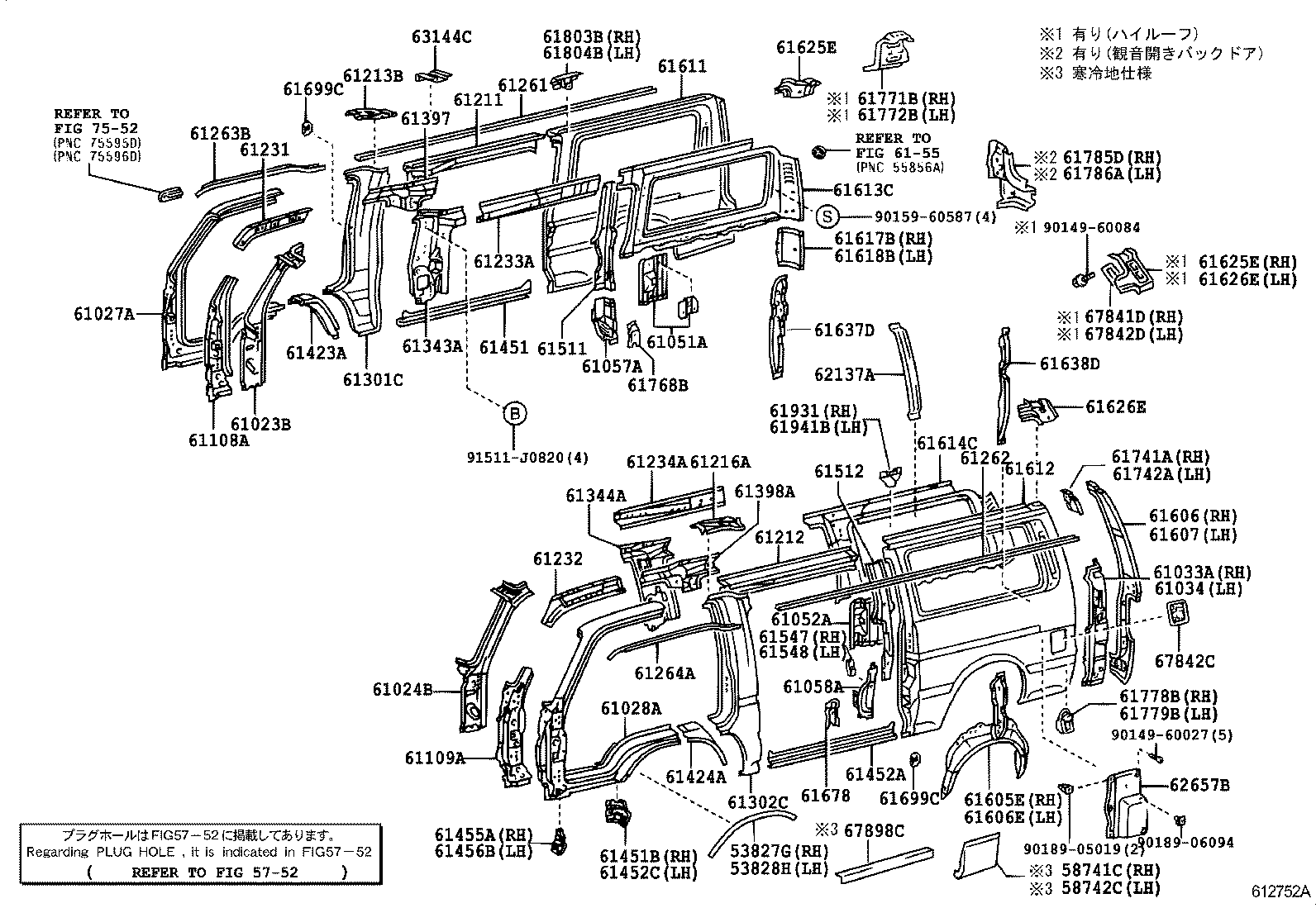

ILLUST NO. 1 OF 2(9905- )VAN

Click highlighted areas on diagram

4ﾄﾞｱ

Part #	Description	Period	Qty
53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53827-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
53828-37010	BU306,346,XZU30#,31#,32#,33#,34#,35#	05/1999 - 07/1999	1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-95J04	XZU306,308..VAN	06/2004 - 10/2006	1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-37040	XZU304..DSL,DSLL;XZU301..DM3,DM6,T4,T5;XZU304..DCRL..CBU..4NO;XZU304..DCRL..(IV3,IV7);RZU300,XZU346..DCB..CBU;XZU306,308,31#,321,35#,368;XZU301..30T..(IV3,IV6)..1NO;RZU300,XZU378,388..(DM5,T3)..20T..CBU;BZU300,340,RZU30#,340,XZU305,33#,34#,378,388..IV3,IV4	06/2004 - 12/2999	1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-37090	XZU304..DSL,DSLL;XZU301..DM3,DM6,T4,T5;XZU304..DCRL..CBU..4NO;XZU304..DCRL..(IV3,IV7);RZU300,XZU346..DCB..CBU;XZU306,308,31#,321,35#,368;XZU301..30T..(IV3,IV6)..1NO;RZU300,XZU378,388..(DM5,T3)..20T..CBU;BZU300,340,RZU30#,340,XZU305,33#,34#,378,388..IV3,IV4	06/2004 - 12/2999	1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61131-37101	XZU306,308..VAN	06/2004 - 10/2006	1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61112-37151	XZU306,308..VAN	06/2004 - 10/2006	1
61132-37081	XZU306,308..VAN ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸｱﾝﾃﾅ)	06/2004 - 10/2006	1
61031B - EXTENSION SUB-ASSY, QUARTER PANEL, RH
61031-37010	XZU306,308..03S	06/2004 - 10/2006	1
61031-37020	XZU306,308..03S ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61031-37090	XZU306,308..03S ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61031-37040	XZU306,308..03S ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61033-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61033-37020	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61033-95J09	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61033-95J07	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61033-37030	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61033-95J11	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH
61034-37020	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61034-37050	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61034-95J13	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61034-95J15	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61034-95J17	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61034-37030	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ)	06/2004 - 10/2006	1
61034-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61034-95J10	XZU306,308..VAN ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61037 - REINFORCE SUB-ASSY, FRONT BODY PILLAR, CENTER
61037-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61052A - PANEL SUB-ASSY, QUARTER LOCK, INNER LH
61616-95J03	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61057C - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR
61057-95J07	XZU306,308..VAN	06/2004 - 10/2006	1
61058A - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR, LH
61058-95J08	XZU306,308..VAN	06/2004 - 10/2006	1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-37041	XZU306,308..VAN	06/2004 - 10/2006	1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-37021	XZU306,308..VAN	06/2004 - 10/2006	1
61212 - RAIL, ROOF SIDE, OUTER LH
61202-37020	XZU306,308..VAN	06/2004 - 10/2006	1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61215-37030	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	1
61215-37020	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
61216A - RAIL, ROOF SIDE, OUTER REAR LH
61216-37020	XZU306,308..VAN	06/2004 - 10/2006	1
61231 - RAIL, ROOF SIDE, INNER RH
61231-37080	XZU306,308..VAN	06/2004 - 10/2006	1
61203-37050	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61232 - RAIL, ROOF SIDE, INNER LH
61204-37050	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61232-37090	XZU306,308..VAN	06/2004 - 10/2006	1
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61208-95J18	XZU306,308..03S	06/2004 - 10/2006	1
61261 - CHANNEL, ROOF DRIP, RH
61261-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61262 - CHANNEL, ROOF DRIP, LH
61262-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH
61263-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH
61264-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH
61301-37050	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	1
61301-37060	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	06/2004 - 10/2006	1
61301-37040	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH
61302-37050	XZU306,308..VAN ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	06/2004 - 10/2006	1
61302-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61343A - PILLAR, CENTER BODY, INNER RH
61307-37170	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ)	06/2004 - 10/2006	1
61307-37400	XZU306,308..03S 5ﾄﾞｱ	06/2004 - 10/2006	1
61307-37180	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ & ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61307-37410	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61307-37390	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61307-37120	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ & ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61307-37420	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61307-37430	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61307-37200	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ)	06/2004 - 10/2006	1
61307-37270	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61307-37280	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ & ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61307-37380	XZU306,308..03S 4ﾄﾞｱ	06/2004 - 10/2006	1
61344A - PILLAR, CENTER BODY, INNER LH
61308-37100	XZU306,308..03S	06/2004 - 08/2004	1
61308-25080	XZU306,308..03S	08/2004 - 10/2006	1
61308-25090	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	08/2004 - 10/2006	1
61308-37120	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 08/2004	1
61397 - PATCH, CENTER BODY PILLAR, INNER RH
61397-37050	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
61397-37040	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	1
61398A - PATCH, CENTER BODY PILLAR, INNER LH
61398-37020	XZU306,308..VAN	06/2004 - 10/2006	1
61423A - PANEL, FENDER, INNER LOWER RH
61423-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61424A - PANEL, FENDER, INNER LOWER LH
61424-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61451B - PLATE, STEP, LOWER RH
61451-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
61452A - PANEL, ROCKER OUTER, LH
61451-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61452C - PLATE, STEP, LOWER LH
61452-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
61455A - RETAINER, FRONT STEP, RH
61455-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
61456B - RETAINER, FRONT STEP, LH
61456-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
61511E - PILLAR, QUARTER LOCK, RH
61511-95J04	XZU306,308..VAN	06/2004 - 10/2006	1
61512 - PILLAR, QUARTER LOCK, LH
61512-95J02	XZU306,308..VAN	06/2004 - 10/2006	1
61512-95J04	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61548 - REINFORCEMENT, QUARTER PILLAR, INNER LH
61548-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61605E - PANEL, QUARTER, RH
61605-37020	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61605-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61705-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61705-37020	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61705-37030	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61606E - PANEL, QUARTER, LH
61606-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61606-37020	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61706-37050	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ)	06/2004 - 10/2006	1
61706-37020	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61706-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61706-37030	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61706-37040	XZU306,308..VAN ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ)	06/2004 - 10/2006	1
61611 - PANEL, QUARTER, RH
61601-37310	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61601-37280	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61601-37300	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	1
61601-37230	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾌﾙﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37180	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾌﾙﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37200	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾊ-ﾌﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37420	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾊ-ﾌﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37220	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61601-37350	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61601-37270	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾌﾙﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37450	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61601-37380	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61601-37440	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾊ-ﾌﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37430	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61601-37340	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
61612 - PANEL, QUARTER, LH
61602-37090	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61602-37200	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61602-37150	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61602-37190	XZU306,308..VAN	06/2004 - 10/2006	1
61602-37230	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61602-37170	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61613C - PANEL SUB-ASSY, QUARTER, INNER REAR RH
61607-37020	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61607-37010	XZU306,308..03S 5ﾄﾞｱ	06/2004 - 10/2006	1
61607-37170	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607-37060	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607-37100	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607-37190	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607-37150	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61607-37130	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61607-95J47	XZU306,308..03S 4ﾄﾞｱ	06/2004 - 10/2006	1
61607-37040	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61613-95N24	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61613-37350	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61614C - PANEL SUB-ASSY, QUARTER, INNER REAR LH
61608-37080	XZU306,308..03S ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61608-37020	XZU306,308..03S ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61608-37010	XZU306,308..03S ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61608-37120	XZU306,308..03S ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61608-37140	XZU306,308..03S	06/2004 - 10/2006	1
61608-37070	XZU306,308..03S ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61615E - PILLAR, QUARTER LOCK, INNER RH
61615-26020	XZU306,308..VAN	06/2004 - 10/2006	1
61617B - PANEL, QUARTER INNER, LOWER RH
61067-95J02	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61617-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61618B - PANEL, QUARTER, INNER LOWER LH
61068-95J02	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61618-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61625E - EXTENSION, QUARTER PANEL, INNER REAR RH
61625-95J04	XZU306,308..VAN	06/2004 - 10/2006	1
61625-95J00	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61625E - EXTENSION, QUARTER PANEL, INNER REAR RH
61625-95J04	XZU306,308..VAN	06/2004 - 10/2006	1
61625-95J00	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61626E - EXTENSION, QUARTER PANEL, INNER REAR LH
61626-95J03	XZU306,308..VAN	06/2004 - 10/2006	1
61626-95J00	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61626E - EXTENSION, QUARTER PANEL, INNER REAR LH
61626-95J03	XZU306,308..VAN	06/2004 - 10/2006	1
61626-95J00	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61637D - REINFORCEMENT, QUARTER, INNER RH
61637-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61638D - REINFORCEMENT, QUARTER, INNER LH
61638-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH
61678-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61699C - RETAINER, COURTESY SWITCH
61699-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61699C - RETAINER, COURTESY SWITCH
61699-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL
61739-95J02	XZU306,308..VAN	06/2004 - 10/2006	1
61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH
61741-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61741-95J02	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH
61742-95J02	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61742-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61768E - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH
61677-37020	XZU306,308..VAN	06/2004 - 10/2006	1
61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH
61771-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH
61772-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61778B - PLATE, BACK DOOR OPENING, LOWER RH
61778-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61779B - PLATE, BACK DOOR OPENING, LOWER LH
61779-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61785D - EXTENSION, BACK DOOR OPENING SIDE, RH
61785-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61786A - EXTENSION, BACK DOOR OPENING SIDE, LH
61786-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61941B - STRENGTH, UPPER RAIL, NO.1 LH
61941-26010	XZU306,308..VAN	06/2004 - 10/2006	1
62137A - REINFORCE, SIDE WINDOW PANEL
62137-95J00	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾌﾙﾌﾞﾗｲﾝﾄﾞ),右側	06/2004 - 10/2006	4
62137-95J00	XZU306,308..VAN 左側,右側	06/2004 - 10/2006	2
62657B - COVER, QUARTER PANEL INNER, LH
62657-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
67841D - COVER, QUARTER SERVICE HOLE, RH
67841-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
67842C - COVER, QUARTER SERVICE HOLE, LH
67842-37030	XZU306,308..VAN	06/2004 - 10/2006	1
67842D - COVER, QUARTER SERVICE HOLE, LH
67842-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
67898C - SEAL, SLIDE DOOR, LOWER NO.2
67898-95J00	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
67898-95J00	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	2
Common parts
90149-60027
90149-60084
90159-60587
90179-04031
90189-05019
90189-06094
91511-J0820
91651-40614
Linked diagrams
6155
7552

ILLUST NO. 1 OF 2(9905- )VAN

Click highlighted areas on diagram

5ﾄﾞｱ

Part #	Description	Period	Qty
53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53827-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
53828-37010	BU306,346,XZU30#,31#,32#,33#,34#,35#	05/1999 - 07/1999	1
58741C - PROTECTOR, QUARTER PANEL, RH
58741-95J04	XZU306,308..VAN	06/2004 - 10/2006	1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-95J04	XZU306,308..VAN	06/2004 - 10/2006	1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-37040	XZU304..DSL,DSLL;XZU301..DM3,DM6,T4,T5;XZU304..DCRL..CBU..4NO;XZU304..DCRL..(IV3,IV7);RZU300,XZU346..DCB..CBU;XZU306,308,31#,321,35#,368;XZU301..30T..(IV3,IV6)..1NO;RZU300,XZU378,388..(DM5,T3)..20T..CBU;BZU300,340,RZU30#,340,XZU305,33#,34#,378,388..IV3,IV4	06/2004 - 12/2999	1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-37090	XZU304..DSL,DSLL;XZU301..DM3,DM6,T4,T5;XZU304..DCRL..CBU..4NO;XZU304..DCRL..(IV3,IV7);RZU300,XZU346..DCB..CBU;XZU306,308,31#,321,35#,368;XZU301..30T..(IV3,IV6)..1NO;RZU300,XZU378,388..(DM5,T3)..20T..CBU;BZU300,340,RZU30#,340,XZU305,33#,34#,378,388..IV3,IV4	06/2004 - 12/2999	1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61131-37101	XZU306,308..VAN	06/2004 - 10/2006	1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61112-37151	XZU306,308..VAN	06/2004 - 10/2006	1
61132-37081	XZU306,308..VAN ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸｱﾝﾃﾅ)	06/2004 - 10/2006	1
61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61033-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61033-37020	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61033-95J09	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61033-95J07	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61033-37030	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61033-95J11	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH
61034-37020	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61034-37050	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61034-95J13	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61034-95J15	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61034-95J17	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61034-37030	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ)	06/2004 - 10/2006	1
61034-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61034-95J10	XZU306,308..VAN ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61051A - PANEL SUB-ASSY, QUARTER LOCK, INNER RH
61051-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61052A - PANEL SUB-ASSY, QUARTER LOCK, INNER LH
61616-95J03	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61057A - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR
61057-37030	XZU306,308..VAN	06/2004 - 10/2006	1
61058A - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR, LH
61058-95J08	XZU306,308..VAN	06/2004 - 10/2006	1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-37041	XZU306,308..VAN	06/2004 - 10/2006	1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-37021	XZU306,308..VAN	06/2004 - 10/2006	1
61211 - RAIL, ROOF SIDE, OUTER RH
61201-37020	XZU306,308..VAN	06/2004 - 10/2006	1
61212 - RAIL, ROOF SIDE, OUTER LH
61202-37020	XZU306,308..VAN	06/2004 - 10/2006	1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61215-37030	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	1
61215-37020	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
61216A - RAIL, ROOF SIDE, OUTER REAR LH
61216-37020	XZU306,308..VAN	06/2004 - 10/2006	1
61231 - RAIL, ROOF SIDE, INNER RH
61231-37080	XZU306,308..VAN	06/2004 - 10/2006	1
61203-37050	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61232 - RAIL, ROOF SIDE, INNER LH
61204-37050	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61232-37090	XZU306,308..VAN	06/2004 - 10/2006	1
61233A - RAIL, ROOF SIDE, INNER NO.2 RH
61207-95J05	XZU306,308..03S	06/2004 - 10/2006	1
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61208-95J18	XZU306,308..03S	06/2004 - 10/2006	1
61261 - CHANNEL, ROOF DRIP, RH
61261-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61262 - CHANNEL, ROOF DRIP, LH
61262-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH
61263-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH
61264-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH
61301-37050	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	1
61301-37060	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	06/2004 - 10/2006	1
61301-37040	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH
61302-37050	XZU306,308..VAN ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	06/2004 - 10/2006	1
61302-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61343A - PILLAR, CENTER BODY, INNER RH
61307-37170	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ)	06/2004 - 10/2006	1
61307-37400	XZU306,308..03S 5ﾄﾞｱ	06/2004 - 10/2006	1
61307-37180	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ & ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61307-37410	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61307-37390	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61307-37120	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ & ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61307-37420	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61307-37430	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61307-37200	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ)	06/2004 - 10/2006	1
61307-37270	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61307-37280	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙｼ-ﾄﾍﾞﾙﾄｱﾝｶ & ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61307-37380	XZU306,308..03S 4ﾄﾞｱ	06/2004 - 10/2006	1
61344A - PILLAR, CENTER BODY, INNER LH
61308-37100	XZU306,308..03S	06/2004 - 08/2004	1
61308-25080	XZU306,308..03S	08/2004 - 10/2006	1
61308-25090	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	08/2004 - 10/2006	1
61308-37120	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 08/2004	1
61397 - PATCH, CENTER BODY PILLAR, INNER RH
61397-37050	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
61397-37040	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	1
61398A - PATCH, CENTER BODY PILLAR, INNER LH
61398-37020	XZU306,308..VAN	06/2004 - 10/2006	1
61423A - PANEL, FENDER, INNER LOWER RH
61423-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61424A - PANEL, FENDER, INNER LOWER LH
61424-37040	XZU306,308..VAN	06/2004 - 10/2006	1
61451 - PANEL, ROCKER, OUTER RH
61451-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61451B - PLATE, STEP, LOWER RH
61451-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
61452A - PANEL, ROCKER OUTER, LH
61451-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61452C - PLATE, STEP, LOWER LH
61452-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
61455A - RETAINER, FRONT STEP, RH
61455-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
61456B - RETAINER, FRONT STEP, LH
61456-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
61511 - PILLAR, QUARTER LOCK, RH
61511-95J03	XZU306,308..03S	06/2004 - 10/2006	1
61511-95J06	XZU306,308..03S ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61512 - PILLAR, QUARTER LOCK, LH
61512-95J02	XZU306,308..VAN	06/2004 - 10/2006	1
61512-95J04	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61547 - REINFORCEMENT, QUARTER PILLAR, INNER RH
61547-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61548 - REINFORCEMENT, QUARTER PILLAR, INNER LH
61548-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61605E - PANEL, QUARTER, RH
61605-37020	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61605-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61705-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61705-37020	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61705-37030	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61606E - PANEL, QUARTER, LH
61606-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61606-37020	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61706-37050	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ)	06/2004 - 10/2006	1
61706-37020	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61706-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61706-37030	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61706-37040	XZU306,308..VAN ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ)	06/2004 - 10/2006	1
61611 - PANEL, QUARTER, RH
61601-37310	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61601-37280	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61601-37300	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	1
61601-37230	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾌﾙﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37180	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾌﾙﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37200	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾊ-ﾌﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37420	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾊ-ﾌﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37220	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61601-37350	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61601-37270	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾌﾙﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37450	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61601-37380	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61601-37440	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾊ-ﾌﾌﾞﾗｲﾝﾄﾞ)	06/2004 - 10/2006	1
61601-37430	XZU306,308..VAN 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61601-37340	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
61612 - PANEL, QUARTER, LH
61602-37090	XZU306,308..VAN ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61602-37200	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61602-37150	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61602-37190	XZU306,308..VAN	06/2004 - 10/2006	1
61602-37230	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61602-37170	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61613C - PANEL SUB-ASSY, QUARTER, INNER REAR RH
61607-37020	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61607-37010	XZU306,308..03S 5ﾄﾞｱ	06/2004 - 10/2006	1
61607-37170	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607-37060	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607-37100	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607-37190	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61607-37150	XZU306,308..03S 5ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61607-37130	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61607-95J47	XZU306,308..03S 4ﾄﾞｱ	06/2004 - 10/2006	1
61607-37040	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61613-95N24	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61613-37350	XZU306,308..03S 4ﾄﾞｱ & ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61614C - PANEL SUB-ASSY, QUARTER, INNER REAR LH
61608-37080	XZU306,308..03S ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61608-37020	XZU306,308..03S ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61608-37010	XZU306,308..03S ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61608-37120	XZU306,308..03S ｱﾘ(ﾊｲﾙ-ﾌ & ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳ)	06/2004 - 10/2006	1
61608-37140	XZU306,308..03S	06/2004 - 10/2006	1
61608-37070	XZU306,308..03S ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61617B - PANEL, QUARTER INNER, LOWER RH
61067-95J02	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61617-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61618B - PANEL, QUARTER, INNER LOWER LH
61068-95J02	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
61618-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61625E - EXTENSION, QUARTER PANEL, INNER REAR RH
61625-95J04	XZU306,308..VAN	06/2004 - 10/2006	1
61625-95J00	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61625E - EXTENSION, QUARTER PANEL, INNER REAR RH
61625-95J04	XZU306,308..VAN	06/2004 - 10/2006	1
61625-95J00	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61626E - EXTENSION, QUARTER PANEL, INNER REAR LH
61626-95J03	XZU306,308..VAN	06/2004 - 10/2006	1
61626-95J00	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61626E - EXTENSION, QUARTER PANEL, INNER REAR LH
61626-95J03	XZU306,308..VAN	06/2004 - 10/2006	1
61626-95J00	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61637D - REINFORCEMENT, QUARTER, INNER RH
61637-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61638D - REINFORCEMENT, QUARTER, INNER LH
61638-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH
61678-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61699C - RETAINER, COURTESY SWITCH
61699-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61699C - RETAINER, COURTESY SWITCH
61699-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH
61741-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61741-95J02	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH
61742-95J02	XZU306,308..VAN ｱﾘ(ﾊｲﾙ-ﾌ)	06/2004 - 10/2006	1
61742-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61677-37010	XZU306,308..VAN	06/2004 - 10/2006	1
61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH
61771-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH
61772-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61778B - PLATE, BACK DOOR OPENING, LOWER RH
61778-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61779B - PLATE, BACK DOOR OPENING, LOWER LH
61779-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61785D - EXTENSION, BACK DOOR OPENING SIDE, RH
61785-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
61786A - EXTENSION, BACK DOOR OPENING SIDE, LH
61786-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
61931 - STRENGTH, UPPER RAIL, NO.1 RH
61931-26010	XZU306,308..VAN	06/2004 - 10/2006	1
61941B - STRENGTH, UPPER RAIL, NO.1 LH
61941-26010	XZU306,308..VAN	06/2004 - 10/2006	1
62137A - REINFORCE, SIDE WINDOW PANEL
62137-95J00	XZU306,308..VAN 4ﾄﾞｱ & ｱﾘ(ﾙ-ﾄﾊﾞﾝﾊﾟﾈﾙｼﾖｳﾌﾙﾌﾞﾗｲﾝﾄﾞ),右側	06/2004 - 10/2006	4
62137-95J00	XZU306,308..VAN 左側,右側	06/2004 - 10/2006	2
62657B - COVER, QUARTER PANEL INNER, LH
62657-95J01	XZU306,308..VAN	06/2004 - 10/2006	1
63144C - EXTENSION, ROOF PANEL REINFORCE, NO.2
63144-37030	XZU306,308..VAN	06/2004 - 10/2006	1
67841D - COVER, QUARTER SERVICE HOLE, RH
67841-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
67842C - COVER, QUARTER SERVICE HOLE, LH
67842-37030	XZU306,308..VAN	06/2004 - 10/2006	1
67842D - COVER, QUARTER SERVICE HOLE, LH
67842-95J00	XZU306,308..VAN	06/2004 - 10/2006	1
67898C - SEAL, SLIDE DOOR, LOWER NO.2
67898-95J00	XZU306,308..VAN 4ﾄﾞｱ	06/2004 - 10/2006	1
67898-95J00	XZU306,308..VAN 5ﾄﾞｱ	06/2004 - 10/2006	2
Common parts
90149-60027
90149-60084
90159-60587
90179-04031
90189-05019
90189-06094
91511-J0820
91651-40614
Linked diagrams
6155
7552

ILLUST NO. 2 OF 2(9905- )VAN

Click highlighted areas on diagram

ﾌﾟﾗｸﾞﾎｰﾙ

Part #	Description	Period	Qty	Price
Common parts
90333-20001
90950-01066
90950-01326
90950-01398
90950-01731
90950-01826
90950-01890
90950-06017

(0610- )VAN

Click highlighted areas on diagram

4ﾄﾞｱ

Part #	Description	Period	Qty	Price
Common parts
90149-60027
90149-60084
90159-60587
90189-05019
90189-06094
91511-J0820
Linked diagrams
5752
6155
7552

(0610- )VAN

Click highlighted areas on diagram

5ﾄﾞｱ

Part #	Description	Period	Qty	Price
Common parts
90149-60027
90149-60084
90159-60587
90189-05019
90189-06094
91511-J0820
Linked diagrams
5752
6155
7552

XZU308V-REPMS (2004)

(8409- )BU6#,77,8#,9#..03S

(8708- )BU6#,8#,9#..03S

(8708- )V

(8808- )BU6#,72,73,74,78,8#,9#..03S

(8808- )V

ILLUST NO. 1 OF 2(9905- )VAN

ILLUST NO. 1 OF 2(9905- )VAN

ILLUST NO. 2 OF 2(9905- )VAN

(0610- )VAN

(0610- )VAN

Part Price Details
