Toyota Dyna/toyoace XZU308 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU308V-REPMS (2004)
5253 - REAR BUMPER & BUMPER STAY

XZU308V-REPMS (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

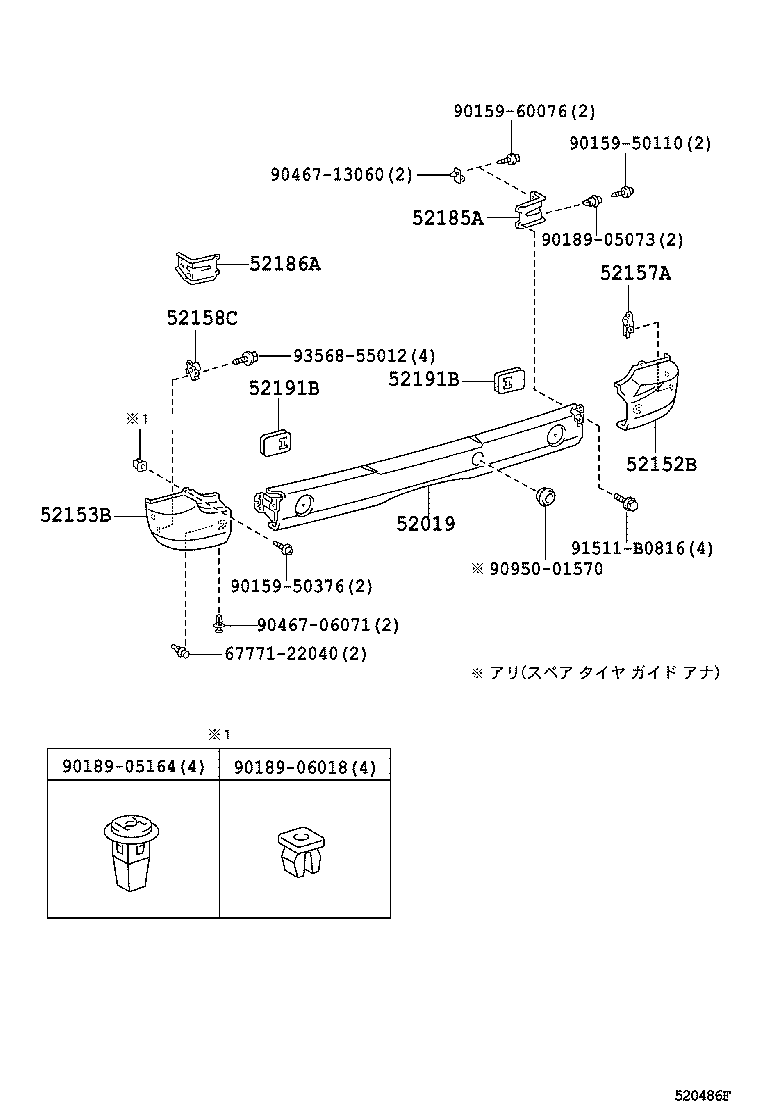

(9905- )VAN

Click highlighted areas on diagram

ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ

Part #	Description	Period	Qty
52019 - BAR SUB-ASSY, REAR BUMPER
52019-37010H0	XZU306,308..VAN TURQUOISE,766	06/2004 - 10/2006	1
52019-37010J0	XZU306,308..VAN BLUE,8P0	06/2004 - 10/2006	1
52019-37010A0	XZU306,308..VAN WHITE,058	06/2004 - 10/2006	1
52019-37020	XZU308..03S..4FC ｱﾘ(ｽﾍﾟｱﾀｲﾔｶﾞｲﾄﾞｱﾅ)	05/2005 - 10/2006	1
52152B - EXTENSION, REAR BUMPER, RH
52165-95J01	XZU306,308..VAN ｱﾘ(ﾊﾈｱｹﾞｼｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52165-95J02	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52153B - EXTENSION, REAR BUMPER, LH
52166-95J01	XZU306,308..VAN ｱﾘ(ﾊﾈｱｹﾞｼｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52166-95J02	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J01	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52157-95J00	XZU306,308..VAN ｱﾘ(ﾊﾈｱｹﾞｼｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J01	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52158-95J00	XZU306,308..VAN ｱﾘ(ﾊﾈｱｹﾞｼｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52185A - BRACKET, REAR BUMPER SIDE, RH
52185-95J02	XZU306,308..VAN	06/2004 - 10/2006	1
52186A - BRACKET, REAR BUMPER SIDE, LH
52186-95J02	XZU306,308..VAN	06/2004 - 10/2006	1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	XZU306,308..VAN	06/2004 - 10/2006	2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	XZU306,308..VAN	06/2004 - 10/2006	2
Common parts
67771-22040
90159-50110
90159-50376
90159-60076
90189-05073
90189-05164
90189-06018
90467-06071
90467-13060
90950-01570
91511-B0816
93568-55012

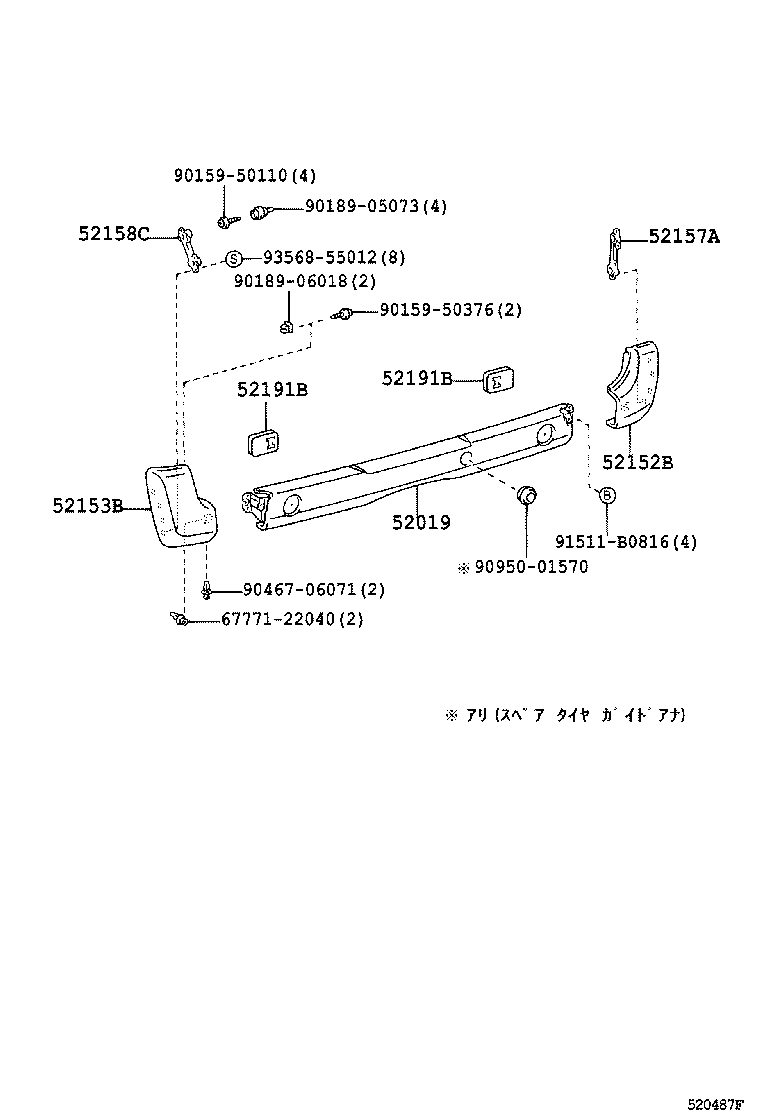

(9905- )VAN

Click highlighted areas on diagram

ﾊﾈｱｹﾞｼｷﾊﾞﾂｸﾄﾞｱ

Part #	Description	Period	Qty
52019 - BAR SUB-ASSY, REAR BUMPER
52019-37010H0	XZU306,308..VAN TURQUOISE,766	06/2004 - 10/2006	1
52019-37010J0	XZU306,308..VAN BLUE,8P0	06/2004 - 10/2006	1
52019-37010A0	XZU306,308..VAN WHITE,058	06/2004 - 10/2006	1
52019-37020	XZU308..03S..4FC ｱﾘ(ｽﾍﾟｱﾀｲﾔｶﾞｲﾄﾞｱﾅ)	05/2005 - 10/2006	1
52152B - EXTENSION, REAR BUMPER, RH
52165-95J01	XZU306,308..VAN ｱﾘ(ﾊﾈｱｹﾞｼｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52165-95J02	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52153B - EXTENSION, REAR BUMPER, LH
52166-95J01	XZU306,308..VAN ｱﾘ(ﾊﾈｱｹﾞｼｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52166-95J02	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J01	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52157-95J00	XZU306,308..VAN ｱﾘ(ﾊﾈｱｹﾞｼｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J01	XZU306,308..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52158-95J00	XZU306,308..VAN ｱﾘ(ﾊﾈｱｹﾞｼｷﾊﾞﾂｸﾄﾞｱ)	06/2004 - 10/2006	1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	XZU306,308..VAN	06/2004 - 10/2006	2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	XZU306,308..VAN	06/2004 - 10/2006	2
Common parts
67771-22040
90159-50110
90159-50376
90189-05073
90189-06018
90467-06071
90950-01570
91511-B0816
93568-55012

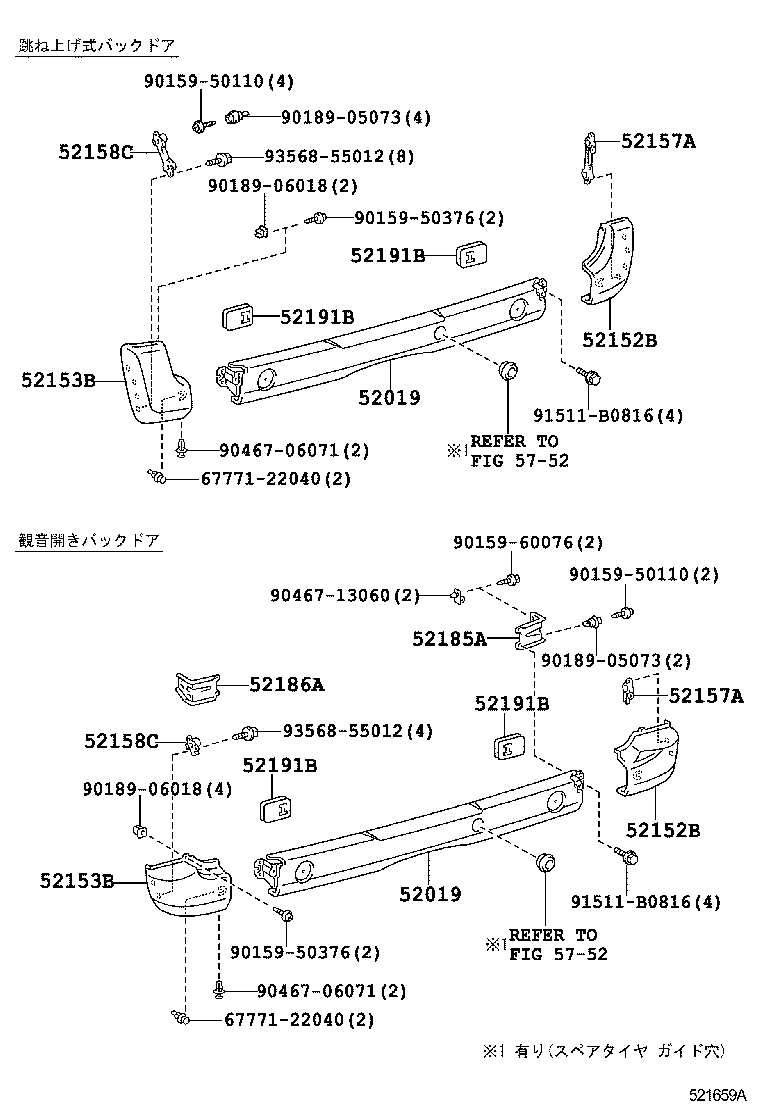

(0610- )VAN

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
67771-22040
90159-50110
90159-50376
90159-60076
90189-05073
90189-06018
90467-06071
90467-13060
91511-B0816
93568-55012
Linked diagrams
5752

ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90117-12003
90119-08108
90179-08146
90201-09368
90950-01004
91121-40865
91611-40820
91611-40825
91611-41025
91651-40816
91651-41025
91661-40840
91669-61245
91669-61250
94110-40800
94110-41000
94115-51200
94120-40800
94125-41200
94612-11001
94614-10800
94614-11200
