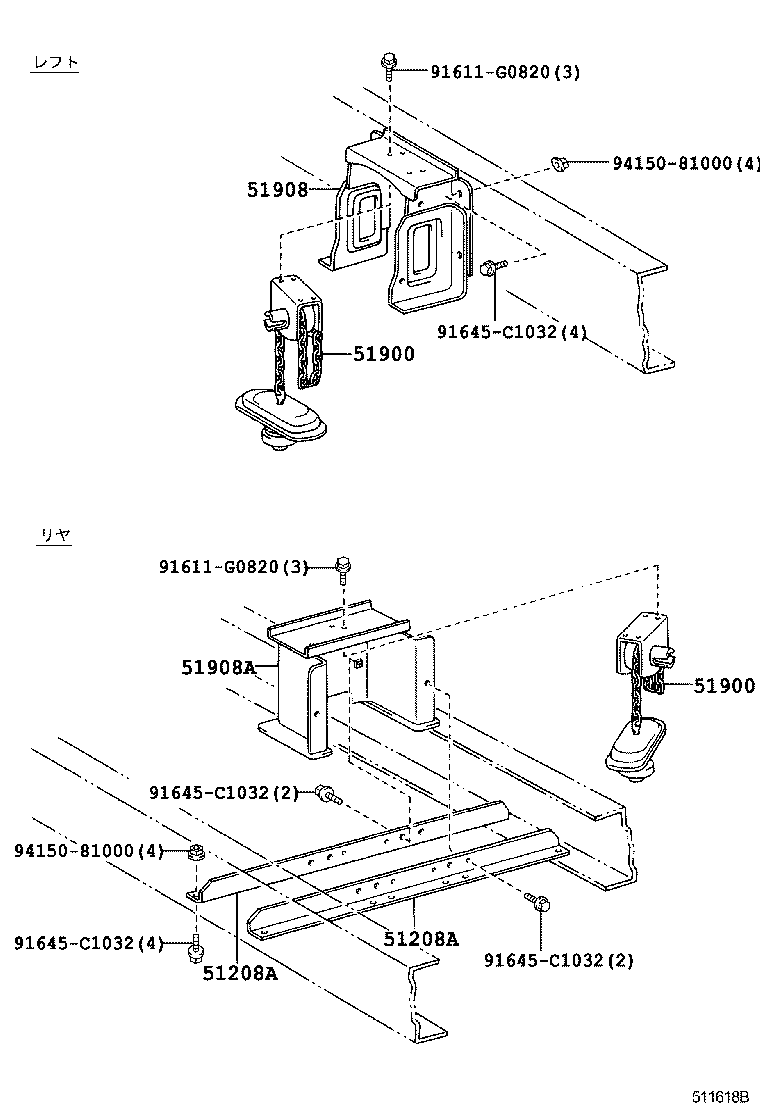

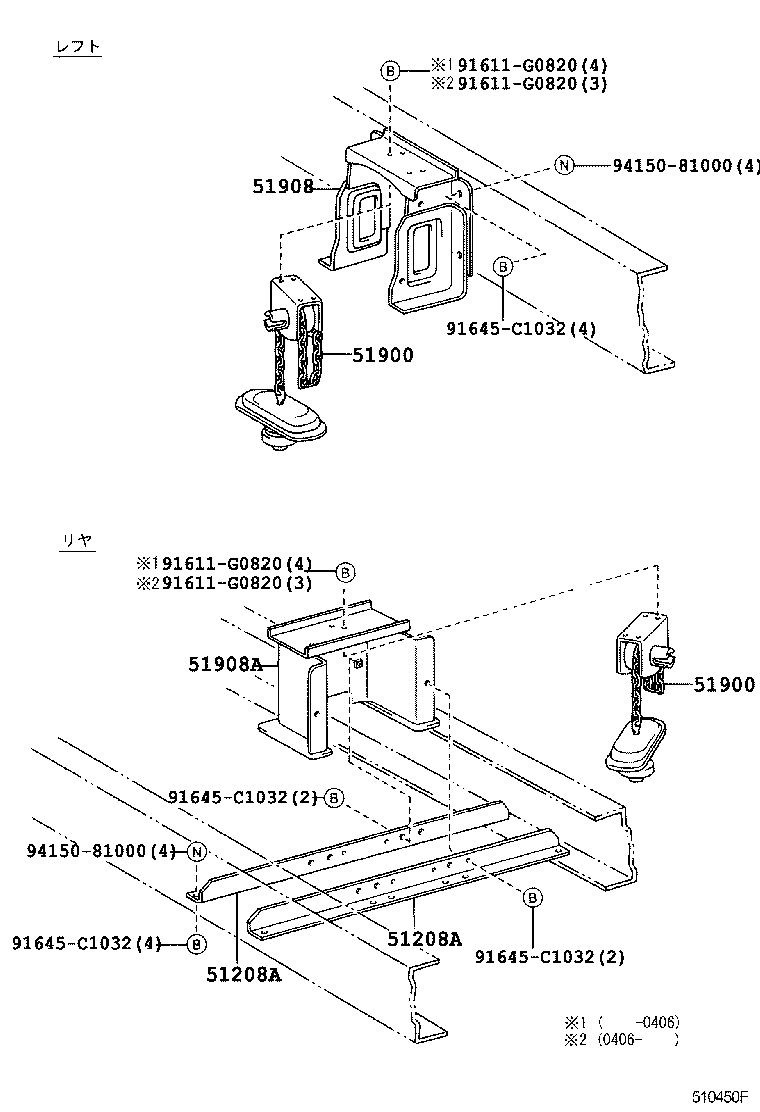

Toyota Dyna/toyoace XZU308 SPARE WHEEL CARRIER

Part #	Description	Period	Qty
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37020	XZU368..T4..20T..IV3;XZU304..(T3,T4)..(DCRL,DSL);BZU300,XZU301,346,348..(T3,T4)..20T;RZU300,XZU304..(T2,T4)..20T..(DSLL,EFI);BZU300,RZU300,XZU301,304..T3..(DSL,DSLL,EFI,LPG)..(CBU,IV3);BZU340,RZU301,340,XZU306,308,33#,341,344,378,388..(03S,06S,T2,T3,T4)..(20T,30T,35T)..(CBU,IV3)	06/2004 - 10/2006	2
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37020	XZU368..T4..20T..IV3;XZU304..(T3,T4)..(DCRL,DSL);BZU300,XZU301,346,348..(T3,T4)..20T;RZU300,XZU304..(T2,T4)..20T..(DSLL,EFI);BZU300,RZU300,XZU301,304..T3..(DSL,DSLL,EFI,LPG)..(CBU,IV3);BZU340,RZU301,340,XZU306,308,33#,341,344,378,388..(03S,06S,T2,T3,T4)..(20T,30T,35T)..(CBU,IV3)	06/2004 - 10/2006	2
51900 - CARRIER ASSY, SPARE WHEEL
51900-37100	RZU300,XZU306,308,336,338,351..03S,06S,DM2,T2	06/2004 - 10/2006	2
51900-37100	XZU308..03S..4FC ﾘﾔ	05/2005 - 10/2006	1
51900-37150	XZU308..03S..4FC ｱﾘ(ｹﾞﾝｷﾝﾕｿｳｼﾔ),左側	05/2005 - 10/2006	1
51900 - CARRIER ASSY, SPARE WHEEL
51900-37100	RZU300,XZU306,308,336,338,351..03S,06S,DM2,T2	06/2004 - 10/2006	2
51900-37100	XZU308..03S..4FC ﾘﾔ	05/2005 - 10/2006	1
51900-37150	XZU308..03S..4FC ｱﾘ(ｹﾞﾝｷﾝﾕｿｳｼﾔ),左側	05/2005 - 10/2006	1
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-37330	XZU306,308..VAN	06/2004 - 10/2006	1
51908A - BRACKET SUB-ASSY, SPARE WHEEL MOUNTING
51908-37321	XZU306,308..VAN	05/2005 - 10/2006	1
51908-37320	XZU306,308..VAN	06/2004 - 04/2005	1
Common parts
91611-G0820
91645-C1032
94150-81000

XZU308V-REPMS (2004)

(9905- )BU30#,BZU300,RZU30#,XZU300,301,302,304,305,307,308,334,350,371,378..03S,

(9905-0610)VAN

(0610- )VAN

(0610- )VAN

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
91611-B0825
91611-G0820
91645-C1032
91651-B0825
93590-16014
94150-80800
94150-81000
Linked diagrams
7454
