XZU308V-REPMS (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU6#,7#,8#,93,98

Click highlighted areas on diagram

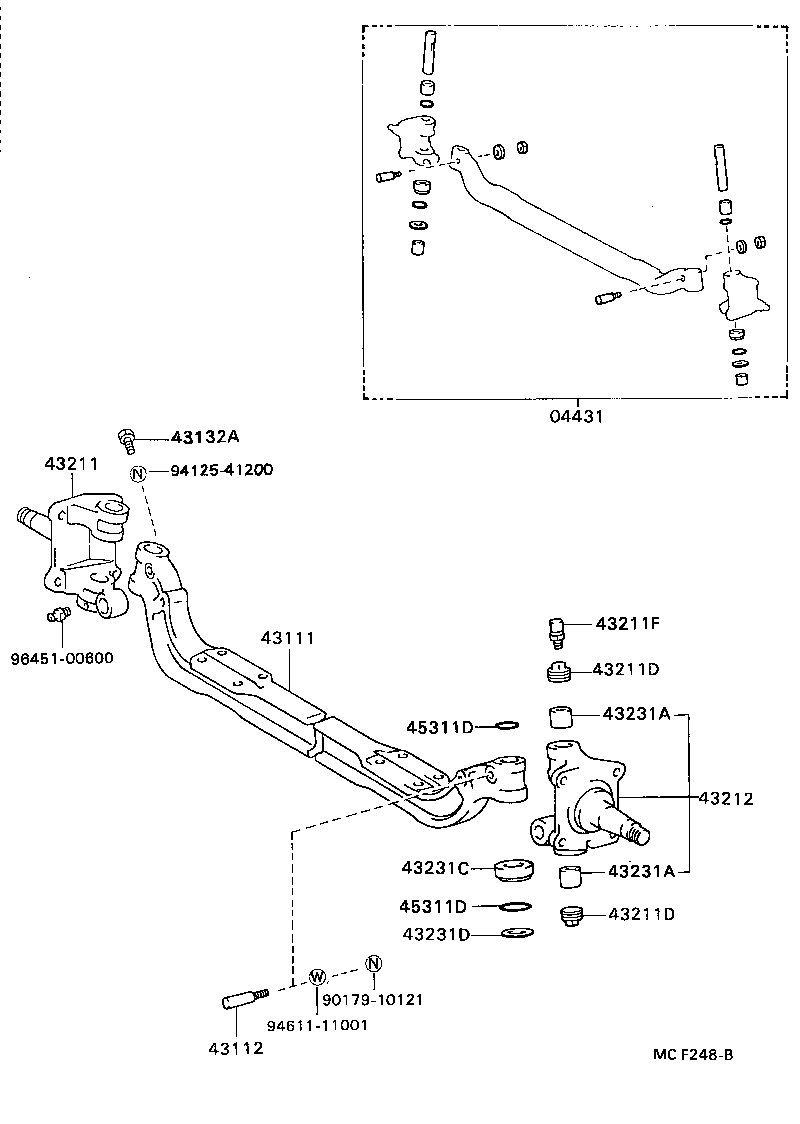

diagram 04431 43111 43112 43132A 43211 43211D 43211D 43211E 43212 43231A 43231A 43231B 43231B 43231C 43231D 9412541200 9418461000 9461111001 9645100600
Part # Description Qty Price
Common parts
94125-41200
94184-61000
94611-11001
96451-00600

(8708- )BU6#,70,8#,93,98

Click highlighted areas on diagram

diagram 04431 43111 43112 43132A 43211 43211D 43211D 43211F 43212 43231A 43231A 43231C 43231D 45311D 45311D 9017910121 9412541200 9461111001 9645100600
Part # Description Qty Price
Common parts
90179-10121
94125-41200
94611-11001
96451-00600

(8808- )BU6#,70,78,8#,94

Click highlighted areas on diagram

diagram 04431 43111 43112 43132A 43211 43211D 43211D 43211F 43212 43231A 43231A 43231C 43231D 45311D 9017910121 9412541200 9461111001 9645100600
Part # Description Qty Price
Common parts
90179-10121
94125-41200
94611-11001
96451-00600

(0406- )XZU306,308,336,338,346,348

Click highlighted areas on diagram

diagram 43132A 43132A 43211 43212 43330K 43330L 43340A 43340B 45543 45543E 45544 45544C 48066 48067 48068 48069 48191C 48191D 48195 48610D 48632A 48632A 48632B 48632B 48633A 48633A 48633B 48633B 5151 9011916008 9011916008 9017012009 9017012009 9017912128 9025204001 9025204005 9034506014 9034506014 9052056004 9090109005 9165160830 9413000802 9462241200
Part # Description Qty Price

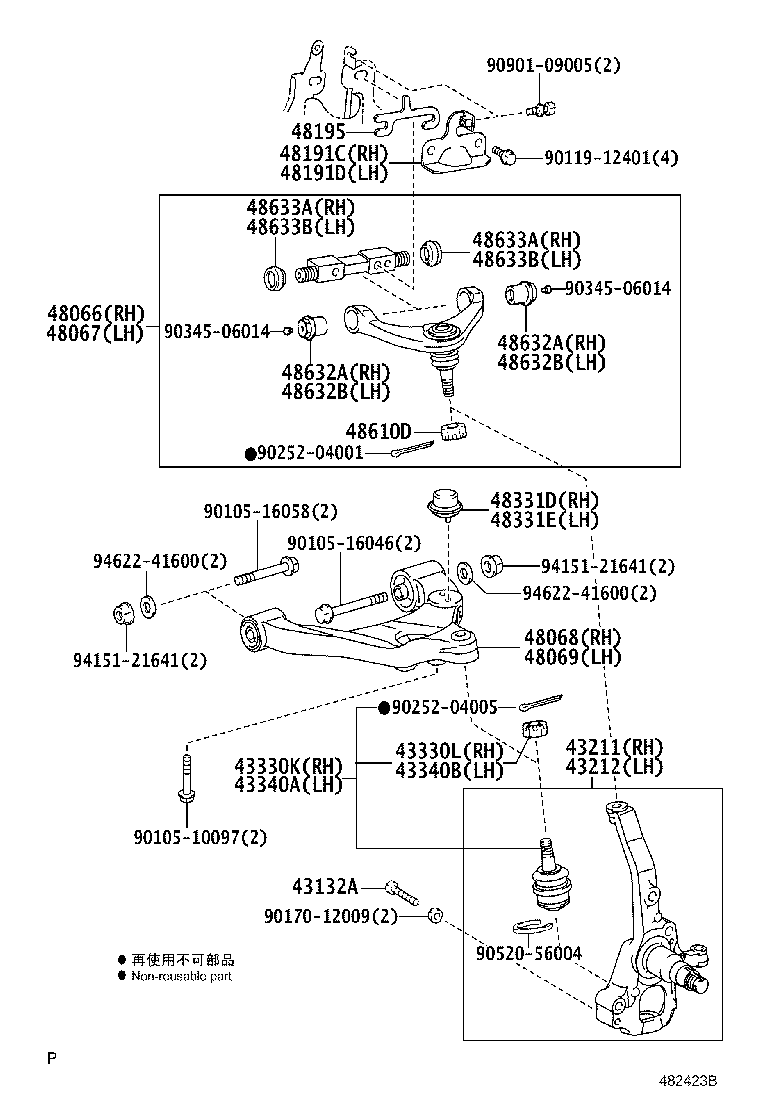

43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-12015

XZU306,308,336,338,346,348

 4
43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-12015

XZU306,308,336,338,346,348

 4
43211 - KNUCKLE, STEERING, RH
43201-37074

XZU306,308,336,338,346,348

 1
43212 - KNUCKLE, STEERING, LH
43202-37074

XZU306,308,336,338,346,348

 1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-39765

XZU306,308,336,338,346,348

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-20001

XZU306,308,336,338,346,348

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-39765

XZU306,308,336,338,346,348

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-20001

XZU306,308,336,338,346,348

 1
45543 - PROTECTOR, STEERING RACK BOOT, RH
45543-37010

XZU306,308,336,338,346,348

 1
45543E - PROTECTOR, STEERING RACK BOOT,RH NO.2
45544-37010

XZU306,308,336,338,346,348,368,378,388

 1
45544 - PROTECTOR, STEERING RACK BOOT, LH
45543-37010

XZU306,308,336,338,346,348

 1
45544C - PROTECTOR, STEERING RACK BOOT, LH NO.2
45544-37010

XZU306,308,336,338,346,348,368,378,388

 1
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48066-39075

XZU306,308,336,338,346,348

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48067-39075

XZU306,308,336,338,346,348

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48620-37040

XZU306,308,336,338,346,348

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48640-37040

XZU306,308,336,338,346,348

 1
48191C - PLATE, FRONT SUPENSION CASTER ADJUST, RH
48191-37040

XZU306,308,336,338,346,348,368,378,388

 1
48191D - PLATE, FRONT SUPENSION CASTER ADJUST, LH
48192-37080

XZU306,308,336,338,346,348,368,378,388

 1
48195 - SHIM, CAMBER ADJUST
90905-65002

XZU306,308,336,338,346,348,368,378,388

厚さ=0.8

 1
90905-65003

XZU306,308,336,338,346,348,368,378,388

厚さ=1.2

 1
90905-65001

XZU306,308,336,338,346,348,368,378,388

厚さ=4.0

 1
90905-65004

XZU306,308,336,338,346,348,368,378,388

厚さ=2.0

 1
48610D - NUT(FOR SUSPENSION UPPER ARM)
90171-18003

XZU306,308,336,338,346,348,368,378,388

 2
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-37020

XZU306,308,336,338,346,348,368,378,388

 2
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-37020

XZU306,308,336,338,346,348,368,378,388

 2
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-37020

XZU306,308,336,338,346,348,368,378,388

 2
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-37020

XZU306,308,336,338,346,348,368,378,388

 2
48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH
48633-37010

XZU306,308,336,338,346,348,368,378,388

 2
48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH
48633-37010

XZU306,308,336,338,346,348,368,378,388

 2
48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH
48633-37010

XZU306,308,336,338,346,348,368,378,388

 2
48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH
48633-37010

XZU306,308,336,338,346,348,368,378,388

 2
Common parts
90119-16008
90170-12009
90179-12128
90252-04001
90252-04005
90345-06014
90520-56004
90901-09005
91651-60830
94130-00802
94622-41200
Linked diagrams
5151

(0610- )XZU308,338,348,508,538,548

Click highlighted areas on diagram

diagram 43132A 43211 43212 43330K 43330L 43340A 43340B 48066 48067 48068 48069 48191C 48191D 48195 48331D 48331E 48610D 48632A 48632A 48632B 48632B 48633A 48633A 48633B 48633B 9010510097 9010516046 9010516058 9011912401 9017012009 9025204001 9025204005 9034506014 9034506014 9052056004 9090109005 9415121641 9415121641 9462241600 9462241600
Part # Description Qty Price
Common parts
90105-10097
90105-16046
90105-16058
90119-12401
90170-12009
90252-04001
90252-04005
90345-06014
90520-56004
90901-09005
94151-21641
94622-41600

(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

diagram 43111 43112 43132A 43211 43211D 43211D 43211E 43212 43231A 43231A 43231B 43231B 43231C 43231D 43231K 9017010038 9017010082 9411041000 9412541200 9451201000 9461111001 9645100600
Part # Description Qty Price
Common parts
90170-10038
90170-10082
94110-41000
94125-41200
94512-01000
94611-11001
96451-00600
