XZU308V-REPMS (2004)
Toyota Dyna/Toyoace
Production
Jun 2004
-
Oct 2006
Engine
N04C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60814 | ||||
(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60814 | ||||
(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60814 | ||||

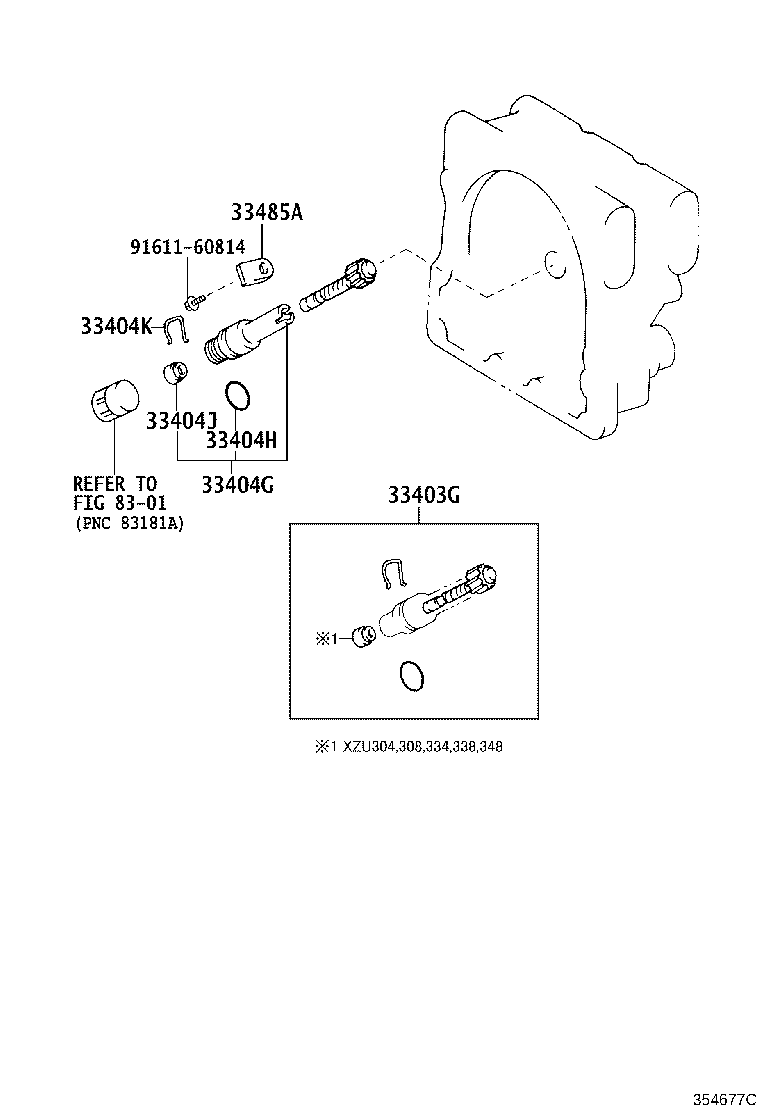

(0406- )4FC
Click highlighted areas on diagram
A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33482-39805 |
XZU308..(03S,T2)..4FC 歯数=16,ﾏｰｸ 16:4 |
1 | ||
| 33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-37010 |
RZU301,XZU304,308,334,338,348..4FC |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
RZU301,XZU304,308,334,338,348..4FC |
1 | ||
| 33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-10001 |
RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM |
1 | ||
| 33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM |
1 | ||
| 33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8301 | ||||
(9905- )4FC
Click highlighted areas on diagram
A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60814 | ||||
