XZU308V-REPMS (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )N04C,S05D..XZU306,308..VAN

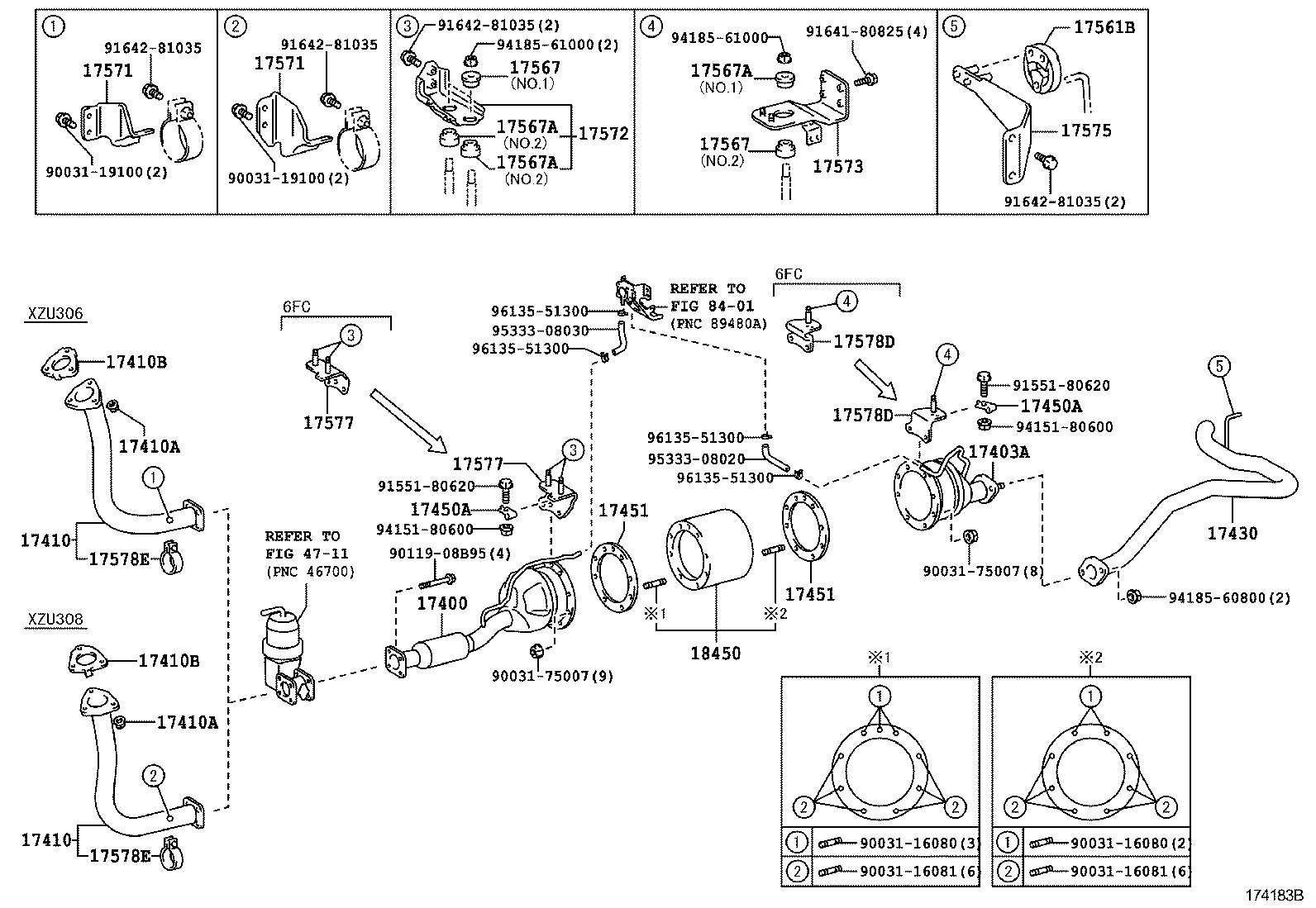

Click highlighted areas on diagram

diagram 17400 17403A 17410 17410 17410A 17410A 17410B 17410B 17430 17450A 17450A 17451 17451 17561B 17567 17567 17567A 17567A 17567A 17571 17571 17572 17573 17575 17577 17577 17578D 17578D 17578E 17578E 18450 4711 8401 9003116080 9003116080 9003116081 9003116081 9003119100 9003119100 9003175007 9003175007 9011908B95 9155180620 9155180620 9164180825 9164281035 9164281035 9164281035 9164281035 9415180600 9415180600 9418560800 9418561000 9418561000 9533308020 9533308030 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
17406-78100

N04C,S05D..XZU301,304,306,308,311,321,33#,341,346,348,351..(4FC,5F)..DSL

 1
17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2
17403-78660

S05D..XZU301..5F..20T..IV6;S05D..XZU301..5F..(CBU,IV3);N04C,S05D..XZU304,306,308,311,321,33#,341,346,348,351,388..(4FC,5F)..DSL

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78220

N04C..XZU304,308,334,338,348..DSL

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78220

N04C..XZU304,308,334,338,348..DSL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388

 3
17410B - GASKET, EXHAUST PIPE
90917-06087

N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388

 1
17410B - GASKET, EXHAUST PIPE
90917-06087

N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78B00

N04C,S05D..XZU306,308..VAN

 1
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78020

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388

 2
17589-78021

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388

 2
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78020

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388

 2
17589-78021

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388

 2
17451 - GASKET, EXHAUST PIPE
17451-78020

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388

 2
17451 - GASKET, EXHAUST PIPE
17451-78020

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

S05D..XZU301..20T..IV6;N04C,S05D..XZU301,354..CBU,IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,368,378,388

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78030

N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7

NO.1

 2
17567-78040

N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7

NO.2

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78030

N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7

NO.1

 2
17567-78040

N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7

NO.2

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7

NO.1

 1
17567-78040

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7

NO.2

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7

NO.1

 1
17567-78040

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7

NO.2

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7

NO.1

 1
17567-78040

N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7

NO.2

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78050

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU308,314,334,338,344,348,354

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78050

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU308,314,334,338,344,348,354

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78210

N04C..XZU378..IV4;N04C,S05D..XZU30#,33#,34#,354..(03S,06S,DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78200

N04C,S05D..XZU30#,354,388..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78290

N04C,S05D..XZU306,308..VAN

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78050

N04C..XZU304,334;N04C,S05D..XZU301,305,306,308,31#,321,331,336,338,34#,35#..4FC,5F

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78050

N04C..XZU304,334;N04C,S05D..XZU301,305,306,308,31#,321,331,336,338,34#,35#..4FC,5F

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78100

N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..(4FC,5F)..(CBU,IV3,IV6,IV7)

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78100

N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..(4FC,5F)..(CBU,IV3,IV6,IV7)

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#..BZU300,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#..BZU300,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388

 1
18450 - CONVERTER ASSY, MONOLITHIC
18450-78020

N04C..XZU378..IV4;N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,388

 1
Common parts
90031-16080
90031-16081
90031-19100
90031-75007
90119-08B95
91551-80620
91641-80825
91642-81035
94151-80600
94185-60800
94185-61000
95333-08020
95333-08030
96135-51300
Linked diagrams
4711
8401
