XZU308V-REPMS (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 11251 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11432C 11434A 11434C 11434D 11452 11459 11462 11475 12101 12101A 12101B 1301 1301 1302 1302 13613C 15301 15605 15708 9004301041 9011608194 9011608194 9011908505 9011908512 9017908088 9017908088 9020114099 9213260820 9411040800
Part # Description Qty Price
Common parts
90043-01041
90116-08194
90119-08505
90119-08512
90179-08088
90201-14099
92132-60820
94110-40800
Linked diagrams
1301
1302

(8708- )

Click highlighted areas on diagram

diagram 11251 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11432C 11434A 11434C 11434D 11452 11459 11462 11475 12101 12101A 12101B 1301 1301 1302 1302 13613C 15301 15605 15708 9011608194 9011908505 9011908512 9017908088 9017908088 9020114099 9213260820 9411040800 9672124010
Part # Description Qty Price
Common parts
90116-08194
90119-08505
90119-08512
90179-08088
90201-14099
92132-60820
94110-40800
96721-24010
Linked diagrams
1301
1302

(8808- )B,11B,14B#,3B

Click highlighted areas on diagram

diagram 11401 11415 11415 11415A 11415A 11416 11429A 11431A 11431B 11431B 11431B 11431C 11431D 11431D 11431E 11432A 11432B 11432C 11434A 11434C 11434D 11452 11459 12101 12101A 12101B 1301 1301 1302 1302 13613C 15301 15605 15708 1603 1603 8401 9010906147 9010910122 9011608194 9011608194 9011908505 9011908505 9017908040 9017908088 9043006004 9043010035 9043018012 9411040800 9672124010
Part # Description Qty Price
Common parts
90109-06147
90109-10122
90116-08194
90119-08505
90179-08040
90179-08088
90430-06004
90430-10035
90430-18012
94110-40800
96721-24010
Linked diagrams
1301
1302
1603
8401

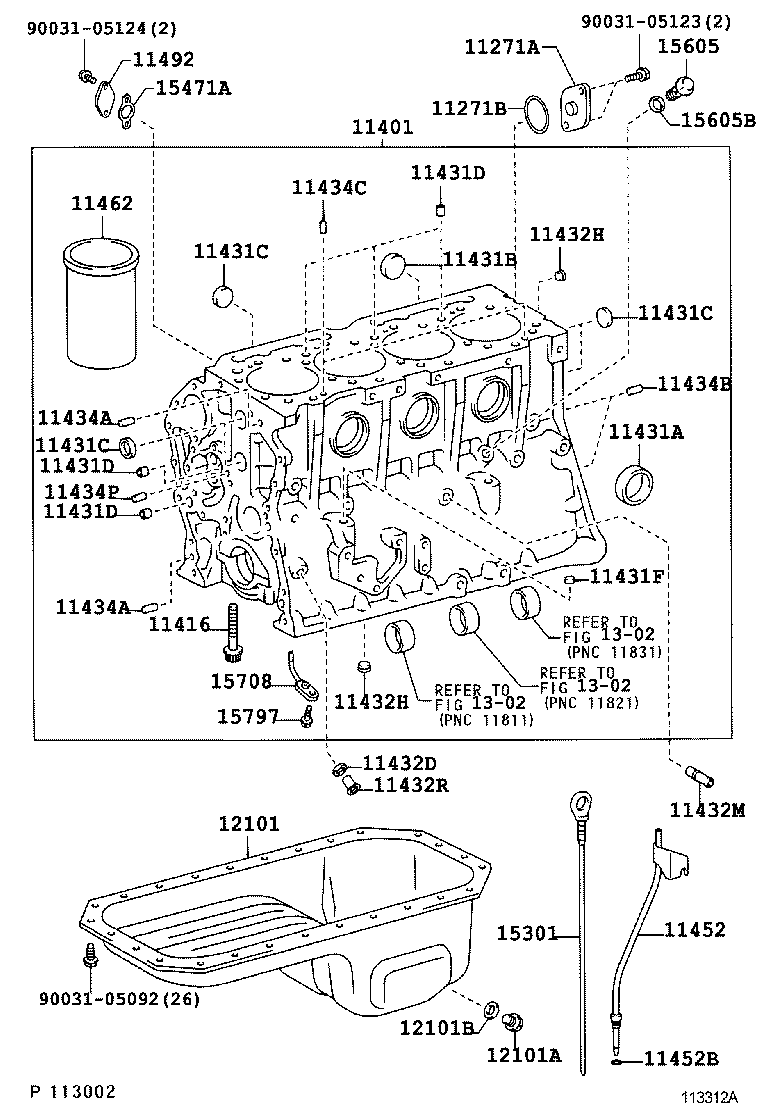

(0406-0610)N04C..XZU304,308,334,338,348,368,378,388..DSL

Click highlighted areas on diagram

diagram 11271A 11271B 11401 11416 11431A 11431B 11431C 11431C 11431C 11431D 11431D 11431D 11431F 11432D 11432H 11432H 11432M 11432R 11434A 11434A 11434B 11434C 11434P 11452 11452B 11462 11492 12101 12101A 12101B 1302 1302 1302 15301 15471A 15605 15605B 15708 15797 9003105092 9003105123 9003105124
Part # Description Qty Price
11271A - COVER, CYLINDER BLOCK, REAR
11271-78020

N04C..XZU304,308,334,338,348,368,378,388..DSL

 1
11271-78010

N04C..XZU304,308,334,338,348,368,378,388..DSL

 1
11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE)
90301-69001

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-78180

N04C..XZU304,308,334,338,348,368,378,388..DSL

 1
11432D - GASKET, W/HEAD TAPER SCREW PLUG
90202-10011

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11432M - UNION(FOR CYLINDER BLOCK)
12229-78020

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90033-41017

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-78040

N04C..XZU304,308,334,378,388..DCB,VAN

 1
11492 - PLATE, WATER SEAL
11492-78010

N04C..XZU304,308,334,338,348,368,378,388..DSL

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90202-18002

N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-78090

N04C..XZU304,308,334,378,388..DCB,VAN

 1
15471A - GASKET(FOR CLYINDER BLOCK)
15471-78011

N04C..XZU304,308,334,338,348,368,378,388..DSL

 1
15471-78010

N04C..XZU304,308,334,338,348,368,378,388..DSL

 1
15605B - GASKET(FOR OIL CHECK VALVE)
90034-30043

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
11418-78020

N04C..XZU304,308,334,338,348,368,378,388..DSL

 4
Common parts
90031-05092
90031-05123
90031-05124
Linked diagrams
1302

(0610- )N04C..CBU,IV3,IV6,IV7

Click highlighted areas on diagram

diagram 11271A 11271B 11401 11416 11431A 11431B 11431C 11431C 11431C 11431D 11431D 11431D 11431F 11432D 11432H 11432H 11432R 11434A 11434A 11434B 11434C 11434P 11444 11444A 11452 11452B 11462 12101 12101A 12101B 1302 1302 1302 15301 15605 15605B 15708 15797 1709 9003105092 9003105123
Part # Description Qty Price
Common parts
90031-05092
90031-05123
Linked diagrams
1302
1709
