XZU308-TQMMS3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0406- )XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
BZU300,340,RZU30#,340,XZU30#,321,334,336,338,34#,35#,368,378,388..175T,20T ｱﾘ(ABS) |
1 | ||
| 44610-37250 |
XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20070 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20070 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44597-37021 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44597-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37210 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350..SCB |
1 | ||
| 44762-37250 |
XZU306,308,336,338,346,348 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB 長さ=380 |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90467-16022 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(0406- )XZU304,308,334,338,344,348..SCB..T1,T2,T3,T4,T5..20T,30T..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78032 |
N04C..XZU304..T4..20T..IV3;S05D..XZU341..T4..30T..IV3;N04C,S05D..XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 27690-78023 |
N04C,S05D..XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78032 |
N04C..XZU304..T4..20T..IV3;S05D..XZU341..T4..30T..IV3;N04C,S05D..XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 27690-78023 |
N04C,S05D..XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37161 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37170 |
XZU301,304,306,308..SCB..T4..20T..IV3 ﾚｲﾄｳｼﾔ ｼﾖｳ,ﾅｼ(ｺﾝﾌﾟﾚｯｻ ﾌﾞﾗｹｯﾄ) |
1 | ||
| 44704-37170 |
XZU301..6FC..20T..IV3..4NO;XZU304..30T..DCRL..IV3..4NO;XZU304,306,308..SCB..T4..20T..IV3 ﾚｲﾄｳｼﾔ ｼﾖｳ,ｱﾘ(ｺﾝﾌﾟﾚｯｻ ﾌﾞﾗｹｯﾄ) |
1 | ||
| 44704-37170 |
XZU304,306,308..SCB..T4..20T..IV3 ﾚｲﾄｳｼﾔ ｼﾖｳ,ｱﾘ(ﾊﾂﾃﾞﾝｷ ﾌﾞﾗｹｯﾄ) |
1 | ||
| 44704-37171 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾀﾞﾝﾌﾟ OR ﾎﾞﾄﾙｶ- OR ﾚｲﾄｳｼﾔ |
1 | ||
| 44704-37162 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37060 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶｰ |
1 | ||
| 44702-37040 |
XZU301,304,306,308,33#,34#..SCB..(DM3,T1,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37060 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶｰ |
1 | ||
| 44702-37040 |
XZU301,304,306,308,33#,34#..SCB..(DM3,T1,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37520 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44763-37570 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶｰ |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44776-37180 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44776-37180 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37530 |
XZU304,305,308,334,338,344,348,354..(03S,06S,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37530 |
XZU304,305,308,334,338,344,348,354..(03S,06S,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44771-37410 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 44773-37060 |
XZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44781C - BRACKET, HOSE CLAMP, NO.2 | ||||
| 44781-37020 |
XZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90461-08385 | ||||
| 91641-80818 | ||||
| 91642-K1020 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||

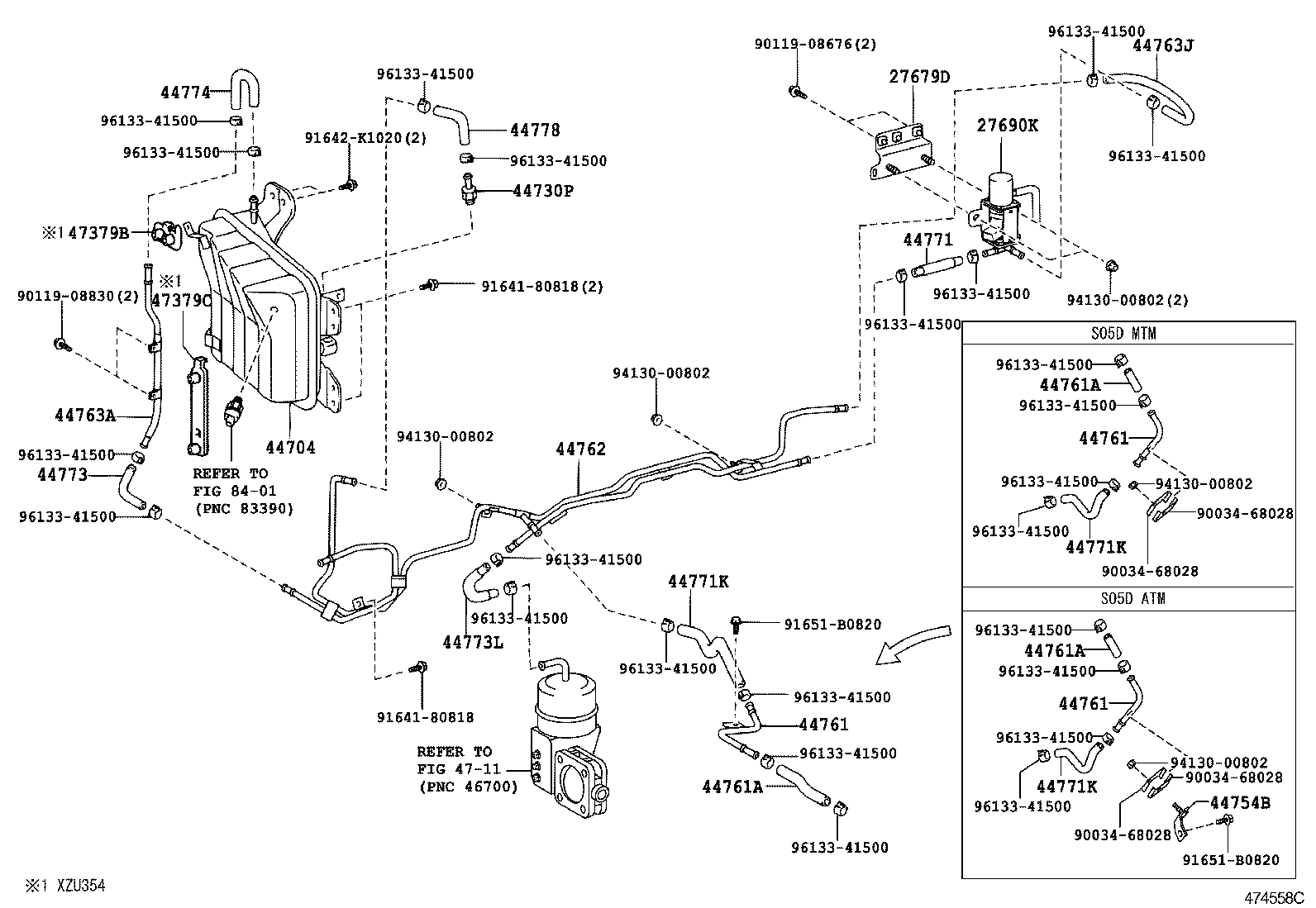

ILLUST NO. 2 OF 2(0406- )XZU304..T4..20T..IV3 ; (0406- )XZU341..T4..30T..IV3 ; (0406- )XZU3
ﾀﾞﾝﾌﾟ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78041 |
S05D..XZU301..IV6;S05D..XZU341..T4..30T..IV3;N04C,S05D..XZU301,344,346..SCB..(DM6,T4)..(DSL,DSLL)..IV3;N04C,S05D..XZU304,305,306,308,336,354..SCB..(DM6,T3,T4)..(20T,40T)..(IV3,IV6) |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78032 |
N04C..XZU304..T4..20T..IV3;S05D..XZU341..T4..30T..IV3;N04C,S05D..XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 27690-78023 |
N04C,S05D..XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37161 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37170 |
XZU301,304,306,308..SCB..T4..20T..IV3 ﾚｲﾄｳｼﾔ ｼﾖｳ,ﾅｼ(ｺﾝﾌﾟﾚｯｻ ﾌﾞﾗｹｯﾄ) |
1 | ||
| 44704-37170 |
XZU301..6FC..20T..IV3..4NO;XZU304..30T..DCRL..IV3..4NO;XZU304,306,308..SCB..T4..20T..IV3 ﾚｲﾄｳｼﾔ ｼﾖｳ,ｱﾘ(ｺﾝﾌﾟﾚｯｻ ﾌﾞﾗｹｯﾄ) |
1 | ||
| 44704-37170 |
XZU304,306,308..SCB..T4..20T..IV3 ﾚｲﾄｳｼﾔ ｼﾖｳ,ｱﾘ(ﾊﾂﾃﾞﾝｷ ﾌﾞﾗｹｯﾄ) |
1 | ||
| 44704-37171 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾀﾞﾝﾌﾟ OR ﾎﾞﾄﾙｶ- OR ﾚｲﾄｳｼﾔ |
1 | ||
| 44704-37162 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37060 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶｰ |
1 | ||
| 44702-37040 |
XZU301,304,306,308,33#,34#..SCB..(DM3,T1,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37520 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44763-37570 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶｰ |
1 | ||
| 44763J - HOSE, SOLENOID TO VACUUM TUBE | ||||
| 44771-37230 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44776-37180 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37530 |
XZU304,305,308,334,338,344,348,354..(03S,06S,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37530 |
XZU304,305,308,334,338,344,348,354..(03S,06S,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37530 |
XZU304,305,308,334,338,344,348,354..(03S,06S,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44771-37410 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 44773-37060 |
XZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| Common parts | ||||
| 90034-68028 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 91641-80818 | ||||
| 91642-K1020 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0406- )XZU301,306..IV6 ; (0406- )XZU301..20T..IV3..1NO ; (0406- )XZU308..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78041 |
S05D..XZU301..IV6;S05D..XZU341..T4..30T..IV3;N04C,S05D..XZU301,344,346..SCB..(DM6,T4)..(DSL,DSLL)..IV3;N04C,S05D..XZU304,305,306,308,336,354..SCB..(DM6,T3,T4)..(20T,40T)..(IV3,IV6) |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78032 |
N04C..XZU304..T4..20T..IV3;S05D..XZU341..T4..30T..IV3;N04C,S05D..XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 27690-78023 |
N04C,S05D..XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37161 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37170 |
XZU301,304,306,308..SCB..T4..20T..IV3 ﾚｲﾄｳｼﾔ ｼﾖｳ,ﾅｼ(ｺﾝﾌﾟﾚｯｻ ﾌﾞﾗｹｯﾄ) |
1 | ||
| 44704-37170 |
XZU301..6FC..20T..IV3..4NO;XZU304..30T..DCRL..IV3..4NO;XZU304,306,308..SCB..T4..20T..IV3 ﾚｲﾄｳｼﾔ ｼﾖｳ,ｱﾘ(ｺﾝﾌﾟﾚｯｻ ﾌﾞﾗｹｯﾄ) |
1 | ||
| 44704-37170 |
XZU304,306,308..SCB..T4..20T..IV3 ﾚｲﾄｳｼﾔ ｼﾖｳ,ｱﾘ(ﾊﾂﾃﾞﾝｷ ﾌﾞﾗｹｯﾄ) |
1 | ||
| 44704-37171 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾀﾞﾝﾌﾟ OR ﾎﾞﾄﾙｶ- OR ﾚｲﾄｳｼﾔ |
1 | ||
| 44704-37162 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37060 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶｰ |
1 | ||
| 44702-37040 |
XZU301,304,306,308,33#,34#..SCB..(DM3,T1,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37520 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44763-37570 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶｰ |
1 | ||
| 44763J - HOSE, SOLENOID TO VACUUM TUBE | ||||
| 44771-37230 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44776-37180 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37530 |
XZU304,305,308,334,338,344,348,354..(03S,06S,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37530 |
XZU304,305,308,334,338,344,348,354..(03S,06S,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37530 |
XZU304,305,308,334,338,344,348,354..(03S,06S,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44771-37410 |
XZU304..T4..20T..IV3;XZU341..T4..30T..IV3;XZU301,306,308,336,344,346..SCB..T4..(DSL,DSLL)..IV3 ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ- |
1 | ||
| 44773-37060 |
XZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| Common parts | ||||
| 90034-68028 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 91641-80818 | ||||
| 91642-K1020 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0610-0612)ST ; (0610-0612)XZU30#,314,324,33#,34#,354
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 1 OF 2(0406- )CNG,DCR,DCRL,DSL,DSLL,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-08642 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
ILLUST NO. 2 OF 2(0406- )SCB..MTM..CNG,DCR,DCRL,DSL,DSLL,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90034-68028 | ||||
| 90119-08830 | ||||
| 90461-08385 | ||||
| 91641-80818 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
