XZU308-TPMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Mar 2010
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XZU348,508..DCB,VAN ; (0610- )XZU348..DCRTK,DCRTM ; (0610- )XZU308

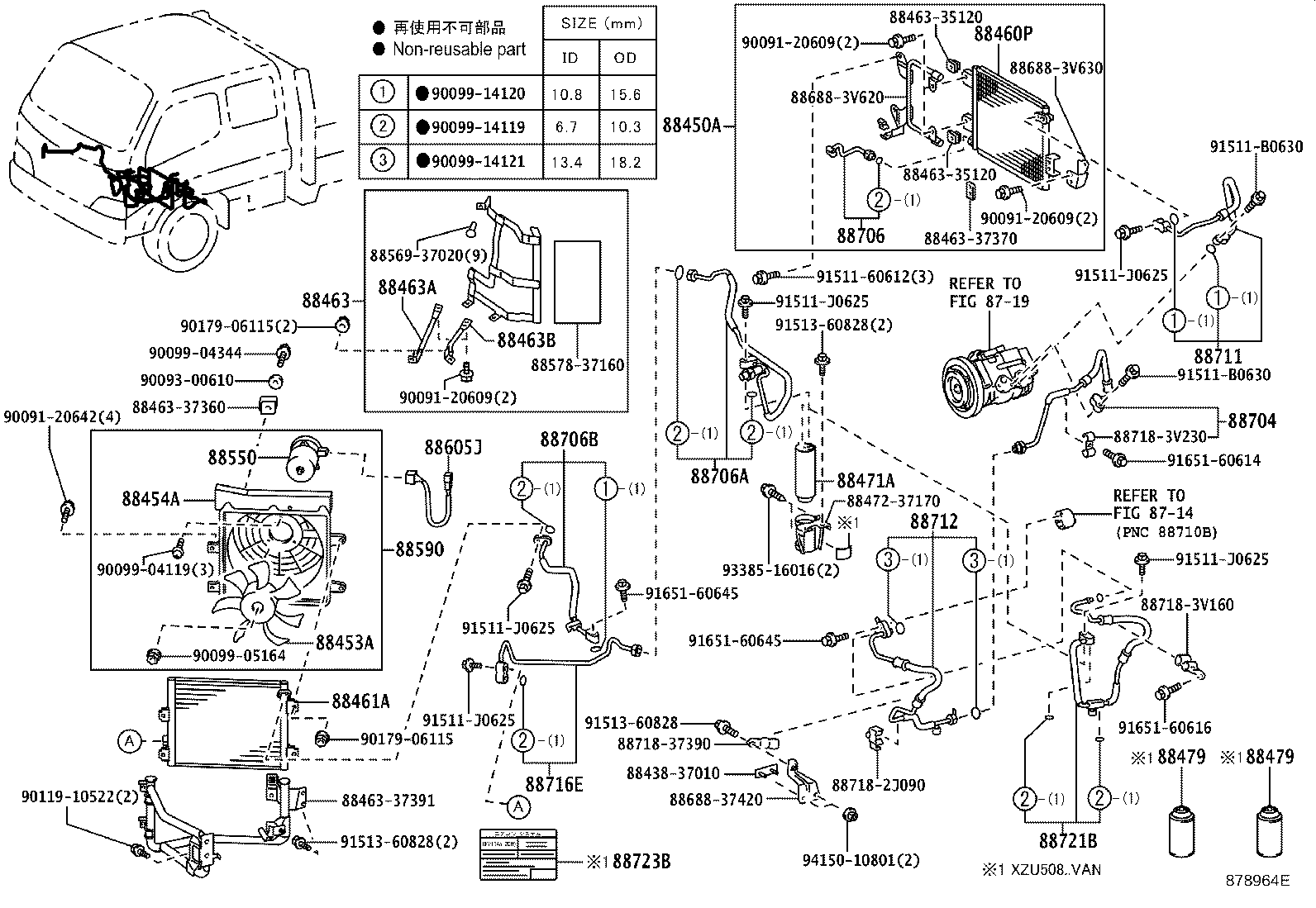

Click highlighted areas on diagram

diagram 8714 8719 8843837010 88450A 88453A 88454A 88460P 88461A 88463 8846335120 8846335120 8846337360 8846337370 8846337391 88463A 88463B 88471A 8847237170 88479 88479 88550 8856937020 8857837160 88590 88605J 8868837420 886883V620 886883V630 88704 88706 88706A 88706B 88711 88712 88716E 887182J090 8871837390 887183V160 887183V230 88721B 88723B 9009120609 9009120609 9009120609 9009120642 9009300610 9009904119 9009904344 9009905164 9009914119 9009914120 9009914121 9011910522 9017906115 9017906115 9151160612 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151360828 9165160614 9165160616 9165160645 9165160645 9338516016 9415010801
Part # Description Qty Price
88461A - CORE, COOLER CONDENSER
88461-37090

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37460

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37470

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37480

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-37100

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88704-37030

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V110

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V430

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88721B - HOSE, LIQUID, B
88721-3V070

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-52010

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
Common parts
88438-37010
88463-35120
88463-37360
88463-37370
88463-37391
88472-37170
88569-37020
88578-37160
88688-37420
88688-3V620
88688-3V630
88718-2J090
88718-37390
88718-3V160
88718-3V230
90091-20609
90091-20642
90093-00610
90099-04119
90099-04344
90099-05164
90099-14119
90099-14120
90099-14121
90119-10522
90179-06115
91511-60612
91511-B0630
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
93385-16016
94150-10801
Linked diagrams
8714
8719

(0610- )XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..DCRTH,DCRTJ,DCRUD,D

Click highlighted areas on diagram

diagram 8843837010 88461A 88463 88463A 88463B 8868837420 886883V570 88704 88710 88711 88712 8871837390 887183V160 887183V190 887183V190 88721B 88723B 9009120619 9009120619 9009120619 9009120642 9009914119 9009914120 9009914121 9151160612 9151160612 9151160612 9151160612 91511B0630 91511B0630 91511G0814 91511J0625 9151360828 9151360828 9165160614 9165160616 9165160645 9165160840 9165160840 9338515010 9415010801 9415080600
Part # Description Qty Price
88461A - CORE, COOLER CONDENSER
88461-37090

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37460

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37470

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37480

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-37100

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88704-37030

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-37490

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V110

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V430

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
88721B - HOSE, LIQUID, B
88721-3V070

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-52010

XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DCRTH,DCRTJ,DCRUD,DCRUE)

 1
Common parts
88438-37010
88688-37420
88688-3V570
88718-37390
88718-3V160
88718-3V190
90091-20619
90091-20642
90099-14119
90099-14120
90099-14121
91511-60612
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
91651-60840
93385-15010
94150-10801
94150-80600
