XZU308-TPMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Mar 2010
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

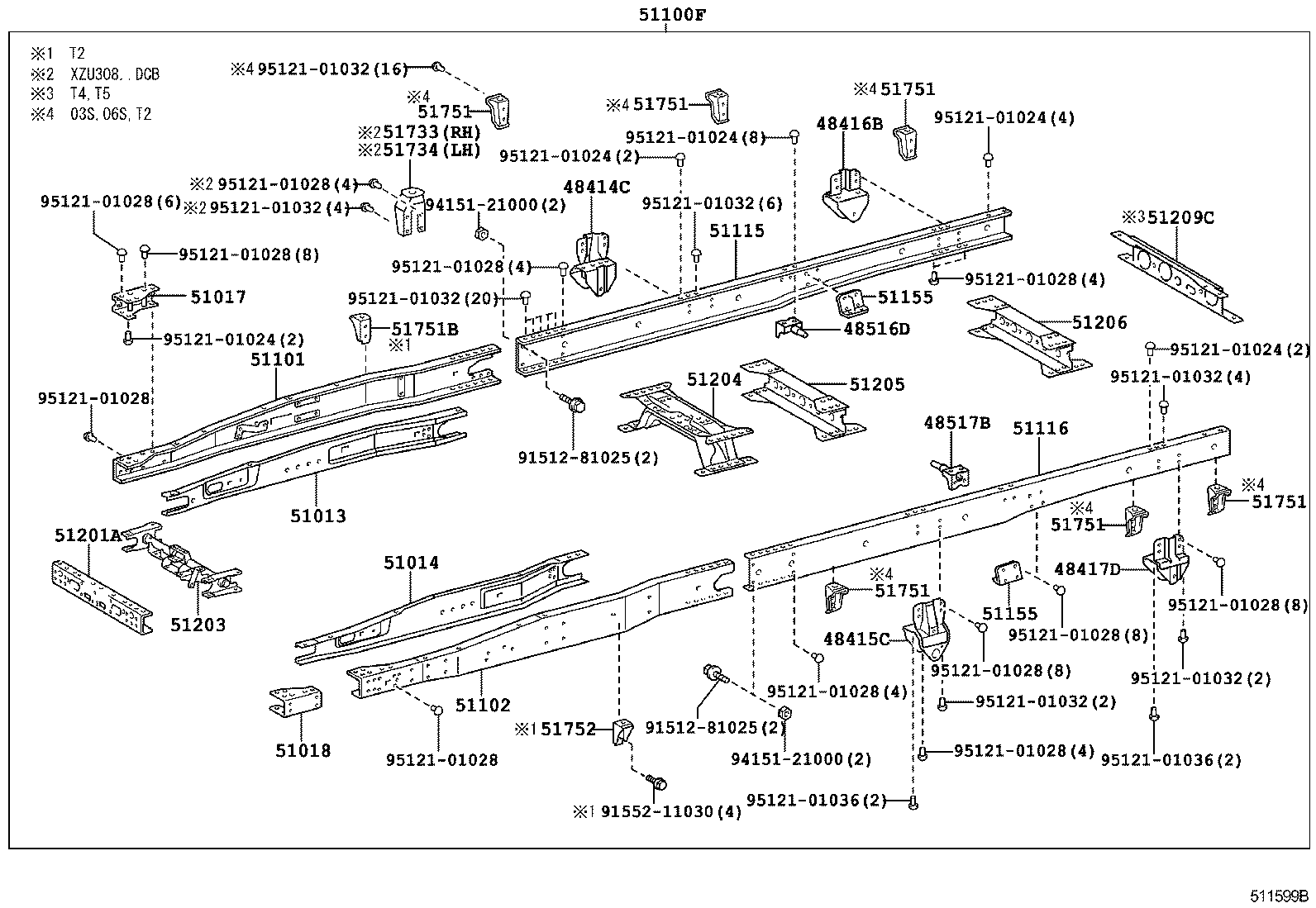

ILLUST NO. 2 OF 4(0610- )XZU308,508

Click highlighted areas on diagram

diagram 48414C 48415C 48416B 48417D 48516D 48517B 51013 51014 51017 51018 51100F 51101 51102 51115 51116 51155 51155 51201A 51203 51204 51205 51206 51209C 51733 51734 51751 51751 51751 51751 51751 51751 51751B 51752 9151281025 9151281025 9155211030 9415121000 9415121000 9512101024 9512101024 9512101024 9512101024 9512101024 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101036 9512101036
Part # Description Qty Price
48414C - BRACKET, SPRING, NO.3 RH
48414-37050

BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU508..T5..(DCRTH,DCRTJ);XZU338,368,538,568..DM5,T4;XZU308..T4..(DCRTK,DCRTM,DCRUE);TRU300,XZU304,50#..SCB..(T4,T5)..5F..(DCRUD,DCRUE,EFI)

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-37050

BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU508..T5..(DCRTH,DCRTJ);XZU338,368,538,568..DM5,T4;XZU308..T4..(DCRTK,DCRTM,DCRUE);TRU300,XZU304,50#..SCB..(T4,T5)..5F..(DCRUD,DCRUE,EFI)

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37050

BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU508..T5..(DCRTH,DCRTJ);XZU338,368,538,568..DM5,T4;XZU308..T4..(DCRTK,DCRTM,DCRUE);TRU300,XZU304,50#..SCB..(T4,T5)..5F..(DCRUD,DCRUE,EFI)

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37050

BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU508..T5..(DCRTH,DCRTJ);XZU338,368,538,568..DM5,T4;XZU308..T4..(DCRTK,DCRTM,DCRUE);TRU300,XZU304,50#..SCB..(T4,T5)..5F..(DCRUD,DCRUE,EFI)

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37010

XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37010

XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT

 1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37430

XZU308,338,348,508,538,548

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37410

XZU308,338,348,508,538,548

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37170

XZU308,338,348,508,538,548

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37140

XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T

 1
51100F - FRAME SUB-ASSY
51001-37X50

XZU508..DCRUD,DCRUE;XZU308,508..T5..(DCRTH,DCRTJ,DCRTK);XZU308..SCB..T4..(DCRTK,DCRTM,DCRUE)

 1
51101 - RAIL, FRONT FRAME SIDE, RH
51101-37040

XZU308,338,348,508,538,548..SCB..(T3,T4,T5)

 1
51102 - RAIL, FRONT FRAME SIDE, LH
51102-37040

XZU308,338,348,508,538,548..SCB..(T3,T4,T5)

 1
51115 - RAIL, FRAME SIDE, REAR RH
51115-37300

XZU30#,50#..(T4,T5)..20T..WT

 1
51116 - RAIL, FRAME SIDE, REAR LH
51108-37030

XZU30#,50#..SCB..(T4,T5)..20T..WT

 1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37210

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37330

XZU344..(20T,30T)..(DCRTJ,DCRTK);XZU30#,338,348,50#,538,548..(T2,T3,T4,T5)..(5F,6FC)..20T

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37160

XZU30#,338,50#,538..(03S,06S,T2,T4,T5)..20T..WT

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37060

XZU30#,338,50#,538..(03S,06S,T2,T4,T5)..20T..WT

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37140

XZU30#,368,508,568..DM3,DM6,T4,T5;BZU300,TRU300,500,XZU504..(DM5,T2,T4,T5)..20T

 1
Common parts
91512-81025
91552-11030
94151-21000
95121-01024
95121-01028
95121-01032
95121-01036

ILLUST NO. 1 OF 4(0610- )DCB,SCB

Click highlighted areas on diagram

diagram 51100F 51401 51402 51454D 51705A 51705D 51706D 51717C 9011912377 9017912070 9017912087 9046709101 9164281245
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51001-37X50

XZU508..DCRUD,DCRUE;XZU308,508..T5..(DCRTH,DCRTJ,DCRTK);XZU308..SCB..T4..(DCRTK,DCRTM,DCRUE)

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37451

XZU308,338,348,508,538,548..SCB

 1
Common parts
90119-12377
90179-12070
90179-12087
90467-09101
91642-81245

ILLUST NO. 3 OF 4(0610- )XZU308,338,348,508,538,548

Click highlighted areas on diagram

ｻｽﾍﾟﾝｼｮﾝ ﾒﾝﾊﾞ

diagram 51065 51101A 51102A 51107A 51108A 51210A 51501 51502 51508A 51508A 51508D 51509 51509A 51509A 51677 5175137150 5175137150 9011914133 9017916029 91672L1470 91672L1495 91672L1495
Part # Description Qty Price
51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX
51065-37030

XZU308,338,348,508,538,548

 1
51101A - RAIL SUB-ASSY, FRONT FRAME SIDE, RH
51101-37100

XZU308,338,348,508,538,548

 1
51102A - RAIL SUB-ASSY, FRONT FRAME SIDE, LH
51102-37100

XZU308,338,348,508,538,548

 1
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-37160

XZU308,338,348,508,538,548

 1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-37210

XZU308,338,348,508,538,548

 1
51210A - MEMBER ASSY, FRONT SUSPENSION
51210-37050

XZU308,338,348,508,538,548

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-37040

XZU308,338,348,508,538,548

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-37050

XZU308,338,348,508,538,548

 1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-37080

XZU308,338,348,508,538,548

NO.1

 1
51508-37100

XZU308,338,348,508,538,548

NO.2

 1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-37080

XZU308,338,348,508,538,548

NO.1

 1
51508-37100

XZU308,338,348,508,538,548

NO.2

 1
51508D - SUPPORT SUB-ASSY, STABILIZER, RH
51508-37090

XZU308,338,348,508,538,548

 1
51509 - SUPPORT SUB-ASSY, STABILIZER
51509-37090

XZU308,338,348,508,538,548

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51509-37080

XZU308,338,348,508,538,548

NO.1

 1
51509-37100

XZU308,338,348,508,538,548

NO.2

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51509-37080

XZU308,338,348,508,538,548

NO.1

 1
51509-37100

XZU308,338,348,508,538,548

NO.2

 1
51677 - BRACKET, STEERING GEAR BOX
51607-37010

XZU308,338,348,508,538,548

 1
Common parts
51751-37150
90119-14133
90179-16029
91672-L1470
91672-L1495

ILLUST NO. 4 OF 4(0610- )

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ

diagram 51568 51568 51569 51569 51569 51569 9011908908 9011908908 9011908908 9011908908 9011908908 9011908908 9017908233
Part # Description Qty Price
51569 - GUARD, PROPELLER SHAFT
51569-37310

XZU368,568;XZU30#,508..03S,06S,DM3,DM6,T5

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37310

XZU368,568;XZU30#,508..03S,06S,DM3,DM6,T5

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37310

XZU368,568;XZU30#,508..03S,06S,DM3,DM6,T5

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37310

XZU368,568;XZU30#,508..03S,06S,DM3,DM6,T5

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90119-08908
90179-08233
