XZU308-TPMMB3 (2006)
Toyota Dyna/Toyoace
ILLUST NO. 4 OF 4(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-37040 |
XZU504..ST;XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37030 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||

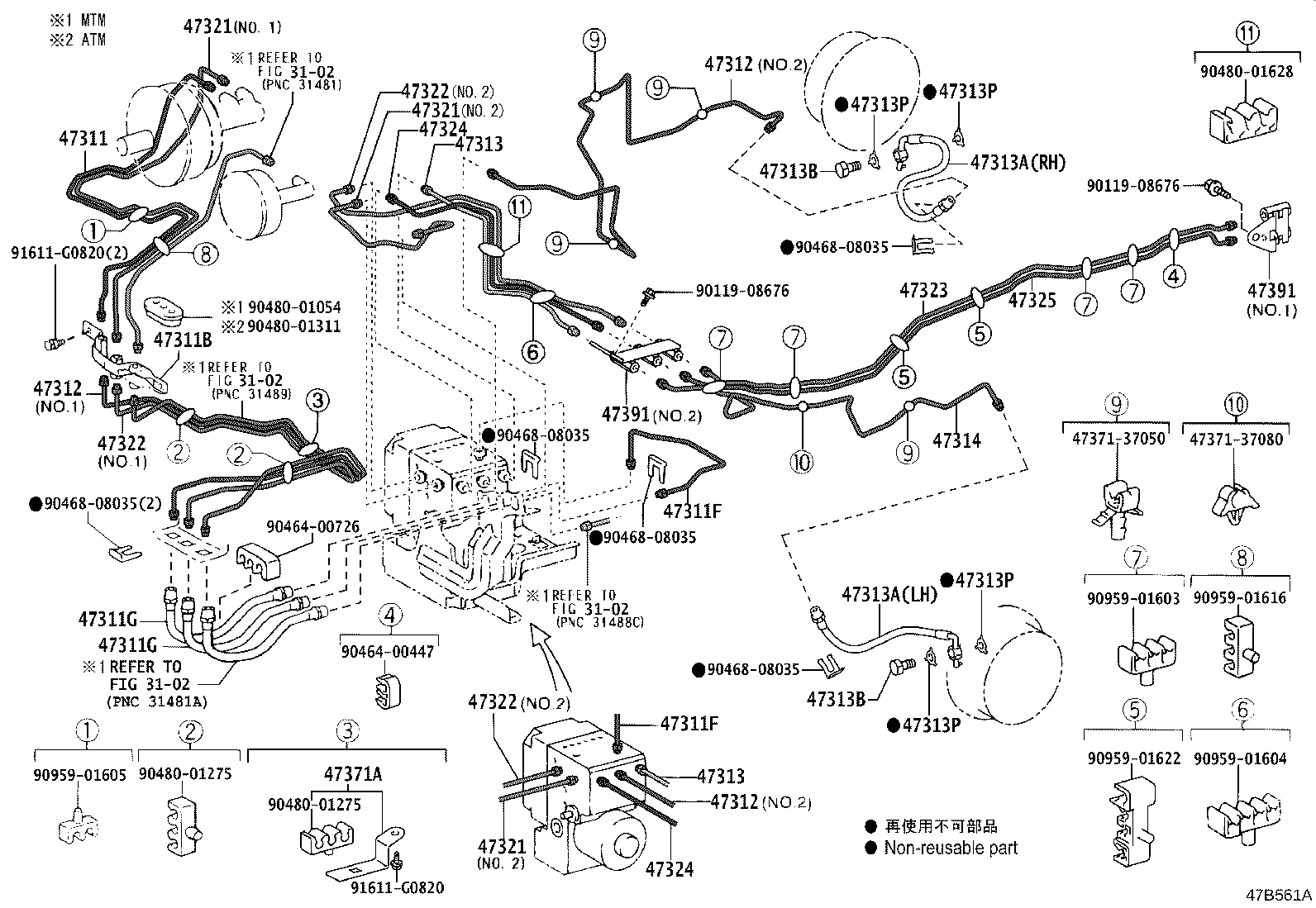

ILLUST NO. 1 OF 4(0610- )ST ; (0610- )6FC..30T..4NO ; (0610- )XZU344..20T,30T ; (0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37162 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37800 |
XZU308,338,348,508,538,548 NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37800 |
XZU308,338,348,508,538,548 NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37800 |
XZU308,338,348,508,538,548 NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E93 |
XZU308,338,348,508,538,548 左側 |
1 | ||
| 90947-02E92 |
XZU308,338,348,508,538,548 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E93 |
XZU308,338,348,508,538,548 左側 |
1 | ||
| 90947-02E92 |
XZU308,338,348,508,538,548 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37660 |
XZU308,338,348,508,538,548 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37620 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37380 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1 |
1 | ||
| 47391-37300 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1 |
1 | ||
| 47391-37300 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 47371-37080 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00447 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01311 | ||||
| 90480-01628 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 90959-01622 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
