XZU308-TPMMB3 (2006)
Toyota Dyna/Toyoace

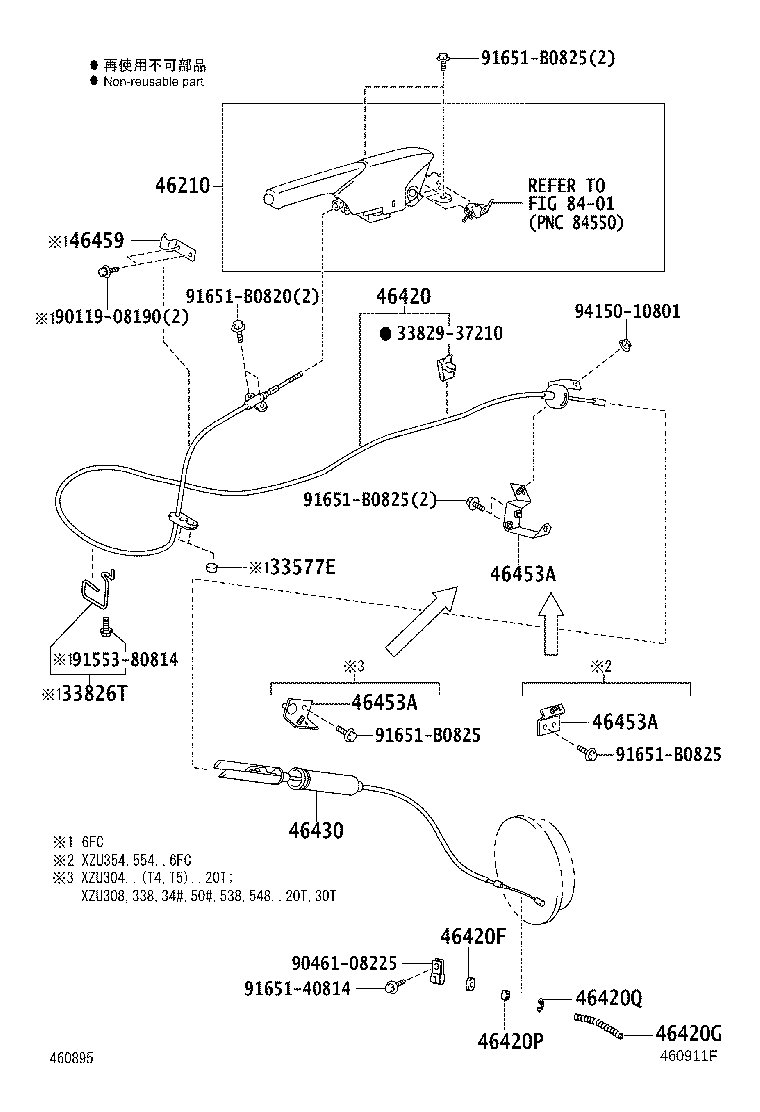

ILLUST NO. 1 OF 2(0610- )XZU354,554..6FC ; (0610- )BZU300,340,TRU300,340,500,XZU30#,33#,34#,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37101B0 |
XZU30#..(DM3,T5)..5F..DCRTJ;XZU338,34#..(T3,T4)..5F..DCRTJ;XZU304,314,324..(DM5,DM7,T4)..5F..30T..DCRTJ ｱﾘ(ｺﾃｲｼｷ ﾊﾟ-ｷﾝｸﾞ ﾌﾞﾚ-ｷ ﾚﾊﾞｰ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37110B0 |
XZU504..DCRTJ,DCRUD;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;XZU508,538,548..DCRUD,DCRUE;XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..CBU,IV3,IV4,IV6 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37111B0 |
XZU33#,34#..(T3,T4)..5F..DCRTJ;XZU30#..(DM3,T3,T5)..5F..DCRTJ..(CBU,IV3);XZU304,314,324..(DM5,DM7,T4)..5F..30T..DCRTJ DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37100B0 |
XZU334..DCRTK..CBU;TRU300,XZU314,324,354..DM5,DM7;XZU30#..(DM3,T4,T5)..DCRTJ..(CBU,IV3);XZU508,548,554..(DM5,T4,T5)..6FC..DCRTJ;XZU378,508,524,548,554..SCB..(DCRTK,DCRUE);XZU338,34#,368,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK) ｱﾘ(ｺﾃｲｼｷ ﾊﾟ-ｷﾝｸﾞ ﾌﾞﾚ-ｷ ﾚﾊﾞｰ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37570 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14003 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37860 |
XZU344..5F..(20T,30T);XZU30#,338,348,50#,538,548..(03S,06S,T2,T3,T4,T5)..5F..20T |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90119-08190 | ||||
| 90461-08225 | ||||
| 91553-80814 | ||||
| 91651-40814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| Linked diagrams | ||||
| 8401 | ||||

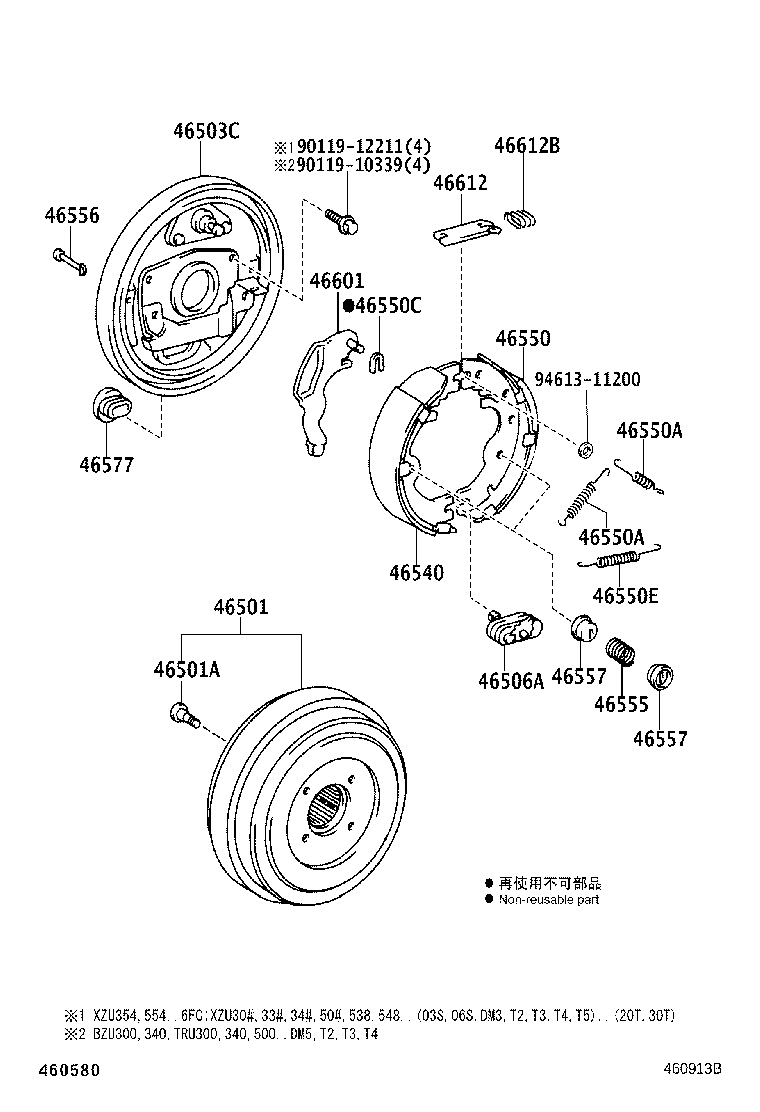

ILLUST NO. 2 OF 2(0610- )XZU354,554..6FC ; (0610- )BZU300,340,TRU300,340,500,XZU30#,33#,34#,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..5F..(20T,30T) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37681 |
XZU354,554..6FC;XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36010 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-37030 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37680 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T) |
1 | ||
| Common parts | ||||
| 90119-10339 | ||||
| 90119-12211 | ||||
| 94613-11200 | ||||
