XZU308-TPMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Mar 2010
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XZU504..WT..DCRTH..IV3 ; (0610- )XZU308,338,348,508,538,548

Click highlighted areas on diagram

ﾗｯｸ & ﾋﾟﾆｵﾝﾀｲﾌﾟ

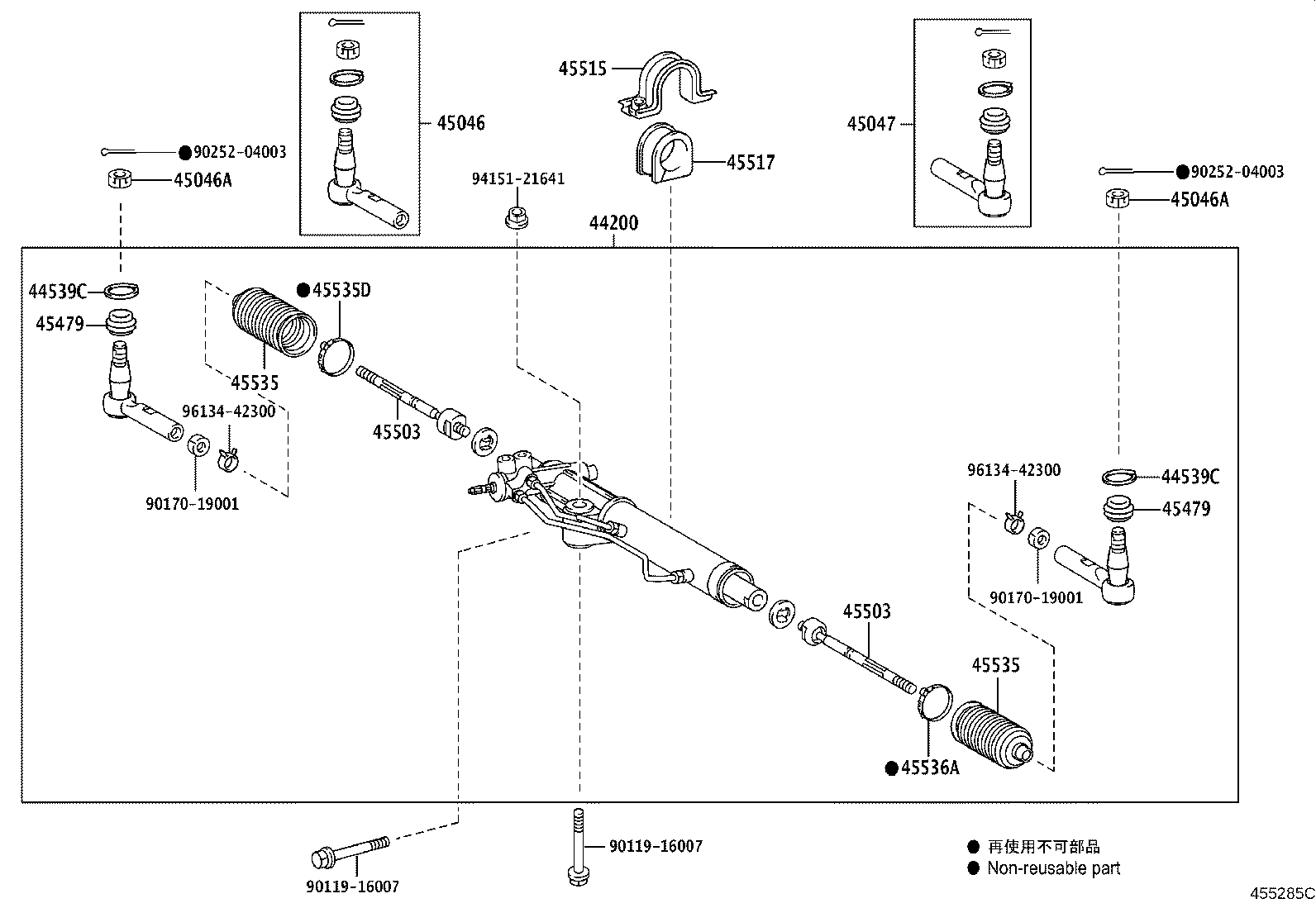

diagram 44200 44539C 44539C 45046 45046A 45046A 45047 45479 45479 45503 45503 45515 45517 45535 45535 45535D 45536A 9011916007 9011916007 9017019001 9017019001 9025204003 9025204003 9415121641 9613442300 9613442300
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-37110

XZU308,508..T2,T5;XZU338,348,538,548

 1
44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL)
90522-30034

XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568

 2
44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL)
90522-30034

XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568

 2
45046 - END SUB-ASSY, TIE ROD, RH
45046-39785

XZU308,338,348,368,378,388,508,538,548,568

ﾗｯｸ & ﾋﾟﾆｵﾝﾀｲﾌﾟ

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16005

XZU308,338,348,368,378,388,508,538,548,568

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16005

XZU308,338,348,368,378,388,508,538,548,568

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-39785

XZU308,338,348,368,378,388,508,538,548,568

ﾗｯｸ & ﾋﾟﾆｵﾝﾀｲﾌﾟ

 1
45479 - SEAL, STEERING LINK JOINT DUST
45479-37030

XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568

 2
45479 - SEAL, STEERING LINK JOINT DUST
45479-37030

XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568

 2
45503 - END SUB-ASSY, STEERING RACK
45503-37030

XZU308,338,348,508,538,548;XZU504..5F..WT..DCRTH..IV3

 2
45503 - END SUB-ASSY, STEERING RACK
45503-37030

XZU308,338,348,508,538,548;XZU504..5F..WT..DCRTH..IV3

 2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-37020

XZU308,338,348,368,378,388,508,538,548,568

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-37010

XZU308,338,348,368,378,388,508,538,548,568

 1
45535 - BOOT, STEERING RACK, NO.1
45535-37010

XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568

 2
45535 - BOOT, STEERING RACK, NO.1
45535-37010

XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-62006

XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-62006

XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568

 1
Common parts
90119-16007
90170-19001
90252-04003
94151-21641
96134-42300
