Toyota Dyna/toyoace XZU308 REAR AXLE HOUSING & DIFFERENTIAL

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU308-TPMMB3 (2006)
4101 - REAR AXLE HOUSING & DIFFERENTIAL

XZU308-TPMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Mar 2010

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

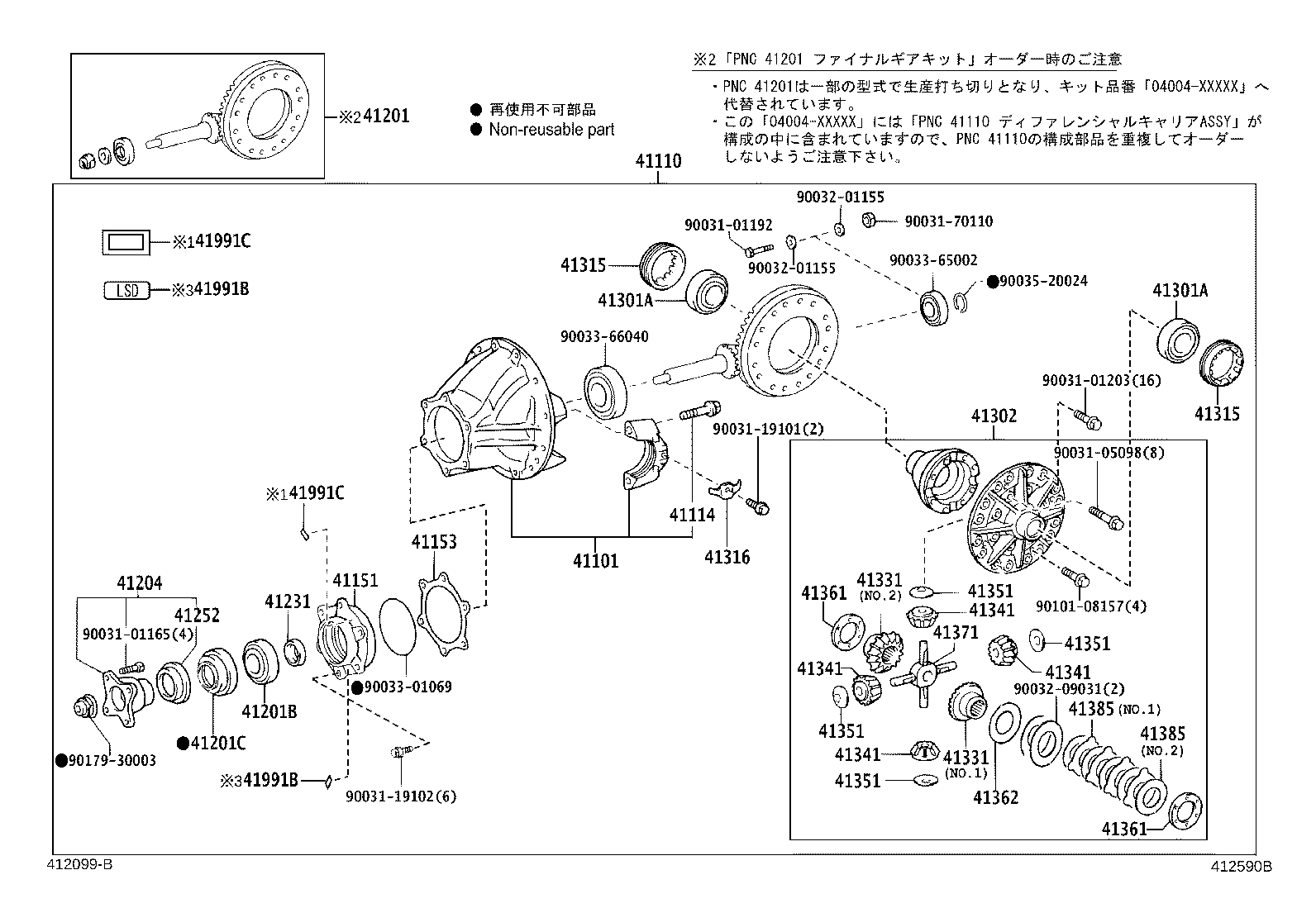

ILLUST NO. 1 OF 2(0610- )XZU324..30T ; (0610- )XZU314,368,378,388,568 ; (0610- )XZU304,324,

Click highlighted areas on diagram

ｱﾘ(LSD)

Part #	Description	Period	Qty
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-37060	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM);XZU508,524,538,548,554..DCRUD,DCRUE;XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,EFI,LPG)	10/2006 - 04/2009	1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-37360	XZU344..T3..30T..DCRUE;XZU348..(T3,T4)..DCRTJ;XZU344,378,388..5F..20T;XZU304,344..(T4,T5)..DCRTK;XZU30#..T5..5F..20T..DCRTJ;XZU304..30T..DCRUE..IV3..4NO;XZU304,334..T3..30T..(DCRTK,DCRUE)..(CBU,IV3,IV6);BZU340,XZU338,354,368,568..(DM5,T4)..(DCRTJ,DCRTK,LPG) *FGR=41:8=5.125	10/2006 - 06/2011	1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90031-05043	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	4
41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING
41151-37030	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 08/2010	1
41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE
41153-37090	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=0.30	10/2006 - 12/2999	1
41153-37100	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=0.40	10/2006 - 12/2999	1
41153-37110	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=0.45	10/2006 - 12/2999	1
41153-37120	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=0.50	10/2006 - 12/2999	1
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-80216	XZU344..T4..DCRTK;XZU348..(T3,T4)..DCRTJ;XZU344,378,388..5F..20T;XZU30#..T5..5F..20T..DCRTJ;XZU304,334..30T..DCRTK..(CBU,IV3);XZU338,354,368,568..(DM5,T4)..(DCRTJ,DCRTK) *FGR=41:8=5.125	10/2006 - 12/2006	1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90033-66038	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90033-11039	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-37080	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	1
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-37500	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.600	10/2006 - 06/2011	1
41231-37460	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.500	10/2006 - 06/2011	1
41231-37490	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.575	10/2006 - 06/2011	1
41231-37420	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.400	10/2006 - 06/2011	1
41231-37480	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.550	10/2006 - 06/2011	1
41231-37430	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.425	10/2006 - 06/2011	1
41231-37450	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.475	10/2006 - 06/2011	1
41231-37510	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.625	10/2006 - 06/2011	1
41231-37590	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.825	10/2006 - 06/2011	1
41231-37550	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.725	10/2006 - 06/2011	1
41231-37470	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.525	10/2006 - 06/2011	1
41231-37530	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.675	10/2006 - 06/2011	1
41231-37520	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.650	10/2006 - 06/2011	1
41231-37440	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.450	10/2006 - 06/2011	1
41231-37570	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.775	10/2006 - 06/2011	1
41231-37560	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.750	10/2006 - 06/2011	1
41231-37600	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.850	10/2006 - 06/2011	1
41231-37580	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.800	10/2006 - 06/2011	1
41231-37610	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.875	10/2006 - 06/2011	1
41231-37540	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=14.700	10/2006 - 06/2011	1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
37341-89203	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-55054	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-55054	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41301-37040	XZU334..T4..CBU;XZU304..DCRUE..IV6;XZU304..T4..30T..DCRTJ;XZU314,368,378,388,568;XZU334..T4..DCRTJ..IV3;XZU334..T3..DCRUE..IV3;BZU300,XZU324,344..30T,35T;XZU304..T5..30T..DCRUE..CBU;XZU34#..(T3,T4)..20T..DCRTJ;BZU300,XZU304..DM6..(DCRUE,LPG)..IV3;XZU304,334..(DM3,DM6,T3,T5)..(5F,6FC);XZU308,324,354..(DM5,DM7,T5)..20T..DCRTJ;BZU340,TRU300,XZU338,354..SCB..(T3,T4)..(DCRTJ,DCRTK,EFI,LPG)	10/2006 - 06/2011	1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-37020	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-37020	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-37010	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-37040	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-37040	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	2
41341 - PINION, REAR DIFFERENTIAL
41341-37030	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	4
41341 - PINION, REAR DIFFERENTIAL
41341-37030	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	4
41341 - PINION, REAR DIFFERENTIAL
41341-37030	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	4
41341 - PINION, REAR DIFFERENTIAL
41341-37030	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-37020	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-37020	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-37020	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-37020	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	4
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-37030	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=2.0	10/2006 - 06/2011	2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-37030	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) 厚さ=2.0	10/2006 - 06/2011	2
41371 - SPIDER, REAR DIFFERENTIAL
41371-37030	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	1
41991C - CAUTION PLATE, REAR DIFFERENTIAL
41991-37080	XZU344..T3..30T..DCRUE;XZU348..(T3,T4)..DCRTJ;XZU344,378,388..5F..20T;XZU304,344..(T4,T5)..DCRTK;XZU30#..T5..5F..20T..DCRTJ;XZU304..30T..DCRUE..IV3..4NO;XZU304,334..T3..30T..(DCRTK,DCRUE)..(CBU,IV3,IV6);BZU340,XZU338,354,368,568..(DM5,T4)..(DCRTJ,DCRTK,LPG) ﾏｰｸ 5.13	10/2006 - 12/2999	1
41991C - CAUTION PLATE, REAR DIFFERENTIAL
41991-37080	XZU344..T3..30T..DCRUE;XZU348..(T3,T4)..DCRTJ;XZU344,378,388..5F..20T;XZU304,344..(T4,T5)..DCRTK;XZU30#..T5..5F..20T..DCRTJ;XZU304..30T..DCRUE..IV3..4NO;XZU304,334..T3..30T..(DCRTK,DCRUE)..(CBU,IV3,IV6);BZU340,XZU338,354,368,568..(DM5,T4)..(DCRTJ,DCRTK,LPG) ﾏｰｸ 5.13	10/2006 - 12/2999	1
Common parts
90031-01165
90031-01192
90031-01203
90031-05098
90031-19101
90031-19102
90031-70110
90032-01155
90032-09031
90033-01069
90033-65002
90033-66040
90035-20024
90101-08157
90179-30003

ILLUST NO. 2 OF 2(0610- )WT

Click highlighted areas on diagram

Part #	Description	Period	Qty
04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER
04412-37100	XZU30#..T5..5F..20T;XZU348..(T3,T4)..5F..DCRTJ;XZU308,344..T4..(DCRTK,DCRTM);XZU338,344..T4..5F..20T..DCRTJ;BZU340,XZU304..(T4,T5)..(DCRTK,LPG)..CBU	10/2006 - 01/2008	1
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10059	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) ﾈｼﾞ部長さ=19&12,長さ=57	10/2006 - 06/2011	2
90116-10060	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG) ﾈｼﾞ部長さ=19&12,長さ=46	10/2006 - 06/2011	2
42110 - HOUSING ASSY, REAR AXLE
42110-37640	BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,538..5F..(DCRUD,DCRUE);TRU300,XZU338,368,504,568..SCB..T4..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI)	10/2006 - 12/2999	1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03138	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-37010	BZU300,XZU30#..DM3,DM6,T5;BZU300,TRU300,XZU304..T4..30T;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,554..5F..(DCRUD,DCRUE);XZU314,324,338,354,368,504,568..(DM5,DM7,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE)	10/2006 - 12/2999	2
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-37010	BZU300,XZU30#..DM3,DM6,T5;BZU300,TRU300,XZU304..T4..30T;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,554..5F..(DCRUD,DCRUE);XZU314,324,338,354,368,504,568..(DM5,DM7,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE)	10/2006 - 12/2999	2
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-37030	BZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)	10/2006 - 06/2011	1
Common parts
90119-10283
94130-01002
94531-01000
