Toyota Dyna/toyoace XZU308 POWER TAKE-OFF CASE & GEAR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU308-TPMMB3 (2006)
3602 - POWER TAKE-OFF CASE & GEAR

XZU308-TPMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Mar 2010

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

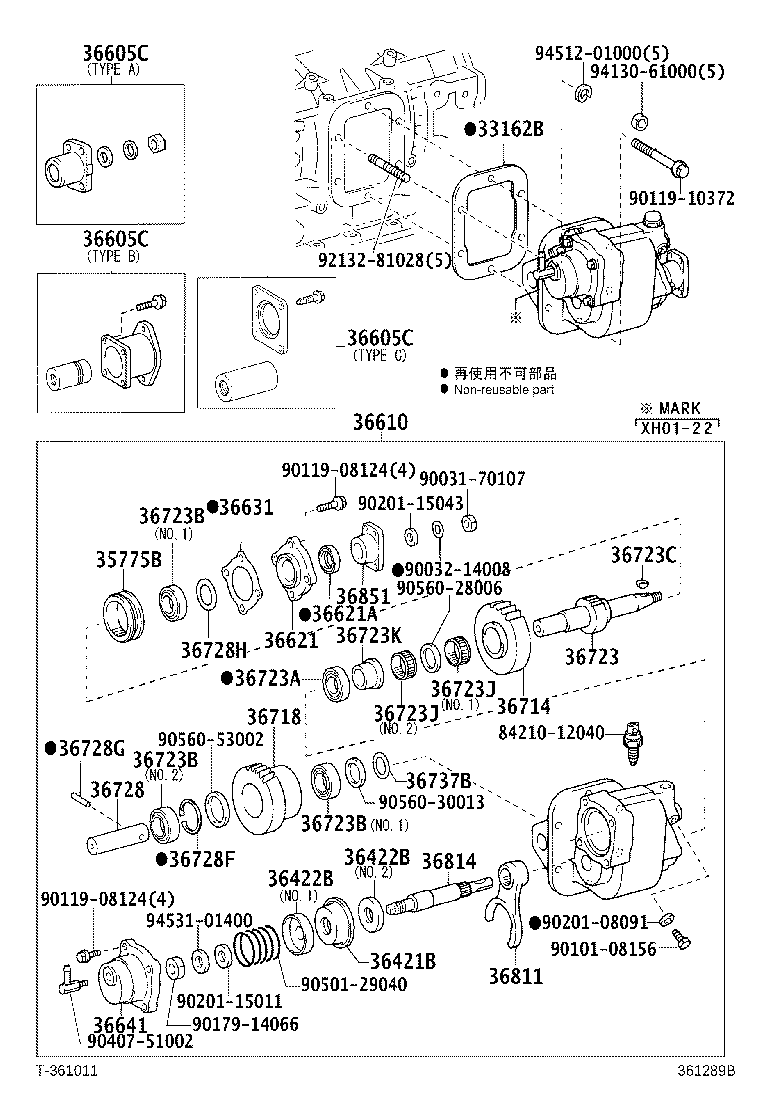

ILLUST NO. 1 OF 2(0610- )XZU304,334,344,504,548..DM6,T3,T4,T5..5F..CBU,IV3 ; (0610- )XZU308,33

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ 25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	XZU304,334,344,504..5F..(CBU,IV3,IV6);XZU308,348,508..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,354,538,548..SCB..5F..(20T,40T)..(DCRTJ,DCRTK,DCRUE,EFI)..1NO	10/2006 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37030	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
35775-37010	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36421B - DIAPHRAGM (FOR POWER TAKE-OFF)
36421-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	10/2006 - 08/2007	1
36421-37010	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	09/2007 - 12/2999	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.2	10/2006 - 12/2999	1
36422-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.1	10/2006 - 12/2999	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.2	10/2006 - 12/2999	1
36422-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.1	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37341	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 03/2010	1
36610-37280	XZU334,344,504,548..SCB..5F;XZU508,538..SCB..5F..(DCRTJ,DCRUE);XZU30#,338,348..(DM6,T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3) ﾊﾞｷﾕ-ﾑｼｷ 25KG	10/2006 - 07/2010	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37060	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36621-37071	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-30014	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90311-25110	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36632-37020	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	10/2006 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37210	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36714-37171	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37110	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 06/2011	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 07/2010	1
36723-37090	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	2
90366-22001	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	2
90366-22001	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3) 厚さ=14	10/2006 - 12/2999	2
90366-30087	XZU308..T5..5F..DCRTJ..IV3 厚さ=16.0	08/2009 - 12/2999	1
90366-30086	XZU308..T5..5F..DCRTJ..IV3 厚さ=15.5	08/2009 - 12/2999	2
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3) 厚さ=14	10/2006 - 12/2999	2
90366-30087	XZU308..T5..5F..DCRTJ..IV3 厚さ=16.0	08/2009 - 12/2999	1
90366-30086	XZU308..T5..5F..DCRTJ..IV3 厚さ=15.5	08/2009 - 12/2999	2
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 03/2010	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90035-21016	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90035-21016	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	10/2006 - 12/2999	1
90564-25001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	10/2006 - 12/2999	1
90564-25004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	10/2006 - 12/2999	1
90564-25003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	10/2006 - 12/2999	1
90035-64031	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64032	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64034	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64033	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.17−0.23	10/2006 - 12/2999	1
90564-42004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.47−0.53	10/2006 - 12/2999	1
90035-64028	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2	08/2009 - 12/2999	1
90564-42002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.07−0.13	10/2006 - 12/2999	1
90035-64030	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05	08/2009 - 12/2999	1
90035-64029	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5	08/2009 - 12/2999	1
90035-64027	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1	08/2009 - 12/2999	1
90564-42001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.02−0.08	10/2006 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37030	XZU334..T3..5F..CBU;XZU334,348..5F..(20T,40T)..(DCRTJ,DCRTK,DCRTM);BZU300,340,XZU304,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,33#,508,538..(T2,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37030	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
36851-37020	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
Common parts
84210-12040
90031-19132
90031-70107
90033-87011
90101-08156
90119-08124
90119-10372
90179-14066
90201-08091
90201-15011
90407-51002
90501-29040
92132-81025
94130-61000
94512-01000
94531-01400

(0610- )35T..IV3 ; (0610- )T5..30T..DCRTJ; (0610- )T3,T4..5F..IV6 ; (0610

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ 25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	XZU304,334,344,504..5F..(CBU,IV3,IV6);XZU308,348,508..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,354,538,548..SCB..5F..(20T,40T)..(DCRTJ,DCRTK,DCRUE,EFI)..1NO	10/2006 - 12/2999	1
33162-37030	XZU304,334,344,504..5F..(CBU,IV3,IV6);XZU308,348,508..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,354,538,548..SCB..5F..(20T,40T)..(DCRTJ,DCRTK,DCRUE,EFI)..1NO	10/2006 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37030	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
35775-37030	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
35775-37010	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
35775-37010	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37341	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 03/2010	1
36610-37341	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 03/2010	1
36610-37280	XZU334,344,504,548..SCB..5F;XZU508,538..SCB..5F..(DCRTJ,DCRUE);XZU30#,338,348..(DM6,T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3) ﾊﾞｷﾕ-ﾑｼｷ 25KG	10/2006 - 07/2010	1
36610-37280	XZU334,344,504,548..SCB..5F;XZU508,538..SCB..5F..(DCRTJ,DCRUE);XZU30#,338,348..(DM6,T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3) ﾊﾞｷﾕ-ﾑｼｷ 25KG	10/2006 - 07/2010	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37060	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36621-37060	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36621-37071	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 12/2999	1
36621-37071	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-30014	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90311-30014	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90311-25110	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
90311-25110	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36632-37030	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36632-37020	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36632-37020	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37210	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36714-37210	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36714-37171	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36714-37171	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37110	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 06/2011	1
36718-37110	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 06/2011	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 07/2010	1
36723-37100	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 07/2010	1
36723-37090	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36723-37090	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	2
90366-22001	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	2
90366-22001	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90366-22001	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3) 厚さ=14	10/2006 - 12/2999	2
90366-25011	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3) 厚さ=14	10/2006 - 12/2999	2
90366-30087	XZU308..T5..5F..DCRTJ..IV3 厚さ=16.0	08/2009 - 12/2999	1
90366-30087	XZU308..T5..5F..DCRTJ..IV3 厚さ=16.0	08/2009 - 12/2999	1
90366-30086	XZU308..T5..5F..DCRTJ..IV3 厚さ=15.5	08/2009 - 12/2999	2
90366-30086	XZU308..T5..5F..DCRTJ..IV3 厚さ=15.5	08/2009 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728-37020	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90521-56108	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90035-21016	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
90035-21016	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90521-56108	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90035-21016	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
90035-21016	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
90254-04002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	10/2006 - 12/2999	1
90564-25002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	10/2006 - 12/2999	1
90564-25001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	10/2006 - 12/2999	1
90564-25001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	10/2006 - 12/2999	1
90564-25004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	10/2006 - 12/2999	1
90564-25004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	10/2006 - 12/2999	1
90564-25003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	10/2006 - 12/2999	1
90564-25003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	10/2006 - 12/2999	1
90035-64031	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64031	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64032	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64032	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64034	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64034	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64033	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64033	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	10/2006 - 12/2999	1
90564-25002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	10/2006 - 12/2999	1
90564-25001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	10/2006 - 12/2999	1
90564-25001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	10/2006 - 12/2999	1
90564-25004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	10/2006 - 12/2999	1
90564-25004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	10/2006 - 12/2999	1
90564-25003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	10/2006 - 12/2999	1
90564-25003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	10/2006 - 12/2999	1
90035-64031	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64031	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64032	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64032	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64034	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64034	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64033	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64033	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36811-93104	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37030	XZU334..T3..5F..CBU;XZU334,348..5F..(20T,40T)..(DCRTJ,DCRTK,DCRTM);BZU300,340,XZU304,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,33#,508,538..(T2,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
36814-37030	XZU334..T3..5F..CBU;XZU334,348..5F..(20T,40T)..(DCRTJ,DCRTK,DCRTM);BZU300,340,XZU304,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,33#,508,538..(T2,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
Common parts
90031-01180
90031-19132
90033-87011
90119-10372
92132-81025
94130-61000
94512-01000

ILLUST NO. 1 OF 2(0610- )XZU334..T3..5F..30T..IV3 ; (0908-)XZU308..T5..5F..DCRTJ..IV3

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ (ｿﾞｳｿｸｶﾞﾀ) 21.5KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	XZU304,334,344,504..5F..(CBU,IV3,IV6);XZU308,348,508..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,354,538,548..SCB..5F..(20T,40T)..(DCRTJ,DCRTK,DCRUE,EFI)..1NO	10/2006 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37030	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
35775-37010	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36421B - DIAPHRAGM (FOR POWER TAKE-OFF)
36421-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	10/2006 - 08/2007	1
36421-37010	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	09/2007 - 12/2999	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.2	10/2006 - 12/2999	1
36422-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.1	10/2006 - 12/2999	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.2	10/2006 - 12/2999	1
36422-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.1	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37341	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 03/2010	1
36610-37280	XZU334,344,504,548..SCB..5F;XZU508,538..SCB..5F..(DCRTJ,DCRUE);XZU30#,338,348..(DM6,T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3) ﾊﾞｷﾕ-ﾑｼｷ 25KG	10/2006 - 07/2010	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37060	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36621-37071	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-30014	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90311-25110	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36632-37020	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	10/2006 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37210	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36714-37171	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37110	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 06/2011	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 07/2010	1
36723-37090	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	2
90366-22001	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3) 厚さ=14	10/2006 - 12/2999	2
90366-30087	XZU308..T5..5F..DCRTJ..IV3 厚さ=16.0	08/2009 - 12/2999	1
90366-30086	XZU308..T5..5F..DCRTJ..IV3 厚さ=15.5	08/2009 - 12/2999	2
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3) 厚さ=14	10/2006 - 12/2999	2
90366-30087	XZU308..T5..5F..DCRTJ..IV3 厚さ=16.0	08/2009 - 12/2999	1
90366-30086	XZU308..T5..5F..DCRTJ..IV3 厚さ=15.5	08/2009 - 12/2999	2
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3) 厚さ=14	10/2006 - 12/2999	2
90366-30087	XZU308..T5..5F..DCRTJ..IV3 厚さ=16.0	08/2009 - 12/2999	1
90366-30086	XZU308..T5..5F..DCRTJ..IV3 厚さ=15.5	08/2009 - 12/2999	2
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 03/2010	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)
90389-25006	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 12/2999	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90035-21016	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	10/2006 - 12/2999	1
90564-25001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	10/2006 - 12/2999	1
90564-25004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	10/2006 - 12/2999	1
90564-25003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	10/2006 - 12/2999	1
90035-64031	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64032	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64034	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64033	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.17−0.23	10/2006 - 12/2999	1
90564-42004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.47−0.53	10/2006 - 12/2999	1
90035-64028	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2	08/2009 - 12/2999	1
90564-42002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.07−0.13	10/2006 - 12/2999	1
90035-64030	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05	08/2009 - 12/2999	1
90035-64029	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5	08/2009 - 12/2999	1
90035-64027	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1	08/2009 - 12/2999	1
90564-42001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.02−0.08	10/2006 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37030	XZU334..T3..5F..CBU;XZU334,348..5F..(20T,40T)..(DCRTJ,DCRTK,DCRTM);BZU300,340,XZU304,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,33#,508,538..(T2,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37030	XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
36851-37020	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
Common parts
84210-12040
90031-70107
90032-14008
90101-08156
90119-08124
90119-10372
90179-14066
90201-08091
90201-15011
90201-15043
90407-51002
90501-29040
90560-28006
90560-30013
90560-53002
92132-81028
94130-61000
94512-01000
94531-01400

(0610- )XZU368..T4..DCRTK..IV3 ; (0908- )XZU378..DCRTK..IV3 ; (1003- )T5..

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ 20KG

Part #	Description	Period	Qty
35775B - SLEEVE, OUTPUT SHAFT
35775-37030	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
35775-37030	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
35775-37010	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
35775-37010	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37030	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37050	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE C:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36605-37040	XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄ参照	10/2006 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37341	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 03/2010	1
36610-37341	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 03/2010	1
36610-37280	XZU334,344,504,548..SCB..5F;XZU508,538..SCB..5F..(DCRTJ,DCRUE);XZU30#,338,348..(DM6,T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3) ﾊﾞｷﾕ-ﾑｼｷ 25KG	10/2006 - 07/2010	1
36610-37280	XZU334,344,504,548..SCB..5F;XZU508,538..SCB..5F..(DCRTJ,DCRUE);XZU30#,338,348..(DM6,T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3) ﾊﾞｷﾕ-ﾑｼｷ 25KG	10/2006 - 07/2010	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37060	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36621-37060	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
36621-37071	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 12/2999	1
36621-37071	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-30014	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90311-30014	XZU308..T5..5F..DCRTJ..IV3 ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90311-25110	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
90311-25110	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37210	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36714-37210	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36714-37171	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36714-37171	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37110	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 06/2011	1
36718-37110	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 06/2011	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 07/2010	1
36723-37100	XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)	10/2006 - 07/2010	1
36723-37090	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36723-37090	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−22	08/2009 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28020	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−12	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
90364-28025	XZU308..T5..5F..DCRTJ..IV3 ﾏｰｸ XH01−16	08/2009 - 12/2999	1
36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)
90389-25006	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 12/2999	1
90389-25006	XZU308..T5..5F..DCRTJ..IV3	08/2009 - 12/2999	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728-37020	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
90254-04002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	10/2006 - 12/2999	1
90564-25002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	10/2006 - 12/2999	1
90564-25001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	10/2006 - 12/2999	1
90564-25001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	10/2006 - 12/2999	1
90564-25004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	10/2006 - 12/2999	1
90564-25004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	10/2006 - 12/2999	1
90564-25003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	10/2006 - 12/2999	1
90564-25003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	10/2006 - 12/2999	1
90035-64031	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64031	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.5,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64032	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64032	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.2,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64034	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64034	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.05,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64033	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
90035-64033	XZU308..T5..5F..DCRTJ..IV3 厚さ=0.1,ｿﾞｳｿｸｶﾞﾀﾊﾞｷﾕ-ﾑﾀｲﾌﾟ 21.5KG	08/2009 - 12/2999	1
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00731
SU002-00737
SU002-00786
SU002-00861
SU002-00863
SU002-00877
SU002-00883
SU002-00886
SU002-00910

ILLUST NO. 2 OF 2(0610- )XZU304,334,344,504,548..T3,T4,T5..5F..CBU,IV3 ; (0610- )XZU308,338,34

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ 21.5KG,25KG

Part #	Description	Period	Qty
27679C - BRACKET, POWER TAKE-OFF SOLENOID
27679-78041	N04C,1BZFPE..BZU300,340,XZU334,344,504,548..SCB..5F;N04C,2TRFE..TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);N04C..XZU30#,348..(T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
27690J - SOLENOID ASSY, POWER TAKE-OFF
27690-78080	N04C..XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);N04C..XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
44754H - BRACKET, VACUUM TUBE
44754-37110	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	10/2006 - 12/2999	1
44763E - TUBE, HOSE TO HOSE, NO.1
44763-37760	XZU304,334,344,504,548..(T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1
44771-37770	XZU304,334,344,504,548..(T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2
95446-09300	BZU300,340,XZU334,344,504,548..SCB..5F;TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);XZU30#,348..(T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
44776D - HOSE, BRAKE BOOSTER
44776-37270	XZU304..T4..5F..30T;XZU33#,34#..(T3,T4)..5F..DCRTJ;XZU30#..(T3,T5)..5F..DCRTJ..(CBU,IV3)	10/2006 - 03/2010	1
Common parts
47371-37040
90119-08676
94130-00802
96133-41500
Linked diagrams
4703

XZU308-TPMMB3 (2006)

ILLUST NO. 1 OF 2(0610- )XZU304,334,344,504,548..DM6,T3,T4,T5..5F..CBU,IV3 ; (0610- )XZU308,33

(0610- )35T..IV3 ; (0610- )T5..30T..DCRTJ; (0610- )T3,T4..5F..IV6 ; (0610

ILLUST NO. 1 OF 2(0610- )XZU334..T3..5F..30T..IV3 ; (0908-)XZU308..T5..5F..DCRTJ..IV3

(0610- )XZU368..T4..DCRTK..IV3 ; (0908- )XZU378..DCRTK..IV3 ; (1003- )T5..

ILLUST NO. 2 OF 2(0610- )XZU304,334,344,504,548..T3,T4,T5..5F..CBU,IV3 ; (0610- )XZU308,338,34

Part Price Details
