XZU308-PQTMB3 (2006)
Toyota Dyna/Toyoace

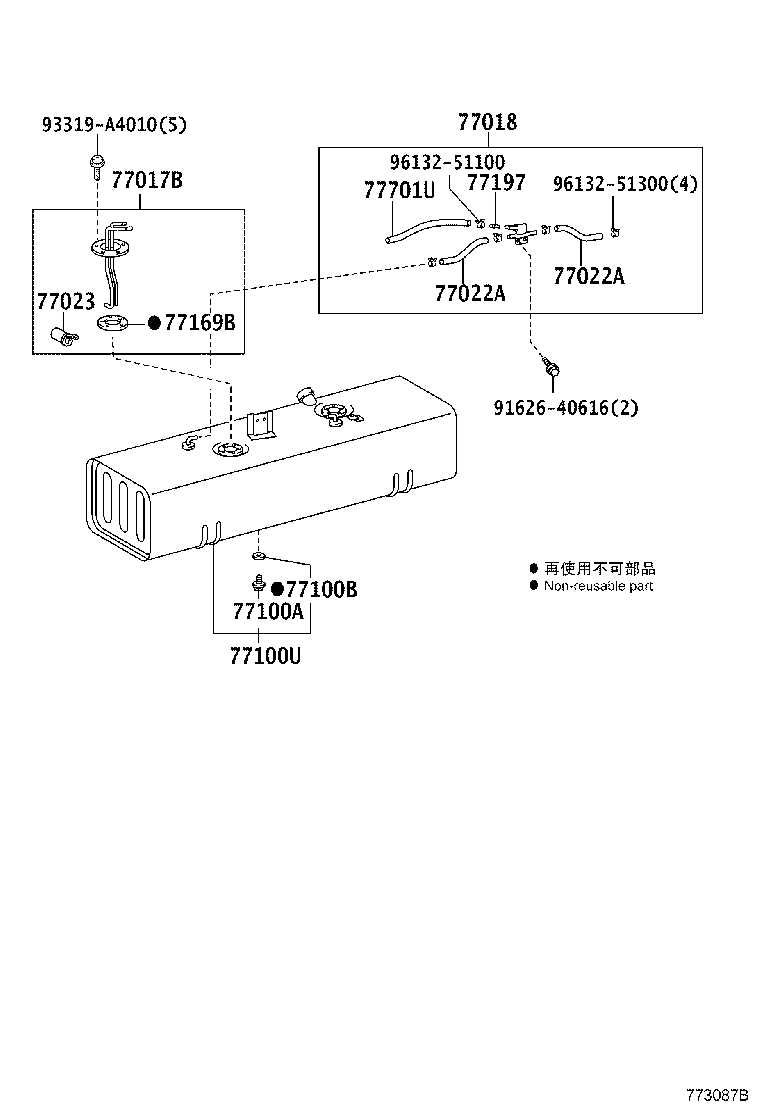

ILLUST NO. 1 OF 3(0610- )XZU378..30T..DCRTJ ; (0610- )XZU334..T3..DCRTJ,DCRUE..IV3 ; (0610-
ﾌｭｰｴﾙ ﾀﾝｸ(780X320X385)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37030 |
XZU308,378,508..(DCB,VAN)..20T |
1 | ||
| 77017-37030 |
XZU308,378,508..(DCB,VAN)..20T |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77023-60010 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90105-12116 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90430-12245 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37451 |
XZU308,378..DCB..20T 1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L) |
1 | ||
| 77001-37451 |
XZU308,378..DCB..20T 1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L) |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77169-14020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
XZU308,378..DCB..20T *H,L=240 |
1 | ||
| 95333-06030 |
XZU308,378..DCB..20T *H,L=240 |
1 | ||
| Common parts | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(0610- )XZU308,378..DCB..20T
ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37290 |
XZU308,378..DCB..20T |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77502-37100 |
TRU300,XZU308,378..DCB..20T |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-37010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-26040 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 94130-01002 | ||||
ILLUST NO. 2 OF 3(0610- )XZU308,338,508,538..SCB..T4..6F,6FC..DCRTJ,DCRUE..IV3 ; (0610- )XZU30
ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91112-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 3(0610- )XZU504..5F ; (0610- )T5..DCRUD..IV3 ; (0610- )XZU334..5F..CBU ; (0
ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77601-26060 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77653-25010 |
TRU300,XZU308,378,508..(DCB,VAN)..20T |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77501-25091 |
XZU308,378..DCB..20T |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| 77644-37101 |
XZU308..DCRTH;XZU308..DCB..6FC..DCRTJ |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91112-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 94130-00802 | ||||

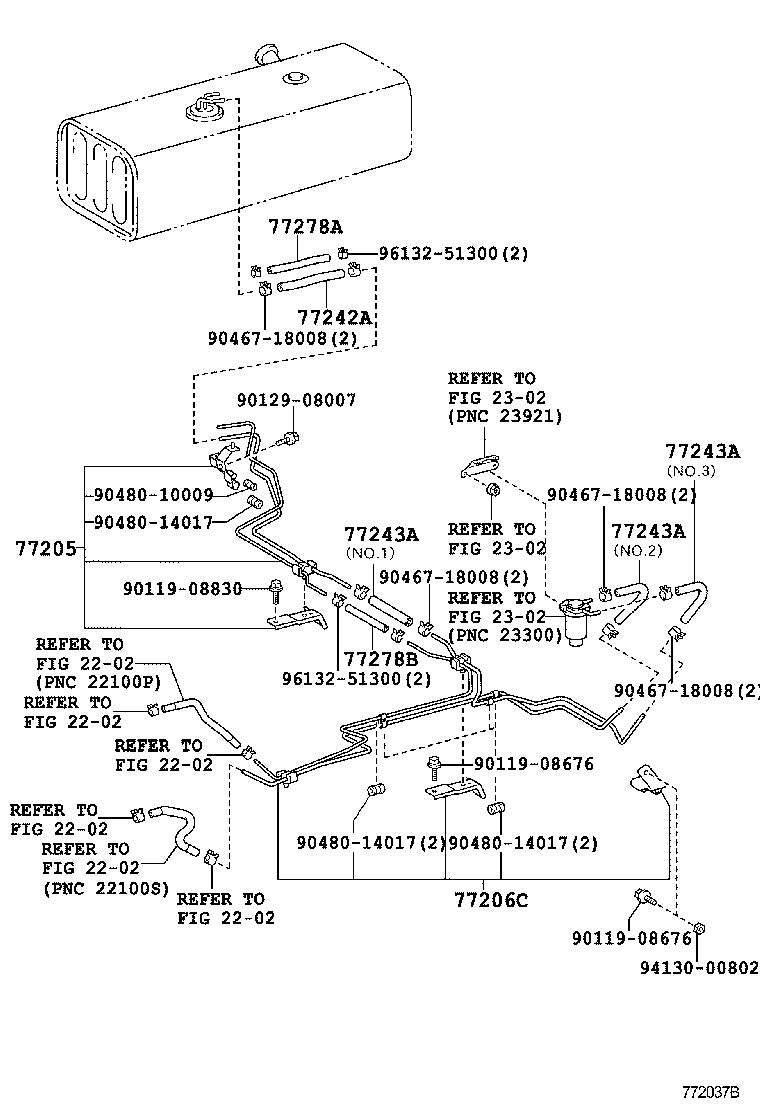

ILLUST NO. 3 OF 3(0610- )XZU308..DCB
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37780 |
XZU308..DCB |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37D00 |
XZU308,348..DCB..(5F,6FC) |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12024 |
XZU30#,334..DCB;XZU378..CBU,IV3 *H,L=240,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12020 |
XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2 |
1 | ||
| 95332-12030 |
XZU30#,33#,34#,50#,538,548..(DM3,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12020 |
XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2 |
1 | ||
| 95332-12030 |
XZU30#,33#,34#,50#,538,548..(DM3,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12020 |
XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2 |
1 | ||
| 95332-12030 |
XZU30#,33#,34#,50#,538,548..(DM3,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU308,508..DCB,VAN;XZU324,378,524..CBU,IV3 *H,L=260,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 *H,L=160,内径=7.6 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90129-08007 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 3 OF 3(0610- )XZU304,324,354..DM5,DM6,DM7..5F..DCRTM,DCRUE ; (0610- )XZU30#,33#,34#
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37780 |
XZU308..DCB |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37D00 |
XZU308,348..DCB..(5F,6FC) |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12024 |
XZU30#,334..DCB;XZU378..CBU,IV3 *H,L=240,内径=12 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12024 |
XZU30#,334..DCB;XZU378..CBU,IV3 *H,L=240,内径=12 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12024 |
XZU30#,334..DCB;XZU378..CBU,IV3 *H,L=240,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12020 |
XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2 |
1 | ||
| 95332-12030 |
XZU30#,33#,34#,50#,538,548..(DM3,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12020 |
XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2 |
1 | ||
| 95332-12030 |
XZU30#,33#,34#,50#,538,548..(DM3,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12020 |
XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2 |
1 | ||
| 95332-12030 |
XZU30#,33#,34#,50#,538,548..(DM3,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU308,508..DCB,VAN;XZU324,378,524..CBU,IV3 *H,L=260,内径=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU308,508..DCB,VAN;XZU324,378,524..CBU,IV3 *H,L=260,内径=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU308,508..DCB,VAN;XZU324,378,524..CBU,IV3 *H,L=260,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 *H,L=160,内径=7.6 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 1 OF 3(0610- )XZU308,378..DCB..20T
ﾌｭｰｴﾙﾀﾝｸ(1030X258X285)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37030 |
XZU308,378,508..(DCB,VAN)..20T |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37130 |
XZU308,378..DCB..20T |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
XZU308,378,508..(DCB,VAN)..20T *H,L=160,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
XZU308,378,508..(DCB,VAN)..20T *H,L=160,内径=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37451 |
XZU308,378..DCB..20T 1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L) |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU30#,334,378,508..DCB,VAN |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
XZU308,378..DCB..20T *H,L=240 |
1 | ||
| Common parts | ||||
| 91626-40616 | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 2(0610- )DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
ﾌｭｰｴﾙ ﾀﾝｸ(100L)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10015 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0610- )DCR
ﾌｭｰｴﾙ ﾀﾝｸ(100L)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10015 | ||||
| 91626-40616 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
