XZU308-PQTMB (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XZU308,378..DCB..CBU

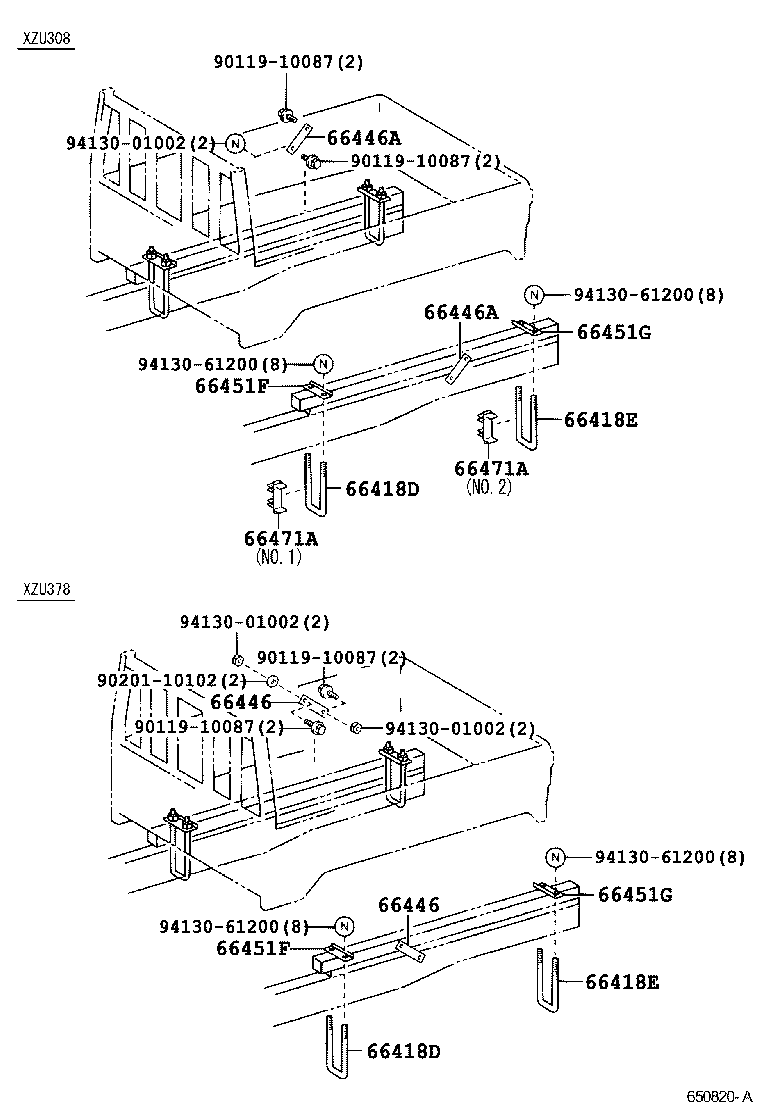

Click highlighted areas on diagram

diagram 66418D 66418D 66418E 66418E 66446 66446 66446A 66446A 66451F 66451F 66451G 66451G 66471A 66471A 9011910087 9011910087 9011910087 9011910087 9020110102 9413001002 9413001002 9413001002 9413061200 9413061200 9413061200 9413061200
Part # Description Qty Price
66418D - BOLT, U, CENTER
90117-12037

TRU300,XZU30#,338,34#,508..T4..CBU;BZU300,340,TRU340,500,XZU368,378,388,504,538,548,568..(T2,T4)..20T..CBU

長さ=288

 2
66418D - BOLT, U, CENTER
90117-12037

TRU300,XZU30#,338,34#,508..T4..CBU;BZU300,340,TRU340,500,XZU368,378,388,504,538,548,568..(T2,T4)..20T..CBU

長さ=288

 2
66418E - BOLT, U, REAR
90117-12043

TRU300,XZU30#,33#,34#,508..T4..CBU;BZU300,340,TRU340,500,XZU368,504,538,548,568..(T2,T4)..20T..CBU

長さ=248

 2
66418E - BOLT, U, REAR
90117-12043

TRU300,XZU30#,33#,34#,508..T4..CBU;BZU300,340,TRU340,500,XZU368,504,538,548,568..(T2,T4)..20T..CBU

長さ=248

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

XZU344..35T..CBU;XZU388,504..(T3,T5)..CBU;TRU300,XZU308,348..DCB..CBU;BZU300,340,TRU300,XZU304..(T3,T5)..30T..CBU

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

XZU344..35T..CBU;XZU388,504..(T3,T5)..CBU;TRU300,XZU308,348..DCB..CBU;BZU300,340,TRU300,XZU304..(T3,T5)..30T..CBU

 2
66451F - PLATE, U BOLT, CENTER
66451-37030

XZU304..(T4,T5)..20T..CBU;BZU340,TRU340,XZU308,33#,34#,378,388,50#,538,548..(T3,T4,T5)..CBU

 2
66451F - PLATE, U BOLT, CENTER
66451-37030

XZU304..(T4,T5)..20T..CBU;BZU340,TRU340,XZU308,33#,34#,378,388,50#,538,548..(T3,T4,T5)..CBU

 2
66451G - PLATE, U BOLT, REAR
66451-37030

XZU308,338,348,508..(T3,T4,T5)..CBU;BZU300,340,TRU300,340,500,XZU304,334,344,368,378,388,504,538,548,568..(T2,T3,T4,T5)..CBU

 2
66451G - PLATE, U BOLT, REAR
66451-37030

XZU308,338,348,508..(T3,T4,T5)..CBU;BZU300,340,TRU300,340,500,XZU304,334,344,368,378,388,504,538,548,568..(T2,T3,T4,T5)..CBU

 2
66471A - REINFORCEMENT, FRAME U BOLT
66471-37230

XZU344..(20T,30T)..CBU;XZU30#,338,348,50#,538,548..(T3,T4,T5)..20T..CBU

NO.1

 2
66471-37220

XZU344..(20T,30T)..CBU;XZU30#,348,50#,548..(T3,T4,T5)..20T..CBU

NO.2

 2
66471A - REINFORCEMENT, FRAME U BOLT
66471-37230

XZU344..(20T,30T)..CBU;XZU30#,338,348,50#,538,548..(T3,T4,T5)..20T..CBU

NO.1

 2
66471-37220

XZU344..(20T,30T)..CBU;XZU30#,348,50#,548..(T3,T4,T5)..20T..CBU

NO.2

 2
Common parts
90119-10087
90201-10102
94130-01002
94130-61200
