XZU308-PQMMB (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0610- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 87104 87105 87107 8712837050 87130 87150 87441A 87441D 9017906274 9017906274 9017908184 9017908184 9048001529 9155480614 9155480614 9155480614
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37140

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-25050

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37100

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
87130-37101

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
87150 - RADIATOR ASSY, HEATER
87150-37320

BZU300,340;TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE,EFI

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
87150-37300

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
87441A - FILTER, HEATER AIR
87441-37010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
87441D - FILTER, HEATER AIR, NO.2
87441-37031

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
Common parts
87128-37050
90179-06274
90179-08184
90480-01529
91554-80614

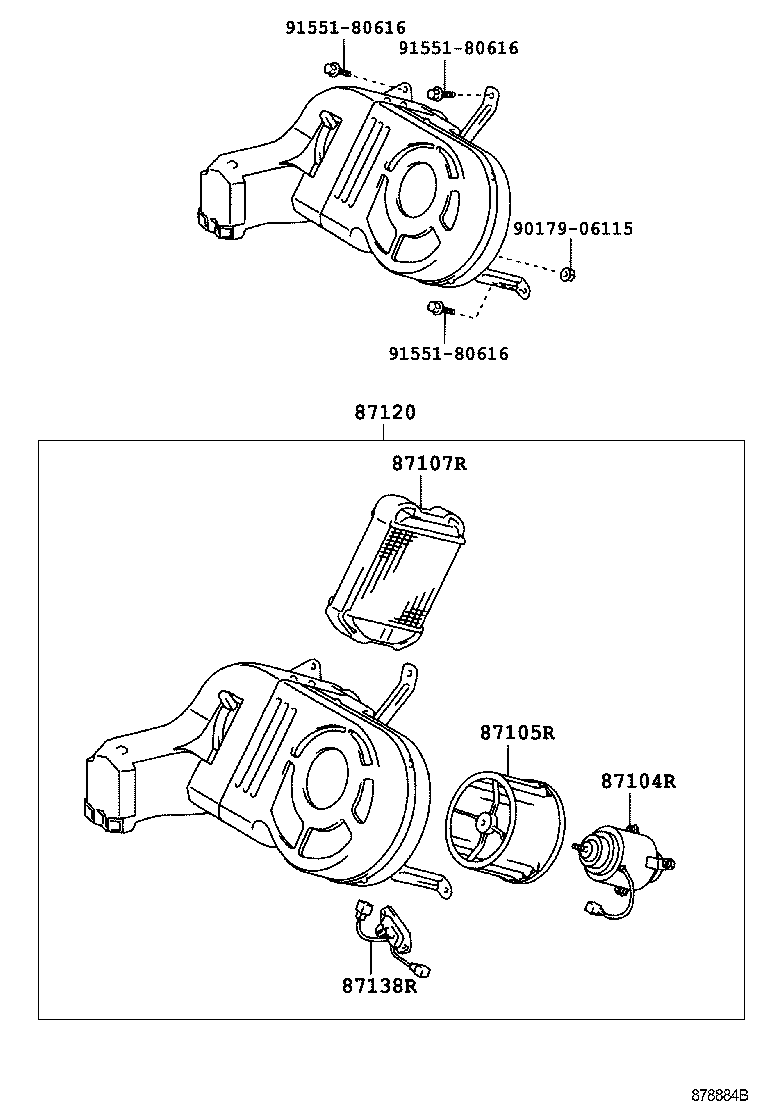

ILLUST NO. 2 OF 2(0610- )XZU308,348,378,388..DCB ; (0705- )TRU300..T4..20T

Click highlighted areas on diagram

ﾘﾔ

diagram 87104R 87105R 87107R 87120 87138R 9017906115 9155180616 9155180616
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-90A04

XZU308,348,378,388..DCB

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

TRU300,XZU308,348,378,388..DCB

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-60330

TRU300,XZU308,348,378,388..DCB

 1
87120 - HEATER ASSY, REAR
87110-37051

XZU308,348,378,388..DCB..20T

 1
87110-37050

XZU308,348,378,388..DCB..20T

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-37160

XZU308,348,378,388..DCB

 1
Common parts
90179-06115
91551-80616
