XZU307V-REMMS (1999)
Toyota Dyna/Toyoace

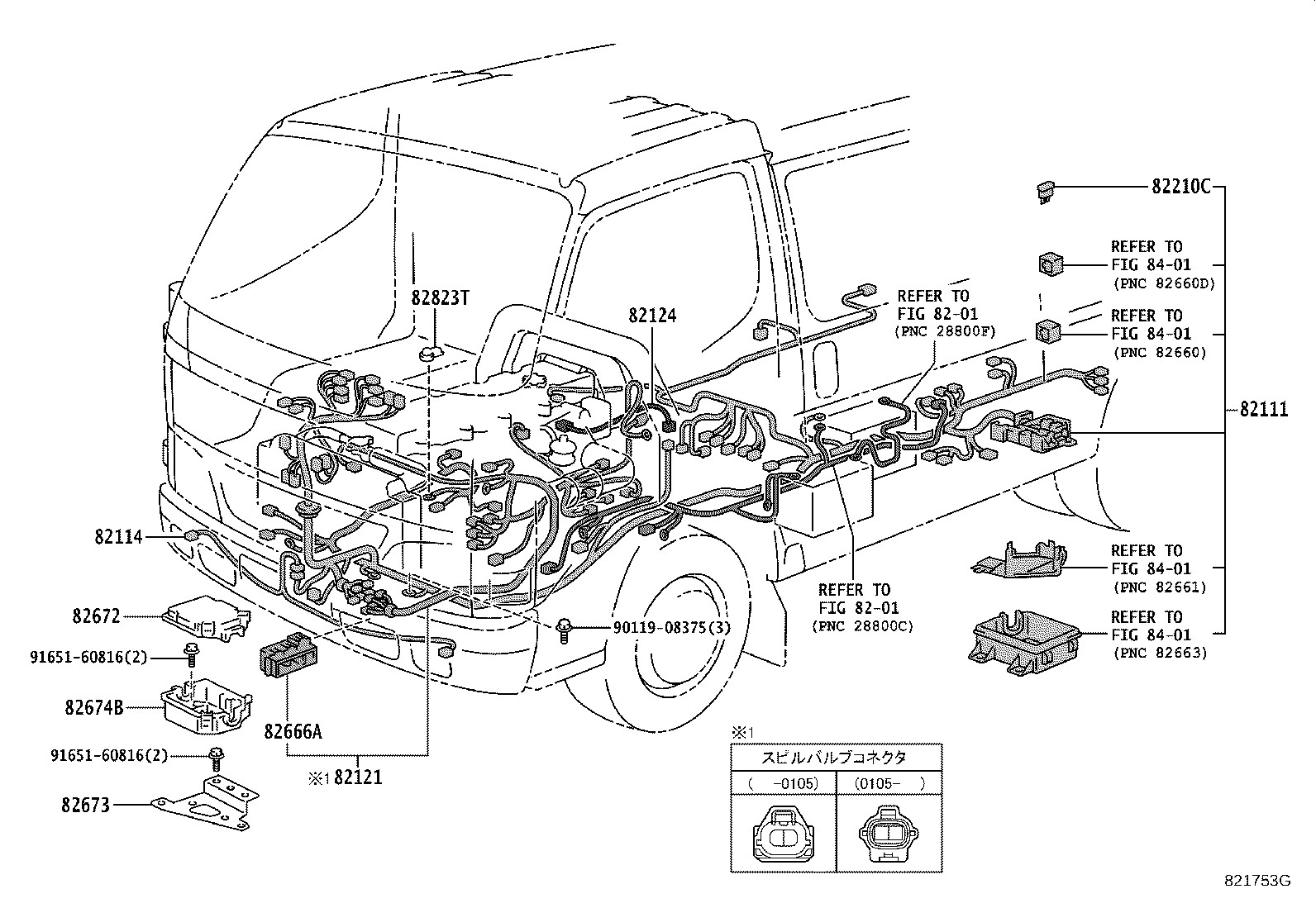

ILLUST NO. 1 OF 6(9905-0406)XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,3
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-37292 |
XZU307..03S..5F |
1 | ||
| 82115-37490 |
XZU307..03S..5F ｱﾘ(ｹﾞﾝｷﾝ ﾕｿｳｼﾔ) |
1 | ||
| 82111-37293 |
XZU307..03S..5F |
1 | ||
| 82115-37491 |
XZU307..03S..5F ｹﾞﾝｷﾝ ﾕｿｳｼﾔ |
1 | ||
| 82115-3V450 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-3V450 |
1 | ||
| 82115-3V430 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-3V430 |
1 | ||
| 82111-37J90 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37J90 |
1 | ||
| 82111-37K10 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37K10 |
1 | ||
| 82111-37K30 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37K30 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37010 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-3V201 |
XZU302,307,312,322,337,342,347,352..DSL |
1 | ||
| 82121-3V200 |
XZU302,307,312,322,337,342,347,352..DSL |
1 | ||
| 82139-37060 |
XZU302,307,312,322,337,342,347,352..DSL |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-37190 |
XZU307,31#,347..DCB,VAN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08280 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-37130 |
XZU302..20T..DSL;XZU321..DM7..4NO;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU301..4FC..20T..DSL;XZU306..4FC..DSLL..IV3;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,306,322..SCB..(DM3,DM6,T3,T5)..5F..DSL;BZU300,XZU306,322,347,372,382..SCB..(DM6,DM7,DM8,T2,T3,T4)..(CNG,DSL,LPG);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,346,35#,362..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-37030 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82670-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82674B - COVER, JUNCTION BLOCK, LOWER | ||||
| 82674-37010 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;BU306,XZU306..(SCB,VAN)..DSL;XZU301,331..5F..DSLL..(CBU,IV4);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 6(9905-0406)XZU307..03S
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-37292 |
XZU307..03S..5F |
1 | ||
| 82115-37490 |
XZU307..03S..5F ｱﾘ(ｹﾞﾝｷﾝ ﾕｿｳｼﾔ) |
1 | ||
| 82111-37293 |
XZU307..03S..5F |
1 | ||
| 82115-37491 |
XZU307..03S..5F ｹﾞﾝｷﾝ ﾕｿｳｼﾔ |
1 | ||
| 82115-3V450 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-3V450 |
1 | ||
| 82115-3V430 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-3V430 |
1 | ||
| 82111-37J90 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37J90 |
1 | ||
| 82111-37K10 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37K10 |
1 | ||
| 82111-37K30 |
XZU307..03S..5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37K30 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37010 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-3V201 |
XZU302,307,312,322,337,342,347,352..DSL |
1 | ||
| 82121-3V200 |
XZU302,307,312,322,337,342,347,352..DSL |
1 | ||
| 82139-37060 |
XZU302,307,312,322,337,342,347,352..DSL |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-37190 |
XZU307,31#,347..DCB,VAN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08280 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-37130 |
XZU302..20T..DSL;XZU321..DM7..4NO;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU301..4FC..20T..DSL;XZU306..4FC..DSLL..IV3;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,306,322..SCB..(DM3,DM6,T3,T5)..5F..DSL;BZU300,XZU306,322,347,372,382..SCB..(DM6,DM7,DM8,T2,T3,T4)..(CNG,DSL,LPG);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,346,35#,362..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-37030 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82670-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82674B - COVER, JUNCTION BLOCK, LOWER | ||||
| 82674-37010 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;BU306,XZU306..(SCB,VAN)..DSL;XZU301,331..5F..DSLL..(CBU,IV4);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 6(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82129-37580 |
XZU307,372,382..(03S,T3)..5F..20T |
1 | ||
| 82129-37590 |
XZU307,372,382..(03S,T3)..5F..20T ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 82147-37630 |
XZU307..03S..5F ｱﾘ(ABS) |
1 | ||
| 82131-37B40 |
XZU307..03S..5F |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08280 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60070 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU306,XZU307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-37080 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-37090 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-37120 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-21040 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU306,XZU307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL |
2 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-35040 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU306,XZU307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91626-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||

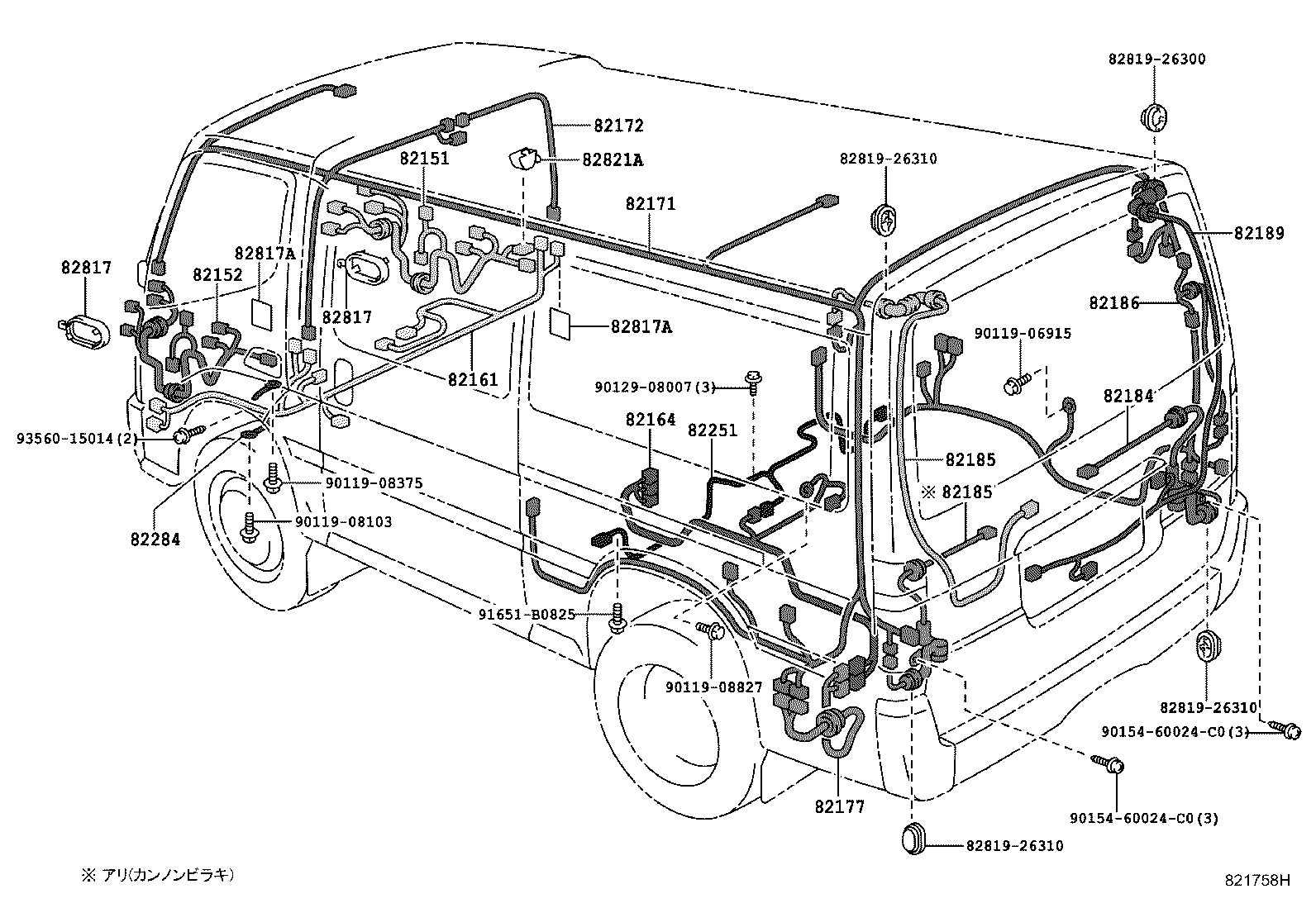

ILLUST NO. 4 OF 6(9905-0406)VAN
ﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37140 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151-37150 |
RZU300..SCB;BU30#,346,RZU340,XZU30#,322,33#,34#,362,37#,382..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,295T,30T)..(CBU,IV3,IV4) ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37250 |
XZU341..DSL,DSLL;RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;RZU300,XZU301,302,306,331,342..DSL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,330,337,340,346,347,351,352,362,37#,382..175T,20T,30T |
1 | ||
| 82151-37260 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,33#,340,346,347,351,352,362,372,382..(175T,20T,30T)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151-37120 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..175T,20T,295T,30T |
1 | ||
| 82151-37240 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;XZU301..(DM6,T3,T4,T5)..DSL..(CBU,IV3,IV4);RZU300,XZU302,342..SCB..(DM6,T2,T3,T4,T5)..(DSL,EFI);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37270 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;RZU300,XZU301,302,342..(DM6,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3,IV4);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37280 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,RZU300,XZU301,302,306,342..(03S,06S,DM6,T1,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3);BU346,BZU300,340,RZU301,340,XZU300,307,322,33#,340,346,347,362,372,382..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37110 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 82152-37210 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82152-37120 |
XZU342,372,382..SCB;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,341,346,347,35#,362,371..DSL,DSLL,EFI,LPG ｱﾘ(PTO ﾊﾞｷﾕ-ﾑﾀｲﾌﾟ) & ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37160 |
RZU300,XZU302..SCB..(DM6,T2,T3,T4,T5)..(DSL,EFI,LPG);XZU301..(DM6,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV4);BU30#,346,RZU340,XZU300,306,307,322,33#,34#,362,37#,382..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,295T,30T) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37280 |
XZU341..DSL,DSLL;RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;RZU300,XZU301,302,306,331,342..DSL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,330,337,340,346,347,351,352,362,37#,382..175T,20T,30T |
1 | ||
| 82152-37270 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;RZU300,XZU301,302,342..(DM6,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3,IV4);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37300 |
XZU362..DM5,DM7;XZU362..T4..CBU;RZU300..30T..LPG;XZU341..T3..295T;XZU341..4FC..295T..DSL;XZU341..T4..6F..295T..IV3;BU301,XZU341..(175T,20T,30T)..DSL;BU306,346,RZU300,340,XZU300,301,302,306,307,31#,32#,33#,340,342,346,347,351,352,37#,382..(20T,295T,30T)..(DSL,EFI) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82152-37290 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,33#,340,346,347,351,352,362,372,382..(175T,20T,30T)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82152-37310 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;RZU300,XZU301,302,342..(DM6,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3,IV4);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37220 |
BU306,XZU307..VAN ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82161-37210 |
BU306,XZU307..VAN |
1 | ||
| 82161-37230 |
BU306,XZU307..VAN ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-37580 |
BU306,XZU307..VAN |
1 | ||
| 82137-37290 |
BU306,XZU307..VAN ｱﾘ(ABS) |
1 | ||
| 82164-37A00 |
BU306,XZU307..VAN |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37350 |
BU306,XZU307..VAN |
1 | ||
| 82171-37370 |
BU306,XZU307..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82171-37410 |
BU306,XZU307..VAN ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 82171-37351 |
BU306,XZU307..VAN |
1 | ||
| 82171-37411 |
BU306,XZU307..VAN ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 82171-37371 |
BU306,XZU307..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-37040 |
BU306,XZU307..VAN 5ﾄﾞｱ |
1 | ||
| 82172-37050 |
BU306,XZU307..VAN 5ﾄﾞｱ & ﾊｲﾙ-ﾌ |
1 | ||
| 82177 - WIRE, REAR BODY | ||||
| 82177-37010 |
BU306,XZU307..VAN |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-26040 |
BU306,XZU307..VAN |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-37020 |
BU306,XZU307..VAN ﾊｲﾙ-ﾌ & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82185-37010 |
BU306,XZU307..VAN ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82185-26120 |
BU306,XZU307..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-37020 |
BU306,XZU307..VAN ﾊｲﾙ-ﾌ & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82185-37010 |
BU306,XZU307..VAN ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82185-26120 |
BU306,XZU307..VAN ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-37010 |
BU306,XZU307..VAN |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82189-37010 |
BU306,XZU307..VAN |
1 | ||
| 82189-37020 |
BU306,XZU307..VAN ｱﾘ(ﾊｲﾙ-ﾌ) |
1 | ||
| 82251 - WIRE, SPEED SENSOR | ||||
| 82251-37110 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,BZU300,RZU30#,XZU302,307,337..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-37030 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,321,322,337,341,342,346,347,351,352 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12400 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..(DCB,VAN)..(DSL,EFI) |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12400 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..(DCB,VAN)..(DSL,EFI) |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-37050 |
XZU341..IV3;XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU341..T3..295T..CBU;XZU301..DSLL..IV3..4NO;XZU341..4FC..295T..CBU;XZU301,331..CNG,DSL,LPG;XZU306,372,382..SCB..DSL;XZU341,362..(T3,T4)..(20T,30T)..CBU;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,342,346,347,351,352,371..175T,20T,295T,30T |
1 | ||
| Common parts | ||||
| 82819-26300 | ||||
| 82819-26310 | ||||
| 90119-06915 | ||||
| 90119-08103 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90129-08007 | ||||
| 90154-60024C0 | ||||
| 91651-B0825 | ||||
| 93560-15014 | ||||
ILLUST NO. 2 OF 6(9905-0406)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-37420 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..(SCB,VAN)..MTM |
1 | ||
| 82141-37681 |
XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306,312..SCB..5F..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,311,32#,33#,34#,35#,362,372,382..MTM..(CBU,IV3,IV6) ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82141-37690 |
XZU312..30T;BU30#,346,RZU300,340,XZU30#,311,32#,33#,34#,35#,362,372,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6,IV7) ﾅｼ(*80) |
1 | ||
| 82141-37680 |
XZU312..30T;BU30#,346,RZU300,340,XZU30#,311,32#,33#,34#,35#,362,372,382..MTM..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6,IV7) ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82141-37691 |
XZU301..4FC..IV6;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306,312..SCB..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU300,340,XZU300,302,307,311,32#,33#,340,341,342,346,347,351,352,362,372,382..CBU,IV3 ﾅｼ(*80) |
1 | ||
| 82141-37430 |
XZU302..LPG;XZU302..5F..ST;XZU342..CNG,LPG;XZU322..5F..20T;XZU302,322..4FC..4NO;XZU301..4FC..DSLL..IV3;XZU302..(295T,30T)..1NO;XZU301,321..SCB..4FC..30T;BU301,XZU320,330,35#..DM2,DM6,DM7,T1,T3,T5;XZU301,311,321..5F..30T..DSL..(CBU,IV3,IV7)..1NO;XZU301,302,31#,321..SCB..(DM3,DM5,DM6,DM7,DM8,T3)..(20T,295T)..DSL;BU306,346,XZU300,306,307,331,337,340,341,346,347,362,372,382..DSL..(CBU,IV3) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82141-37870 |
XZU312..30T;BU30#,346,BZU300;BZU340,RZU30#,340,XZU300,301,302,306,307,311,32#,33#,340,341,342,346,347,35#,362,372,382..MTM..(CBU,IV3,IV6,IV7) ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-37120 |
XZU321..4NO;XZU321..5F..1NO;XZU301..4FC..30T..4NO;XZU301..4FC..30T..IV6;XZU301..4FC..DSLL..IV3;XZU301,306,331,341..SCB..MTM..(DSL,DSLL);XZU302,307,31#,322,337,342,346,347,351,352..DSL |
1 | ||
| 82142-37220 |
XZU307..03S ｱﾘ(ﾘﾔﾋ-ﾀ) OR ｱﾘ(ﾘﾔﾜｲﾊﾟ) OR 5ﾄﾞｱ |
1 | ||
| 82142-37380 |
XZU307..03S ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82142-37300 |
XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306..(CNG,DSL,LPG)..(CBU,IV3,IV6);BZU300,340,RZU30#,340,XZU302,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
ILLUST NO. 5 OF 6(0310- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37291 | ||||
| 82702-37310 | ||||
| 82702-37321 | ||||
| 82702-37360 | ||||
| 82702-37372 | ||||
| 82715-37C50 | ||||
| 82715-37C80 | ||||
| 82715-37C90 | ||||
| 82715-37D00 | ||||
| 82715-37D10 | ||||
| 82715-37D20 | ||||
| 82715-37D30 | ||||
| 82715-37D80 | ||||
| 82715-37E30 | ||||
| 82715-37E40 | ||||
| 82715-37F10 | ||||
| 82715-3V500 | ||||
| 82715-3V690 | ||||
| 87121-37011 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05141 | ||||
| 90179-06158 | ||||
| 91651-B0820 | ||||
ILLUST NO. 3 OF 6(9905-0406)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
