XZU307V-REMMS (1999)
Toyota Dyna/Toyoace

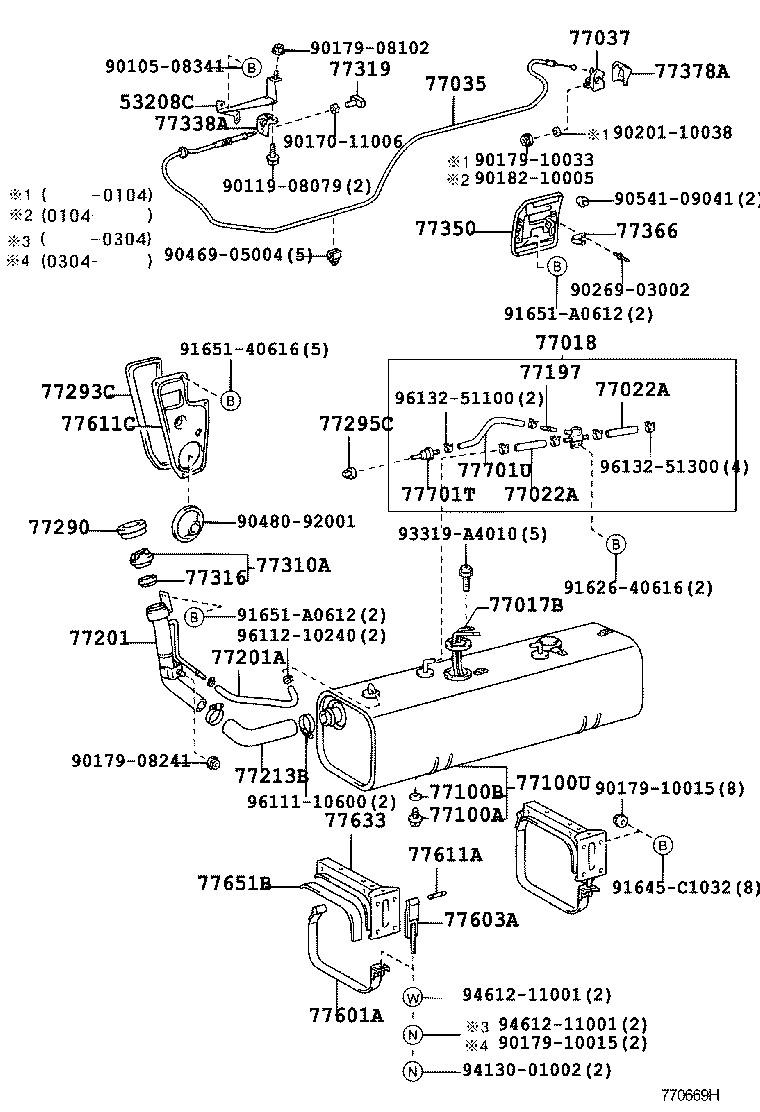

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362
ﾌﾕ-ｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37030 |
BU30#,XZU307,31#..DCB,VAN |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37140 |
BU306,XZU307..VAN |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
BU30#,XZU307,31#..DCB,VAN *H,L=160,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
BU30#,XZU307,31#..DCB,VAN *H,L=160,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37290 |
BU306,XZU307..VAN 1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L) |
1 | ||
| 77001-37291 |
BU306,XZU307..VAN 1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L) |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
BU306,XZU307..VAN *H,L=220 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91611-B0616 | ||||
| 91626-40616 | ||||
| 91642-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 3(9905-0406)
ﾌﾕ-ｴﾙ ﾀﾝｸ(ｻﾌﾞﾀﾝｸｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37030 |
BU30#,XZU307,31#..DCB,VAN |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37140 |
BU306,XZU307..VAN |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
BU30#,XZU307,31#..DCB,VAN *H,L=160,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
BU30#,XZU307,31#..DCB,VAN *H,L=160,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37290 |
BU306,XZU307..VAN 1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L) |
1 | ||
| 77001-37291 |
BU306,XZU307..VAN 1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L) |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
BU306,XZU307..VAN *H,L=220 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90202-09047 | ||||
| 90250-03031 | ||||
| 90386-08164 | ||||
| 90401-12007 | ||||
| 90405-10008 | ||||
| 90461-07033 | ||||
| 90467-15012 | ||||
| 90480-14006 | ||||
| 91626-40616 | ||||
| 91642-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-15010 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96713-19017 | ||||
| 96713-24011 | ||||
ILLUST NO. 1 OF 3(9905-0406)VAN
ﾌﾕ-ｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53208C - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-37010 |
BU306,XZU307..VAN |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37030 |
BU30#,XZU307,31#..DCB,VAN |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37140 |
BU306,XZU307..VAN |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
BU30#,XZU307,31#..DCB,VAN *H,L=160,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
BU30#,XZU307,31#..DCB,VAN *H,L=160,内径=7.6 |
2 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-37010 |
BU306,XZU307..VAN |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
BU306,XZU307..VAN |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37290 |
BU306,XZU307..VAN 1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L) |
1 | ||
| 77001-37291 |
BU306,XZU307..VAN 1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L) |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-37030 |
BU306,XZU307..VAN |
1 | ||
| 77201-37031 |
BU306,XZU307..VAN |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-24015 |
BU306,XZU307..VAN |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-37020 |
BU306,XZU307..VAN |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-37010 |
BU306,XZU307..VAN |
1 | ||
| 77293C - PACKING, FUEL TANK OUTER FILLER PIPE | ||||
| 77293-37010 |
BU306,XZU307..VAN |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-27010 |
BU306,XZU307..VAN |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
BU306,XZU307..VAN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
BU306,XZU307..VAN |
1 | ||
| 77319 - KNOB, FUEL TANK CAP | ||||
| 77319-90K00 |
BU306,XZU307..VAN |
1 | ||
| 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD | ||||
| 77338-90K01 |
BU306,XZU307..VAN |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-37010 |
BU306,XZU307..VAN |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-95J01 |
BU306,XZU307..VAN |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-90K00 |
BU306,XZU307..VAN |
1 | ||
| 77611C - COVER, FUEL TANK GUARD | ||||
| 77612-37010 |
BU306,XZU307..VAN |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
BU306,XZU307..VAN |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
BU306,XZU307..VAN *H,L=220 |
1 | ||
| Common parts | ||||
| 90105-08341 | ||||
| 90119-08079 | ||||
| 90170-11006 | ||||
| 90179-08102 | ||||
| 90179-08241 | ||||
| 90179-10015 | ||||
| 90179-10033 | ||||
| 90182-10005 | ||||
| 90201-10038 | ||||
| 90269-03002 | ||||
| 90469-05004 | ||||
| 90480-92001 | ||||
| 90541-09041 | ||||
| 91626-40616 | ||||
| 91645-C1032 | ||||
| 91651-40616 | ||||
| 91651-A0612 | ||||
| 93319-A4010 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96111-10600 | ||||
| 96112-10240 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37530 |
BU306,XZU307..VAN..5F |
1 | ||
| 77205-37530 |
BU306,XZU307..VAN..5F |
1 | ||
| 77205-37530 |
BU306,XZU307..VAN..5F |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37520 |
XZU307..03S..5F |
1 | ||
| 77206-37520 |
XZU307..03S..5F |
1 | ||
| 77206-37520 |
XZU307..03S..5F |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12026 |
BU306,XZU307..VAN *H,L=260,内径=12 |
1 | ||
| 95332-12026 |
BU306,XZU307..VAN *H,L=260,内径=12 |
1 | ||
| 95332-12026 |
BU306,XZU307..VAN *H,L=260,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU322;BU306,XZU307,320,321..03S,06S,DM7,DM8 *H,L=260,内径=7.6 |
1 | ||
| 95333-08030 |
XZU322;BU306,XZU307,320,321..03S,06S,DM7,DM8 *H,L=260,内径=7.6 |
1 | ||
| 95333-08030 |
XZU322;BU306,XZU307,320,321..03S,06S,DM7,DM8 *H,L=260,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 2 OF 3(9905-0406)BU30#,346,XZU300,302,306,307,31#,32#,330,331,340,341,342,346,347,350,362
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(RH ﾌﾚ-ﾑﾌﾛﾝﾄｾｼﾞﾒﾝﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37530 |
BU306,XZU307..VAN..5F |
1 | ||
| 77205-37530 |
BU306,XZU307..VAN..5F |
1 | ||
| 77205-37530 |
BU306,XZU307..VAN..5F |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37520 |
XZU307..03S..5F |
1 | ||
| 77206-37520 |
XZU307..03S..5F |
1 | ||
| 77206-37520 |
XZU307..03S..5F |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12026 |
BU306,XZU307..VAN *H,L=260,内径=12 |
1 | ||
| 95332-12026 |
BU306,XZU307..VAN *H,L=260,内径=12 |
1 | ||
| 95332-12026 |
BU306,XZU307..VAN *H,L=260,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU300,340;XZU301..IV6;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU307,330,350..03S,06S,T3;BU301,XZU301,302..(DM6,T4)..20T..DSL..IV3 *H,L=200,内径=12 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77279-37020 |
BU306,XZU307..VAN ﾌｭｰｴﾙﾀﾝｸﾍｾﾂｿﾞｸ,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77259-37100 |
BU306,XZU307..VAN ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟﾍｾﾂｿﾞｸ,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU322;BU306,XZU307,320,321..03S,06S,DM7,DM8 *H,L=260,内径=7.6 |
1 | ||
| 95333-08030 |
XZU322;BU306,XZU307,320,321..03S,06S,DM7,DM8 *H,L=260,内径=7.6 |
1 | ||
| 95333-08030 |
XZU322;BU306,XZU307,320,321..03S,06S,DM7,DM8 *H,L=260,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| Common parts | ||||
| 90467-13007 | ||||
| 90467-18002 | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 3 OF 3(9905-0406)
ﾌﾕ-ｴﾙ ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77284 - CLAMP, FUEL TUBE | ||||
| 93313-16014 |
BU306,XZU307..VAN |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 91626-60816 | ||||
| 91641-80816 | ||||
| 91642-81025 | ||||
| 91651-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
