Toyota Dyna/toyoace XZU307 INSIDE TRIM BOARD

XZU307V-REMMS (1999)

Toyota Dyna/Toyoace

Production Aug 1999 - Jun 2004

Engine S05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

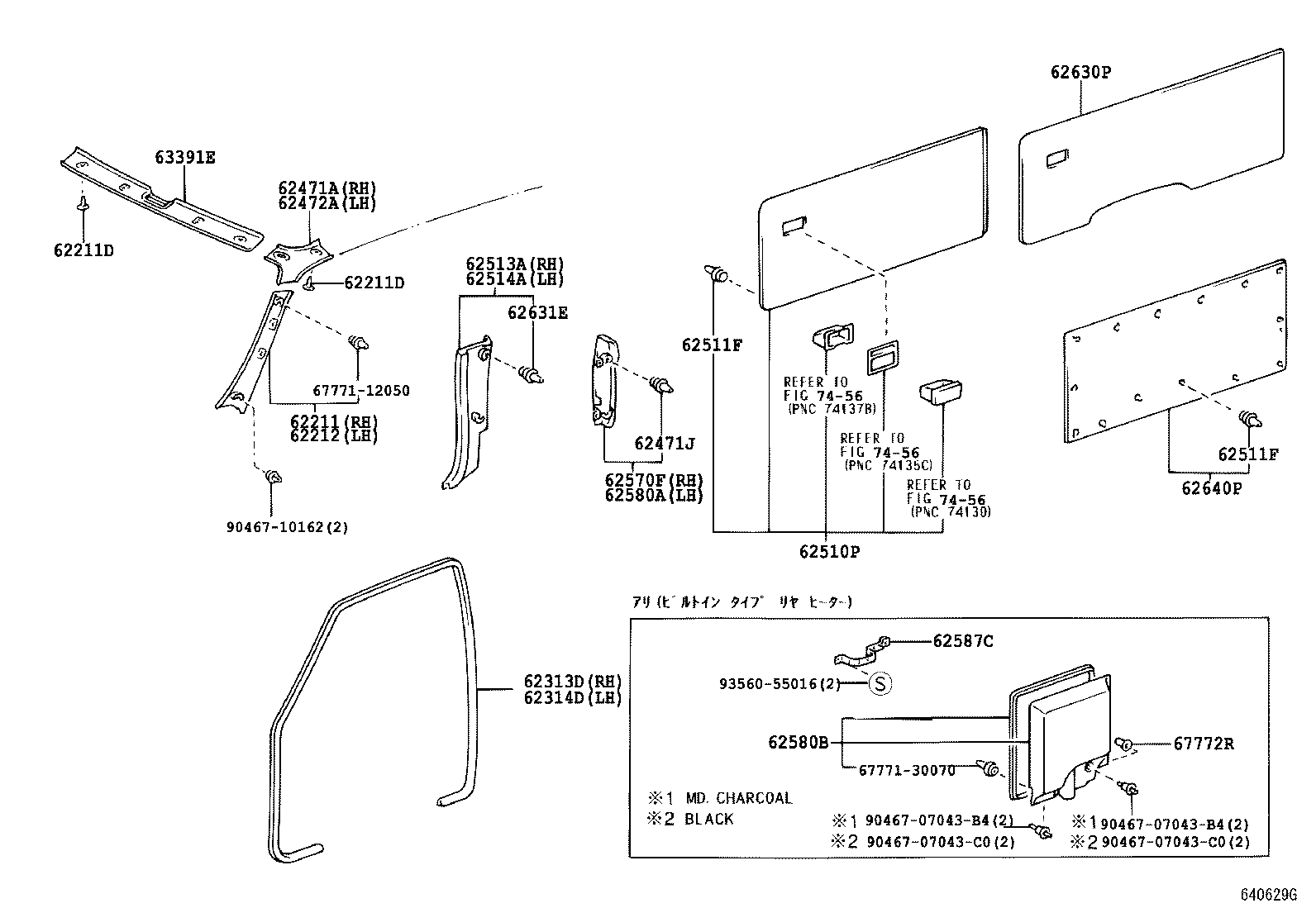

(9905-0206)VAN

Click highlighted areas on diagram

Part #	Description	Period	Qty
62211 - GARNISH, FRONT PILLAR, RH
62211-37010B0	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-05101B2	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	4
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-05101B2	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	4
62212 - GARNISH, FRONT PILLAR, LH
62212-37010B0	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37041B0	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	12/2003 - 06/2004	1
62313-37040B0	XZU347..DCB..5F;XZU301..IV6..4NO;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU311,346..CNG,DSLL,LPG;XZU341,351,352..(DM5,T4)..(4FC,5F)..(20T,295T);BU30#,RZU300,XZU301,307,312,331,37#,382..(DCB,VAN)..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 12/2003	1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-37040B0	XZU347..DCB..5F;XZU301..IV6..4NO;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU311,346..CNG,DSLL,LPG;XZU341,351,352..(DM5,T4)..(4FC,5F)..(20T,295T);BU30#,RZU300,XZU301,307,312,331,37#,382..(DCB,VAN)..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 12/2003	1
62313-37041B0	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	12/2003 - 06/2004	1
62471A - GARNISH, ROOF SIDE, INNER RH
62470-37020B0	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10161	BU30#,XZU301,307,312,331,347,37#,382..DCB,VAN	08/2003 - 06/2004	4
67771-12050	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN	05/1999 - 08/2003	4
62472A - GARNISH, ROOF SIDE, INNER LH
62480-37020B0	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-37010B0	BU306,XZU307..03S MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
62511-95J21	BU306,XZU307..03S ﾅｼ(ﾐｷﾞｶﾞﾜｽﾗｲﾄﾞﾄﾞｱ)	06/2002 - 06/2004	1
62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD)
67771-89109	BU306,XZU307..VAN ﾌﾞﾙｰ	05/1999 - 06/2002	14
62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD)
67771-89109	BU306,XZU307..VAN ﾌﾞﾙｰ	05/1999 - 06/2002	14
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-37010B0	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-37010B0	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62570F - GARNISH ASSY, ROOF SIDE, INNER LOWER RH
62570-37010B0	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307,312..DCB,VAN ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62580A - GARNISH ASSY, ROOF SIDE, INNER LOWER LH
62580-37010B0	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307,312..DCB,VAN ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-95J40B3	BU306,XZU307..VAN MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
62631-95J25	BU306,XZU307..VAN	06/2002 - 06/2004	1
62631E - RETAINER, QUATER TRIM
67771-12050	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 08/2003	4
90467-10161	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB,VAN	08/2003 - 10/2003	4
90467-10161	XZU301..295T;XZU301..IV4,IV7;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,37#,382	10/2003 - 06/2004	4
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-95J47B1	BU306,XZU307..VAN ｱﾘ(ｵﾘﾀﾀﾐﾘﾔｼｰﾄ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
62632-95J32	XZU307..03S	06/2002 - 06/2004	1
63391E - TRIM, ROOF HEADLINING, FRONT
63391-25030B0	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3) MD.CHARCOAL,TRIM1#	06/2003 - 06/2004	1
63391-37020B0	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2003	1
Common parts
67771-12050
67771-30070
90467-07043B4
90467-07043C0
90467-10162
93560-55016
Linked diagrams
7456

(0206- )VAN

Click highlighted areas on diagram

Part #	Description	Period	Qty
62211 - GARNISH, FRONT PILLAR, RH
62211-37010B0	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-05101B2	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	4
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-05101B2	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	4
62212 - GARNISH, FRONT PILLAR, LH
62212-37010B0	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37041B0	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	12/2003 - 06/2004	1
62313-37040B0	XZU347..DCB..5F;XZU301..IV6..4NO;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU311,346..CNG,DSLL,LPG;XZU341,351,352..(DM5,T4)..(4FC,5F)..(20T,295T);BU30#,RZU300,XZU301,307,312,331,37#,382..(DCB,VAN)..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 12/2003	1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-37040B0	XZU347..DCB..5F;XZU301..IV6..4NO;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU311,346..CNG,DSLL,LPG;XZU341,351,352..(DM5,T4)..(4FC,5F)..(20T,295T);BU30#,RZU300,XZU301,307,312,331,37#,382..(DCB,VAN)..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 12/2003	1
62313-37041B0	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	12/2003 - 06/2004	1
62471A - GARNISH, ROOF SIDE, INNER RH
62470-37020B0	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10161	BU30#,XZU301,307,312,331,347,37#,382..DCB,VAN	08/2003 - 06/2004	4
67771-12050	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN	05/1999 - 08/2003	4
62472A - GARNISH, ROOF SIDE, INNER LH
62480-37020B0	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-37010B0	BU306,XZU307..03S MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
62511-95J21	BU306,XZU307..03S ﾅｼ(ﾐｷﾞｶﾞﾜｽﾗｲﾄﾞﾄﾞｱ)	06/2002 - 06/2004	1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-37010B0	BU306,XZU307..03S MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
62511-95J21	BU306,XZU307..03S ﾅｼ(ﾐｷﾞｶﾞﾜｽﾗｲﾄﾞﾄﾞｱ)	06/2002 - 06/2004	1
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-10034N8	BU306,XZU307..03S CREAM YELLOW,TRIM1#	06/2002 - 06/2004	44
90467-10034N8	BU306,XZU307..VAN ｱﾘ(5ﾄﾞｱ),CREAM YELLOW,TRIM1#	06/2002 - 06/2004	30
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-10034N8	BU306,XZU307..03S CREAM YELLOW,TRIM1#	06/2002 - 06/2004	44
90467-10034N8	BU306,XZU307..VAN ｱﾘ(5ﾄﾞｱ),CREAM YELLOW,TRIM1#	06/2002 - 06/2004	30
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-10034N8	BU306,XZU307..03S CREAM YELLOW,TRIM1#	06/2002 - 06/2004	44
90467-10034N8	BU306,XZU307..VAN ｱﾘ(5ﾄﾞｱ),CREAM YELLOW,TRIM1#	06/2002 - 06/2004	30
62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD)
67771-89109	BU306,XZU307..VAN ﾌﾞﾙｰ	05/1999 - 06/2002	14
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-37010B0	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-37010B0	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62570F - GARNISH ASSY, ROOF SIDE, INNER LOWER RH
62570-37010B0	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307,312..DCB,VAN ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62580A - GARNISH ASSY, ROOF SIDE, INNER LOWER LH
62580-37010B0	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307,312..DCB,VAN ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-95J40B3	BU306,XZU307..VAN MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
62631-95J25	BU306,XZU307..VAN	06/2002 - 06/2004	1
62631E - RETAINER, QUATER TRIM
67771-12050	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 08/2003	4
90467-10161	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB,VAN	08/2003 - 10/2003	4
90467-10161	XZU301..295T;XZU301..IV4,IV7;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,37#,382	10/2003 - 06/2004	4
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-95J47B1	BU306,XZU307..VAN ｱﾘ(ｵﾘﾀﾀﾐﾘﾔｼｰﾄ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
62632-95J32	XZU307..03S	06/2002 - 06/2004	1
63391E - TRIM, ROOF HEADLINING, FRONT
63391-25030B0	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3) MD.CHARCOAL,TRIM1#	06/2003 - 06/2004	1
63391-37020B0	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL MD.CHARCOAL,TRIM1#	05/1999 - 06/2003	1
Common parts
67771-12050
67771-30070
90467-07043B4
90467-07043C0
90467-10162
90467-10188
93560-55016
Linked diagrams
7456
