XZU307V-REMMS (1999)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0206-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37170 |
BU30#,346,XZU301,302,306,307,31#,321,322,337,341,346,347,351,352,362,372,382..175T,20T |
1 | ||
| 44610-37171 |
BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,337,341,342,346,347,351,352,362,372,382..175T,20T |
1 | ||
| 44610-37171 |
BU30#,346,BZU300,340,RZU30#,340,XZU301,302,306,307,312,32#,337,341,342,346,347,351,352,362,372,382..175T,20T ｱﾘ(ABS) |
1 | ||
| 44610-37250 |
BU306,XZU307..VAN |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37020 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44597-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44734-37011 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-37030 |
XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37130 |
BU306,XZU307..VAN |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XZU301,31#,331,37#,382;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,306,307,32#,330,337,340,341,342,346,347,35#,362..SCB,VAN |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37020 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM |
1 | ||
| 44772-37020 |
BU30#,RZU301,XZU302,307,351,352..(SCB,VAN)..(03S,06S,DM5,T4)..5F..20T |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM..(CNG,DSL,EFI,LPG) |
1 | ||
| 44775-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37100 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ABS) |
1 | ||
| 44776-37230 |
XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307,351,352..(SCB,VAN)..(03S,06S,DM5,T4)..5F ﾅｼ(ABS) |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
XZU302..DM3..30T;XZU306..DSLL..CBU;XZU311,331..DCB..DSL;BZU300,XZU301..CNG,LPG;XZU341..4FC..295T..DSL;XZU302..(T4,T5)..WT..4NO;XZU301..5F..30T..(IV4,IV6);XZU301,306..(T4,T5)..20T..DSL;XZU306,331..(T3,T5)..5F..DSLL;XZU301..4FC..30T..DSL..(IV4,IV6);XZU306,341..(4FC,6F)..(DSLL,LPG)..IV3;XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU30#,346,BZU340,RZU30#,340,XZU307,337,342,346,347,351,352..(SCB,VAN)..(03S,06S,DM5,T2,T3,T4,T5) 長さ=380 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-08642 | ||||
| 90464-00549 | ||||
| 90467-16013 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 4702 | ||||
| 8414 | ||||

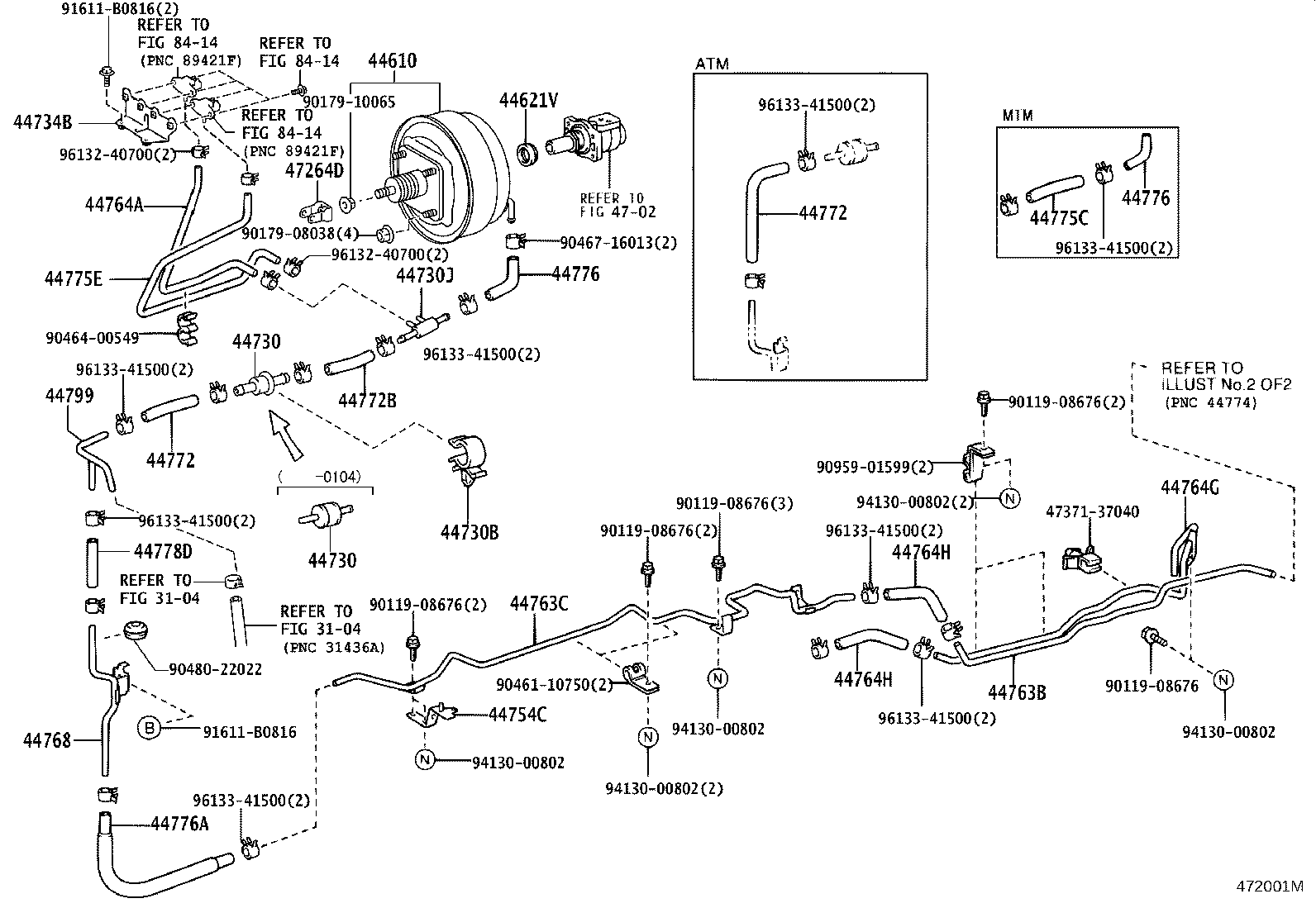

ILLUST NO. 1 OF 2(9905-0406)VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37170 |
BU30#,346,XZU301,302,306,307,31#,321,322,337,341,346,347,351,352,362,372,382..175T,20T |
1 | ||
| 44610-37171 |
BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,337,341,342,346,347,351,352,362,372,382..175T,20T |
1 | ||
| 44610-37171 |
BU30#,346,BZU300,340,RZU30#,340,XZU301,302,306,307,312,32#,337,341,342,346,347,351,352,362,372,382..175T,20T ｱﾘ(ABS) |
1 | ||
| 44610-37250 |
BU306,XZU307..VAN |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-35010 |
RZU300..EFI;XZU302..CNG,LPG;XZU307..T4..4FC;BU306,XZU307..DCB..5F;RZU300,XZU302..T4..(295T,30T)..(DSL,LPG);BU346,RZU340,XZU300,301,306,331,337,34#,362,372,382;BU30#,XZU302,307,31#,32#,330,35#,371..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T5 |
1 | ||
| 44730-20070 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730-35010 |
BU306,XZU307..VAN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-35010 |
RZU300..EFI;XZU302..CNG,LPG;XZU307..T4..4FC;BU306,XZU307..DCB..5F;RZU300,XZU302..T4..(295T,30T)..(DSL,LPG);BU346,RZU340,XZU300,301,306,331,337,34#,362,372,382;BU30#,XZU302,307,31#,32#,330,35#,371..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T5 |
1 | ||
| 44730-20070 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730-35010 |
BU306,XZU307..VAN |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37020 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44597-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44734-37011 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-37030 |
XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37130 |
BU306,XZU307..VAN |
1 | ||
| 44763C - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44764-37140 |
BU306,XZU307..VAN |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-37150 |
BU306,XZU307..VAN |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09180 |
BU306,XZU307..VAN |
2 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09180 |
BU306,XZU307..VAN |
2 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XZU301,31#,331,37#,382;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,306,307,32#,330,337,340,341,342,346,347,35#,362..SCB,VAN |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37020 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM |
1 | ||
| 44772-37020 |
BU30#,RZU301,XZU302,307,351,352..(SCB,VAN)..(03S,06S,DM5,T4)..5F..20T |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37020 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM |
1 | ||
| 44772-37020 |
BU30#,RZU301,XZU302,307,351,352..(SCB,VAN)..(03S,06S,DM5,T4)..5F..20T |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-37030 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44772-37060 |
XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM..(CNG,DSL,EFI,LPG) |
1 | ||
| 44775-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37100 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ABS) |
1 | ||
| 44776-37230 |
XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307,351,352..(SCB,VAN)..(03S,06S,DM5,T4)..5F ﾅｼ(ABS) |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ABS) |
1 | ||
| 44776-37230 |
XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307,351,352..(SCB,VAN)..(03S,06S,DM5,T4)..5F ﾅｼ(ABS) |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
XZU302..DM3..30T;XZU306..DSLL..CBU;XZU311,331..DCB..DSL;BZU300,XZU301..CNG,LPG;XZU341..4FC..295T..DSL;XZU302..(T4,T5)..WT..4NO;XZU301..5F..30T..(IV4,IV6);XZU301,306..(T4,T5)..20T..DSL;XZU306,331..(T3,T5)..5F..DSLL;XZU301..4FC..30T..DSL..(IV4,IV6);XZU306,341..(4FC,6F)..(DSLL,LPG)..IV3;XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU30#,346,BZU340,RZU30#,340,XZU307,337,342,346,347,351,352..(SCB,VAN)..(03S,06S,DM5,T2,T3,T4,T5) 長さ=380 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-10750 | ||||
| 90464-00549 | ||||
| 90467-16013 | ||||
| 90480-22022 | ||||
| 90959-01599 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 4702 | ||||
| 8414 | ||||

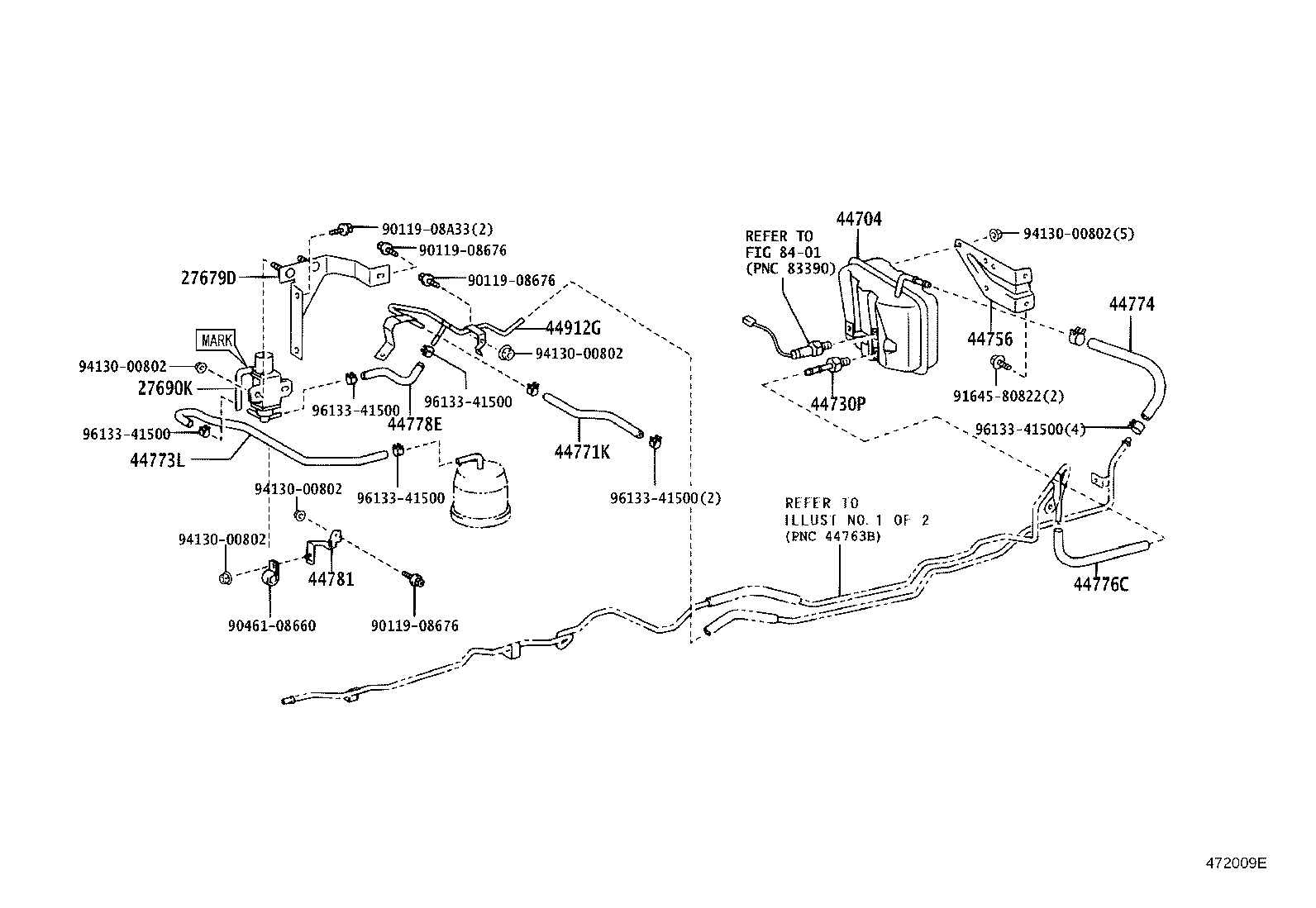

ILLUST NO. 2 OF 2(9905-0406)BU30#..DCB ; (0005-0406)6F..295T ; (0005-0406)RZU300,340,XZU301..1NO ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78120 |
S05C,4B..BU306,XZU307..VAN |
1 | ||
| 27679-78120 |
S05C,4B..BU306,XZU307..VAN |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78030 |
4B..BU301..WT..IV3;S05D..XZU301..4FC..IV6;S05C..XZU302..T4..5F..20T..IV3;S05#..XZU301,302..(DM6,T4)..4FC..20T..IV3;S05#,4B..BU306,XZU301,307,31#,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78030,27690-78031,27690-78032 |
1 | ||
| 27690-78030 |
4B..BU301..WT..IV3;S05D..XZU301..4FC..IV6;S05C..XZU302..T4..5F..20T..IV3;S05#..XZU301,302..(DM6,T4)..4FC..20T..IV3;S05#,4B..BU306,XZU301,307,31#,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78030,27690-78031,27690-78032 |
1 | ||
| 27690-78031 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05#..XZU301,31#..DCB..5F;S05D..XZU301..4FC..DSL..(IV4,IV6);S05C,4B..BU30#,XZU307..03S,06S,DM6;S05#..XZU301,302..4FC..20T..DSL..IV3..1NO ﾏｰｸ= 27690-78031,27690-78032 |
1 | ||
| 27690-78031 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05#..XZU301,31#..DCB..5F;S05D..XZU301..4FC..DSL..(IV4,IV6);S05C,4B..BU30#,XZU307..03S,06S,DM6;S05#..XZU301,302..4FC..20T..DSL..IV3..1NO ﾏｰｸ= 27690-78031,27690-78032 |
1 | ||
| 27690-78032 |
S05#..XZU301,302..4FC..20T..IV3..1NO;J05C,S05D..XZU301,350..(IV4,IV6)..1NO;S05#,4B..BU306,XZU307,312,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78032 |
1 | ||
| 27690-78032 |
S05#..XZU301,302..4FC..20T..IV3..1NO;J05C,S05D..XZU301,350..(IV4,IV6)..1NO;S05#,4B..BU306,XZU307,312,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78032 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37100 |
BU306,XZU307..VAN |
1 | ||
| 44704-37100 |
BU306,XZU307..VAN |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44730-60050 |
XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-37030 |
XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG |
1 | ||
| 44754-37030 |
XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 95446-09210 |
XZU307..03S |
1 | ||
| 95446-09210 |
XZU307..03S |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37080 |
BU306,XZU307..VAN |
1 | ||
| 44773-37080 |
BU306,XZU307..VAN |
1 | ||
| 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR | ||||
| 95446-09400 |
BU306,XZU307..VAN |
1 | ||
| 95446-09400 |
BU306,XZU307..VAN |
1 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 95446-09180 |
BU306,XZU307,37#,382..(DCB,VAN)..(03S,06S,T3) |
1 | ||
| 95446-09180 |
BU306,XZU307,37#,382..(DCB,VAN)..(03S,06S,T3) |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37040 |
BU306,XZU307..VAN |
1 | ||
| 44781-37040 |
BU306,XZU307..VAN |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37360 |
XZU307..03S |
1 | ||
| 44912-37360 |
XZU307..03S |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37360 |
XZU307..03S |
1 | ||
| 44912-37360 |
XZU307..03S |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90461-08385 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 3602 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9908-0406)XZU307..03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78120 |
S05C,4B..BU306,XZU307..VAN |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78030 |
4B..BU301..WT..IV3;S05D..XZU301..4FC..IV6;S05C..XZU302..T4..5F..20T..IV3;S05#..XZU301,302..(DM6,T4)..4FC..20T..IV3;S05#,4B..BU306,XZU301,307,31#,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78030,27690-78031,27690-78032 |
1 | ||
| 27690-78031 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05#..XZU301,31#..DCB..5F;S05D..XZU301..4FC..DSL..(IV4,IV6);S05C,4B..BU30#,XZU307..03S,06S,DM6;S05#..XZU301,302..4FC..20T..DSL..IV3..1NO ﾏｰｸ= 27690-78031,27690-78032 |
1 | ||
| 27690-78032 |
S05#..XZU301,302..4FC..20T..IV3..1NO;J05C,S05D..XZU301,350..(IV4,IV6)..1NO;S05#,4B..BU306,XZU307,312,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78032 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37100 |
BU306,XZU307..VAN |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44757-37040 |
BU306,XZU307..VAN |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 95446-09210 |
XZU307..03S |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37080 |
BU306,XZU307..VAN |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-37350 |
BU306,XZU307..VAN |
1 | ||
| 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR | ||||
| 95446-09400 |
BU306,XZU307..VAN |
1 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 95446-09180 |
BU306,XZU307,37#,382..(DCB,VAN)..(03S,06S,T3) |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37040 |
BU306,XZU307..VAN |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37360 |
XZU307..03S |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90461-08660 | ||||
| 91645-80822 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0005-0406)XZU341..T4..IV3 ; (0005-0406)XZU306..DSLL..CBU ; (0005-0406)XZU301,306,3
ﾎﾞﾄﾙｶｰ OR ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78120 |
S05C,4B..BU306,XZU307..VAN |
1 | ||
| 27679-78120 |
S05C,4B..BU306,XZU307..VAN |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37100 |
BU306,XZU307..VAN |
1 | ||
| 44704-37100 |
BU306,XZU307..VAN |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44730-60050 |
XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 95446-09210 |
XZU307..03S |
1 | ||
| 95446-09210 |
XZU307..03S |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37080 |
BU306,XZU307..VAN |
1 | ||
| 44773-37080 |
BU306,XZU307..VAN |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-37350 |
BU306,XZU307..VAN |
1 | ||
| 44771-37350 |
BU306,XZU307..VAN |
1 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 95446-09180 |
BU306,XZU307,37#,382..(DCB,VAN)..(03S,06S,T3) |
1 | ||
| 95446-09180 |
BU306,XZU307,37#,382..(DCB,VAN)..(03S,06S,T3) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37360 |
XZU307..03S |
1 | ||
| 44912-37360 |
XZU307..03S |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 91642-K1020 | ||||
| 91645-80822 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0610-0612)ST ; (0610-0612)XZU30#,314,324,33#,34#,354
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(0206- )XZU411,421..4FC,6F ; (0206- )XZU401..4FC,5F..30T,35T ; (0206- )XZU
BOTTOLE CAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 91641-C0814 | ||||
| 95446-09400 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
