XZU307-TGPMS3 (1999)
Toyota Dyna/Toyoace

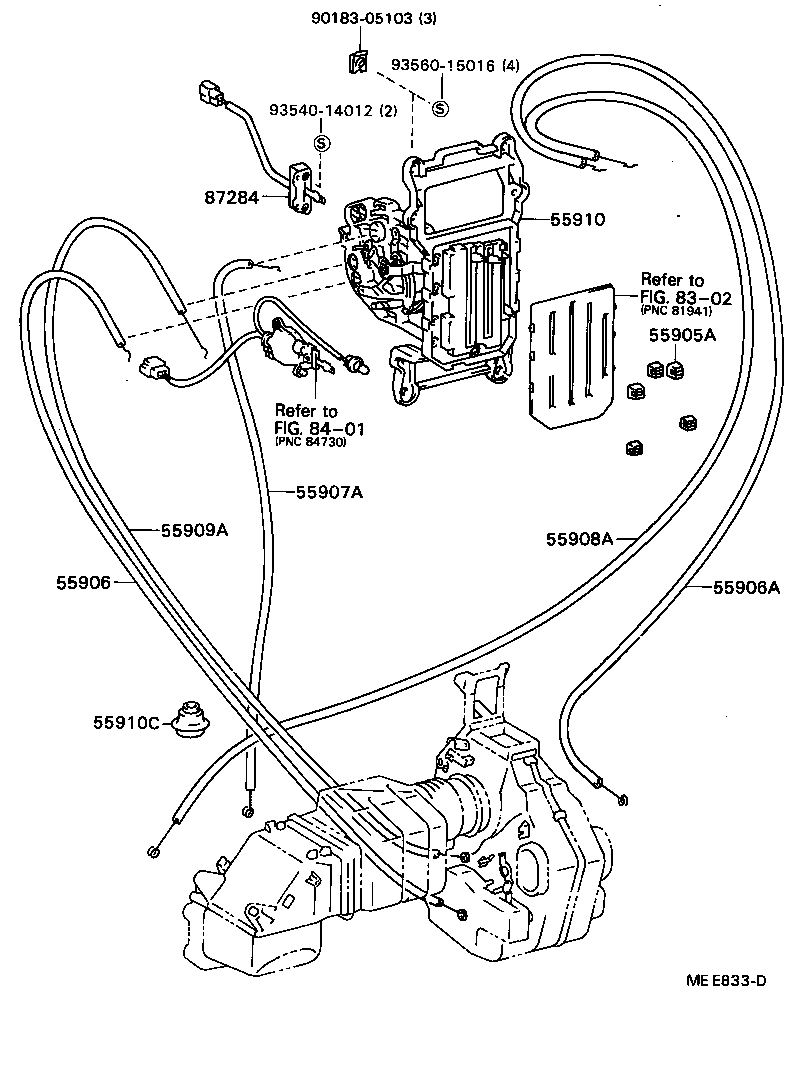

ILLUST NO. 1 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90183-05103 | ||||
| 93540-14012 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

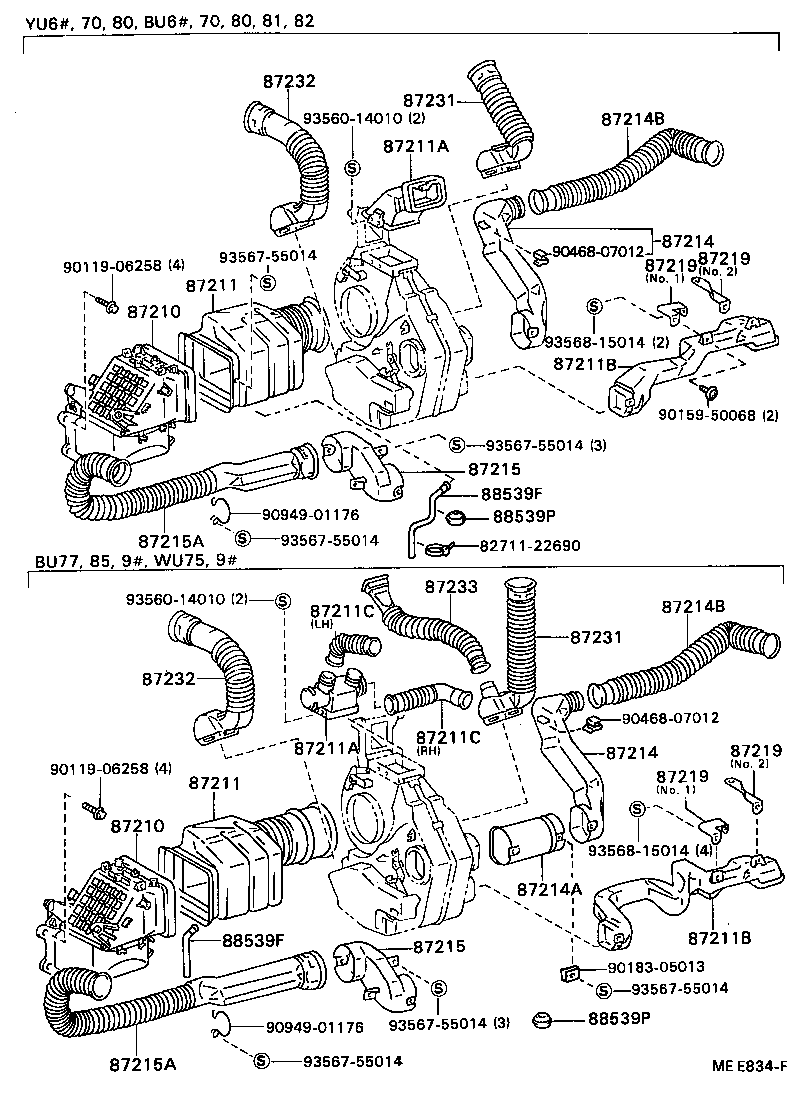

ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22690 | ||||
| 90119-06258 | ||||
| 90159-50068 | ||||
| 90183-05013 | ||||
| 90468-07012 | ||||
| 90949-01176 | ||||
| 93560-14010 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90183-05103 | ||||
| 93530-14012 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

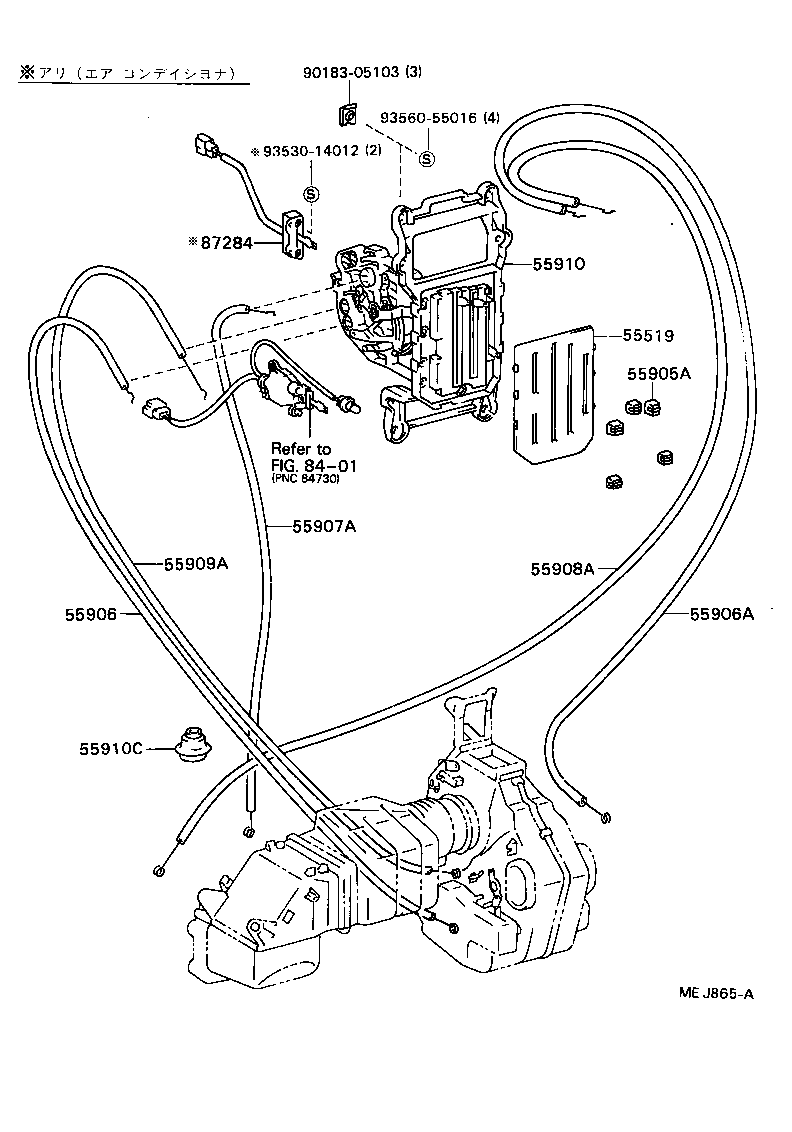

ILLUST NO. 1 OF 5(9905- )
ﾌﾛﾝﾄ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-37250 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55900-37250 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..(DCB,SCB)..(DSL,DSLL)..(CBU,IV3,IV6,IV7) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55900-37260 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55900-37260 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55900-37260 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55900-37250 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..(DSL,DSLL) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55900-37260 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55900-37250 |
XZU301..IV7;XZU301..295T;XZU301..IV6..4NO;XZU306..4FC..DSL;XZU301..4FC..(CBU,IV6);XZU301,351..(DM2,DM3)..IV3;XZU321,331,341..SCB..(4FC,6F);XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35020 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB 14V 80MA |
2 | ||
| 81850-35020 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL 14V 80MA |
2 | ||
| 81850-35020 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL 14V 80MA |
2 | ||
| 81850-35020 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL 14V 80MA |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35020 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB 14V 80MA |
2 | ||
| 81850-35020 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL 14V 80MA |
2 | ||
| 81850-35020 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL 14V 80MA |
2 | ||
| 81850-35020 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL 14V 80MA |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-35110 |
XZU301,302,341,342..DSL,DSLL;BU30#,346,RZU300,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 |
1 | ||
| 55905-35110 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB |
1 | ||
| 55905-35110 |
XZU301,302,331,341,342,371..DSL,DSLL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,DSLL,LPG) |
1 | ||
| 55905-35110 |
XZU301,302,331,341,342,371..DSL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,LPG) |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35120 |
XZU301,302,341,342..DSL,DSLL;BU30#,346,RZU300,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 |
3 | ||
| 55905-35120 |
XZU301,302,331,341,342,371..DSL,DSLL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,DSLL,LPG) |
3 | ||
| 55905-35120 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB |
3 | ||
| 55905-35120 |
XZU301,302,331,341,342,371..DSL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,LPG) |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35120 |
XZU301,302,341,342..DSL,DSLL;BU30#,346,RZU300,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 |
3 | ||
| 55905-35120 |
XZU301,302,331,341,342,371..DSL,DSLL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,DSLL,LPG) |
3 | ||
| 55905-35120 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB |
3 | ||
| 55905-35120 |
XZU301,302,331,341,342,371..DSL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,LPG) |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35120 |
XZU301,302,341,342..DSL,DSLL;BU30#,346,RZU300,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 |
3 | ||
| 55905-35120 |
XZU301,302,331,341,342,371..DSL,DSLL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,DSLL,LPG) |
3 | ||
| 55905-35120 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB |
3 | ||
| 55905-35120 |
XZU301,302,331,341,342,371..DSL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,LPG) |
3 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-35130 |
XZU301,302,331,341,342,371..DSL,DSLL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,DSLL,LPG) |
1 | ||
| 55905-35130 |
XZU301,302,341,342..DSL,DSLL;BU30#,346,RZU300,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 |
1 | ||
| 55905-35130 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB |
1 | ||
| 55905-35130 |
XZU301,302,331,341,342,371..DSL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,LPG) |
1 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-35140 |
XZU301,302,341,342..DSL,DSLL;BU30#,346,RZU300,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 |
1 | ||
| 55905-35140 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB |
1 | ||
| 55905-35140 |
XZU301,302,331,341,342,371..DSL,DSLL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,DSLL,LPG) |
1 | ||
| 55905-35140 |
XZU301,302,331,341,342,371..DSL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,LPG) |
1 | ||
| 55905L - KNOB, HEATER CONTROL, NO.5 | ||||
| 55905-35150 |
XZU301,302,331,341,342,371..DSL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,LPG) |
1 | ||
| 55905-35150 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB |
1 | ||
| 55905-35150 |
XZU301,302,341,342..DSL,DSLL;BU30#,346,RZU300,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 |
1 | ||
| 55905-35150 |
XZU301,302,331,341,342,371..DSL,DSLL;RZU300,XZU300,306,307,31#,32#,330,337,340,346,347,35#,362,372,382..SCB..(DSL,DSLL,LPG) |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-37050 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL *331 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-37030 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL *332 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-37040 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL *333 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-37061 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL,EFI ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-89115 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL,EFI ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-89115 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL,EFI ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-89115 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL,EFI ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-89115 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL,EFI ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-89115 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL,EFI ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-35100 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 55905-89115 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
4 | ||
| Common parts | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(9905-0406)
ﾌﾛﾝﾄ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-37010 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL NO.1 |
1 | ||
| 55835-37090 |
XZU301..295T;XZU301..IV4,IV7;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,37#,382 NO.2 |
1 | ||
| 55835-37020 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 NO.2 |
1 | ||
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-37010 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL NO.1 |
1 | ||
| 55835-37090 |
XZU301..295T;XZU301..IV4,IV7;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,37#,382 NO.2 |
1 | ||
| 55835-37020 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 NO.2 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-37080 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 55843-25020 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-37030 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-37050 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-37120 |
XZU347..DCB..T4..4FC;BU306,XZU307..VAN..5F;XZU301..(DM6,T3,T5)..4FC;XZU302,307,331,337,341..4FC;XZU301,321,322..(DM7,T4)..4FC..4NO;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3;XZU301,306,347..SCB..(DM3,T2,T3,T4)..4FC..20T |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87212-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87213-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,302,306,331,342..CNG,DSL,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,330,337,340,341,346,347,35#,362,37#,382..DSL,DSLL,EFI,LPG |
1 | ||
| Common parts | ||||
| 90159-60096 | ||||
| 90467-08150 | ||||
| 90467-10005B0 | ||||
| 91626-40620 | ||||
| 93568-55016 | ||||
ILLUST NO. 5 OF 5(9905-0406)DCB,SCB
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-32160 |
XZU311;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU302,307,312,321,322,351,352,362..SCB..(DSL,DSLL);BU301,XZU300,320,33#,340,341,342,346,347,372,382..SCB..(DSL,DSLL)..1NO |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88625-32171 |
XZU311..DSL;XZU351,352..DM2;XZU301..IV6..1NO;XZU306..T5..DSLL;XZU341..6F..295T;XZU301,302,306,307,312,321,322,362..SCB..DSL..(CBU,IV3,IV7);BU301,XZU300,320,33#,340,341,342,346,347,372,382..SCB..(20T,30T,35T,40T)..DSL..1NO |
1 | ||
| 88625-32170 |
XZU31#,372,382;XZU301,306..(DM6,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU30#,32#,33#,34#,35#,362..SCB..(DSL,EFI) |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
XZU311;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU302,307,312,321,322,351,352,362..SCB..(DSL,DSLL);BU301,XZU300,320,33#,340,341,342,346,347,372,382..SCB..(DSL,DSLL)..1NO |
1 | ||
| 88626B - HOLDER, THERMISTOR | ||||
| 88626-35020B0 |
XZU311;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU302,307,312,321,322,351,352,362..SCB..(DSL,DSLL);BU301,XZU300,320,33#,340,341,342,346,347,372,382..SCB..(DSL,DSLL)..1NO MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 82711-35280 | ||||
ILLUST NO. 2 OF 5(9905- )
ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37120 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37080 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55519-37110 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37110 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..(DCB,SCB)..(DSL,DSLL,EFI)..(CBU,IV3,IV6,IV7) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37110 |
XZU301..IV7;XZU301..295T;XZU301..IV6..4NO;XZU306..4FC..DSL;XZU301..4FC..(CBU,IV6);XZU301,351..(DM2,DM3)..IV3;XZU321,331,341..SCB..(4FC,6F);XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37070 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL ｱﾘ(ｴｱ ｺﾝﾃﾞｨｼｮﾅ) |
1 | ||
| 55519-37110 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..(DSL,DSLL) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37120 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37080 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55519-37110 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37110 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..(DCB,SCB)..(DSL,DSLL,EFI)..(CBU,IV3,IV6,IV7) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37110 |
XZU301..IV7;XZU301..295T;XZU301..IV6..4NO;XZU306..4FC..DSL;XZU301..4FC..(CBU,IV6);XZU301,351..(DM2,DM3)..IV3;XZU321,331,341..SCB..(4FC,6F);XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37070 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL ｱﾘ(ｴｱ ｺﾝﾃﾞｨｼｮﾅ) |
1 | ||
| 55519-37110 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..(DSL,DSLL) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37120 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37080 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55519-37110 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37110 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..(DCB,SCB)..(DSL,DSLL,EFI)..(CBU,IV3,IV6,IV7) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37110 |
XZU301..IV7;XZU301..295T;XZU301..IV6..4NO;XZU306..4FC..DSL;XZU301..4FC..(CBU,IV6);XZU301,351..(DM2,DM3)..IV3;XZU321,331,341..SCB..(4FC,6F);XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37070 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL ｱﾘ(ｴｱ ｺﾝﾃﾞｨｼｮﾅ) |
1 | ||
| 55519-37110 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..(DSL,DSLL) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37120 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37080 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55519-37110 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..DSL ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37110 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..(DCB,SCB)..(DSL,DSLL,EFI)..(CBU,IV3,IV6,IV7) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37110 |
XZU301..IV7;XZU301..295T;XZU301..IV6..4NO;XZU306..4FC..DSL;XZU301..4FC..(CBU,IV6);XZU301,351..(DM2,DM3)..IV3;XZU321,331,341..SCB..(4FC,6F);XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU301..295T;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301,371..IV4,IV7;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;XZU300,302,307,312,322,330,337,340,342,347,352,362,372,382..SCB ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37120 |
XZU307,312,347,372,382..SCB;XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,371..DSL,DSLL ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 55519-37070 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL ｱﾘ(ｴｱ ｺﾝﾃﾞｨｼｮﾅ) |
1 | ||
| 55519-37110 |
XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..(DSL,DSLL) ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
ILLUST NO. 1 OF 5(0610- )
ﾌﾛﾝﾄ ｺﾝﾄﾛｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0610- )
ﾌﾛﾝﾄ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-08150 | ||||
| 90467-10005C0 | ||||
| 93568-55016 | ||||
ILLUST NO. 2 OF 3(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67868-30030 | ||||
| 90461-06092 | ||||
| 90461-10245 | ||||
| 90461-10276 | ||||
| 90461-10277 | ||||
| 90461-10342 | ||||
| 90463-08133 | ||||
| 90467-06003 | ||||
| 90467-06012 | ||||
| 90467-06027 | ||||
| 91611-40816 | ||||
| 91651-40616 | ||||
| 91655-40620 | ||||
ILLUST NO. 3 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-95401 | ||||
| 88896-95400 | ||||
| 90099-32099 | ||||
| 93540-50510 | ||||
ILLUST NO. 2 OF 4(9905- )
ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60096 | ||||
| 90467-07090B2 | ||||
| 90467-08150 | ||||
| 90467-10005B0 | ||||
| 90467-10005C0 | ||||
| 91626-40620 | ||||
| 93560-15012 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 4(9905-0406)
ﾌﾛﾝﾄ ｺﾝﾄﾛ-ﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(9905-0406)
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35280 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
