XZU307-TGPMS3 (1999)
Toyota Dyna/Toyoace

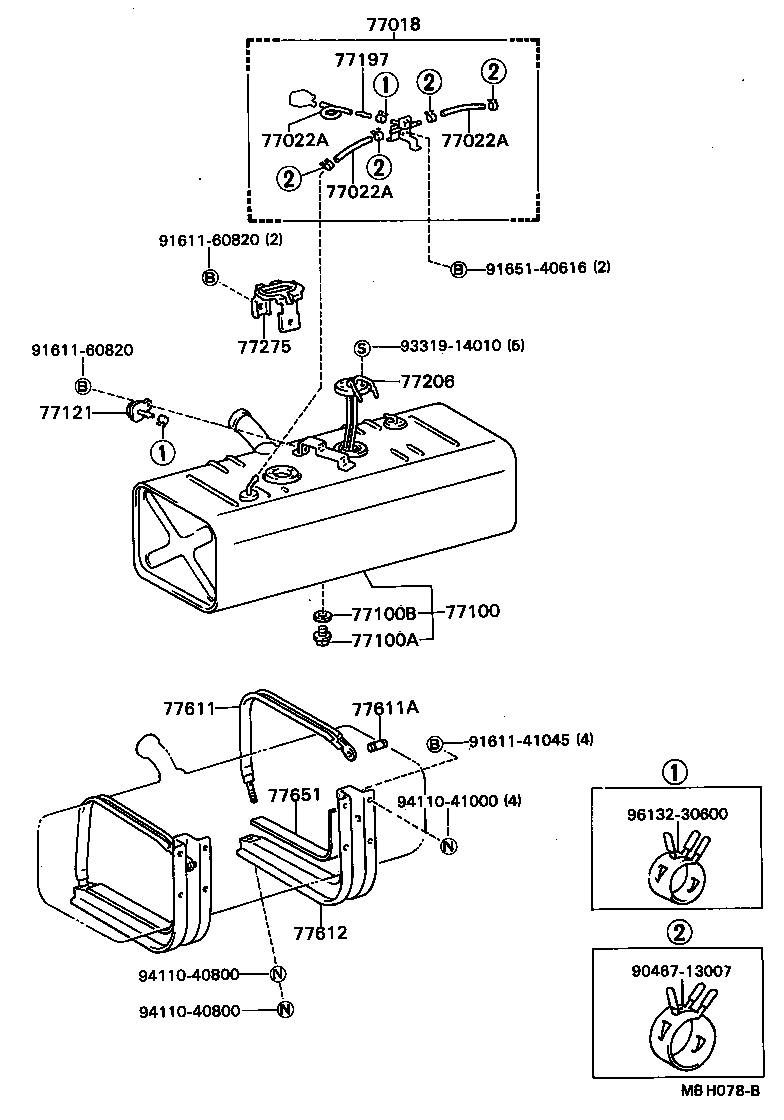

ILLUST NO. 1 OF 2(8409- )DM2,T1,T2,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-13007 | ||||
| 91611-41045 | ||||
| 91611-60820 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 96132-30600 | ||||
ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362
ﾌﾕ-ｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37050 |
XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37240 |
BU30#,XZU307,337..(T1,T2)..20T 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77001-37241 |
BU30#,XZU307,337..(T1,T2)..20T 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37030 |
XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU301..IV6;BU306,XZU307,337..T2..CBU;BU301,346,XZU347..(T1,T2)..20T;XZU301..(DM6,T4)..(DSL,DSLL)..IV3;BU30#,XZU302,306,307,337,350..SCB..(DM6,T2,T3,T4)..(20T,40T)..(DSL,DSLL)..(IV3,IV6) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU307..SCB..IV3;XZU347..(T2,T4)..CBU;XZU31#,320,350,371..30T,40T;XZU312,352..SCB..5F..20T..IV3;XZU301,382..(DM6,T3)..20T..(DSL,DSLL)..(IV3,IV6);BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..(IV3,IV4);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,330,340,346,347,362..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4,IV6,IV7) ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU307..SCB..IV3;XZU347..(T2,T4)..CBU;XZU31#,320,350,371..30T,40T;XZU312,352..SCB..5F..20T..IV3;XZU301,382..(DM6,T3)..20T..(DSL,DSLL)..(IV3,IV6);BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..(IV3,IV4);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,330,340,346,347,362..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4,IV6,IV7) ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL) |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI) |
2 | ||
| 77616-36030 |
XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI) |
2 | ||
| 77616-36030 |
RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310 |
2 | ||
| 77501-37080 |
XZU312..SCB..5F;XZU347..(T2,T4)..CBU;XZU311,320,350..30T,40T;XZU352,382..(DM2,DM5,T3)..5F..20T..IV3;XZU301,347..20T..(DSL,DSLL)..(IV3,IV6)..1NO;BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..IV3;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,307,330,340,346,362..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7) ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310 |
2 | ||
| 77501-37080 |
XZU312..SCB..5F;XZU347..(T2,T4)..CBU;XZU311,320,350..30T,40T;XZU352,382..(DM2,DM5,T3)..5F..20T..IV3;XZU301,347..20T..(DSL,DSLL)..(IV3,IV6)..1NO;BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..IV3;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,307,330,340,346,362..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7) ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310 |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91611-B0616 | ||||
| 91626-40616 | ||||
| 91642-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 3(9905-0406)
ﾌﾕ-ｴﾙ ﾀﾝｸ(ｻﾌﾞﾀﾝｸｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37050 |
XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37240 |
BU30#,XZU307,337..(T1,T2)..20T 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77001-37241 |
BU30#,XZU307,337..(T1,T2)..20T 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37030 |
XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU301..IV6;BU306,XZU307,337..T2..CBU;BU301,346,XZU347..(T1,T2)..20T;XZU301..(DM6,T4)..(DSL,DSLL)..IV3;BU30#,XZU302,306,307,337,350..SCB..(DM6,T2,T3,T4)..(20T,40T)..(DSL,DSLL)..(IV3,IV6) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU307..SCB..IV3;XZU347..(T2,T4)..CBU;XZU31#,320,350,371..30T,40T;XZU312,352..SCB..5F..20T..IV3;XZU301,382..(DM6,T3)..20T..(DSL,DSLL)..(IV3,IV6);BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..(IV3,IV4);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,330,340,346,347,362..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4,IV6,IV7) ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL) |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI) |
2 | ||
| 77616-36030 |
XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI) |
2 | ||
| 77616-36030 |
RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310 |
2 | ||
| 77501-37080 |
XZU312..SCB..5F;XZU347..(T2,T4)..CBU;XZU311,320,350..30T,40T;XZU352,382..(DM2,DM5,T3)..5F..20T..IV3;XZU301,347..20T..(DSL,DSLL)..(IV3,IV6)..1NO;BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..IV3;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,307,330,340,346,362..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7) ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310 |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90202-09047 | ||||
| 90250-03031 | ||||
| 90386-08164 | ||||
| 90401-12007 | ||||
| 90405-10008 | ||||
| 90461-07033 | ||||
| 90467-15012 | ||||
| 90480-14006 | ||||
| 91626-40616 | ||||
| 91642-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-15010 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96713-19017 | ||||
| 96713-24011 | ||||
ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99

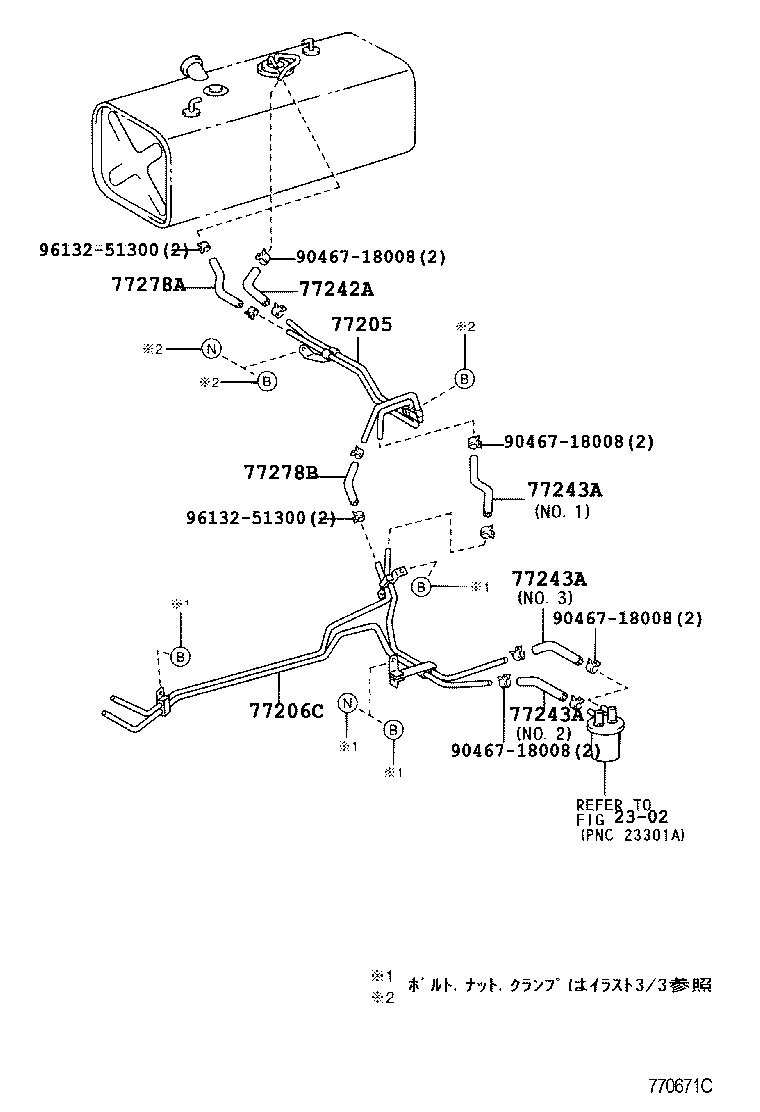

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37330 |
XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6) |
1 | ||
| 77205-37330 |
XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6) |
1 | ||
| 77205-37330 |
XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6) |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37310 |
XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙ ｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH) |
1 | ||
| 77206-37310 |
XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙ ｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH) |
1 | ||
| 77206-37310 |
XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙ ｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH) |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12022 |
XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12 |
1 | ||
| 95332-12022 |
XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12 |
1 | ||
| 95332-12022 |
XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 2 OF 3(9905-0406)BU30#,346,XZU300,302,306,307,31#,32#,330,331,340,341,342,346,347,350,362
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(RH ﾌﾚ-ﾑﾌﾛﾝﾄｾｼﾞﾒﾝﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37330 |
XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6) |
1 | ||
| 77205-37330 |
XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6) |
1 | ||
| 77205-37330 |
XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6) |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37310 |
XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙ ｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH) |
1 | ||
| 77206-37310 |
XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙ ｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH) |
1 | ||
| 77206-37310 |
XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙ ｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH) |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12022 |
XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12 |
1 | ||
| 95332-12022 |
XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12 |
1 | ||
| 95332-12022 |
XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12020 |
XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2 |
2 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12026 |
XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12020 |
BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| 95333-08020 |
XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6 |
1 | ||
| Common parts | ||||
| 90467-13007 | ||||
| 90467-18002 | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 3 OF 3(9905-0406)
ﾌﾕ-ｴﾙ ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 91626-60816 | ||||
| 91641-80816 | ||||
| 91642-81025 | ||||
| 91651-60816 | ||||
ILLUST NO. 1 OF 3(0610- )XZU30#,368,50#,568..SCB..DM3,DM5,T2,T3,T4,T5..CBU,IV3,IV7
ﾌｭｰｴﾙ ﾀﾝｸ(780X320X385)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
