Toyota Dyna/toyoace XZU307 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU307-TGPMS3 (1999)
5152 - SUSPENSION CROSSMEMBER & UNDER COVER

XZU307-TGPMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05C

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90170-12018
90467-09013
91112-71455
91162-71250
91162-71260
91665-40825
94110-40800
94115-51400
94512-01200
94512-01400

(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90170-12018
90467-09013
91112-71455
91162-71250
91162-71260
91651-40825
91665-40825
94110-40800
94115-51400
94512-01200
94512-01400

(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
47419-36010
90170-08204
90170-12018
90467-09013
90467-09030
91112-71455
91112-71460
91162-71250
91162-71260
91651-60825
91655-60825
91665-60825
94110-40800
94115-51400
94512-01200
94512-01400

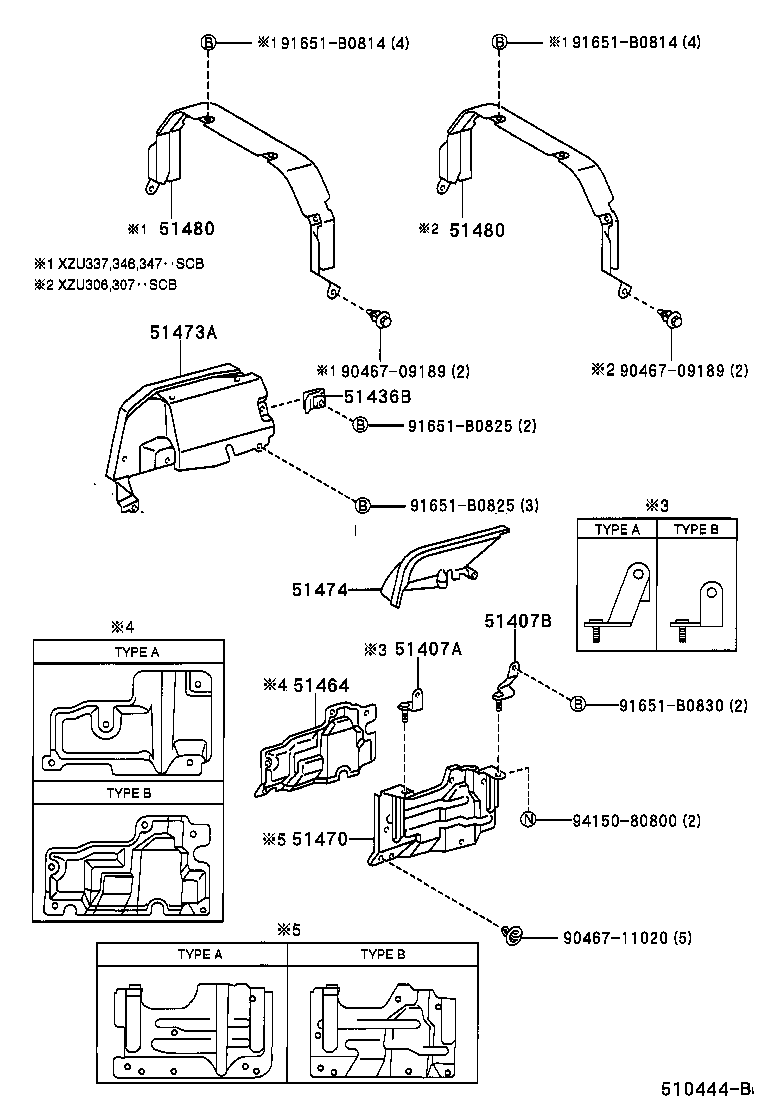

ILLUST NO. 1 OF 2(9905-0206)XZU306,307,337,346,347

Click highlighted areas on diagram

Part #	Description	Period	Qty
51407A - COVER SUB-ASSY, ENGINE UNDER, NO.3
51407-37060	XZU302..20T..WT;XZU301..5F..CBU..4NO;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU302..(295T,30T)..IV3;XZU301,306,307..(DCB,SCB)..4FC..CBU;XZU300,301,306,307,350..SCB..(IV3,IV6);XZU302,331,337,341,347..(T2,T3,T4,T5)..4FC..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 05/2000	1
51407-37060	XZU302..DM3,DM6;XZU302..4FC..4NO;XZU306,307..SCB..IV3;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU306,307..(DCB,SCB)..4FC..CBU;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,350..5F..(DSL,DSLL)..(IV3,IV6);XZU301,331,337,341,347..4FC..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/2000 - 08/2001	1
51407-37070	XZU301..5F..30T..IV6;XZU301..(T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7);XZU300,302,306,307,33#,34#,350..(03S,T2,T3,T4,T5)..(DSL,DSLL) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 07/2000	1
51407-37070	XZU30#,33#,34#..(03S,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	07/2000 - 08/2001	1
51407B - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37090	XZU331..4FC;XZU301,31#..DCB;XZU307,331,347..(DCB,VAN)..5F;XZU301,302,306,307,312,337,341,347..4FC..(CBU,IV3,IV6)	05/1999 - 08/2001	1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51464 - SILENCER, TRANSMISSION UNDER, LH
51464-37040	XZU301..5F..30T..IV6;XZU301..(T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7);XZU300,302,306,307,33#,34#,350..(03S,T2,T3,T4,T5)..(DSL,DSLL) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 07/2000	1
51464-37050	XZU301..5F..CBU..4NO;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU302..(295T,30T)..IV3;XZU301,306,307..(DCB,SCB)..4FC..CBU;XZU300,301,306,307,350..SCB..(IV3,IV6);XZU302,331,337,341,347..(T2,T3,T4,T5)..4FC..(CBU,IV3);XZU302,31#,32#,351,352..(DM2,DM3,DM5,DM6,DM7,DM8,T5)..WT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 05/2000	1
51464-37050	XZU302..DM3,DM6;XZU302..4FC..4NO;XZU31#,32#,351,352;XZU306,307..SCB..IV3;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU306,307..(DCB,SCB)..4FC..CBU;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,350..5F..(DSL,DSLL)..(IV3,IV6);XZU301,331,337,341,347..4FC..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/2000 - 08/2001	1
51464-37040	XZU30#,33#,34#..(03S,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	07/2000 - 08/2001	1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37100	XZU31#..DCB;XZU347..DCB..5F..IV3;XZU301,302,306,307,312,331,337,341,347..(DCB,SCB)..4FC..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 08/2001	1
51470-37070	XZU301..IV4;XZU331..4FC;XZU307,331,347..(DCB,VAN)..5F;XZU301,302,306,307,337,341,347..(03S,T2,T3,T4,T5)..4FC..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 08/2001	1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37130	BU306,346,XZU307,337,346,347	05/1999 - 06/1999	1
51473-37131	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/1999 - 06/2004	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37090	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	05/1999 - 10/2003	1
51474-37091	BU306,346,XZU306,307,337,346,347	10/2003 - 06/2004	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37010	XZU300,302..T3..IV3;XZU301..(T4,T5)..CBU;XZU301..(T3,T4,T5)..(DSL,DSLL)..IV3;BU30#,XZU300,302,306,307,322..SCB..(T1,T2,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37010	XZU300,302..T3..IV3;XZU301..(T4,T5)..CBU;XZU301..(T3,T4,T5)..(DSL,DSLL)..IV3;BU30#,XZU300,302,306,307,322..SCB..(T1,T2,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
Common parts
90467-09189
90467-11020
91651-B0814
91651-B0825
91651-B0830
94150-80800

ILLUST NO. 2 OF 2(9905-0406)

Click highlighted areas on diagram

ﾌﾂｸ

Part #	Description	Period	Qty
51961C - HOOK, FRONT
51961-37070	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU301,302,307,337,342,346,347,351,352..(03S,06S,DM5,T2,T3,T4,T5)..20T..WT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
51962 - HOOK, NO.2
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51962 - HOOK, NO.2
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51963E - STOPPER, FRONT HOOK WIRE
51963-36040	XZU322,362;RZU300..DCB;BU30#,XZU307,31#,320,321,351,352..03S,06S,DM2,DM5,DM7,DM8,T1,T2	05/1999 - 06/2002	1
51963E - STOPPER, FRONT HOOK WIRE
51963-36040	XZU322,362;RZU300..DCB;BU30#,XZU307,31#,320,321,351,352..03S,06S,DM2,DM5,DM7,DM8,T1,T2	05/1999 - 06/2002	1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90178-14007
91112-81460
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

ILLUST NO. 2 OF 2(0610- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-14007
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
91112-71455
91112-71460
91162-71250
91651-40816
91651-40820
93590-56014
94115-41200
94115-51200
94115-51400
94512-01200
94512-01400

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-14007
91672-01460
94125-41400
94130-01402
