XZU307-TGPMS3 (1999)
Toyota Dyna/Toyoace
(8409- )BU6#,7#,8#,93,98
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50146 | ||||
| 90159-50170 | ||||
| 90201-10287 | ||||
(8409- )BU6#,7#,8#,93,98
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
(9905- )RZU301,340,XZU300,302,305,307,311,312,32#,330,331,337,340,342,347,351,35
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

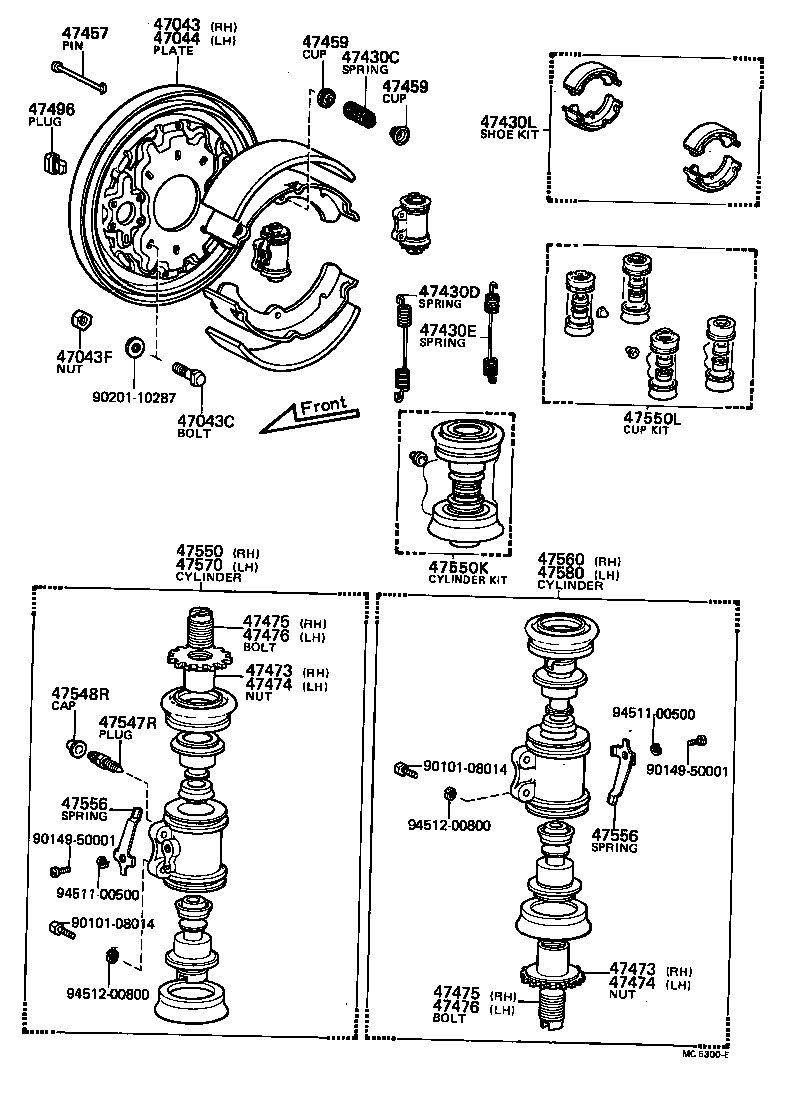

| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-37100 |
BU306,346,XZU307,337,347,351,352..DM2,T2 左側 |
2 | ||
| 04474-37100 |
BU306,346,XZU307,337,347,351,352..DM2,T2 左側 |
2 | ||
| 04474-37100 |
BU306,346,XZU307,337,347,351,352..DM2,T2 左側 |
2 | ||
| 04474-37100 |
BU306,346,XZU307,337,347,351,352..DM2,T2 左側 |
2 | ||
| 04474-37100 |
BU306,346,XZU307,337,347,351,352..DM2,T2 左側 |
2 | ||
| 04474-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 右側 |
2 | ||
| 04474-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 右側 |
2 | ||
| 04474-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 右側 |
2 | ||
| 04474-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 右側 |
2 | ||
| 04474-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 右側 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG) ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG) ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG) ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG) ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,RZU300,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG) ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04494-36280 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,312,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T ﾏｰｸ AK LA514 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-37070 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 04906-37070 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 04906-37070 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 04906-37070 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 04906-37070 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47043-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47043-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47043-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47043-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01002 |
XZU347..SCB;XZU321..DM7..4NO;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU302..DM3,DM6,T3,T5;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;BU306,XZU307,312,347..DCB..5F;XZU301,307..(DM6,T2,T3,T5)..DSL;RZU300,XZU341,342..DSL,DSLL,EFI;RZU300,XZU312,331..30T..(DSL,LPG);RZU301,XZU301,331..4FC..(DSLL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,307,352..(DM3,DM5,T4)..4FC..20T;BU30#,XZU306,322,330,351,352,371..(DM2,T1,T2,T3,T5)..5F..(175T,20T,30T)..DSL;BU346,BZU300,340,RZU340,XZU300,306,322,337,340,346,362,372,382..(DM5,DM6,DM7,DM8,T2,T3,T4)..(20T,30T) |
12 | ||
| 94130-01002 |
XZU347..SCB;XZU321..DM7..4NO;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU302..DM3,DM6,T3,T5;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;BU306,XZU307,312,347..DCB..5F;XZU301,307..(DM6,T2,T3,T5)..DSL;RZU300,XZU341,342..DSL,DSLL,EFI;RZU300,XZU312,331..30T..(DSL,LPG);RZU301,XZU301,331..4FC..(DSLL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,307,352..(DM3,DM5,T4)..4FC..20T;BU30#,XZU306,322,330,351,352,371..(DM2,T1,T2,T3,T5)..5F..(175T,20T,30T)..DSL;BU346,BZU300,340,RZU340,XZU300,306,322,337,340,346,362,372,382..(DM5,DM6,DM7,DM8,T2,T3,T4)..(20T,30T) |
12 | ||
| 94130-01002 |
XZU347..SCB;XZU321..DM7..4NO;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU302..DM3,DM6,T3,T5;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;BU306,XZU307,312,347..DCB..5F;XZU301,307..(DM6,T2,T3,T5)..DSL;RZU300,XZU341,342..DSL,DSLL,EFI;RZU300,XZU312,331..30T..(DSL,LPG);RZU301,XZU301,331..4FC..(DSLL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,307,352..(DM3,DM5,T4)..4FC..20T;BU30#,XZU306,322,330,351,352,371..(DM2,T1,T2,T3,T5)..5F..(175T,20T,30T)..DSL;BU346,BZU300,340,RZU340,XZU300,306,322,337,340,346,362,372,382..(DM5,DM6,DM7,DM8,T2,T3,T4)..(20T,30T) |
12 | ||
| 94130-01002 |
XZU347..SCB;XZU321..DM7..4NO;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU302..DM3,DM6,T3,T5;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;BU306,XZU307,312,347..DCB..5F;XZU301,307..(DM6,T2,T3,T5)..DSL;RZU300,XZU341,342..DSL,DSLL,EFI;RZU300,XZU312,331..30T..(DSL,LPG);RZU301,XZU301,331..4FC..(DSLL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,307,352..(DM3,DM5,T4)..4FC..20T;BU30#,XZU306,322,330,351,352,371..(DM2,T1,T2,T3,T5)..5F..(175T,20T,30T)..DSL;BU346,BZU300,340,RZU340,XZU300,306,322,337,340,346,362,372,382..(DM5,DM6,DM7,DM8,T2,T3,T4)..(20T,30T) |
12 | ||
| 94130-01002 |
XZU347..SCB;XZU321..DM7..4NO;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU302..DM3,DM6,T3,T5;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;BU306,XZU307,312,347..DCB..5F;XZU301,307..(DM6,T2,T3,T5)..DSL;RZU300,XZU341,342..DSL,DSLL,EFI;RZU300,XZU312,331..30T..(DSL,LPG);RZU301,XZU301,331..4FC..(DSLL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,307,352..(DM3,DM5,T4)..4FC..20T;BU30#,XZU306,322,330,351,352,371..(DM2,T1,T2,T3,T5)..5F..(175T,20T,30T)..DSL;BU346,BZU300,340,RZU340,XZU300,306,322,337,340,346,362,372,382..(DM5,DM6,DM7,DM8,T2,T3,T4)..(20T,30T) |
12 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47044-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47044-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47044-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47044-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 90114-10063 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
6 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90501-20012 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90501-20012 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90501-20012 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90501-20012 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 90506-29006 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-35020 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 47447-35020 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 47447-35020 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 47447-35020 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 47447-35020 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47449-30020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47553-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47554-36070 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 47492-28010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 47492-28010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 47492-28010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 47492-28010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
XZU301,331..5F..DSLL..IV4;XZU301,306..(DM6,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..(175T,20T,295T,30T)..(CNG,DSL,EFI,LPG) |
8 | ||
| 47491-36010 |
XZU301,331..5F..DSLL..IV4;XZU301,306..(DM6,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..(175T,20T,295T,30T)..(CNG,DSL,EFI,LPG) |
8 | ||
| 47491-36010 |
XZU301,331..5F..DSLL..IV4;XZU301,306..(DM6,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..(175T,20T,295T,30T)..(CNG,DSL,EFI,LPG) |
8 | ||
| 47491-36010 |
XZU301,331..5F..DSLL..IV4;XZU301,306..(DM6,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..(175T,20T,295T,30T)..(CNG,DSL,EFI,LPG) |
8 | ||
| 47491-36010 |
XZU301,331..5F..DSLL..IV4;XZU301,306..(DM6,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..(175T,20T,295T,30T)..(CNG,DSL,EFI,LPG) |
8 | ||
| 47491-36020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47491-36020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47491-36020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47491-36020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47491-36020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
8 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47506-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47507-36020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47529-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-27020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47547-27020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47547-27020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47547-27020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47547-27020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU30#,346;XZU341..4FC,6F;XZU341..T3..5F..20T;XZU301..(DM3,T5)..WT;XZU301..(4FC,5F)..1NO;XZU301..T4..(4FC,5F)..30T..4NO;XZU306,346..SCB..(T3,T4,T5)..(4FC,5F);BZU300,340,RZU30#,340,XZU300,302,307,311,312,32#,330,331,337,340,342,347,350,351,352,362,371,372,382..4FC,5F,6F |
2 | ||
| 31478-30010 |
BU30#,346;XZU341..4FC,6F;XZU341..T3..5F..20T;XZU301..(DM3,T5)..WT;XZU301..(4FC,5F)..1NO;XZU301..T4..(4FC,5F)..30T..4NO;XZU306,346..SCB..(T3,T4,T5)..(4FC,5F);BZU300,340,RZU30#,340,XZU300,302,307,311,312,32#,330,331,337,340,342,347,350,351,352,362,371,372,382..4FC,5F,6F |
2 | ||
| 31478-30010 |
BU30#,346;XZU341..4FC,6F;XZU341..T3..5F..20T;XZU301..(DM3,T5)..WT;XZU301..(4FC,5F)..1NO;XZU301..T4..(4FC,5F)..30T..4NO;XZU306,346..SCB..(T3,T4,T5)..(4FC,5F);BZU300,340,RZU30#,340,XZU300,302,307,311,312,32#,330,331,337,340,342,347,350,351,352,362,371,372,382..4FC,5F,6F |
2 | ||
| 31478-30010 |
BU30#,346;XZU341..4FC,6F;XZU341..T3..5F..20T;XZU301..(DM3,T5)..WT;XZU301..(4FC,5F)..1NO;XZU301..T4..(4FC,5F)..30T..4NO;XZU306,346..SCB..(T3,T4,T5)..(4FC,5F);BZU300,340,RZU30#,340,XZU300,302,307,311,312,32#,330,331,337,340,342,347,350,351,352,362,371,372,382..4FC,5F,6F |
2 | ||
| 31478-30010 |
BU30#,346;XZU341..4FC,6F;XZU341..T3..5F..20T;XZU301..(DM3,T5)..WT;XZU301..(4FC,5F)..1NO;XZU301..T4..(4FC,5F)..30T..4NO;XZU306,346..SCB..(T3,T4,T5)..(4FC,5F);BZU300,340,RZU30#,340,XZU300,302,307,311,312,32#,330,331,337,340,342,347,350,351,352,362,371,372,382..4FC,5F,6F |
2 | ||
| 31478-30010 |
BU30#,346,BZU300..WT;BZU340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..(20T,295T,30T)..WT |
2 | ||
| 31478-30010 |
BU30#,346,BZU300..WT;BZU340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..(20T,295T,30T)..WT |
2 | ||
| 31478-30010 |
BU30#,346,BZU300..WT;BZU340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..(20T,295T,30T)..WT |
2 | ||
| 31478-30010 |
BU30#,346,BZU300..WT;BZU340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..(20T,295T,30T)..WT |
2 | ||
| 31478-30010 |
BU30#,346,BZU300..WT;BZU340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..(20T,295T,30T)..WT |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47549-37091 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550-37090 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550-37091 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550-37091 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550-37091 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550-37091 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550-37091 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 90101-08081 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 90101-08081 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 90101-08081 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 90101-08081 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 90201-08002 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 90201-08002 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 90201-08002 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 90201-08002 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
16 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47559-36010 |
XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-37061 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47560-37061 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47560-37061 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47560-37061 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47560-37061 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47560-37062 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47560-37062 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47560-37062 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47560-37062 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47560-37062 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570-37050 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570-37050 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570-37050 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570-37050 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47570-37050 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580-37051 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580-37052 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580-37052 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580-37052 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580-37052 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| 47580-37052 |
BU306,346,XZU307,337,347,351,352..DM2,T2 |
1 | ||
| Common parts | ||||
| 90029-04904 | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
(7708- )T2,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-08014 | ||||
| 90149-50001 | ||||
| 90201-10287 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
