XZU307-TGPMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

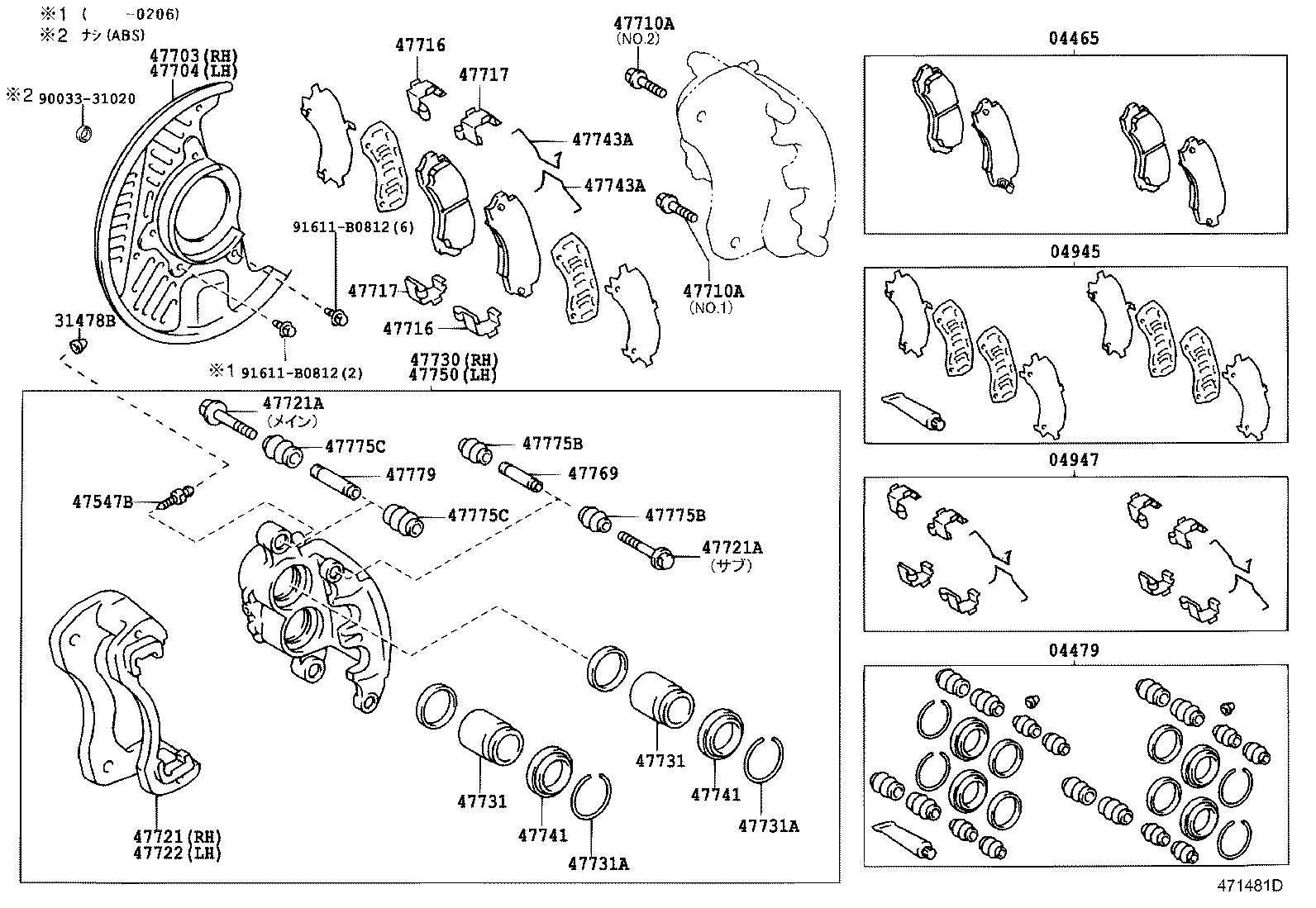

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47710A 47710B 47710D 47710D 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731 47743A 47743A 47744 47750 47769 47769 47775B 47775B 47775C 47775C 47781A 47781B 9020112452 9020112452 9411571200
Part # Description Qty Price
Common parts
90201-12452
94115-71200

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47710A 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47744 47750 47755A 47769 47771 47771 47772 47779 47781B 47781C 47781C
Part # Description Qty Price

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price

(8808- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price

(9905-0406)BU306,346,XZU306,307,337,346,347

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47710A 47710A 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731 47731A 47731A 47741 47741 47743A 47743A 47750 47769 47775B 47775B 47775C 47775C 47779 9003331020 91611B0812 91611B0812
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37030

XZU301,341;BU301..DM6,T1,T5;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU306,346,BZU300,340,XZU302,306,307,32#,330,337,342,346,347,351,352..(DM2,DM3,DM6,DM7,DM8,T2,T3,T5)..(20T,30T)

ﾏｰｸ AISIN T536

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37030

BU301..DM6,T1,T5;XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU306,346,BZU300,340,XZU302,306,307,32#,330,337,342,346,347,351,352,371..(DM2,DM3,DM6,DM7,DM8,T2,T3,T5)..(20T,30T)

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37041

BU306,346,XZU306,307,337,346,347

 1
47703-37040

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37041

BU306,346,XZU306,307,337,346,347

 1
47704-37040

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-16072

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

*16−1.5PX57.5−24,NO.1

 2
90105-16073

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

*16−1.5PX63.5−24,NO.2

 2
90105-16073

BU306,346,XZU306,307,337,346,347

*16−1.5PX63.5−24,NO.2

 2
90105-16072

BU306,346,XZU306,307,337,346,347

*16−1.5PX57.5−24,NO.1

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-16072

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

*16−1.5PX57.5−24,NO.1

 2
90105-16073

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

*16−1.5PX63.5−24,NO.2

 2
90105-16073

BU306,346,XZU306,307,337,346,347

*16−1.5PX63.5−24,NO.2

 2
90105-16072

BU306,346,XZU306,307,337,346,347

*16−1.5PX57.5−24,NO.1

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37060

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

*12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側

 4
90119-08B87

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

*8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

*12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側

 4
90119-08B87

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

*8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-37060

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37060

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47730-37070

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47731 - PISTON, FRONT DISC BRAKE
47731-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47731 - PISTON, FRONT DISC BRAKE
47731-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37060

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47750-37070

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-36030

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47775B - BOOT, BUSH DUST, NO.1
47775-36040

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 8
47775B - BOOT, BUSH DUST, NO.1
47775-36040

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-36010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
Common parts
90033-31020
91611-B0812

(9905-0406)BU301,BZU300,340,RZU30#,340,XZU300,301,302,304,305,31#,32#,330,331,340,3

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47710A 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731 47731A 47731A 47741 47741 47743A 47743A 47750 47769 47775B 47775B 47775C 47775C 47779 9003331020 91611B0812
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37030

XZU301,341;BU301..DM6,T1,T5;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU306,346,BZU300,340,XZU302,306,307,32#,330,337,342,346,347,351,352..(DM2,DM3,DM6,DM7,DM8,T2,T3,T5)..(20T,30T)

ﾏｰｸ AISIN T536

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37030

BU301..DM6,T1,T5;XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU306,346,BZU300,340,XZU302,306,307,32#,330,337,342,346,347,351,352,371..(DM2,DM3,DM6,DM7,DM8,T2,T3,T5)..(20T,30T)

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37041

BU306,346,XZU306,307,337,346,347

 1
47703-37040

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37041

BU306,346,XZU306,307,337,346,347

 1
47704-37040

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-16072

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

*16−1.5PX57.5−24,NO.1

 2
90105-16073

XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL

*16−1.5PX63.5−24,NO.2

 2
90105-16073

BU306,346,XZU306,307,337,346,347

*16−1.5PX63.5−24,NO.2

 2
90105-16072

BU306,346,XZU306,307,337,346,347

*16−1.5PX57.5−24,NO.1

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37060

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

*12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側

 4
90119-08B87

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

*8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

*12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側

 4
90119-08B87

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

*8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-37060

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37060

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47730-37070

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47731 - PISTON, FRONT DISC BRAKE
47731-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47731 - PISTON, FRONT DISC BRAKE
47731-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-37010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37060

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47750-37070

BU306,346,XZU306,307,337,346,347..T2,T3,T5

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-36030

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
47775B - BOOT, BUSH DUST, NO.1
47775-36040

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 8
47775B - BOOT, BUSH DUST, NO.1
47775-36040

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-36010

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
Common parts
90033-31020
91611-B0812
