XZU307-TGPMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 04351 35000
Part # Description Qty Price

(8708- )

Click highlighted areas on diagram

diagram 04351 35000
Part # Description Qty Price

(8808- )

Click highlighted areas on diagram

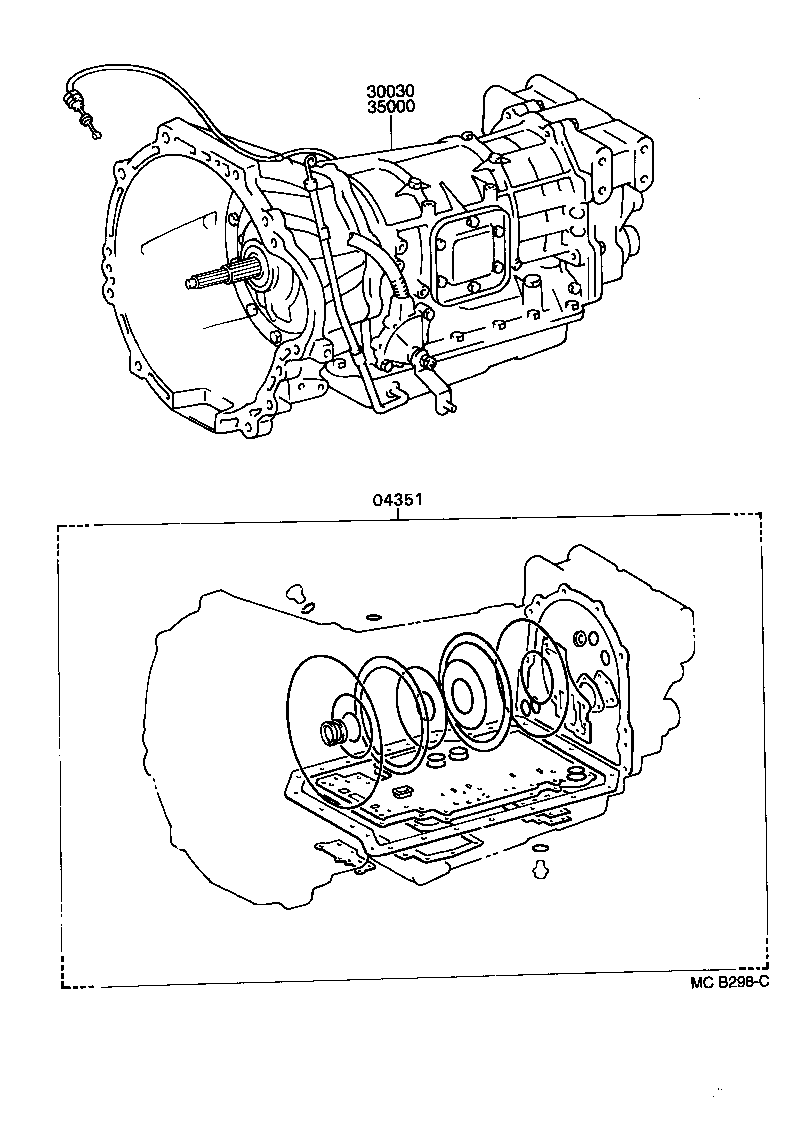

diagram 04351 30030 35000
Part # Description Qty Price

(9905- )4FC

Click highlighted areas on diagram

A443E

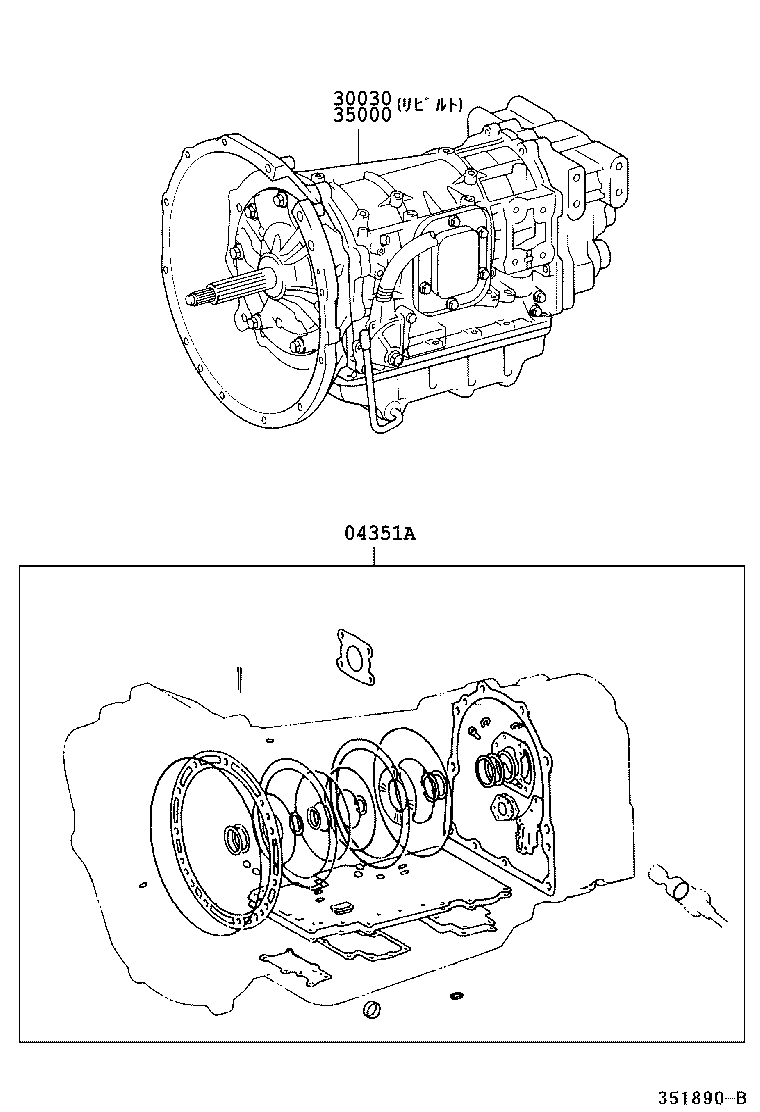

diagram 04351A 30030 35000
Part # Description Qty Price
30030 - TRANSMISSION ASSY, REBUILT
30030-37331

XZU306..4FC..DSLL;XZU302,307,322,337,347..(03S,T2,T3,T4,T5)..4FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-37371

XZU302,307,322,337,347..(03S,T2,T3,T4,T5)..4FC..WT

A443E

 1
35000-37381

XZU306..4FC..DSLL;XZU302,307,322,337,347..(T2,T3,T4,T5)..4FC..WT

A443E,ｱﾘ(PTO)

 1
35000-37331

XZU302,307,337..(03S,T2,T4,T5)..4FC

A443E

 1
