XZU307-TGPMS3 (1999)
Toyota Dyna/Toyoace

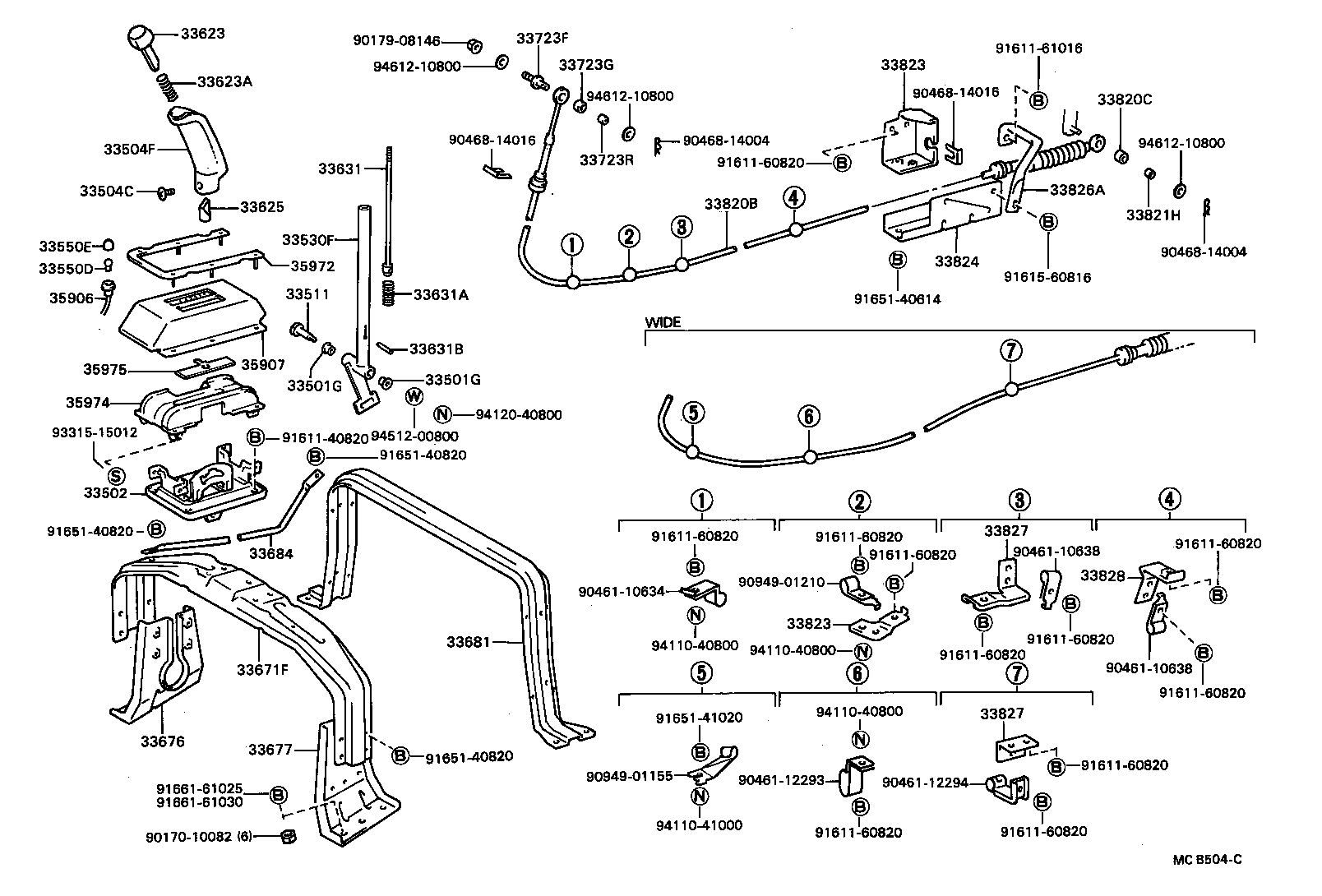

(8409- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-10082 | ||||
| 90179-08146 | ||||
| 90461-10634 | ||||
| 90461-10638 | ||||
| 90461-12293 | ||||
| 90461-12294 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01155 | ||||
| 90949-01210 | ||||
| 91611-40820 | ||||
| 91611-60820 | ||||
| 91611-61016 | ||||
| 91615-60816 | ||||
| 91651-40614 | ||||
| 91651-40820 | ||||
| 91651-41020 | ||||
| 91661-61025 | ||||
| 91661-61030 | ||||
| 93315-15012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||

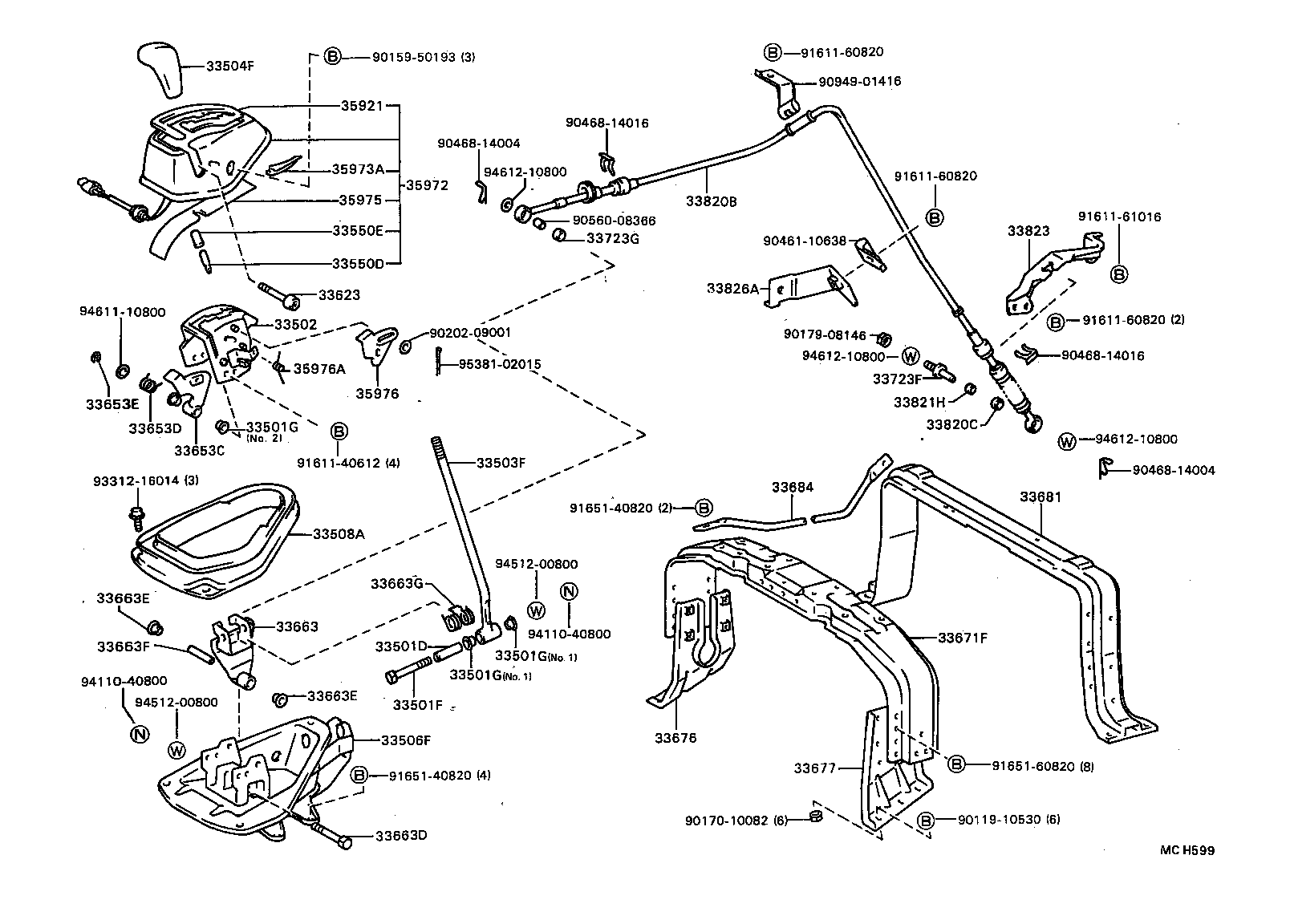

(8708- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10530 | ||||
| 90159-50193 | ||||
| 90170-10082 | ||||
| 90179-08146 | ||||
| 90202-09001 | ||||
| 90461-10638 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90560-08366 | ||||
| 90949-01416 | ||||
| 91611-40612 | ||||
| 91611-60820 | ||||
| 91611-61016 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 93312-16014 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
| 95381-02015 | ||||

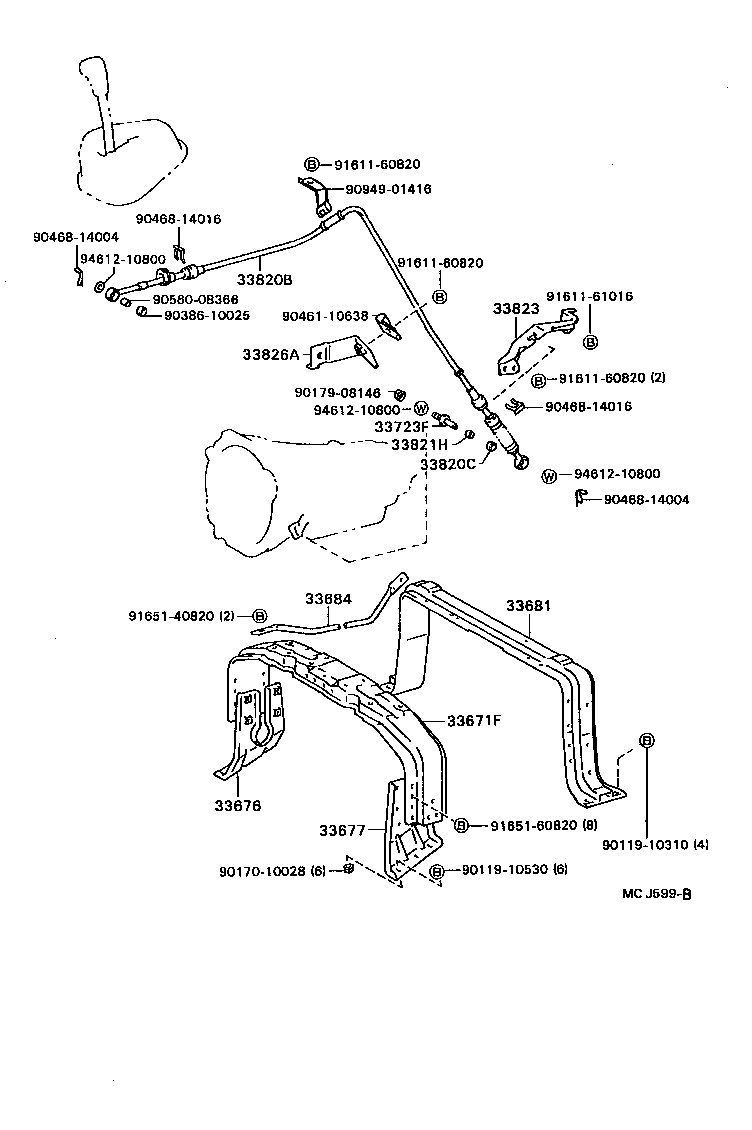

ILLUST NO. 2 OF 2(8808- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10310 | ||||
| 90119-10530 | ||||
| 90170-10028 | ||||
| 90179-08146 | ||||
| 90386-10025 | ||||
| 90461-10638 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90560-08366 | ||||
| 90949-01416 | ||||
| 91611-60820 | ||||
| 91611-61016 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 94612-10800 | ||||
ILLUST NO. 1 OF 2(9905-0406)4FC ; (0406- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33063-37010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY) | ||||
| 90387-08089 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-37030 |
XZU301,331..4FC..DSL;RZU301,XZU302,306,307,312,321,322,337,341,347,352..4FC |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
2 | ||
| 33503Q - BOLT(FOR SHIFT LEVER SUB-ASSY) | ||||
| 91111-40855 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90152-40003 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90152-40003 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-37030 |
XZU331..4FC..DSL;XZU347..DCB..T4..4FC;XZU301..(DM6,T3,T5)..4FC..DSL;RZU301,XZU302,307,337,341,352..4FC;XZU301,321,322..(DM7,T4)..4FC..4NO;XZU301,306,347..SCB..(DM3,T2,T3,T4)..4FC..20T |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-37020 |
XZU301,302,306,307,312,321,322,331,337,341,347..4FC |
1 | ||
| 33570-37021 |
XZU301,331..4FC..DSL;RZU301,XZU302,306,307,312,321,322,337,341,347,352..4FC |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 33537 - PLATE, CONTROL LEVER | ||||
| 33537-37010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-37020 |
XZU306,341..4FC..(20T,30T)..DSL;XZU301,302,307,312,321,322,331,337,347..4FC |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-04042 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33563B - JOINT, SHIFT LOCK RELEASE BUTTON | ||||
| 33563-37010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33563C - SPRING (FOR SHIFT LOCK RELEASE BUTTON JOINT) | ||||
| 90501-04042 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-37010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-37010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-37010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC NO.1 |
1 | ||
| 33594-37020 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC NO.2 |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-37010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC NO.1 |
1 | ||
| 33594-37020 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC NO.2 |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-37020 |
XZU331..4FC..DSL;XZU347..DCB..T4..4FC;XZU301..(DM6,T3,T5)..4FC..DSL;RZU301,XZU302,307,337,341,352..4FC;XZU301,321,322..(DM7,T4)..4FC..4NO;XZU301,306,347..SCB..(DM3,T2,T3,T4)..4FC..20T NO.2 |
1 | ||
| 33623-37010B0 |
XZU331..4FC..DSL;XZU347..DCB..T4..4FC;XZU301..(DM6,T3,T5)..4FC..DSL;RZU301,XZU302,307,337,341,352..4FC;XZU301,321,322..(DM7,T4)..4FC..4NO;XZU301,306,347..SCB..(DM3,T2,T3,T4)..4FC..20T DK.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-37020 |
XZU331..4FC..DSL;XZU347..DCB..T4..4FC;XZU301..(DM6,T3,T5)..4FC..DSL;RZU301,XZU302,307,337,341,352..4FC;XZU301,321,322..(DM7,T4)..4FC..4NO;XZU301,306,347..SCB..(DM3,T2,T3,T4)..4FC..20T NO.2 |
1 | ||
| 33623-37010B0 |
XZU331..4FC..DSL;XZU347..DCB..T4..4FC;XZU301..(DM6,T3,T5)..4FC..DSL;RZU301,XZU302,307,337,341,352..4FC;XZU301,321,322..(DM7,T4)..4FC..4NO;XZU301,306,347..SCB..(DM3,T2,T3,T4)..4FC..20T DK.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 33653C - GUIDE, SHIFT LEVER WIRE | ||||
| 33653-37010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33653F - BUSH | ||||
| 90386-07031 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
2 | ||
| 33663 - LEVER, CONTROL | ||||
| 33663-37050 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33663D - BOLT (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 91111-40880 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90385-11006 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
2 | ||
| 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90385-11006 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
2 | ||
| 33663F - COLLAR (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90387-08096 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33663G - SPRING, TORSION (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90959-03260 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 33890A - GUIDE ASSY, SHIFT LOCK SWITCH | ||||
| 33890-37010 |
XZU301,302,306,307,312,321,322,331,337,341,347..4FC |
1 | ||
| 33890-37011 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 35902-37040B0 |
XZU301,302,306,307,312,321,322,331,337,341,347..4FC..(20T,30T) DK.CHARCOAL,TRIM1# |
1 | ||
| 35902-37040B0 |
XZU301,302,306,307,32#,331,337,341,347..4FC..(20T,30T)..DSL DK.CHARCOAL,TRIM1# |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-37010 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| 35976A - SPRING, TORSION (FOR POSITION INDICATER SLIDE COVER) | ||||
| 90506-12082 |
RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC |
1 | ||
| Common parts | ||||
| 90159-30027 | ||||
| 90159-50193 | ||||
| 90179-08054 | ||||
| 90463-12008 | ||||
| 91611-B0616 | ||||
| 91651-B0825 | ||||
| 93315-14008 | ||||
| 93319-13006 | ||||
| 94531-00800 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9905-0406)RZU301,XZU301,302,306,307,331,337,341,347..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577B - COVER, CONTROL SHAFT HOLE | ||||
| 33577-37050 |
XZU301,331..4FC..DSLL;XZU301..4FC..30T..IV6;XZU301,321,322..4FC..30T..4NO;XZU302,306,307,312,337,347..(03S,DM5,T2,T3,T4,T5)..4FC..WT |
1 | ||
| 33577-37050 |
XZU322..4FC..30T;XZU306,307,321,337,347,352..4FC |
1 | ||
| 33577-37050 |
XZU322..4FC..30T;XZU301,331..DSLL..IV4;RZU301,XZU306,307,321,337,347,352..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-28010 |
XZU306,307,337,347..4FC..DSL |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-37750 |
XZU301,302,306,307,331,337,341,347..4FC..(CBU,IV3,IV6) PNC 33820J=TYPE A |
1 | ||
| 33820-37751 |
XZU301..SCB..4FC..DSL;XZU302,306,307,331,337,341,347..4FC..(CBU,IV3) PNC 33820J=TYPE B |
1 | ||
| 33820J - CLIP(FOR TRANSMISSION CONTROL CABLE) | ||||
| 90468-17001 |
XZU301,302,306,307,312,321,322,331,337,341,347..4FC TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90468-14016 |
XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37410 |
XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37410 |
XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37180 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,32#,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37560 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37560 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37270 |
BU306..VAN;XZU307..SCB..4FC;XZU306,337,347..SCB..(T2,T3,T4)..4FC |
1 | ||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37270 |
BU306..VAN;XZU307..SCB..4FC;XZU306,337,347..SCB..(T2,T3,T4)..4FC |
1 | ||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37270 |
BU306..VAN;XZU307..SCB..4FC;XZU306,337,347..SCB..(T2,T3,T4)..4FC |
1 | ||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37270 |
BU306..VAN;XZU307..SCB..4FC;XZU306,337,347..SCB..(T2,T3,T4)..4FC |
1 | ||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37251 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,337,341,342,346,347 |
1 | ||
| 33826-37250 |
XZU306..DSL;XZU306..T5..DSLL;BU30#,346,RZU300,340,XZU301,302,307,331,337,341,342,346,347 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33826-37420 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,340,XZU300,302,307,330,337,340,341,342,346,347,350 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37150 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,337,341,342,346,347 |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37150 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,337,341,342,346,347 |
2 | ||
| Common parts | ||||
| 90119-10908 | ||||
| 90179-08038 | ||||
| 90468-14016 | ||||
| 90949-01B92 | ||||
| 90949-01B94 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91612-61055 | ||||
| 91651-60816 | ||||
| 91651-61016 | ||||
| 91651-61025 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO. 1 OF 2(9905-0406)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-30027 | ||||
| 90159-50193 | ||||
| 90463-12008 | ||||
| 91611-B0616 | ||||
| 91651-B0825 | ||||
| 93315-14008 | ||||
| 93319-13006 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9905-0406)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10908 | ||||
| 90179-08038 | ||||
| 90468-14016 | ||||
| 90468-17001 | ||||
| 90949-01B91 | ||||
| 90949-01B92 | ||||
| 90949-01B94 | ||||
| 91611-B0816 | ||||
| 91612-61055 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| 94612-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
