XZU307-TGPMS (1999)
Toyota Dyna/Toyoace

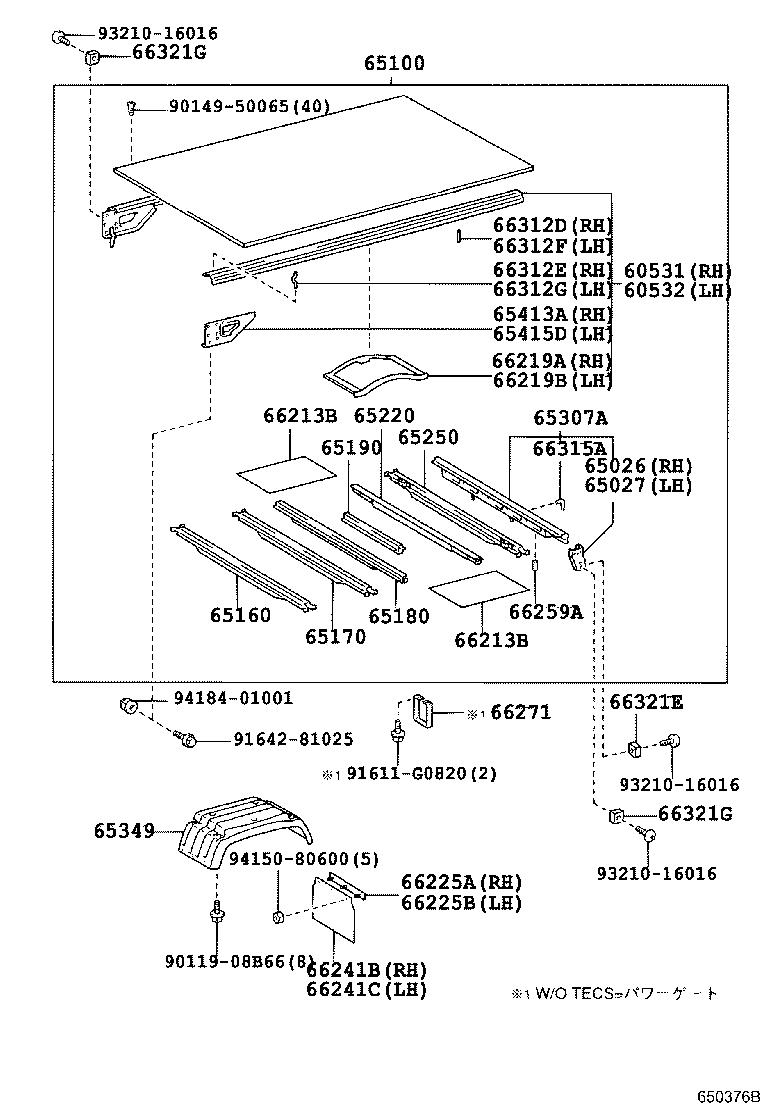

(9905-0206)XZU322..T5..CBU ; (9905-0206)BU306,XZU307..T2..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37060 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU..4NO |
1 | ||
| 60531-37620 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37050 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU..4NO |
1 | ||
| 60532-37620 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-37310 |
BU306,XZU307..T2..CBU *** |
1 | ||
| 60530-3V240 |
BU306,XZU307..T2..CBU *** |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37290 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37270 |
XZU322..T5..5F..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37250 |
XZU322..T5..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65180-37390 |
XZU322..T5..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37090 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37250 |
XZU322..T5..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65180-37390 |
XZU322..T5..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37290 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37400 |
XZU301,302..T4..CBU..4NO;RZU300..SCB..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU306,307..(T2,T4)..CBU |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37050 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65413-37050 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37030 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415-37030 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-37060 |
XZU301..T4..LPG;XZU347..(T2,T4)..CBU;BU30#,346,RZU300,340,XZU30#,322,337,342,346,362..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-37060 |
XZU301..T4..LPG;XZU347..(T2,T4)..CBU;BU30#,346,RZU300,340,XZU30#,322,337,342,346,362..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-37130 |
BU30#,RZU300,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU |
1 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37140 |
XZU322..T5..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66213-37170 |
XZU322..T5..5F..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37140 |
XZU322..T5..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66213-37170 |
XZU322..T5..5F..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
BU30#,346,RZU300,340,XZU30#,337,342,346,347..(T2,T4)..CBU |
1 | ||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
BU30#,346,RZU300,340,XZU30#,337,342,346,347..(T2,T4)..CBU |
1 | ||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-37100 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..SCB..(T2,T4)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37070 |
BU30#,XZU302,306,307,337..(T2,T4)..20T..CBU 長さ=215 |
1 | ||
| 66242-37080 |
BU30#,XZU302,306,307,337..(T2,T4)..20T..CBU 長さ=265 |
1 | ||
| 66242-37200 |
BZU300..T4..CNG;RZU300,XZU302..20T..(CNG,LPG);BU30#,BZU300,RZU30#,XZU301,302,306,307,337..(T2,T4,T5)..20T..CBU 長さ=175 |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37110 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..SCB..(T2,T4)..CBU 長さ=385 |
1 | ||
| 66242-37220 |
XZU301..T3..LPG;BZU300,340..T4..CNG;BU346,RZU301,340..CBU;RZU300,XZU302,341,342..CNG,LPG;BU30#,BZU300,340,RZU300,XZU300,301,302,304,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..WT..CBU 長さ=330 |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37660 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU TOYOTA |
1 | ||
| 66241-37670 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU HINO |
1 | ||
| 66241-37680 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU DAIHATSU |
1 | ||
| 66241-37770 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU HINO |
1 | ||
| 66241-37760 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU TOYOTA |
1 | ||
| 66241-37780 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU DAIHATSU |
1 | ||
| 66241-3V430 |
BU306,RZU300,XZU307,337..T2..CBU DAIHATSU |
1 | ||
| 66241-3V110 |
BU306,RZU300,XZU307,337..T2..CBU TOYOTA |
1 | ||
| 66241-3V270 |
BU306,RZU300,XZU307,337..T2..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37330 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU HINO |
1 | ||
| 66241-37790 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU DAIHATSU |
1 | ||
| 66241-37320 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU TOYOTA |
1 | ||
| 66241-3V530 |
BU306,RZU300,XZU307,337..T2..CBU DAIHATSU |
1 | ||
| 66241-3V210 |
BU306,RZU300,XZU307,337..T2..CBU TOYOTA |
1 | ||
| 66241-3V370 |
BU306,RZU300,XZU307,337..T2..CBU HINO |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66259-37010 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BU30#,XZU301,302,306,307,322,362..(T2,T4,T5)..CBU..4NO |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T3..LPG;BZU300,340..T4..CNG;RZU300,XZU302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37030 |
XZU347..(T2,T4)..CBU;BU30#,346,RZU300,340,XZU30#,331,337,340,341,342,346,372,382..SCB..(T2,T4)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
XZU301..T4..LPG;BU306,RZU300,XZU307..SCB..CBU;BU301,346,RZU340,XZU300,301,302,306,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37030 |
XZU347..(T2,T4)..CBU;BU30#,346,RZU300,340,XZU30#,331,337,340,341,342,346,372,382..SCB..(T2,T4)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
XZU301..T4..LPG;BU306,RZU300,XZU307..SCB..CBU;BU301,346,RZU340,XZU300,301,302,306,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66315-37010 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321-92803 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90149-50065 | ||||
| 91611-G0820 | ||||
| 91621-J0612 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93313-16014 | ||||
| 93590-16014 | ||||
| 94184-01001 | ||||

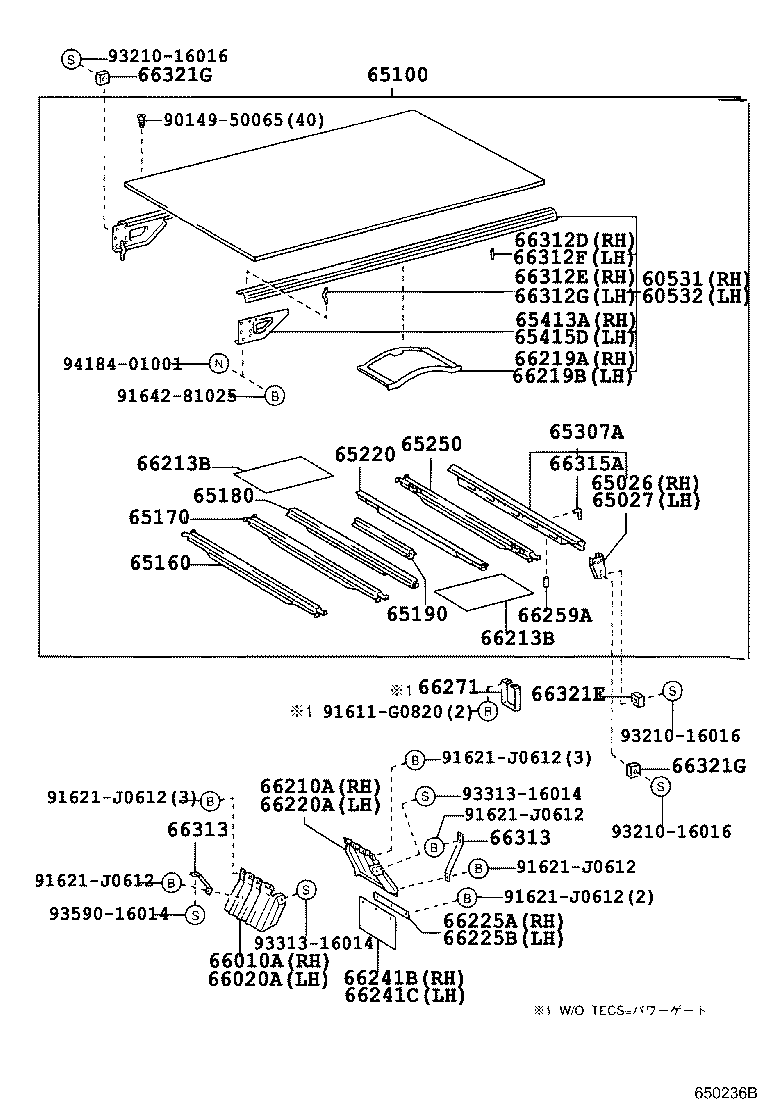

(9905-0206)BU30#,RZU300,XZU30#..SCB..T2,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37060 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU..4NO |
1 | ||
| 60531-37620 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37050 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU..4NO |
1 | ||
| 60532-37620 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-37310 |
BU306,XZU307..T2..CBU *** |
1 | ||
| 60530-3V240 |
BU306,XZU307..T2..CBU *** |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37290 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37270 |
XZU322..T5..5F..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37250 |
XZU322..T5..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65180-37390 |
XZU322..T5..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37090 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37250 |
XZU322..T5..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65180-37390 |
XZU322..T5..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37290 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37400 |
XZU301,302..T4..CBU..4NO;RZU300..SCB..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU306,307..(T2,T4)..CBU |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37050 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65413-37050 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37030 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415-37030 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-37060 |
XZU301..T4..LPG;XZU347..(T2,T4)..CBU;BU30#,346,RZU300,340,XZU30#,322,337,342,346,362..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-37060 |
XZU301..T4..LPG;XZU347..(T2,T4)..CBU;BU30#,346,RZU300,340,XZU30#,322,337,342,346,362..SCB..(T2,T4,T5)..WT..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-37130 |
BU30#,RZU300,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU |
1 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37140 |
XZU322..T5..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66213-37170 |
XZU322..T5..5F..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37140 |
XZU322..T5..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66213-37170 |
XZU322..T5..5F..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
BU30#,346,RZU300,340,XZU30#,337,342,346,347..(T2,T4)..CBU |
1 | ||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
BU30#,346,RZU300,340,XZU30#,337,342,346,347..(T2,T4)..CBU |
1 | ||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-37100 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..SCB..(T2,T4)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37070 |
BU30#,XZU302,306,307,337..(T2,T4)..20T..CBU 長さ=215 |
1 | ||
| 66242-37080 |
BU30#,XZU302,306,307,337..(T2,T4)..20T..CBU 長さ=265 |
1 | ||
| 66242-37200 |
BZU300..T4..CNG;RZU300,XZU302..20T..(CNG,LPG);BU30#,BZU300,RZU30#,XZU301,302,306,307,337..(T2,T4,T5)..20T..CBU 長さ=175 |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37110 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..SCB..(T2,T4)..CBU 長さ=385 |
1 | ||
| 66242-37220 |
XZU301..T3..LPG;BZU300,340..T4..CNG;BU346,RZU301,340..CBU;RZU300,XZU302,341,342..CNG,LPG;BU30#,BZU300,340,RZU300,XZU300,301,302,304,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..WT..CBU 長さ=330 |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37660 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU TOYOTA |
1 | ||
| 66241-37670 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU HINO |
1 | ||
| 66241-37680 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU DAIHATSU |
1 | ||
| 66241-37770 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU HINO |
1 | ||
| 66241-37760 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU TOYOTA |
1 | ||
| 66241-37780 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU DAIHATSU |
1 | ||
| 66241-3V430 |
BU306,RZU300,XZU307,337..T2..CBU DAIHATSU |
1 | ||
| 66241-3V110 |
BU306,RZU300,XZU307,337..T2..CBU TOYOTA |
1 | ||
| 66241-3V270 |
BU306,RZU300,XZU307,337..T2..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37330 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU HINO |
1 | ||
| 66241-37790 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU DAIHATSU |
1 | ||
| 66241-37320 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU TOYOTA |
1 | ||
| 66241-3V530 |
BU306,RZU300,XZU307,337..T2..CBU DAIHATSU |
1 | ||
| 66241-3V210 |
BU306,RZU300,XZU307,337..T2..CBU TOYOTA |
1 | ||
| 66241-3V370 |
BU306,RZU300,XZU307,337..T2..CBU HINO |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66259-37010 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BU30#,XZU301,302,306,307,322,362..(T2,T4,T5)..CBU..4NO |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T3..LPG;BZU300,340..T4..CNG;RZU300,XZU302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37030 |
XZU347..(T2,T4)..CBU;BU30#,346,RZU300,340,XZU30#,331,337,340,341,342,346,372,382..SCB..(T2,T4)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
XZU301..T4..LPG;BU306,RZU300,XZU307..SCB..CBU;BU301,346,RZU340,XZU300,301,302,306,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37030 |
XZU347..(T2,T4)..CBU;BU30#,346,RZU300,340,XZU30#,331,337,340,341,342,346,372,382..SCB..(T2,T4)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
XZU301..T4..LPG;BU306,RZU300,XZU307..SCB..CBU;BU301,346,RZU340,XZU300,301,302,306,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66315-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321-92803 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 90241-09004 | ||||
| 91611-G0820 | ||||
| 91621-J0612 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93313-16014 | ||||
| 93540-15016 | ||||
| 93590-16014 | ||||
| 94184-01001 | ||||
(0206-0406)XZU322..T5..CBU ; (0206-0406)BU306,XZU307..T2..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37060 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU..4NO |
1 | ||
| 60531-37620 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37050 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU..4NO |
1 | ||
| 60532-37620 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-37310 |
BU306,XZU307..T2..CBU *** |
1 | ||
| 60530-3V240 |
BU306,XZU307..T2..CBU *** |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37290 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37270 |
XZU322..T5..5F..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37250 |
XZU322..T5..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65180-37390 |
XZU322..T5..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37090 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37250 |
XZU322..T5..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65180-37390 |
XZU322..T5..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37290 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37400 |
XZU301,302..T4..CBU..4NO;RZU300..SCB..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU306,307..(T2,T4)..CBU |
1 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
BU306,XZU307,337..T2..CBU 左側 |
1 | ||
| 65349-37020 |
BU306,XZU307,337..T2..CBU 右側 |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37050 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65413-37050 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37030 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415-37030 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37140 |
XZU322..T5..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66213-37170 |
XZU322..T5..5F..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37140 |
XZU322..T5..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66213-37170 |
XZU322..T5..5F..CBU;BU306,346,XZU307,337,347..T2..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
BU30#,346,RZU300,340,XZU30#,337,342,346,347..(T2,T4)..CBU |
1 | ||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
BU30#,346,RZU300,340,XZU30#,337,342,346,347..(T2,T4)..CBU |
1 | ||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37070 |
BU30#,XZU302,306,307,337..(T2,T4)..20T..CBU 長さ=215 |
1 | ||
| 66242-37080 |
BU30#,XZU302,306,307,337..(T2,T4)..20T..CBU 長さ=265 |
1 | ||
| 66242-37200 |
BZU300..T4..CNG;RZU300,XZU302..20T..(CNG,LPG);BU30#,BZU300,RZU30#,XZU301,302,306,307,337..(T2,T4,T5)..20T..CBU 長さ=175 |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37110 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..SCB..(T2,T4)..CBU 長さ=385 |
1 | ||
| 66242-37220 |
XZU301..T3..LPG;BZU300,340..T4..CNG;BU346,RZU301,340..CBU;RZU300,XZU302,341,342..CNG,LPG;BU30#,BZU300,340,RZU300,XZU300,301,302,304,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..WT..CBU 長さ=330 |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37660 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU TOYOTA |
1 | ||
| 66241-37670 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU HINO |
1 | ||
| 66241-37680 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU DAIHATSU |
1 | ||
| 66241-37770 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU HINO |
1 | ||
| 66241-37760 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU TOYOTA |
1 | ||
| 66241-37780 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU DAIHATSU |
1 | ||
| 66241-3V430 |
BU306,RZU300,XZU307,337..T2..CBU DAIHATSU |
1 | ||
| 66241-3V110 |
BU306,RZU300,XZU307,337..T2..CBU TOYOTA |
1 | ||
| 66241-3V270 |
BU306,RZU300,XZU307,337..T2..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37330 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU HINO |
1 | ||
| 66241-37790 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU DAIHATSU |
1 | ||
| 66241-37320 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU TOYOTA |
1 | ||
| 66241-3V530 |
BU306,RZU300,XZU307,337..T2..CBU DAIHATSU |
1 | ||
| 66241-3V210 |
BU306,RZU300,XZU307,337..T2..CBU TOYOTA |
1 | ||
| 66241-3V370 |
BU306,RZU300,XZU307,337..T2..CBU HINO |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66259-37010 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BU30#,XZU301,302,306,307,322,362..(T2,T4,T5)..CBU..4NO |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T3..LPG;BZU300,340..T4..CNG;RZU300,XZU302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66315-37010 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321-92803 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
(0206-0406)XZU341,342..CNG,LPG ; (0206-0406)BU346,BZU340,RZU340,XZU340,341,342,346,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37060 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU..4NO |
1 | ||
| 60531-37620 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37050 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU..4NO |
1 | ||
| 60532-37620 |
BU30#,XZU301,302,306,307..SCB..(T2,T4)..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-37310 |
BU306,XZU307..T2..CBU *** |
1 | ||
| 60530-3V240 |
BU306,XZU307..T2..CBU *** |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37290 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37270 |
XZU322..T5..5F..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37250 |
XZU322..T5..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65180-37390 |
XZU322..T5..CBU;BU306,XZU307..T2..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37090 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37250 |
XZU322..T5..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65180-37390 |
XZU322..T5..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37290 |
XZU322..T5..5F..CBU;BU306,XZU307,337..T2..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37400 |
XZU301,302..T4..CBU..4NO;RZU300..SCB..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU306,307..(T2,T4)..CBU |
1 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
BU306,XZU307,337..T2..CBU 左側 |
1 | ||
| 65349-37020 |
BU306,XZU307,337..T2..CBU 右側 |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37050 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65413-37050 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37030 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415-37030 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
BU30#,346,RZU300,340,XZU30#,337,342,346,347..(T2,T4)..CBU |
1 | ||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-25010 |
BU30#,346,RZU300,340,XZU30#,337,342,346,347..(T2,T4)..CBU |
1 | ||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37070 |
BU30#,XZU302,306,307,337..(T2,T4)..20T..CBU 長さ=215 |
1 | ||
| 66242-37080 |
BU30#,XZU302,306,307,337..(T2,T4)..20T..CBU 長さ=265 |
1 | ||
| 66242-37200 |
BZU300..T4..CNG;RZU300,XZU302..20T..(CNG,LPG);BU30#,BZU300,RZU30#,XZU301,302,306,307,337..(T2,T4,T5)..20T..CBU 長さ=175 |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37110 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..SCB..(T2,T4)..CBU 長さ=385 |
1 | ||
| 66242-37220 |
XZU301..T3..LPG;BZU300,340..T4..CNG;BU346,RZU301,340..CBU;RZU300,XZU302,341,342..CNG,LPG;BU30#,BZU300,340,RZU300,XZU300,301,302,304,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..WT..CBU 長さ=330 |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37660 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU TOYOTA |
1 | ||
| 66241-37670 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU HINO |
1 | ||
| 66241-37680 |
BU30#,XZU302,306,307,337..SCB..(T2,T4)..20T..CBU DAIHATSU |
1 | ||
| 66241-37770 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU HINO |
1 | ||
| 66241-37760 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU TOYOTA |
1 | ||
| 66241-37780 |
BU30#,RZU300,XZU301,302,306,307,337..(T2,T4,T5)..20T..WT..CBU DAIHATSU |
1 | ||
| 66241-3V430 |
BU306,RZU300,XZU307,337..T2..CBU DAIHATSU |
1 | ||
| 66241-3V110 |
BU306,RZU300,XZU307,337..T2..CBU TOYOTA |
1 | ||
| 66241-3V270 |
BU306,RZU300,XZU307,337..T2..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37330 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU HINO |
1 | ||
| 66241-37790 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU DAIHATSU |
1 | ||
| 66241-37320 |
BU346,XZU347..T4..CBU;BU30#,RZU300,340,XZU30#,337,342,346..(T2,T4)..CBU TOYOTA |
1 | ||
| 66241-3V530 |
BU306,RZU300,XZU307,337..T2..CBU DAIHATSU |
1 | ||
| 66241-3V210 |
BU306,RZU300,XZU307,337..T2..CBU TOYOTA |
1 | ||
| 66241-3V370 |
BU306,RZU300,XZU307,337..T2..CBU HINO |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66259-37010 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T3..LPG;BZU300,340..T4..CNG;RZU300,XZU302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66315-37010 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321-92803 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94185-61000 | ||||
(9905-0206)BU400,410,XZU382,402,41#..SCB..T3,T4,T5..20T,295T,30T,35T..CBU,IV5 ; (99
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 91621-J0612 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 93590-16014 | ||||
| 94185-61000 | ||||
(0206-0406)XZU412..CNG ; (0206-0406)BZU410,XZU382..T4..CNG,DSL ; (0206-0406)BU410,B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 90241-09004 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94185-61000 | ||||
(0206-0406)BU420,430,XZU410,42#,430..CBU ; (0406- )XZU413,42#,43#..CBU ; (0406-
ﾒｲﾝ ｼﾙ ｴﾝﾄﾞ ｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-06038 | ||||
| 90467-0603801 | ||||
| 93560-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
