Toyota Dyna/toyoace XZU307 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU307-PQMMS3 (1999)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

XZU307-PQMMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

O ﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

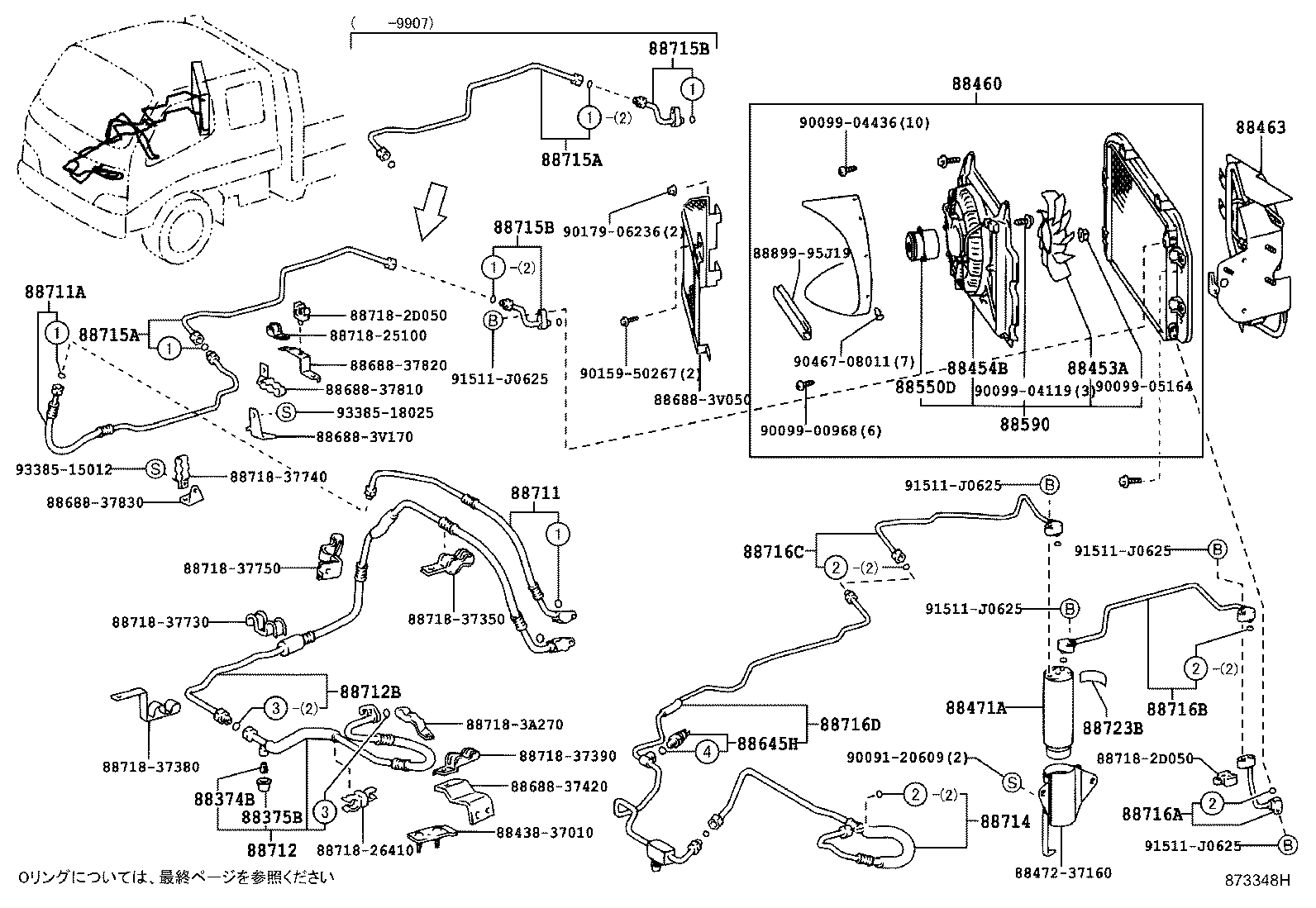

ILLUST NO. 1 OF 2(9905-0108)XZU307..DCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454B - SHROUD, FAN
88454-37040	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307..DCB	05/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37360	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37010	BU306,XZU307..DCB	05/1999 - 04/2000	1
88463-37011	BU306,RZU300,XZU307..DCB	04/2000 - 06/2004	1
88471A - TANK, RECEIVER
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-28100	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	08/2001 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-20050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88550D - MOTOR ASSY, BLOWER
88550-37050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88590 - BLOWER ASSY, W/SHROUD
88590-37090	BU30#,XZU307,347..DCB	05/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37560	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-37570	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37670	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..DSL,DSLL	05/1999 - 12/2002	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V100	XZU307,347..DCB	05/1999 - 08/2001	1
88712-3V080	XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	05/1999 - 08/2001	1
88712-3V081	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V101	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37482	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｸ-ﾗ)	12/2002 - 06/2004	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37481	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 12/2002	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37251	BU30#,XZU307..DCB	07/1999 - 06/2004	1
88715-37250	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37251	BU30#,XZU307..DCB	07/1999 - 06/2004	1
88715-37250	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37260	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715-37261	BU30#,RZU300,XZU307..DCB	07/1999 - 06/2004	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37260	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715-37261	BU30#,RZU300,XZU307..DCB	07/1999 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37610	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37440	BU30#,RZU300,XZU307..DCB	05/1999 - 08/2001	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-37740	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-37590	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88716-3V510	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	11/2001 - 06/2004	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-30050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	02/2002 - 06/2004	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
Common parts
88438-37010
88472-37160
88688-37420
88688-37810
88688-37820
88688-37830
88688-3V050
88688-3V170
88718-25100
88718-26410
88718-2D050
88718-37350
88718-37380
88718-37390
88718-37730
88718-37740
88718-37750
88718-3A270
88899-95J19
90091-20609
90099-00968
90099-04119
90099-04436
90099-05164
90159-50267
90179-06236
90467-08011
91511-J0625
93385-15012
93385-18025

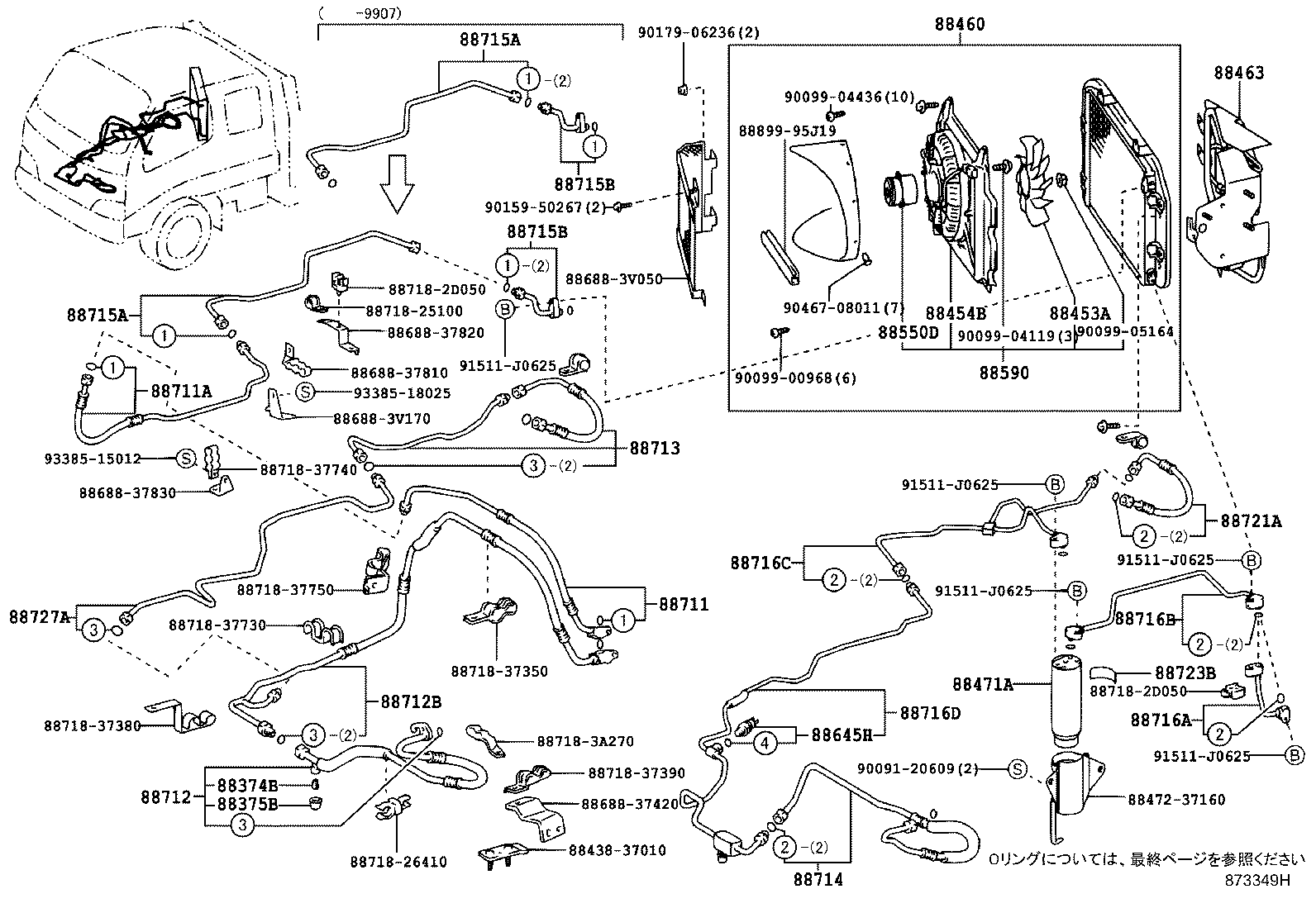

ILLUST NO. 1 OF 2(9905-0108)XZU307..DCB

Click highlighted areas on diagram

ｱﾘ(ﾘﾔｴｱｺﾝ)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454B - SHROUD, FAN
88454-37040	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307..DCB	05/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37360	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37010	BU306,XZU307..DCB	05/1999 - 04/2000	1
88463-37011	BU306,RZU300,XZU307..DCB	04/2000 - 06/2004	1
88471A - TANK, RECEIVER
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-28100	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	08/2001 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-20050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88550D - MOTOR ASSY, BLOWER
88550-37050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88590 - BLOWER ASSY, W/SHROUD
88590-37090	BU30#,XZU307,347..DCB	05/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37560	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-37570	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37670	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..DSL,DSLL	05/1999 - 12/2002	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V100	XZU307,347..DCB	05/1999 - 08/2001	1
88712-3V080	XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	05/1999 - 08/2001	1
88712-3V081	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V101	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-3V090	BU30#,XZU307,347..DCB	05/1999 - 11/2001	1
88712-3V091	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	11/2001 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37482	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｸ-ﾗ)	12/2002 - 06/2004	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37481	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 12/2002	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37251	BU30#,XZU307..DCB	07/1999 - 06/2004	1
88715-37250	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37251	BU30#,XZU307..DCB	07/1999 - 06/2004	1
88715-37250	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37260	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715-37261	BU30#,RZU300,XZU307..DCB	07/1999 - 06/2004	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37260	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715-37261	BU30#,RZU300,XZU307..DCB	07/1999 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37610	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37440	BU30#,RZU300,XZU307..DCB	05/1999 - 08/2001	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-37740	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-37590	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88716-3V510	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	11/2001 - 06/2004	1
88721A - HOSE, LIQUID, A
88721-37451	BU30#,XZU307..DCB	08/2001 - 10/2001	1
88721-37450	BU30#,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37452	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	10/2001 - 06/2004	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-30050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	02/2002 - 06/2004	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-37150	BU30#,XZU307,347..DCB	05/1999 - 08/2001	1
88717-37151	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	08/2001 - 06/2004	1
Common parts
88438-37010
88472-37160
88688-37420
88688-37810
88688-37820
88688-37830
88688-3V050
88688-3V170
88718-25100
88718-26410
88718-2D050
88718-37350
88718-37380
88718-37390
88718-37730
88718-37740
88718-37750
88718-3A270
88899-95J19
90091-20609
90099-00968
90099-04119
90099-04436
90099-05164
90159-50267
90179-06236
90467-08011
91511-J0625
93385-15012
93385-18025

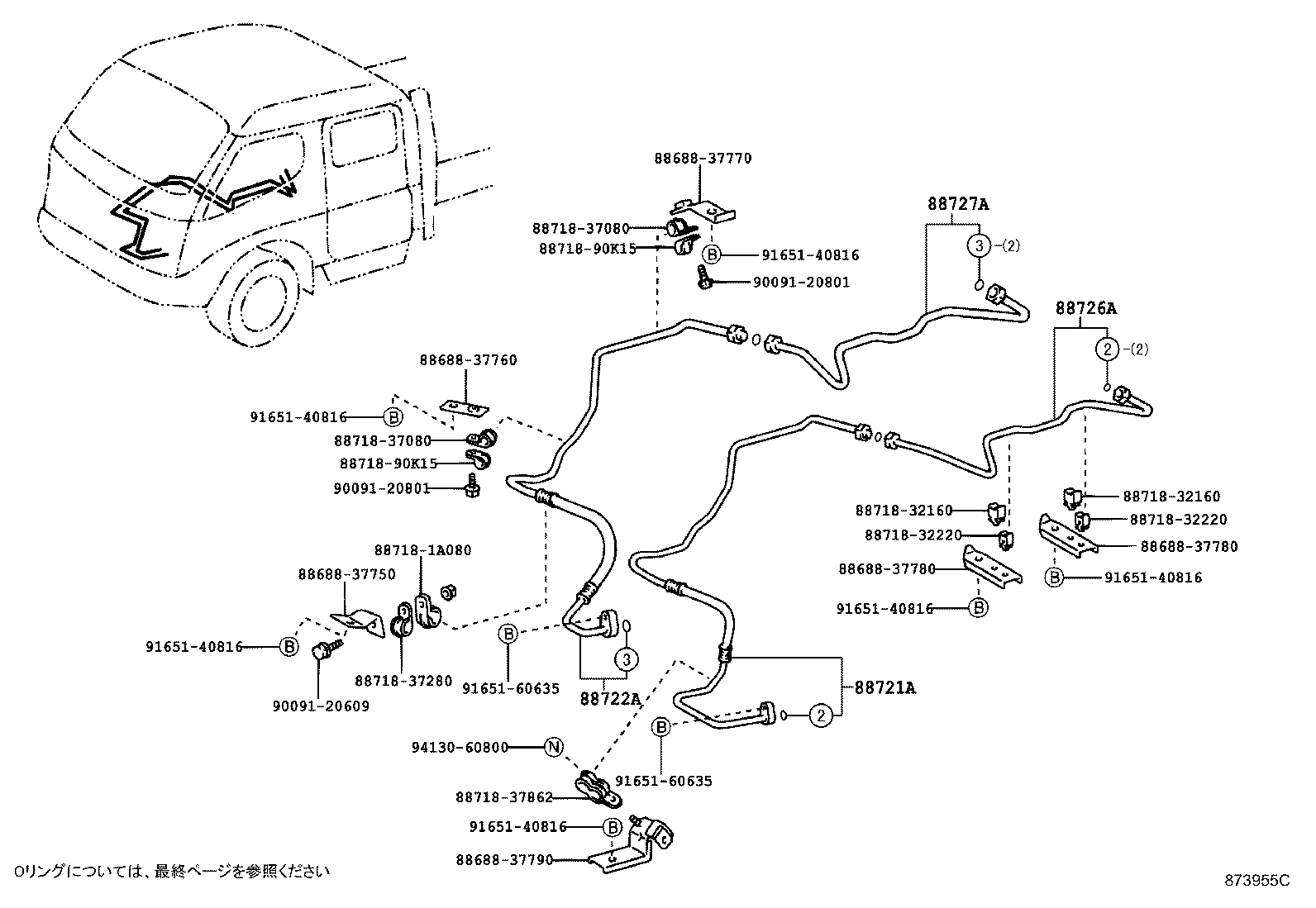

ILLUST NO. 1 OF 2(9905-0206)XZU307 ; (9905-0406)6F..295T ; (9905-0406)XZU301..1NO ; (9905-0406)XZU30

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88375-30280	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88375-30280	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37360	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88460-37360	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88460-37360	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88462A - HOLDER, CONDENSER
88462-37070	XZU322..DM7,DM8;XZU321..DM7..4NO;XZU302..20T..DSL;XZU306..T4..5F..IV3;XZU312,347..DCB..5F;XZU306..T4..DSL..CBU;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306..T4..4FC..DSL..IV3;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU301..SCB..5F..(DSLL,EFI)..1NO;BU301,XZU307,341,342,351..(03S,DM2,DM5,T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL);BU306,346,BZU300,340,RZU301,340,XZU300,330,337,340,346,347,350,352..(SCB,VAN)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
88462-37070	XZU322..DM7,DM8;XZU321..DM7..4NO;XZU302..20T..DSL;XZU306..T4..5F..IV3;XZU312,347..DCB..5F;XZU306..T4..DSL..CBU;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306..T4..4FC..DSL..IV3;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU301..SCB..5F..(DSLL,EFI)..1NO;BU301,XZU307,341,342,351..(03S,DM2,DM5,T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL);BU306,346,BZU300,340,RZU301,340,XZU300,330,337,340,346,347,350,352..(SCB,VAN)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
88462-37070	XZU322..DM7,DM8;XZU321..DM7..4NO;XZU302..20T..DSL;XZU306..T4..5F..IV3;XZU312,347..DCB..5F;XZU306..T4..DSL..CBU;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306..T4..4FC..DSL..IV3;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU301..SCB..5F..(DSLL,EFI)..1NO;BU301,XZU307,341,342,351..(03S,DM2,DM5,T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL);BU306,346,BZU300,340,RZU301,340,XZU300,330,337,340,346,347,350,352..(SCB,VAN)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37010	BU306,XZU307..DCB	05/1999 - 04/2000	1
88463-37010	BU306,XZU307..DCB	05/1999 - 04/2000	1
88463-37010	BU306,XZU307..DCB	05/1999 - 04/2000	1
88463-37011	BU306,RZU300,XZU307..DCB	04/2000 - 06/2004	1
88463-37011	BU306,RZU300,XZU307..DCB	04/2000 - 06/2004	1
88463-37011	BU306,RZU300,XZU307..DCB	04/2000 - 06/2004	1
88471A - TANK, RECEIVER
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-28100	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	08/2001 - 06/2004	1
88471-28100	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	08/2001 - 06/2004	1
88471-28100	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	08/2001 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-20050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88471-20050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88471-20050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88590 - BLOWER ASSY, W/SHROUD
88590-37090	BU30#,XZU307,347..DCB	05/1999 - 06/2004	1
88590-37090	BU30#,XZU307,347..DCB	05/1999 - 06/2004	1
88590-37090	BU30#,XZU307,347..DCB	05/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88645-60030	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88645-60030	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37560	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88711-37560	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88711-37560	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37670	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..DSL,DSLL	05/1999 - 12/2002	1
88712-37670	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..DSL,DSLL	05/1999 - 12/2002	1
88712-37670	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..DSL,DSLL	05/1999 - 12/2002	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V100	XZU307,347..DCB	05/1999 - 08/2001	1
88712-3V100	XZU307,347..DCB	05/1999 - 08/2001	1
88712-3V100	XZU307,347..DCB	05/1999 - 08/2001	1
88712-3V080	XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	05/1999 - 08/2001	1
88712-3V080	XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	05/1999 - 08/2001	1
88712-3V080	XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	05/1999 - 08/2001	1
88712-3V081	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V081	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V081	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V101	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V101	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V101	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37482	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｸ-ﾗ)	12/2002 - 06/2004	1
88721-37482	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｸ-ﾗ)	12/2002 - 06/2004	1
88721-37482	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｸ-ﾗ)	12/2002 - 06/2004	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37481	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 12/2002	1
88721-37481	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 12/2002	1
88721-37481	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 12/2002	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37610	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88716-37610	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88716-37610	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-30050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	02/2002 - 06/2004	1
88733-30050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	02/2002 - 06/2004	1
88733-30050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	02/2002 - 06/2004	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
Common parts
88438-37010
88463-35120
88472-37170
88688-37420
88688-3V150
88718-26410
88718-37350
88718-37380
88718-37390
88718-37420
88718-37730
88718-37750
88718-3A270
90041-79141
90091-20512
90099-04119
90119-10522
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
91651-60816
93385-16016
94130-60600
94150-80800

ILLUST NO. 1 OF 2(0105-0406)BU30#,XZU307..DCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454B - SHROUD, FAN
88454-37040	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307..DCB	05/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37360	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88460P - CONDENSER ASSY, COOLER NO.2
88460-37500	XZU306..T5..4FC;XZU301..IV6..4NO;XZU306..T5..DSLL;XZU301..DSLL..4NO;BU306,XZU307,347..DCB,VAN;BZU300,XZU311..CNG,DSLL,LPG;XZU301..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,BZU340,RZU301,XZU302,331,341,342,351,352..(DM5,T1,T3,T4,T5)..(CBU,IV3)	05/2001 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37010	BU306,XZU307..DCB	05/1999 - 04/2000	1
88463-37011	BU306,RZU300,XZU307..DCB	04/2000 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37010	BU306,XZU307..DCB	05/1999 - 04/2000	1
88463-37011	BU306,RZU300,XZU307..DCB	04/2000 - 06/2004	1
88471A - TANK, RECEIVER
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-28100	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	08/2001 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-20050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88550D - MOTOR ASSY, BLOWER
88550-37050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88590 - BLOWER ASSY, W/SHROUD
88590-37090	BU30#,XZU307,347..DCB	05/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88688L - BRACKET, CONDENSER PACKING
88688-3V320	BU30#,XZU307..DCB	05/2001 - 08/2001	1
88688-3V320	BU30#,RZU300,XZU307..DCB	08/2001 - 06/2004	1
88706 - PIPE SUB-ASSY, LIQUID
88706-37130	BU30#,XZU307,347..DCB ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2002	1
88706-37140	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88706-37150	XZU307..DCB	06/2002 - 07/2003	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37560	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37560	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-37570	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37670	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..DSL,DSLL	05/1999 - 12/2002	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V100	XZU307,347..DCB	05/1999 - 08/2001	1
88712-3V080	XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	05/1999 - 08/2001	1
88712-3V081	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V101	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V100	XZU307,347..DCB	05/1999 - 08/2001	1
88712-3V080	XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	05/1999 - 08/2001	1
88712-3V081	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V101	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37482	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｸ-ﾗ)	12/2002 - 06/2004	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37481	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 12/2002	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37251	BU30#,XZU307..DCB	07/1999 - 06/2004	1
88715-37250	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37260	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715-37261	BU30#,RZU300,XZU307..DCB	07/1999 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37610	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-37590	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88716-3V510	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	11/2001 - 06/2004	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-3V430	BU30#,XZU307,347..DCB	08/2001 - 06/2004	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-30050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	02/2002 - 06/2004	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-37130	BU30#,RZU300,XZU307..DCB	08/2001 - 06/2004	1
Common parts
15188-87101
88438-37010
88463-35120
88472-37170
88472-37210
88688-37420
88688-37570
88688-37810
88688-37822
88688-37830
88688-3V050
88688-3V150
88688-3V172
88688-3V460
88718-25100
88718-26410
88718-2D050
88718-32220
88718-37350
88718-37380
88718-37390
88718-37580
88718-37590
88718-37730
88718-37740
88718-37750
88718-37862
88718-3A270
88718-3V150
88899-95J19
90091-20609
90099-00968
90099-04119
90099-05164
90159-50267
90179-06236
90467-08011
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60616
91651-60645
91651-60816
93385-16016
94130-60600
94150-80800
94150-81000

ILLUST NO. 1 OF 2(0105-0406)BU30#,XZU307..DCB

Click highlighted areas on diagram

ｱﾘ(ﾘﾔｴｱｺﾝ)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454B - SHROUD, FAN
88454-37040	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307..DCB	05/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37360	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88460P - CONDENSER ASSY, COOLER NO.2
88460-37500	XZU306..T5..4FC;XZU301..IV6..4NO;XZU306..T5..DSLL;XZU301..DSLL..4NO;BU306,XZU307,347..DCB,VAN;BZU300,XZU311..CNG,DSLL,LPG;XZU301..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,BZU340,RZU301,XZU302,331,341,342,351,352..(DM5,T1,T3,T4,T5)..(CBU,IV3)	05/2001 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37010	BU306,XZU307..DCB	05/1999 - 04/2000	1
88463-37011	BU306,RZU300,XZU307..DCB	04/2000 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37010	BU306,XZU307..DCB	05/1999 - 04/2000	1
88463-37011	BU306,RZU300,XZU307..DCB	04/2000 - 06/2004	1
88471A - TANK, RECEIVER
88471-28100	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-28100	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	08/2001 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-20050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88550D - MOTOR ASSY, BLOWER
88550-37050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88590 - BLOWER ASSY, W/SHROUD
88590-37090	BU30#,XZU307,347..DCB	05/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	3
88688L - BRACKET, CONDENSER PACKING
88688-3V320	BU30#,XZU307..DCB	05/2001 - 08/2001	1
88688-3V320	BU30#,RZU300,XZU307..DCB	08/2001 - 06/2004	1
88706 - PIPE SUB-ASSY, LIQUID
88706-37130	BU30#,XZU307,347..DCB ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2002	1
88706-37140	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88706-37150	XZU307..DCB	06/2002 - 07/2003	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37560	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37560	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-37570	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37670	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..DSL,DSLL	05/1999 - 12/2002	1
88712-37671	RZU300..30T..LPG;BU30#,346,RZU300,340,XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL,DSLL,EFI	12/2002 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V100	XZU307,347..DCB	05/1999 - 08/2001	1
88712-3V080	XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	05/1999 - 08/2001	1
88712-3V081	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V101	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V100	XZU307,347..DCB	05/1999 - 08/2001	1
88712-3V080	XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	05/1999 - 08/2001	1
88712-3V081	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88712-3V101	XZU307..DCB;XZU347..DCB..5F;XZU347..DCB..T4..4FC ﾅｼ(ﾘﾔｴｱｺﾝ)	08/2001 - 06/2004	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-3V090	BU30#,XZU307,347..DCB	05/1999 - 11/2001	1
88712-3V091	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	11/2001 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37480	BU30#,RZU300,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37360	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352	08/2001 - 12/2002	1
88721-37482	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｸ-ﾗ)	12/2002 - 06/2004	1
88721-37361	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU306,307,31#,32#,331,337,346,347,351,352	12/2002 - 06/2004	1
88721-37481	BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔｴｱｺﾝ)	08/2001 - 12/2002	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37251	BU30#,XZU307..DCB	07/1999 - 06/2004	1
88715-37250	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37260	BU306,XZU307..DCB	05/1999 - 07/1999	1
88715-37261	BU30#,RZU300,XZU307..DCB	07/1999 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37610	BU30#,XZU307..DCB	05/1999 - 06/2004	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-37590	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
88716-3V510	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｴｱｺﾝ)	11/2001 - 06/2004	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-3V430	BU30#,XZU307,347..DCB	08/2001 - 06/2004	1
88721A - HOSE, LIQUID, A
88721-37451	BU30#,XZU307..DCB	08/2001 - 10/2001	1
88721-37450	BU30#,XZU307,347..DCB	05/1999 - 08/2001	1
88721-37452	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	10/2001 - 06/2004	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	BU30#,RZU300,XZU307,347..DCB	02/2002 - 03/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-30050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾘﾔｸ-ﾗ)	02/2002 - 06/2004	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-37140	BU30#,XZU307,347..DCB	08/2001 - 10/2001	1
88726-37141	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	10/2001 - 06/2004	1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-37130	BU30#,RZU300,XZU307..DCB	08/2001 - 06/2004	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-37150	BU30#,XZU307,347..DCB	05/1999 - 08/2001	1
88717-37151	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	08/2001 - 06/2004	1
Common parts
15188-87101
88438-37010
88463-35120
88472-37170
88472-37210
88688-37420
88688-37570
88688-37810
88688-37822
88688-37830
88688-3V050
88688-3V150
88688-3V172
88688-3V460
88718-25100
88718-25290
88718-26410
88718-2D050
88718-32220
88718-37350
88718-37380
88718-37390
88718-37580
88718-37590
88718-37730
88718-37740
88718-37750
88718-37862
88718-3A270
88718-42050
88899-95J19
90091-20609
90099-00968
90099-04119
90099-05164
90159-50267
90179-06236
90467-08011
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60616
91651-60645
91651-60816
93385-16016
94130-60600
94150-80800
94150-81000

ILLUST NO. 3 OF 3(9905- )

Click highlighted areas on diagram

O ﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 2 OF 3(9908-0406)DCB

Click highlighted areas on diagram

ﾘﾔﾊﾟｲﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
88688-37750
88688-37760
88688-37770
88688-37780
88688-37790
88718-1A080
88718-32160
88718-32220
88718-37080
88718-37280
88718-37862
88718-90K15
90091-20609
90091-20801
91651-40816
91651-60635
94130-60800

XZU307-PQMMS3 (1999)

ILLUST NO. 2 OF 2(9905- )

ILLUST NO. 1 OF 2(9905-0108)XZU307..DCB

ILLUST NO. 1 OF 2(9905-0108)XZU307..DCB

ILLUST NO. 1 OF 2(9905-0206)XZU307 ; (9905-0406)6F..295T ; (9905-0406)XZU301..1NO ; (9905-0406)XZU30

ILLUST NO. 1 OF 2(0105-0406)BU30#,XZU307..DCB

ILLUST NO. 1 OF 2(0105-0406)BU30#,XZU307..DCB

ILLUST NO. 3 OF 3(9905- )

ILLUST NO. 2 OF 3(9908-0406)DCB

Part Price Details
