XZU306V-RETMS (2004)
Toyota Dyna/Toyoace

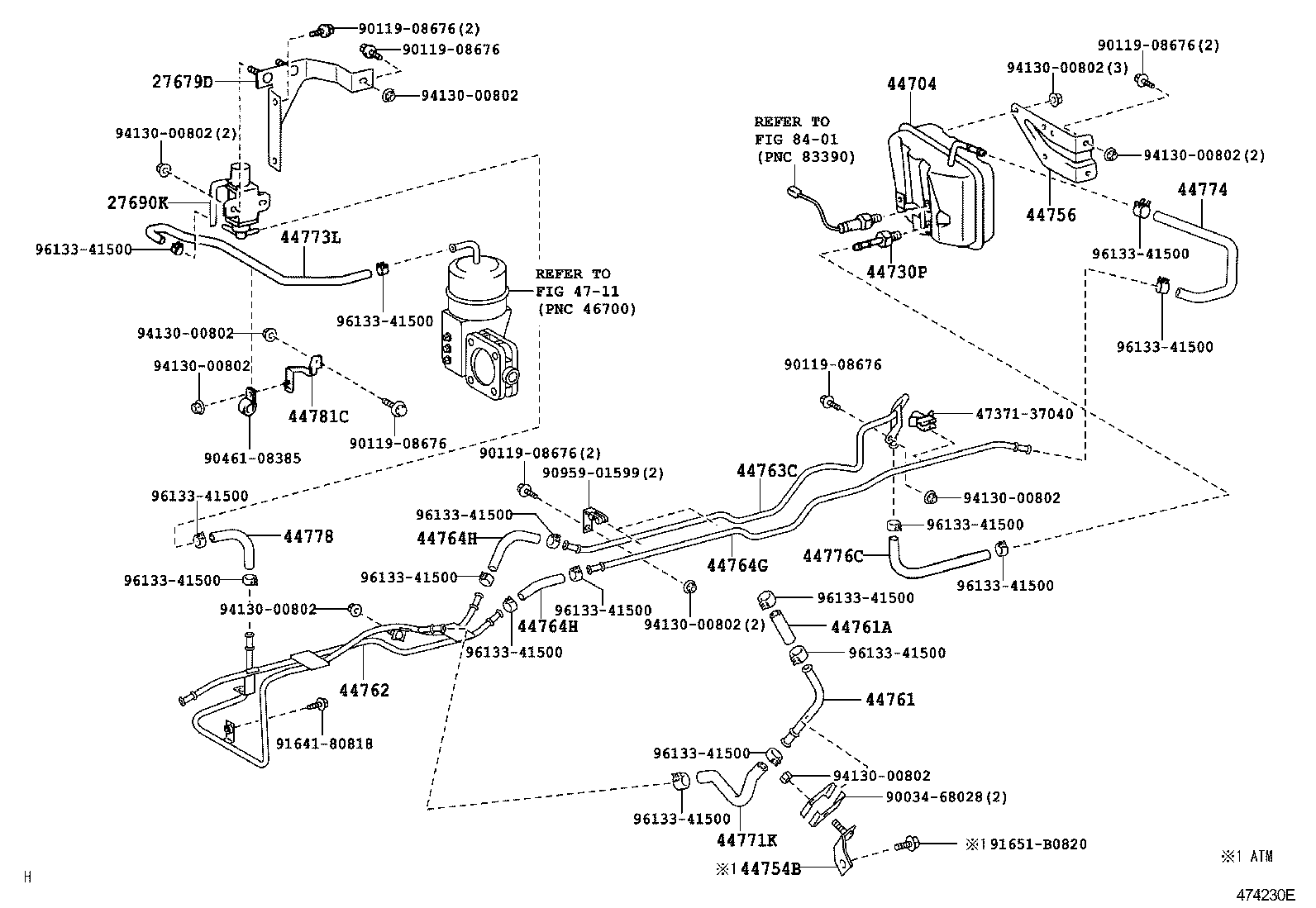

ILLUST NO. 2 OF 2(0406- )XZU306..03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78300 |
N04C,S05D..XZU306,308..VAN |
1 | ||
| 27679-78250 |
N04C,S05D..XZU306,308..VAN |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78032 |
S05D..XZU301,306..IV6;S05D..XZU301..20T..IV3..1NO;N04C..XZU304,305,354,388..(DM6,T3)..(20T,40T);N04C,S05D..XZU304,306,308,334,346,378..DCB,VAN |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37100 |
XZU306,308..VAN |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-37190 |
XZU301,306,331,336,341,346,351..6FC |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44757-37040 |
XZU306,308..VAN |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37340 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 44761A - HOSE, VACUUM PUMP | ||||
| 90445-17044 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37130 |
XZU306,308..VAN |
1 | ||
| 44763C - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44764-37580 |
XZU306,308..VAN |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-37590 |
XZU306,308..VAN |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09160 |
XZU306,308..VAN |
2 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09160 |
XZU306,308..VAN |
2 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37630 |
XZU301,306,331,336,341,346 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37060 |
XZU306..5F..IV3;XZU301..20T..IV7;XZU306..DSL..CBU;XZU341..6F..295T;XZU306..4FC..DSL..IV3;XZU301..30T..DSLL..IV3..1NO;XZU341,351,352..(DM2,T3,T4)..(20T,30T)..DSL;BU30#,346,XZU300,301,302,307,31#,32#,33#,340,342,346,347..SCB..(DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7) ｱﾘ(PTO) |
1 | ||
| 44773-37080 |
XZU306,308..VAN |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-37350 |
XZU306,308..VAN |
1 | ||
| 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR | ||||
| 95446-09400 |
XZU306,308..VAN |
1 | ||
| 44781C - BRACKET, HOSE CLAMP, NO.2 | ||||
| 44781-37040 |
XZU306,308..VAN |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90034-68028 | ||||
| 90119-08676 | ||||
| 90461-08385 | ||||
| 90959-01599 | ||||
| 91641-80818 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0406- )XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37170 |
BU30#,346,XZU301,302,306,307,31#,321,322,337,341,346,347,351,352,362,372,382..175T,20T |
1 | ||
| 44610-37171 |
BZU300,340,RZU30#,340,XZU30#,321,334,336,338,34#,35#,368,378,388..175T,20T ｱﾘ(ABS) |
1 | ||
| 44610-37250 |
XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 44621-36070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20070 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20070 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44597-37021 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44597-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90414-10043 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90414-10043 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37250 |
XZU306,308,336,338,346,348 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB |
1 | ||
| 44768-37110 |
XZU301,31#,331,37#,382;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,306,307,32#,330,337,340,341,342,346,347,35#,362..SCB,VAN |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37100 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB 長さ=380 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44772-37040 |
XZU306,308..03S..ATM;XZU301..6FC..20T..4NO ﾅｼ(ABS) |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44772-37040 |
XZU306,308..03S..ATM;XZU301..6FC..20T..4NO ﾅｼ(ABS) |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44772-37040 |
XZU306,308..03S..ATM;XZU301..6FC..20T..4NO ﾅｼ(ABS) |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 47264-50010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90467-16022 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(0406- )XZU304..T4..20T..IV3 ; (0406- )XZU341..T4..30T..IV3 ; (0406- )XZU3
ﾀﾞﾝﾌﾟ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78300 |
N04C,S05D..XZU306,308..VAN |
1 | ||
| 27679-78250 |
N04C,S05D..XZU306,308..VAN |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78032 |
S05D..XZU301,306..IV6;S05D..XZU301..20T..IV3..1NO;N04C..XZU304,305,354,388..(DM6,T3)..(20T,40T);N04C,S05D..XZU304,306,308,334,346,378..DCB,VAN |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37100 |
XZU306,308..VAN |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-37190 |
XZU301,306,331,336,341,346,351..6FC |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37340 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37340 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37340 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 44761A - HOSE, VACUUM PUMP | ||||
| 90445-17044 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 44761A - HOSE, VACUUM PUMP | ||||
| 90445-17044 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 44761A - HOSE, VACUUM PUMP | ||||
| 90445-17044 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37130 |
XZU306,308..VAN |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37630 |
XZU301,306,331,336,341,346 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37630 |
XZU301,306,331,336,341,346 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37630 |
XZU301,306,331,336,341,346 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37060 |
XZU306..5F..IV3;XZU301..20T..IV7;XZU306..DSL..CBU;XZU341..6F..295T;XZU306..4FC..DSL..IV3;XZU301..30T..DSLL..IV3..1NO;XZU341,351,352..(DM2,T3,T4)..(20T,30T)..DSL;BU30#,346,XZU300,301,302,307,31#,32#,33#,340,342,346,347..SCB..(DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7) ｱﾘ(PTO) |
1 | ||
| 44773-37080 |
XZU306,308..VAN |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-37350 |
XZU306,308..VAN |
1 | ||
| Common parts | ||||
| 90034-68028 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 91641-80818 | ||||
| 91642-K1020 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0610-0612)ST ; (0610-0612)XZU30#,314,324,33#,34#,354
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 1 OF 2(0406- )CNG,DCR,DCRL,DSL,DSLL,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-08642 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
