XZU306V-REMMS (2004)
Toyota Dyna/Toyoace

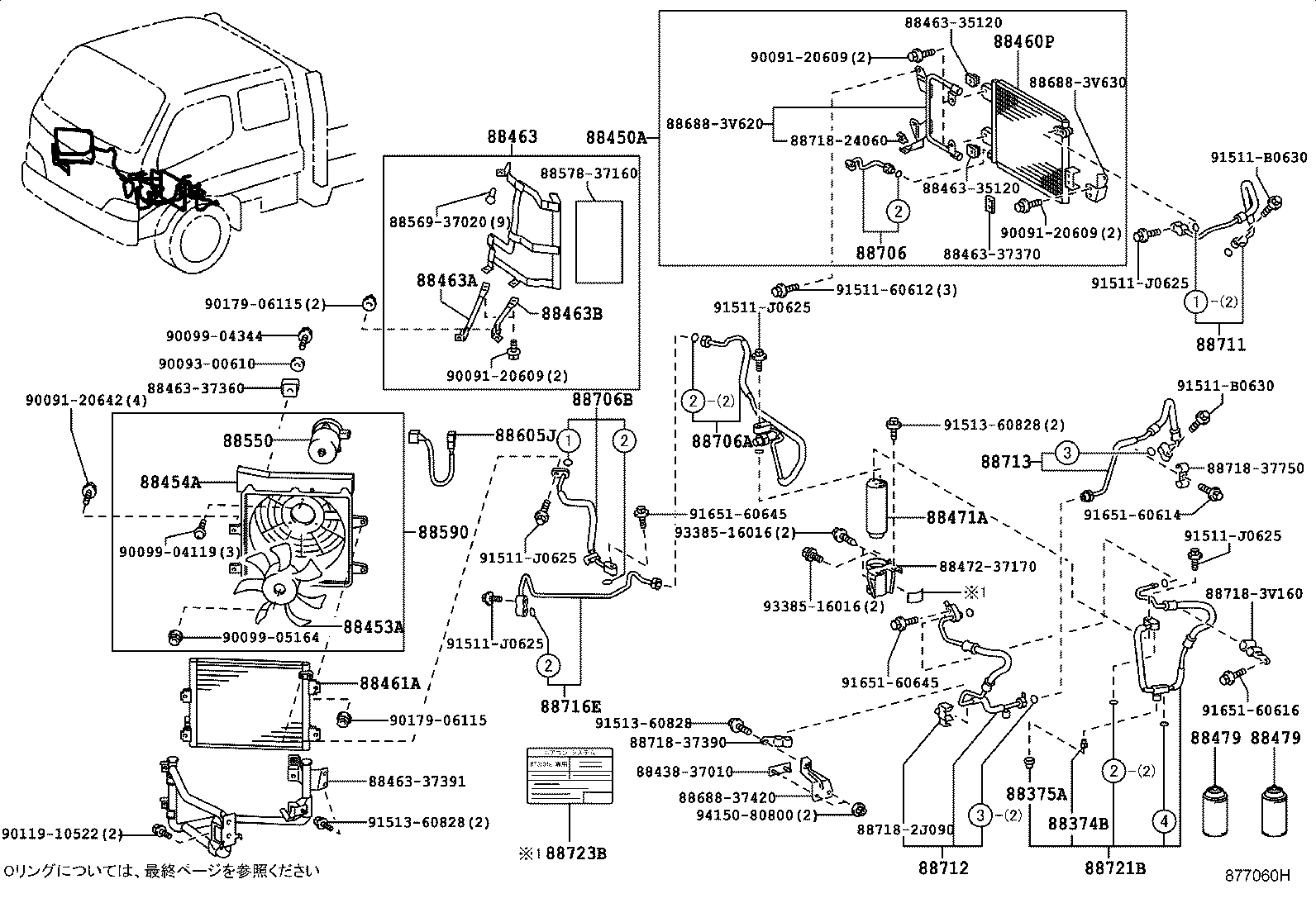

ILLUST NO. 1 OF 2(0406- )XZU306,346..DCB,VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2 |
2 | ||
| 88450A - SUB CONDENSER ASSY | ||||
| 88450-37041 |
XZU306,308,346..DCB,VAN;XZU304,305,314,334,344,354..DCRL,DSLL |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-37030 |
XZU368,378,388;XZU306,308,346..DCB,VAN |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-37090 |
XZU368,378,388;XZU306,308,346..DCB,VAN |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-37080 |
XZU368,378,388;XZU306,308,346..DCB,VAN |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-37410 |
XZU368,378,388;XZU306,308,346..DCB,VAN |
1 | ||
| 88463-37140 |
XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-37160 |
BU301..(DM6,T1,T5)..20T;XZU301,302,31#,331,341,342..DSL,DSLL;BU306,346,RZU300,340,XZU306,307,321,322,337,346,347,351,352..SCB,VAN |
1 | ||
| 88471A - TANK, RECEIVER | ||||
| 88471-34010 |
XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN |
1 | ||
| 88471-34010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
XZU306,308..VAN 200G |
2 | ||
| 90986-02007 |
XZU306,308..VAN 250G |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
XZU306,308..VAN 200G |
2 | ||
| 90986-02007 |
XZU306,308..VAN 250G |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-37060 |
BU30#,346,XZU301,302,306,307,331,337,341,342,346,347..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 88550-37120 |
XZU368,378,388;XZU306,308,346..DCB,VAN |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-37050 |
BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,372,382..SCB,VAN |
1 | ||
| 88590-37180 |
XZU368,378,388;XZU306,308,346..DCB,VAN |
1 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-37270 |
XZU368,378,388;XZU306,308,346..DCB,VAN |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88716-3V620 |
XZU306,308,346..DCB,VAN |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-37161 |
XZU368,378,388..CBU,IV3;XZU304,306,308,346..(DCB,VAN)..DSL;XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-37220 |
XZU368,378,388;XZU306,308,346..DCB,VAN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37420 |
XZU307,347..SCB,VAN;XZU301,302,306,31#,321,322,331,337,341,342,346,351,352..DSL,DSLL |
1 | ||
| 88711-37880 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37670 |
BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..DSL,DSLL |
1 | ||
| 88712-3V430 |
XZU30#,31#,321,33#,34#,35# |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-3V480 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-3V651 |
XZU368,378,388;XZU306,308,346..DCB,VAN |
1 | ||
| 88721B - HOSE, LIQUID, B | ||||
| 88721-37870 |
XZU308,378,388..SCB;XZU301,304,305,306,31#,321,33#,34#,35#,368 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 88733-27010 |
XZU304,306,308,346..(DCB,VAN)..DSL;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG |
1 | ||
| Common parts | ||||
| 88438-37010 | ||||
| 88463-35120 | ||||
| 88463-37360 | ||||
| 88463-37370 | ||||
| 88463-37391 | ||||
| 88472-37170 | ||||
| 88569-37020 | ||||
| 88578-37160 | ||||
| 88688-37420 | ||||
| 88688-3V620 | ||||
| 88688-3V630 | ||||
| 88718-24060 | ||||
| 88718-2J090 | ||||
| 88718-37390 | ||||
| 88718-37750 | ||||
| 88718-3V160 | ||||
| 90091-20609 | ||||
| 90091-20642 | ||||
| 90093-00610 | ||||
| 90099-04119 | ||||
| 90099-04344 | ||||
| 90099-05164 | ||||
| 90119-10522 | ||||
| 90179-06115 | ||||
| 91511-60612 | ||||
| 91511-B0630 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 93385-16016 | ||||
| 94150-80800 | ||||
