XZU306V-REMMS (2004)
Toyota Dyna/Toyoace

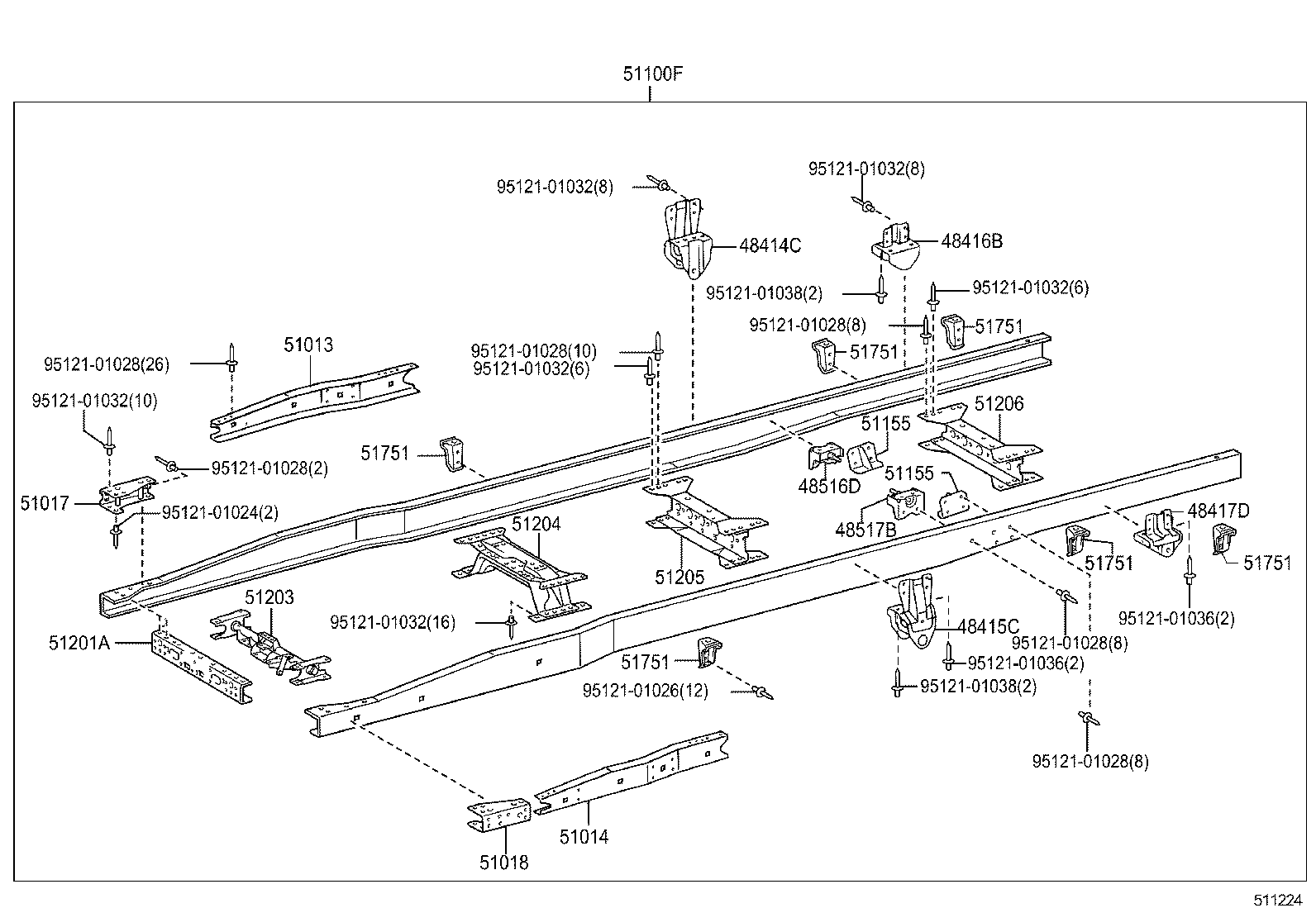

ILLUST NO. 2 OF 4(0406-0610)VAN
ﾌﾚｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37060 |
XZU306,308..VAN |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37040 |
XZU306,308..VAN |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37040 |
XZU306..DSLL..CBU;XZU302..T4..20T..DSL;XZU306..4FC..DSLL..IV3;BU30#,BZU300,RZU30#,XZU306,307,337..(03S,06S,T2,T4)..20T..(CNG,DSL,EFI,LPG) |
1 | ||
| 48416-37040 |
XZU336..T2;BZU300,RZU30#,XZU301,304,306,308,334,338..(03S,06S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG) |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37040 |
XZU306..DSLL..CBU;XZU302..T4..20T..DSL;XZU306..4FC..DSLL..IV3;BU30#,BZU300,RZU30#,XZU306,307,337..(03S,06S,T2,T4)..20T..(CNG,DSL,EFI,LPG) |
1 | ||
| 48416-37040 |
XZU336..T2;BZU300,RZU30#,XZU301,304,306,308,334,338..(03S,06S,DM5,T2,T4)..20T..(CNG,DSL,EFI,LPG) |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37192 |
XZU306,308,336,338,346,348 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37192 |
XZU306,308,336,338,346,348 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37030 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 51017-37150 |
XZU306,308,336,338,346,348,368,378,388 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37E40 |
XZU306,308..VAN |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37090 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU307,337..(DCB,SCB)..4FC;XZU330,340,346,347,350..20T,35T,40T |
1 | ||
| 51203-37100 |
XZU306,308..VAN |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZU306,308..VAN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZU306,308..VAN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZU306,308..VAN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZU306,308..VAN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZU306,308..VAN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZU306,308..VAN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| Common parts | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
ILLUST NO. 1 OF 4(0406-0610)XZU306,308,336,338,346,348
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37070 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 48512-37120 |
XZU306,308,336,338,346,348 |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37070 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 48512-37120 |
XZU306,308,336,338,346,348 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37E40 |
XZU306,308..VAN |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-37080 |
XZU306,308..VAN |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-37020 |
XZU306,308..VAN |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37530 |
XZU306,308..VAN |
1 | ||
| 52350A - STEP ASSY, BACK | ||||
| 52350-37050 |
XZU306,308..VAN |
1 | ||
| 52350-37090 |
XZU306,308..VAN |
1 | ||
| 52355A - BRACKET, BACK STEP | ||||
| 52355-37020 |
XZU306,308..VAN |
1 | ||
| 52355-37021 |
XZU306,308..VAN |
1 | ||
| Common parts | ||||
| 90119-12377 | ||||
| 90201-10012 | ||||
| 91645-C1032 | ||||
| 91651-61025 | ||||
| 94130-01002 | ||||
| 94130-61000 | ||||
ILLUST NO. 3 OF 4(0406-0610)XZU306,308,336,338,346,348
ｻｽﾍﾟﾝｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48311A - BRACKET, HOLLOW SPRING, RH | ||||
| 48311-37010 |
XZU306,308,336,338,346,348 NO.1 |
1 | ||
| 48312A - BRACKET, HOLLOW SPRING, LH | ||||
| 48311-37010 |
XZU306,308,336,338,346,348 NO.1 |
1 | ||
| 51032A - MEMBER SUB-ASSY, ANCHOR ARM SUPPORT | ||||
| 51032-37020 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 51032-37030 |
XZU306,308,336,338,346,348 |
1 | ||
| 51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX | ||||
| 51065-37020 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347 |
1 | ||
| 51065-37020 |
XZU306,308,336,338,346,348 |
1 | ||
| 51201F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-37080 |
XZU306,308,336,338,346,348 |
1 | ||
| 51201-37080 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347 |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37030 |
XZU306,308,336,338,346,348 |
1 | ||
| 51210-37020 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 51491A - BAR, UNDER GUARD, FRONT NO.1 | ||||
| 51491-37030 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347 |
1 | ||
| 51491-37030 |
XZU306,308,336,338,346,348,368,378,388..DCRL,DSL |
1 | ||
| 51492B - BAR, UNDER GUARD, FRONT NO.2 | ||||
| 51492-37020 |
XZU306,308,336,338,346,348,368,378,388..DCRL,DSL |
1 | ||
| 51492-37020 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37020 |
XZU306,308,336,338,346,348 |
1 | ||
| 51501-37010 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37010 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 51502-37040 |
XZU306,308,336,338,346,348 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37050 |
XZU306,336,346 |
1 | ||
| 51518-37030 |
XZU306,307,337,346,347 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51519-37030 |
XZU306,307,337,346,347 |
1 | ||
| 51509-37050 |
XZU306,336,346 |
1 | ||
| 51515 - SUPPORT, UPPER ARM, NO.2 RH | ||||
| 51515-37010 |
BU306,346,XZU306,307,337,346,347 |
2 | ||
| 51515-37020 |
XZU306,308,336,338,346,348 |
2 | ||
| 51568A - SUPPORT, ANCHOR ARM, LOWER RH | ||||
| 51568-37181 |
XZU306,308,336,338,346,348 |
1 | ||
| 51569B - SUPPORT, ANCHOR ARM, LOWER LH | ||||
| 51569-37171 |
XZU306,308,336,338,346,348 |
1 | ||
| Common parts | ||||
| 90105-14065 | ||||
| 90119-10740 | ||||
| 90119-12377 | ||||
| 90119-14100 | ||||
| 90119-14104 | ||||
| 90119-14107 | ||||
| 90119-16008 | ||||
| 90119-16012 | ||||
| 90178-14002 | ||||
| 90179-14061 | ||||
| 90179-16029 | ||||
| 90182-10003 | ||||
| 91642-81235 | ||||
| 94151-21200 | ||||
| 94622-41400 | ||||
| 94622-41600 | ||||
ILLUST NO. 4 OF 4(0406- )
ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90179-08233 | ||||
