Toyota Dyna/toyoace XZU306 FUEL TANK & TUBE

XZU306-TPMMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

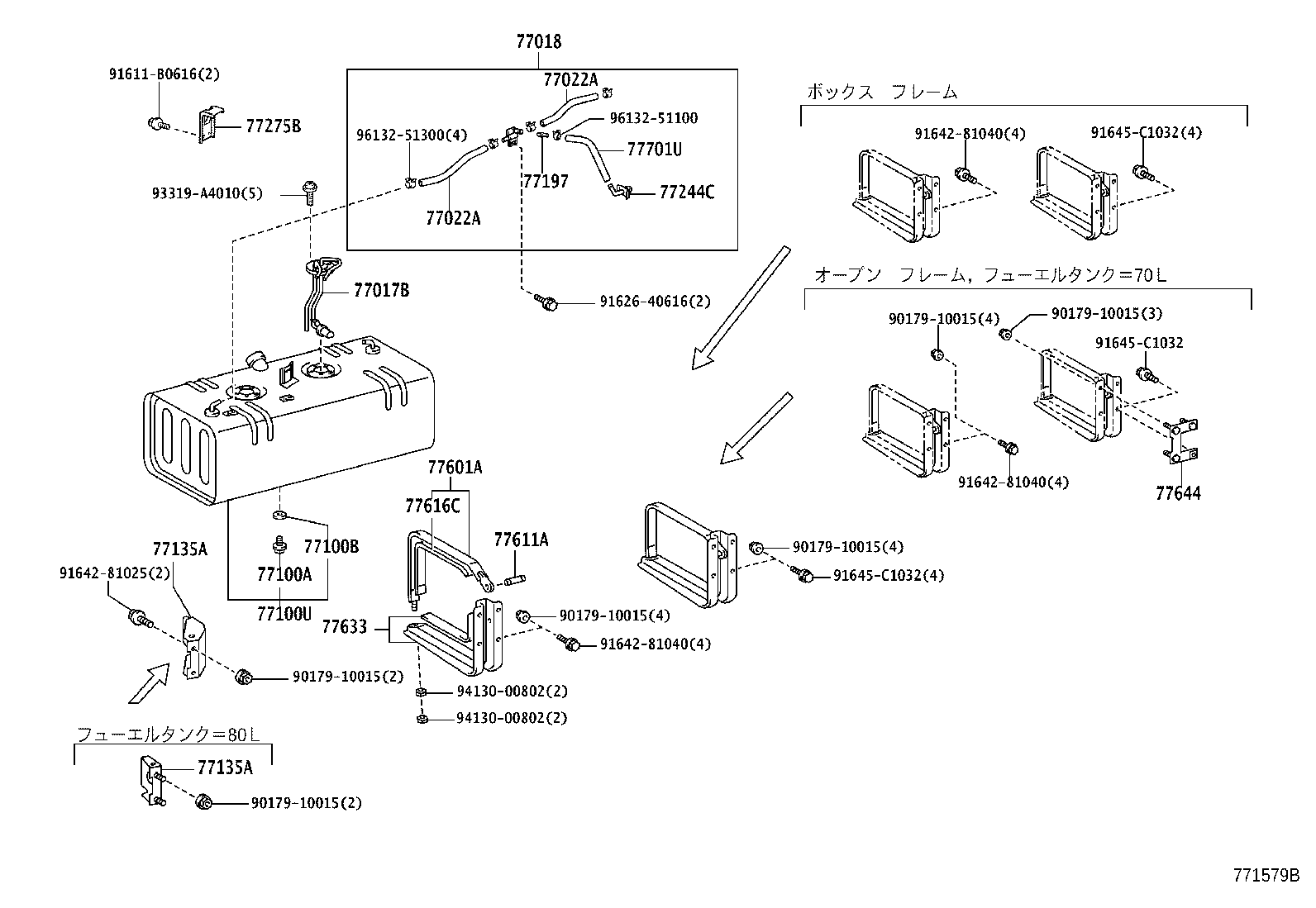

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010	XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)	05/1999 - 06/2004	1
77017-37010	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T)	06/2004 - 12/2999	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
77018-37050	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5	06/2004 - 12/2999	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37210	XZU31#..30T;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU312,352..SCB..5F..20T..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,362..(DM3,DM5,DM7,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,350,351..SCB..(DM2,DM3,DM7,DM8,T3,T4,T5)..DSL 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 01/2003	1
77001-37211	XZU352..5F..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,351..(DM2,DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,31#,32#,350,362..SCB..(DM3,DM5,DM7,DM8,T3,T4,T5)..(DSL,DSLL) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37211	XZU351..DM2;XZU351..5F..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37212	XZU351..DM2;XZU351..5F..IV3;XZU331,378..T3..30T..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
90977-02001	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150	XZU307..SCB..IV3;XZU347..(T2,T4)..CBU;XZU31#,320,350,371..30T,40T;XZU312,352..SCB..5F..20T..IV3;XZU301,382..(DM6,T3)..20T..(DSL,DSLL)..(IV3,IV6);BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..(IV3,IV4);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,330,340,346,347,362..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 06/2004	2
77601-36150	XZU346..IV3;XZU378..IV4;XZU378,388..SCB;XZU334..20T,40T;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU304..T4..DCRL..CBU;XZU334..30T..(IV3,IV4);XZU304,351..(DM5,T5)..5F..IV3;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU301,306,308,331,341,344,354..(T3,T5)..(IV3,IV6);XZU304,351..(DM2,DM6,T1,T3,T4)..(20T,30T)..(DSL,DSLL);XZU301,305,306,308,31#,321,331,336,338,341,344,348,368..SCB..(DM3,DM5,DM6,DM7,T2,T4)	06/2004 - 10/2006	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150	XZU307..SCB..IV3;XZU347..(T2,T4)..CBU;XZU31#,320,350,371..30T,40T;XZU312,352..SCB..5F..20T..IV3;XZU301,382..(DM6,T3)..20T..(DSL,DSLL)..(IV3,IV6);BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..(IV3,IV4);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,330,340,346,347,362..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 06/2004	2
77601-36150	XZU346..IV3;XZU378..IV4;XZU378,388..SCB;XZU334..20T,40T;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU304..T4..DCRL..CBU;XZU334..30T..(IV3,IV4);XZU304,351..(DM5,T5)..5F..IV3;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU301,306,308,331,341,344,354..(T3,T5)..(IV3,IV6);XZU304,351..(DM2,DM6,T1,T3,T4)..(20T,30T)..(DSL,DSLL);XZU301,305,306,308,31#,321,331,336,338,341,344,348,368..SCB..(DM3,DM5,DM6,DM7,T2,T4)	06/2004 - 10/2006	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77501-37080	XZU312..SCB..5F;XZU347..(T2,T4)..CBU;XZU311,320,350..30T,40T;XZU352,382..(DM2,DM5,T3)..5F..20T..IV3;XZU301,347..20T..(DSL,DSLL)..(IV3,IV6)..1NO;BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..IV3;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,307,330,340,346,362..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	08/1999 - 06/2004	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77501-37080	XZU312..SCB..5F;XZU347..(T2,T4)..CBU;XZU311,320,350..30T,40T;XZU352,382..(DM2,DM5,T3)..5F..20T..IV3;XZU301,347..20T..(DSL,DSLL)..(IV3,IV6)..1NO;BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..IV3;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,307,330,340,346,362..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	08/1999 - 06/2004	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77644 - BOLT, FUEL TANK
77644-37101	XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)	06/2004 - 12/2999	1
77644 - BOLT, FUEL TANK
77644-37101	XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)	06/2004 - 12/2999	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400	05/1999 - 06/2004	1
95333-06040	XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400	06/2004 - 12/2999	1
Common parts
90179-10015
91611-B0616
91626-40616
91642-81035
91642-81040
91645-C1032
93319-A4010
94130-00802
94130-01002
94612-11001
96132-51100
96132-51300

ILLUST NO. 1 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ(ｻﾌﾞﾀﾝｸｱﾘ)

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010	XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)	05/1999 - 06/2004	1
77017-37010	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T)	06/2004 - 12/2999	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
77018-37050	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5	06/2004 - 12/2999	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37210	XZU31#..30T;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU312,352..SCB..5F..20T..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,362..(DM3,DM5,DM7,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,350,351..SCB..(DM2,DM3,DM7,DM8,T3,T4,T5)..DSL 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 01/2003	1
77001-37211	XZU352..5F..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,351..(DM2,DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,31#,32#,350,362..SCB..(DM3,DM5,DM7,DM8,T3,T4,T5)..(DSL,DSLL) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37211	XZU351..DM2;XZU351..5F..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37212	XZU351..DM2;XZU351..5F..IV3;XZU331,378..T3..30T..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
90977-02001	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150	XZU307..SCB..IV3;XZU347..(T2,T4)..CBU;XZU31#,320,350,371..30T,40T;XZU312,352..SCB..5F..20T..IV3;XZU301,382..(DM6,T3)..20T..(DSL,DSLL)..(IV3,IV6);BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..(IV3,IV4);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,330,340,346,347,362..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 06/2004	2
77601-36150	XZU346..IV3;XZU378..IV4;XZU378,388..SCB;XZU334..20T,40T;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU304..T4..DCRL..CBU;XZU334..30T..(IV3,IV4);XZU304,351..(DM5,T5)..5F..IV3;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU301,306,308,331,341,344,354..(T3,T5)..(IV3,IV6);XZU304,351..(DM2,DM6,T1,T3,T4)..(20T,30T)..(DSL,DSLL);XZU301,305,306,308,31#,321,331,336,338,341,344,348,368..SCB..(DM3,DM5,DM6,DM7,T2,T4)	06/2004 - 10/2006	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77501-37080	XZU312..SCB..5F;XZU347..(T2,T4)..CBU;XZU311,320,350..30T,40T;XZU352,382..(DM2,DM5,T3)..5F..20T..IV3;XZU301,347..20T..(DSL,DSLL)..(IV3,IV6)..1NO;BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..IV3;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,307,330,340,346,362..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	08/1999 - 06/2004	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400	05/1999 - 06/2004	1
95333-06040	XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400	06/2004 - 12/2999	1
Common parts
90179-10015
90202-09047
90250-03031
90386-08164
90401-12007
90405-10008
90461-07033
90467-15012
90480-14006
91626-40616
91642-81035
91642-81040
91645-C1032
93319-15010
93319-A4010
94130-00802
96132-51100
96132-51300
96713-19017
96713-24011

ILLUST NO. 2 OF 3(9905-0406)BU306,346,XZU306,321,322,347,351,352..DCB,SCB..DSL

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
Common parts
90467-18008
96132-51300
Linked diagrams
2302

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,XZU300,302,306,307,31#,32#,330,331,340,341,342,346,347,350,362

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ(RH ﾌﾚ-ﾑﾌﾛﾝﾄｾｼﾞﾒﾝﾀ)

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
Common parts
90467-13007
90467-18002
90467-18008
96132-51300
Linked diagrams
2302

ILLUST NO. 3 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
90119-08676
90119-08830
90119-08A33
90129-08007
91626-60816
91641-80816
91642-81025
91651-60816

ILLUST NO. 2 OF 2(0406- )XZU301,304,306,308,336,338..SCB..DM3,T1,T2,T3,T5

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37330	XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)	05/1999 - 06/2004	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77205-37310	XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37310	XZU306..5F..DSL;XZU307,337..SCB..4FC;XZU306..T5..4FC..CBU;XZU306..4FC..DSL..IV3 ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ=ﾘﾔ & ｻｲﾄﾞ-LH)	05/1999 - 06/2004	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12020	XZU306..5F;XZU306..4FC..IV3;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=200,内径=12,NO.1 & NO.2	05/1999 - 06/2002	2
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12026	XZU306..5F..DSL;XZU306..4FC..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..T5..4FC..CBU;BU306,XZU307,337..SCB *H,L=260,内径=12,NO.3	05/1999 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12020	BU306,XZU306,307,337..SCB..DSL *H,L=200,内径=12,NO.1	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12022	BU306,XZU306,307,337..SCB..DSL *H,L=220,内径=12,NO.2	06/2002 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
Common parts
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010	XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)	05/1999 - 06/2004	1
77017-37010	XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)	05/1999 - 06/2004	1
77017-37010	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T)	06/2004 - 12/2999	1
77017-37010	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T)	06/2004 - 12/2999	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
77018-37050	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
77018-37050	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5	06/2004 - 12/2999	1
77018-37050	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5	06/2004 - 12/2999	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37210	XZU31#..30T;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU312,352..SCB..5F..20T..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,362..(DM3,DM5,DM7,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,350,351..SCB..(DM2,DM3,DM7,DM8,T3,T4,T5)..DSL 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 01/2003	1
77001-37210	XZU31#..30T;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU312,352..SCB..5F..20T..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,362..(DM3,DM5,DM7,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,350,351..SCB..(DM2,DM3,DM7,DM8,T3,T4,T5)..DSL 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 01/2003	1
77001-37211	XZU352..5F..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,351..(DM2,DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,31#,32#,350,362..SCB..(DM3,DM5,DM7,DM8,T3,T4,T5)..(DSL,DSLL) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37211	XZU352..5F..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,351..(DM2,DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,31#,32#,350,362..SCB..(DM3,DM5,DM7,DM8,T3,T4,T5)..(DSL,DSLL) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37211	XZU351..DM2;XZU351..5F..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37211	XZU351..DM2;XZU351..5F..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37212	XZU351..DM2;XZU351..5F..IV3;XZU331,378..T3..30T..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 10/2006	1
77001-37212	XZU351..DM2;XZU351..5F..IV3;XZU331,378..T3..30T..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU306..T4..DSL;XZU301..20T..IV7;XZU302..DSL..4NO;RZU300..30T..EFI;XZU302,337..T2,T3;XZU306..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..4FC..(CBU,IV3);BU30#,XZU300,307,350..SCB..(T1,T2,T3,T4,T5);XZU301,306..(DM3,T3,T5)..5F..DSL..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	05/1999 - 06/2004	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77135-37030	XZU301..CBU;RZU300..30T..EFI;XZU301..(T3,T4,T5)..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 12/2999	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
90977-02001	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
90977-02001	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
90977-02001	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	1
77244-37010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150	XZU307..SCB..IV3;XZU347..(T2,T4)..CBU;XZU31#,320,350,371..30T,40T;XZU312,352..SCB..5F..20T..IV3;XZU301,382..(DM6,T3)..20T..(DSL,DSLL)..(IV3,IV6);BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..(IV3,IV4);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,330,340,346,347,362..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 06/2004	2
77601-36150	XZU307..SCB..IV3;XZU347..(T2,T4)..CBU;XZU31#,320,350,371..30T,40T;XZU312,352..SCB..5F..20T..IV3;XZU301,382..(DM6,T3)..20T..(DSL,DSLL)..(IV3,IV6);BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..(IV3,IV4);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,330,340,346,347,362..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 06/2004	2
77601-36150	XZU346..IV3;XZU378..IV4;XZU378,388..SCB;XZU334..20T,40T;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU304..T4..DCRL..CBU;XZU334..30T..(IV3,IV4);XZU304,351..(DM5,T5)..5F..IV3;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU301,306,308,331,341,344,354..(T3,T5)..(IV3,IV6);XZU304,351..(DM2,DM6,T1,T3,T4)..(20T,30T)..(DSL,DSLL);XZU301,305,306,308,31#,321,331,336,338,341,344,348,368..SCB..(DM3,DM5,DM6,DM7,T2,T4)	06/2004 - 10/2006	2
77601-36150	XZU346..IV3;XZU378..IV4;XZU378,388..SCB;XZU334..20T,40T;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU304..T4..DCRL..CBU;XZU334..30T..(IV3,IV4);XZU304,351..(DM5,T5)..5F..IV3;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU301,306,308,331,341,344,354..(T3,T5)..(IV3,IV6);XZU304,351..(DM2,DM6,T1,T3,T4)..(20T,30T)..(DSL,DSLL);XZU301,305,306,308,31#,321,331,336,338,341,344,348,368..SCB..(DM3,DM5,DM6,DM7,T2,T4)	06/2004 - 10/2006	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77501-37080	XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	05/1999 - 08/1999	2
77501-37080	XZU312..SCB..5F;XZU347..(T2,T4)..CBU;XZU311,320,350..30T,40T;XZU352,382..(DM2,DM5,T3)..5F..20T..IV3;XZU301,347..20T..(DSL,DSLL)..(IV3,IV6)..1NO;BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..IV3;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,307,330,340,346,362..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	08/1999 - 06/2004	2
77501-37080	XZU312..SCB..5F;XZU347..(T2,T4)..CBU;XZU311,320,350..30T,40T;XZU352,382..(DM2,DM5,T3)..5F..20T..IV3;XZU301,347..20T..(DSL,DSLL)..(IV3,IV6)..1NO;BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..IV3;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,307,330,340,346,362..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7) ﾌﾕ-ｴﾙﾀﾝｸ=385X310	08/1999 - 06/2004	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77644 - BOLT, FUEL TANK
77644-37101	XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)	06/2004 - 12/2999	1
77644-37101	XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)	06/2004 - 12/2999	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400	05/1999 - 06/2004	1
95333-06040	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400	05/1999 - 06/2004	1
95333-06040	XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400	06/2004 - 12/2999	1
95333-06040	XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400	06/2004 - 12/2999	1
Common parts
90179-10015
91611-B0616
91626-40616
91642-81025
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

ILLUST NO. 1 OF 3(0610- )XZU30#,368,50#,568..SCB..DM3,DM5,T2,T3,T4,T5..CBU,IV3,IV7

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ(780X320X385)

Part #	Description	Period	Qty	Price
Common parts
93319-A4010
96132-51100
Linked diagrams
8401

XZU306-TPMMS3 (1999)

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362

ILLUST NO. 1 OF 3(9905-0406)

ILLUST NO. 2 OF 3(9905-0406)BU306,346,XZU306,321,322,347,351,352..DCB,SCB..DSL

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,XZU300,302,306,307,31#,32#,330,331,340,341,342,346,347,350,362

ILLUST NO. 3 OF 3(9905-0406)

ILLUST NO. 2 OF 2(0406- )XZU301,304,306,308,336,338..SCB..DM3,T1,T2,T3,T5

ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3

ILLUST NO. 1 OF 3(0610- )XZU30#,368,50#,568..SCB..DM3,DM5,T2,T3,T4,T5..CBU,IV3,IV7

Part Price Details
