XZU306-TPMMS3 (1999)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(9905-0206)XZU306,307,337,346,347
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51407A - COVER SUB-ASSY, ENGINE UNDER, NO.3 | ||||
| 51407-37060 |
XZU302..20T..WT;XZU301..5F..CBU..4NO;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU302..(295T,30T)..IV3;XZU301,306,307..(DCB,SCB)..4FC..CBU;XZU300,301,306,307,350..SCB..(IV3,IV6);XZU302,331,337,341,347..(T2,T3,T4,T5)..4FC..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51407-37060 |
XZU302..DM3,DM6;XZU302..4FC..4NO;XZU306,307..SCB..IV3;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU306,307..(DCB,SCB)..4FC..CBU;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,350..5F..(DSL,DSLL)..(IV3,IV6);XZU301,331,337,341,347..4FC..(CBU,IV3,IV6) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51407-37060 |
XZU302..(DM3,DM6)..5F;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,306,307,350..SCB..5F..(DSL,DSLL)..(IV3,IV6) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51407-37070 |
XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51407-37070 |
XZU301..5F..30T..IV6;XZU301..(T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7);XZU300,302,306,307,33#,34#,350..(03S,T2,T3,T4,T5)..(DSL,DSLL) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51407-37070 |
XZU30#,33#,34#..(03S,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51407B - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37090 |
XZU302..5F..DSL;XZU301..5F..20T..(DSL,DSLL)..(IV3,IV6)..1NO;XZU300,301,306,307,31#,33#,34#,35#..SCB..(DM2,DM3,DM5,T2,T3,T4,T5)..MTM..(DSL,DSLL) |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
2 | ||
| 51436-37080 |
XZU306..DSL |
2 | ||
| 51464 - SILENCER, TRANSMISSION UNDER, LH | ||||
| 51464-37040 |
XZU301..5F..30T..IV6;XZU301..(T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7);XZU300,302,306,307,33#,34#,350..(03S,T2,T3,T4,T5)..(DSL,DSLL) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51464-37050 |
XZU301..5F..CBU..4NO;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU302..(295T,30T)..IV3;XZU301,306,307..(DCB,SCB)..4FC..CBU;XZU300,301,306,307,350..SCB..(IV3,IV6);XZU302,331,337,341,347..(T2,T3,T4,T5)..4FC..(CBU,IV3);XZU302,31#,32#,351,352..(DM2,DM3,DM5,DM6,DM7,DM8,T5)..WT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51464-37050 |
XZU302..(DM3,DM6)..5F;XZU31#,32#,351,352..SCB..5F;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,306,307,350..SCB..5F..(DSL,DSLL)..(IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51464-37050 |
XZU302..DM3,DM6;XZU302..4FC..4NO;XZU31#,32#,351,352;XZU306,307..SCB..IV3;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU306,307..(DCB,SCB)..4FC..CBU;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,350..5F..(DSL,DSLL)..(IV3,IV6);XZU301,331,337,341,347..4FC..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51464-37040 |
XZU30#,33#,34#..(03S,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51464-37040 |
XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470 - COVER ASSY, TRANSMISSION UNDER | ||||
| 51470-37070 |
XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37100 |
XZU30#,350..SCB..(T2,T3,T4,T5)..5F..WT..(DSL,DSLL)..(IV3,IV6);XZU301,302,31#,351,352..SCB..(DM2,DM3,DM5,DM6)..5F..(DSL,DSLL)..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37270 |
RZU300,XZU347..DCB..5F;XZU301..DSLL..IV3..4NO;XZU307..(DCB,VAN)..5F..CBU;XZU301,302..(DM3,DM6)..5F..DSL;XZU300,301,302,306,307,350..(T2,T3,T4,T5)..5F..WT..DSL..(IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37290 |
XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37170 |
RZU300..SCB..EFI;BZU340,RZU301..5F..LPG;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37180 |
XZU306..(DCB,VAN)..5F..CBU;RZU300,XZU304,308,346..(DCB,VAN)..5F..(CBU,IV3);XZU301,304,306..(T2,T3,T4,T5)..5F..WT..DSL..(IV3,IV6);BZU300,XZU301,311,351..(DM2,DM3,DM5,DM6)..5F..(DSL,LPG) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37131 |
XZU306..DSL |
1 | ||
| 51473-37200 |
XZU378,388..SCB;XZU306,308,336,338,346,348,368 |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37091 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 51474-37091 |
XZU306,308,336,338,346,348,368,378,388 |
1 | ||
| 51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH | ||||
| 51480-37010 |
XZU300,302..T3..IV3;XZU301..(T4,T5)..CBU;XZU301..(T3,T4,T5)..(DSL,DSLL)..IV3;BU30#,XZU300,302,306,307,322..SCB..(T1,T2,T4,T5)..(DSL,DSLL) |
1 | ||
| 51480-37010 |
XZU301..(T4,T5)..CBU;XZU304..DCRL..CBU..4NO;XZU301..(T3,T4,T5)..IV3;XZU304..(T3,T4,T5)..DCRL..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH | ||||
| 51480-37010 |
XZU300,302..T3..IV3;XZU301..(T4,T5)..CBU;XZU301..(T3,T4,T5)..(DSL,DSLL)..IV3;BU30#,XZU300,302,306,307,322..SCB..(T1,T2,T4,T5)..(DSL,DSLL) |
1 | ||
| 51480-37010 |
XZU301..(T4,T5)..CBU;XZU304..DCRL..CBU..4NO;XZU301..(T3,T4,T5)..IV3;XZU304..(T3,T4,T5)..DCRL..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90467-09189 | ||||
| 90467-11020 | ||||
| 91651-B0814 | ||||
| 91651-B0825 | ||||
| 91651-B0830 | ||||
| 94150-80800 | ||||
ILLUST NO. 2 OF 2(9905-0406)
ﾌﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961C - HOOK, FRONT | ||||
| 51961-37070 |
BZU340,RZU30#,XZU378,388..(DM5,T2,T4)..20T;BZU300,RZU340,XZU301,304,306,308,321,334,336,338,34#,35#,368..(03S,06S,DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(175T,20T) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51961-37070 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU301,302,307,337,342,346,347,351,352..(03S,06S,DM5,T2,T3,T4,T5)..20T..WT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 51961-36040 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 51961-36040 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-37030 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 51963-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 51964B - HOOK, TRANSPORT, FRONT LH | ||||
| 51964-37040 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 51964-37040 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90178-14007 | ||||
| 91112-81460 | ||||
| 91645-C1032 | ||||
| 91672-01460 | ||||
| 94130-01002 | ||||
| 94130-01402 | ||||
| 94130-01432 | ||||
| 94622-41400 | ||||
ILLUST NO. 2 OF 2(0406- )
ﾌﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961C - HOOK, FRONT | ||||
| 51961-37070 |
BZU340,RZU30#,XZU378,388..(DM5,T2,T4)..20T;BZU300,RZU340,XZU301,304,306,308,321,334,336,338,34#,35#,368..(03S,06S,DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(175T,20T) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51961-37070 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU301,302,307,337,342,346,347,351,352..(03S,06S,DM5,T2,T3,T4,T5)..20T..WT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 51961-36040 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 51961-36040 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-37030 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 51963-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 51964B - HOOK, TRANSPORT, FRONT LH | ||||
| 51964-37040 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 51964-37040 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90178-14007 | ||||
| 91645-C1032 | ||||
| 91672-01460 | ||||
| 94130-01002 | ||||
| 94130-01402 | ||||
| 94130-01432 | ||||
| 94622-41400 | ||||

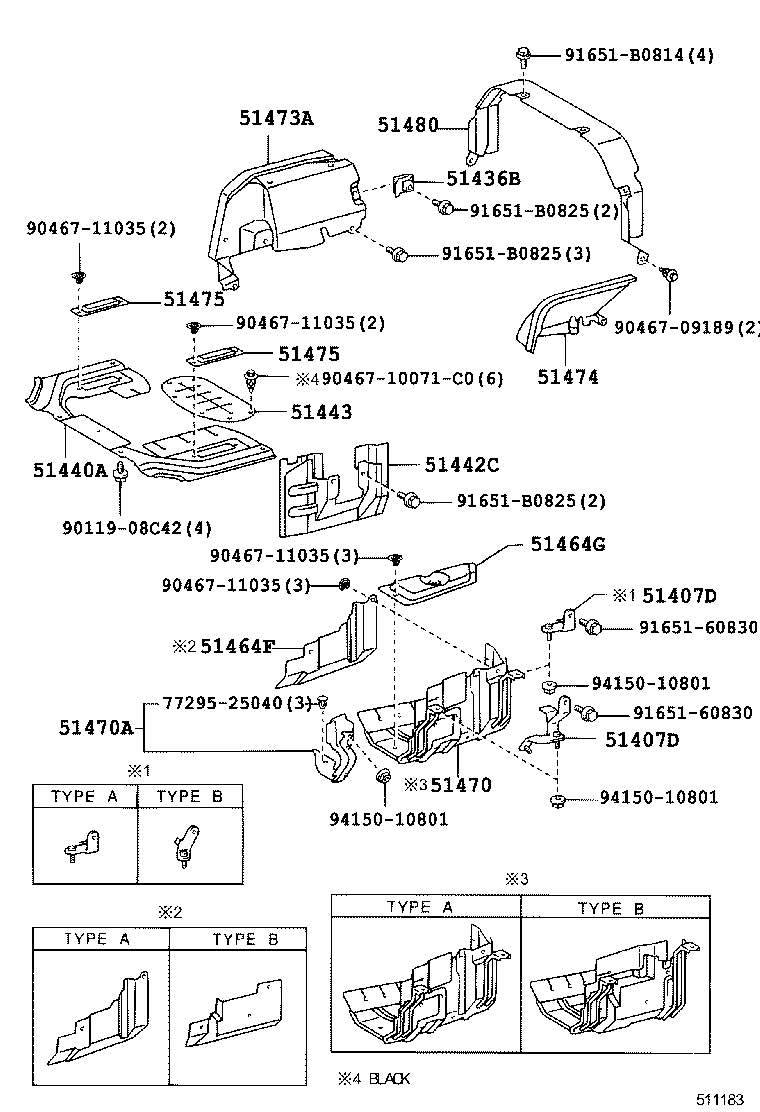

ILLUST NO. 1 OF 2(0406- )XZU306,308,336,338,346,348..SCB..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37180 |
XZU306,307..SCB..5F..DSL..IV3 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51407-37350 |
XZU306,307,337,346,347..SCB..5F..DSL ﾌﾛﾝﾄ |
1 | ||
| 51407-37070 |
XZU306,307..SCB..5F..DSL..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51407-37181 |
XZU307..03S..5F;XZU306,307..SCB..5F..DSL..IV3 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51407-37351 |
XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F ﾌﾛﾝﾄ |
1 | ||
| 51407-37070 |
BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51407-37351 |
XZU306,308,336,338,346,348..SCB..5F ﾌﾛﾝﾄ |
1 | ||
| 51407-37181 |
XZU306..(DCB,VAN)..5F..CBU;BZU300,XZU301..(DM3,DM6)..5F..(DSL,LPG);RZU300,XZU304,308,346..(DCB,VAN)..5F..(CBU,IV3);XZU301,304,306..(T2,T3,T4,T5)..5F..WT..DSL..(IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37180 |
XZU306,307..SCB..5F..DSL..IV3 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51407-37350 |
XZU306,307,337,346,347..SCB..5F..DSL ﾌﾛﾝﾄ |
1 | ||
| 51407-37070 |
XZU306,307..SCB..5F..DSL..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51407-37181 |
XZU307..03S..5F;XZU306,307..SCB..5F..DSL..IV3 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51407-37351 |
XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F ﾌﾛﾝﾄ |
1 | ||
| 51407-37070 |
BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51407-37351 |
XZU306,308,336,338,346,348..SCB..5F ﾌﾛﾝﾄ |
1 | ||
| 51407-37181 |
XZU306..(DCB,VAN)..5F..CBU;BZU300,XZU301..(DM3,DM6)..5F..(DSL,LPG);RZU300,XZU304,308,346..(DCB,VAN)..5F..(CBU,IV3);XZU301,304,306..(T2,T3,T4,T5)..5F..WT..DSL..(IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
2 | ||
| 51436-37080 |
XZU306..DSL |
2 | ||
| 51440A - COVER ASSY, ENGINE UNDER | ||||
| 51440-37280 |
XZU306,307,337,346,347..SCB..5F..DSL |
1 | ||
| 51440-37280 |
XZU306,307,337,346,347..SCB..5F |
1 | ||
| 51451-37010 |
XZU306,308,336,338,346,348..SCB..5F |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-37050 |
XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F |
1 | ||
| 51442-37050 |
XZU306,308,336,338,346,348..SCB..5F |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-37050 |
XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F |
1 | ||
| 51443-37050 |
XZU306,308,336,338,346,348..SCB..5F |
1 | ||
| 51464F - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37130 |
XZU306..(DCB,VAN)..5F..CBU;RZU300,XZU304,308,346..(DCB,VAN)..5F..(CBU,IV3);XZU301,304,306..(T2,T3,T4,T5)..5F..WT..DSL..(IV3,IV6);BZU300,XZU301,311,321,351..(DM2,DM3,DM5,DM6,DM7)..5F..(DSL,LPG) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51464-37130 |
RZU300,XZU347..DCB..5F;XZU301..DSLL..IV3..4NO;XZU307..(DCB,VAN)..5F..CBU;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU302,31#,351,352..(DM2,DM3,DM5,DM6)..5F;XZU300,301,306,307,350..5F..DSL..(IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51464-37120 |
XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;RZU300,XZU306,307,347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51464-37120 |
BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51464G - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37140 |
RZU300,XZU306,308,346..(SCB,VAN)..5F..(DSL,EFI)..(CBU,IV3);BZU300,340,RZU301,340,XZU301,304,33#,341,348,368,378,388..(T1,T2,T3,T4,T5)..5F..(20T,30T)..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 51464-37140 |
XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU341..MTM..(DSL,DSLL);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU300,XZU302,306,307,342,347..SCB..(T2,T3,T4,T5)..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU300,33#,340,346..(T2,T3,T4)..MTM..(DSL,DSLL,EFI,LPG) |
1 | ||
| 51470 - COVER ASSY, TRANSMISSION UNDER | ||||
| 51470-37070 |
XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37100 |
XZU30#,350..SCB..(T2,T3,T4,T5)..5F..WT..(DSL,DSLL)..(IV3,IV6);XZU301,302,31#,351,352..SCB..(DM2,DM3,DM5,DM6)..5F..(DSL,DSLL)..(CBU,IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37270 |
RZU300,XZU347..DCB..5F;XZU301..DSLL..IV3..4NO;XZU307..(DCB,VAN)..5F..CBU;XZU301,302..(DM3,DM6)..5F..DSL;XZU300,301,302,306,307,350..(T2,T3,T4,T5)..5F..WT..DSL..(IV3,IV6) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37290 |
XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37170 |
RZU300..SCB..EFI;BZU340,RZU301..5F..LPG;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470-37180 |
XZU306..(DCB,VAN)..5F..CBU;RZU300,XZU304,308,346..(DCB,VAN)..5F..(CBU,IV3);XZU301,304,306..(T2,T3,T4,T5)..5F..WT..DSL..(IV3,IV6);BZU300,XZU301,311,351..(DM2,DM3,DM5,DM6)..5F..(DSL,LPG) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51470A - COVER ASSY, TRANSMISSION UNDER, LH | ||||
| 51470-37210 |
XZU306,307,337,346,347..SCB..5F..DSL |
1 | ||
| 51470-37210 |
XZU306,308,336,338,346,348..SCB..5F |
1 | ||
| 51470-37210 |
XZU306,307,337,346,347..SCB..5F |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37131 |
XZU306..DSL |
1 | ||
| 51473-37200 |
XZU378,388..SCB;XZU306,308,336,338,346,348,368 |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37091 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 51474-37091 |
XZU306,308,336,338,346,348,368,378,388 |
1 | ||
| 51475 - SILENCER, ENGINE UNDER COVER, NO.5 | ||||
| 51475-37030 |
XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F |
2 | ||
| 51475-37030 |
XZU306,308,336,338,346,348,368,378,388..SCB..5F..DSL |
2 | ||
| 51475 - SILENCER, ENGINE UNDER COVER, NO.5 | ||||
| 51475-37030 |
XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F |
2 | ||
| 51475-37030 |
XZU306,308,336,338,346,348,368,378,388..SCB..5F..DSL |
2 | ||
| 51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH | ||||
| 51480-37010 |
XZU300,302..T3..IV3;XZU301..(T4,T5)..CBU;XZU301..(T3,T4,T5)..(DSL,DSLL)..IV3;BU30#,XZU300,302,306,307,322..SCB..(T1,T2,T4,T5)..(DSL,DSLL) |
1 | ||
| 51480-37010 |
XZU301..(T4,T5)..CBU;XZU304..DCRL..CBU..4NO;XZU301..(T3,T4,T5)..IV3;XZU304..(T3,T4,T5)..DCRL..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 77295-25040 | ||||
| 90119-08C42 | ||||
| 90467-09189 | ||||
| 90467-10071C0 | ||||
| 90467-11035 | ||||
| 91651-60830 | ||||
| 91651-B0814 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
ILLUST NO. 2 OF 2(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90178-14007 | ||||
| 91645-C1032 | ||||
| 91672-01460 | ||||
| 94130-01002 | ||||
| 94130-01402 | ||||
| 94130-01432 | ||||
| 94622-41400 | ||||
(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91112-71455 | ||||
| 91112-71460 | ||||
| 91162-71250 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 93590-56014 | ||||
| 94115-41200 | ||||
| 94115-51200 | ||||
| 94115-51400 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
ILLUST NO. 2 OF 2(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90178-14007 | ||||
| 91672-01460 | ||||
| 94125-41400 | ||||
| 94130-01402 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
