Toyota Dyna/toyoace XZU306 FRAME

XZU306-TPMMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

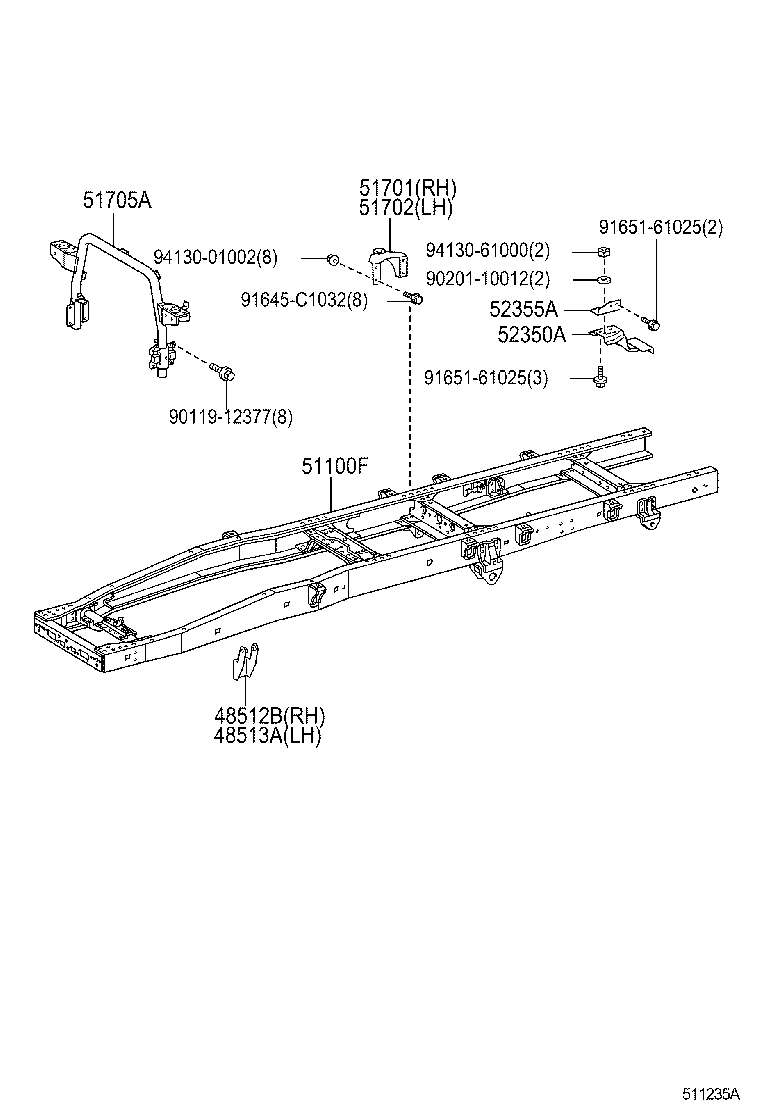

ILLUST NO. 1 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ﾌﾚ-ﾑ

Part #	Description	Period	Qty
51100F - FRAME SUB-ASSY
51002-37540	XZU306..T5;XZU307..T5..4FC	05/1999 - 06/2002	1
51001-3V630	XZU306..T5;XZU307..T5..4FC	06/2002 - 06/2004	1
51001-37E30	XZU306,308..T5	06/2004 - 05/2005	1
51001-37E31	XZU306,308..T5	05/2005 - 10/2006	1

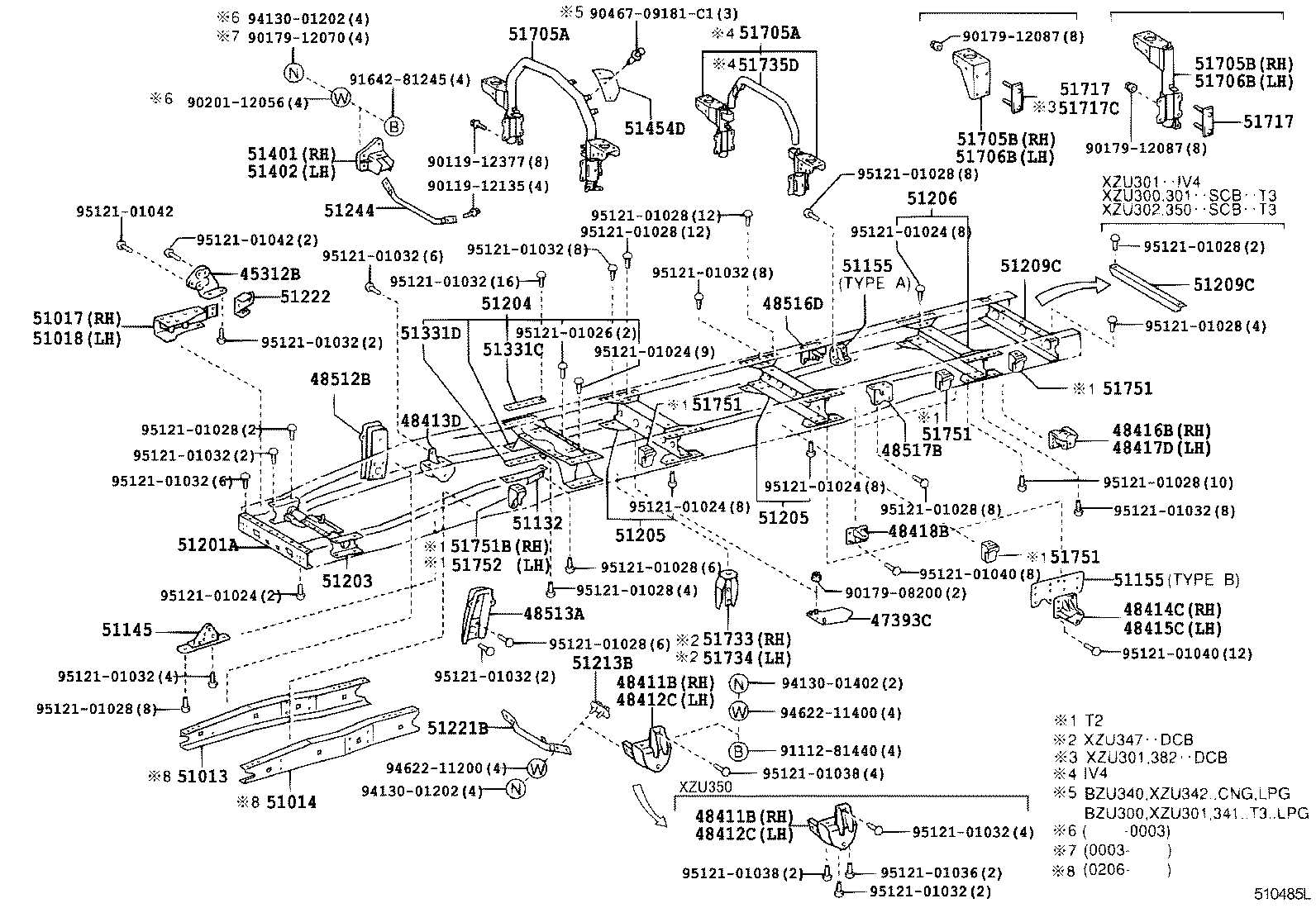

ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｻｽﾍﾟﾝｼﾖﾝ

Part #	Description	Period	Qty
48311A - BRACKET, HOLLOW SPRING, RH
48311-37010	XZU306,308,336,338,346,348 NO.1	06/2004 - 10/2006	1
48311-37010	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
48312A - BRACKET, HOLLOW SPRING, LH
48311-37010	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
48311-37010	XZU306,308,336,338,346,348 NO.1	06/2004 - 10/2006	1
51032A - MEMBER SUB-ASSY, ANCHOR ARM SUPPORT
51032-37030	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51032-37020	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51032-37030	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX
51065-37020	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	05/1999 - 06/2004	1
51065-37020	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51201F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-37080	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51201-37080	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	05/1999 - 06/2004	1
51210A - MEMBER ASSY, FRONT SUSPENSION
51210-37030	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51210-37020	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51210-37030	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51491A - BAR, UNDER GUARD, FRONT NO.1
51491-37030	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	05/1999 - 06/2004	1
51491-37030	XZU306,308,336,338,346,348,368,378,388..DCRL,DSL	06/2004 - 10/2006	1
51492B - BAR, UNDER GUARD, FRONT NO.2
51492-37020	XZU306,308,336,338,346,348,368,378,388..DCRL,DSL	06/2004 - 10/2006	1
51492-37020	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	05/1999 - 06/2004	1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-37020	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51501-37020	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51501-37011	BU306,346,XZU306,307,337,346,347	06/1999 - 06/2002	1
51501-37010	BU306,346,XZU306,307,337,346,347	05/1999 - 06/1999	1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-37020	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51501-37020	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51501-37011	BU306,346,XZU306,307,337,346,347	06/1999 - 06/2002	1
51501-37010	BU306,346,XZU306,307,337,346,347	05/1999 - 06/1999	1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-37010	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51502-37020	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51502-37040	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-37010	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51502-37020	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51502-37040	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-37050	XZU306,336,346	06/2004 - 10/2006	1
51518-37030	XZU306,307,337,346,347	05/1999 - 06/2002	1
51508-37050	XZU306..DSL;XZU306..4FC..DSLL;XZU307,337,346,347;XZU306..5F..DSLL..CBU	06/2002 - 06/2004	1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-37050	XZU306,336,346	06/2004 - 10/2006	1
51518-37030	XZU306,307,337,346,347	05/1999 - 06/2002	1
51508-37050	XZU306..DSL;XZU306..4FC..DSLL;XZU307,337,346,347;XZU306..5F..DSLL..CBU	06/2002 - 06/2004	1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51519-37030	XZU306,307,337,346,347	05/1999 - 06/2002	1
51509-37050	XZU306,336,346	06/2004 - 10/2006	1
51509-37050	XZU306..DSL;XZU306..4FC..DSLL;XZU307,337,346,347;XZU306..5F..DSLL..CBU	06/2002 - 06/2004	1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51519-37030	XZU306,307,337,346,347	05/1999 - 06/2002	1
51509-37050	XZU306,336,346	06/2004 - 10/2006	1
51509-37050	XZU306..DSL;XZU306..4FC..DSLL;XZU307,337,346,347;XZU306..5F..DSLL..CBU	06/2002 - 06/2004	1
51515 - SUPPORT, UPPER ARM, NO.2 RH
51515-37010	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	2
51515-37020	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	2
51515-37020	XZU306,308,336,338,346,348	06/2004 - 10/2006	2
51515 - SUPPORT, UPPER ARM, NO.2 RH
51515-37010	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	2
51515-37020	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	2
51515-37020	XZU306,308,336,338,346,348	06/2004 - 10/2006	2
51568A - SUPPORT, ANCHOR ARM, LOWER RH
51568-37180	XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL	05/1999 - 06/2004	1
51568-37181	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51569B - SUPPORT, ANCHOR ARM, LOWER LH
51569-37171	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51569-37170	XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL	05/1999 - 06/2004	1
Common parts
90105-10446
90105-14065
90119-10740
90119-14100
90119-14104
90119-14107
90119-16008
90119-16012
90179-14061
90179-16029
90182-10003
91612-61030
91642-81235
94622-11400
94622-41400
94622-41600

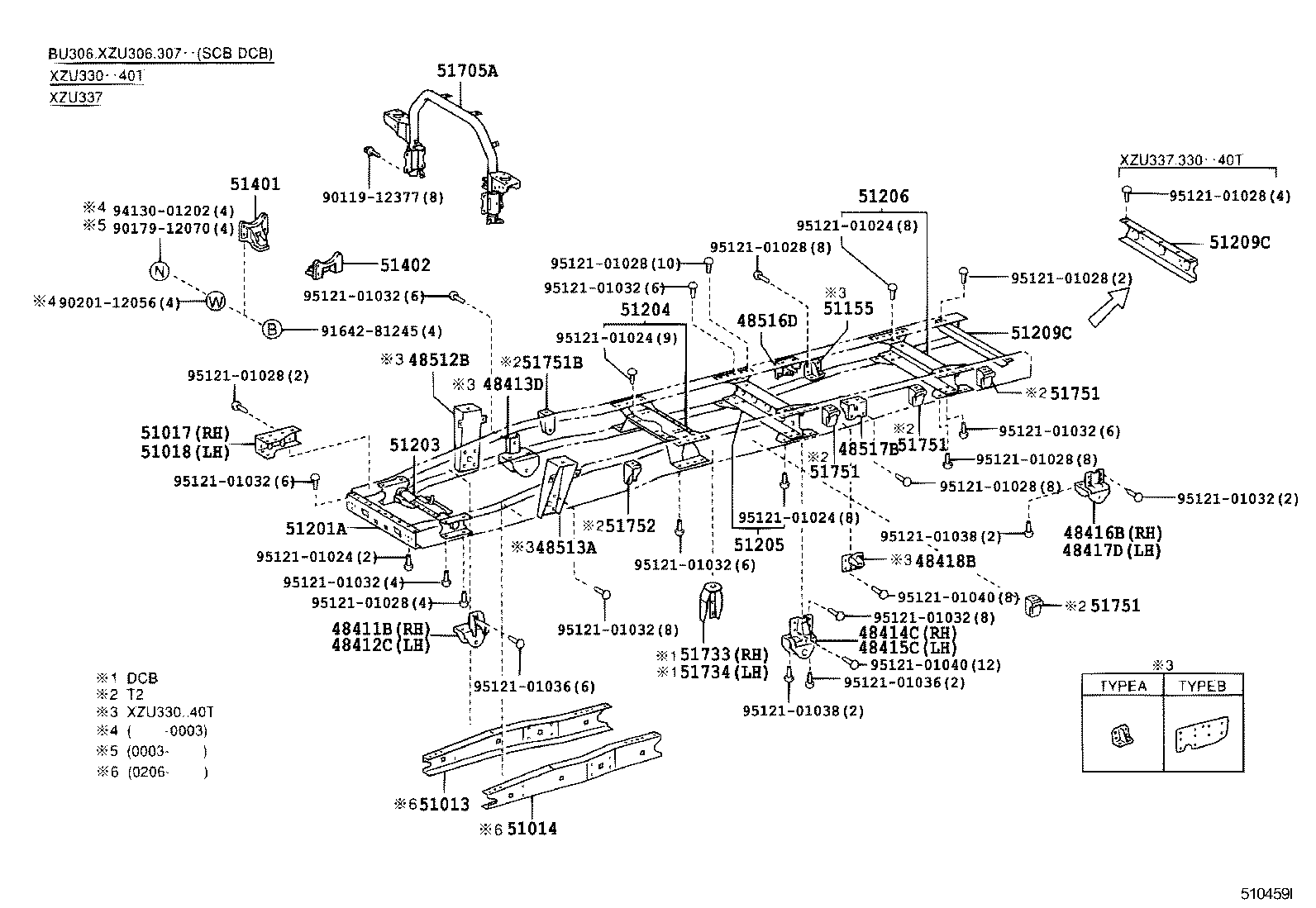

ILLUST NO. 4 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞ-ﾄﾞ

Part #	Description	Period	Qty
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
Common parts
90119-08908

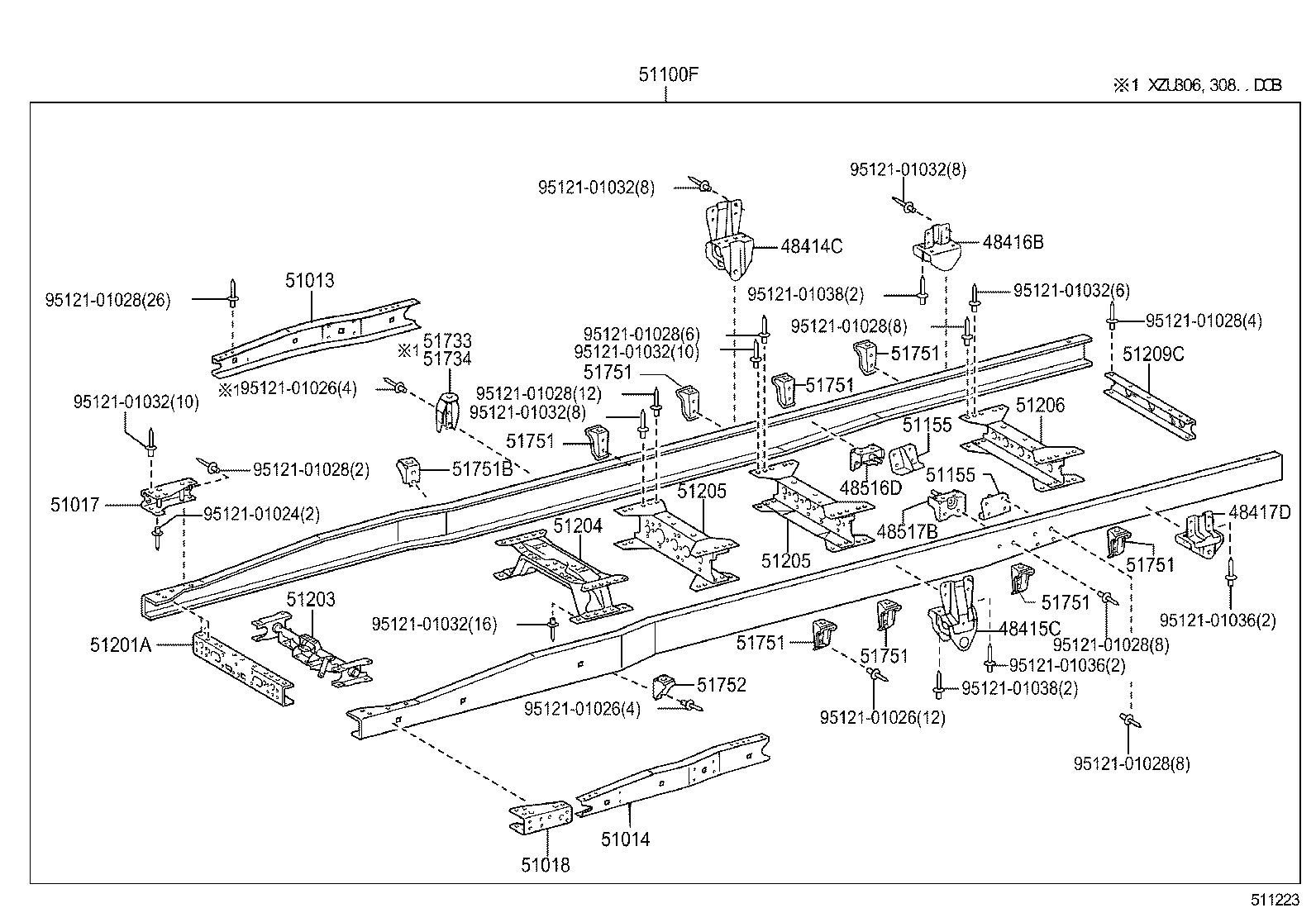

ILLUST NO. 2 OF 4(9905-0406)BU306,XZU306,307,330,337..20T,40T

Click highlighted areas on diagram

ﾌﾚ-ﾑ

Part #	Description	Period	Qty
48414C - BRACKET, SPRING, NO.3 RH
48414-37050	XZU302..T5..20T..WT;XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301,362..(DM5,DM7,T4,T5)..20T;BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48414-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48415C - BRACKET, SPRING, NO.3 LH
48414-37050	XZU302..T5..20T..WT;XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301,362..(DM5,DM7,T4,T5)..20T;BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48414-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48416B - BRACKET, SPRING, NO.4 RH
48416-37050	XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301,302..T5..20T..WT;XZU301..(DM6,T4)..(CNG,LPG);BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48416-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48417D - BRACKET, SPRING, NO.4 LH
48416-37050	XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301,302..T5..20T..WT;XZU301..(DM6,T4)..(CNG,LPG);BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48416-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37070	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
48512-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..DCB,SCB	06/2002 - 06/2004	1
48512-37120	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37070	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
48512-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..DCB,SCB	06/2002 - 06/2004	1
48512-37120	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37010	RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT	05/1999 - 06/2004	1
48505-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37010	RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT	05/1999 - 06/2004	1
48505-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37190	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 11/2003	1
51013-37191	BU306,346,XZU306,307,337,346,347	11/2003 - 06/2004	1
51013-37192	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37190	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 11/2003	1
51014-37191	BU306,346,XZU306,307,337,346,347	11/2003 - 06/2004	1
51014-37192	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37030	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51017-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51017-37150	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37020	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350	05/1999 - 11/2003	1
51018-37021	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350	11/2003 - 06/2004	1
51018-37021	XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388	06/2004 - 12/2999	1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT	05/1999 - 06/2004	2
51155-37060	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT	06/2004 - 12/2999	2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350	05/1999 - 06/2004	1
51211-37090	XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#	06/2004 - 12/2999	1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37080	BU30#,346,RZU300,340,XZU30#,33#,34#,350	05/1999 - 06/2002	1
51202-37120	XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG	06/2002 - 06/2004	1
51202-37150	XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5	06/2004 - 12/2999	1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37090	XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU307,337..(DCB,SCB)..4FC;XZU330,340,346,347,350..20T,35T,40T	05/1999 - 06/2004	1
51203-37060	XZU334,344..35T,40T;XZU306,308,336,338,346,348,354..T2,T3,T4,T5	06/2004 - 10/2006	1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
51205-37060	XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7)	06/2004 - 10/2006	1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37010	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT	05/1999 - 06/2004	1
51206-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 10/2006	1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37070	XZU307..T4..5F;XZU307..DCB..4FC;XZU306,307..T2,T5;BU306,XZU300,301,302,350..(DCB,SCB)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 03/2000	1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37070	XZU307..T4..5F;XZU307..DCB..4FC;XZU306,307..T2,T5;BU306,XZU300,301,302,350..(DCB,SCB)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 03/2000	1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37120	BU306,346,XZU306,307,337,346,347..SCB	05/1999 - 06/2002	1
51705-37450	XZU306,308,336,338,346,348..SCB	06/2004 - 10/2006	1
51705-37250	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB	06/2002 - 06/2004	1
Common parts
90119-12377
90179-12070
90201-12056
91642-81245
94130-01202
95121-01024
95121-01028
95121-01032
95121-01036
95121-01038
95121-01040

ILLUST NO. 2 OF 4(9905-0406)BU346,BZU340,XZU306,307,337,340,341,342,346,35#..SCB..DM5,T2,T3,T4,T5

Click highlighted areas on diagram

ﾌﾚ-ﾑ

Part #	Description	Period	Qty
48414C - BRACKET, SPRING, NO.3 RH
48414-37050	XZU302..T5..20T..WT;XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301,362..(DM5,DM7,T4,T5)..20T;BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48414-37050	XZU302..T5..20T..WT;XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301,362..(DM5,DM7,T4,T5)..20T;BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48414-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48414-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48415C - BRACKET, SPRING, NO.3 LH
48414-37050	XZU302..T5..20T..WT;XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301,362..(DM5,DM7,T4,T5)..20T;BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48414-37050	XZU302..T5..20T..WT;XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301,362..(DM5,DM7,T4,T5)..20T;BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48414-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48414-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48416B - BRACKET, SPRING, NO.4 RH
48416-37050	XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301,302..T5..20T..WT;XZU301..(DM6,T4)..(CNG,LPG);BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48416-37050	XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301,302..T5..20T..WT;XZU301..(DM6,T4)..(CNG,LPG);BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48416-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48416-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48417D - BRACKET, SPRING, NO.4 LH
48416-37050	XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301,302..T5..20T..WT;XZU301..(DM6,T4)..(CNG,LPG);BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48416-37050	XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301,302..T5..20T..WT;XZU301..(DM6,T4)..(CNG,LPG);BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48416-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48416-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37070	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
48512-37070	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
48512-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..DCB,SCB	06/2002 - 06/2004	1
48512-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..DCB,SCB	06/2002 - 06/2004	1
48512-37120	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
48512-37120	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37070	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
48512-37070	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
48512-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..DCB,SCB	06/2002 - 06/2004	1
48512-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..DCB,SCB	06/2002 - 06/2004	1
48512-37120	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
48512-37120	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37010	RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT	05/1999 - 06/2004	1
48505-37010	RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT	05/1999 - 06/2004	1
48505-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
48505-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37010	RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT	05/1999 - 06/2004	1
48505-37010	RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT	05/1999 - 06/2004	1
48505-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
48505-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37190	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 11/2003	1
51013-37190	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 11/2003	1
51013-37191	BU306,346,XZU306,307,337,346,347	11/2003 - 06/2004	1
51013-37191	BU306,346,XZU306,307,337,346,347	11/2003 - 06/2004	1
51013-37192	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51013-37192	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37190	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 11/2003	1
51014-37190	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 11/2003	1
51014-37191	BU306,346,XZU306,307,337,346,347	11/2003 - 06/2004	1
51014-37191	BU306,346,XZU306,307,337,346,347	11/2003 - 06/2004	1
51014-37192	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51014-37192	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37030	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51017-37030	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51017-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51017-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51017-37150	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
51017-37150	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37020	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350	05/1999 - 11/2003	1
51018-37020	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350	05/1999 - 11/2003	1
51018-37021	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350	11/2003 - 06/2004	1
51018-37021	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350	11/2003 - 06/2004	1
51018-37021	XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388	06/2004 - 12/2999	1
51018-37021	XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388	06/2004 - 12/2999	1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT	05/1999 - 06/2004	2
51155-37060	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT	05/1999 - 06/2004	2
51155-37060	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT	06/2004 - 12/2999	2
51155-37060	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT	06/2004 - 12/2999	2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT	05/1999 - 06/2004	2
51155-37060	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT	05/1999 - 06/2004	2
51155-37060	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT	06/2004 - 12/2999	2
51155-37060	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT	06/2004 - 12/2999	2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350	05/1999 - 06/2004	1
51211-37090	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350	05/1999 - 06/2004	1
51211-37090	XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#	06/2004 - 12/2999	1
51211-37090	XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#	06/2004 - 12/2999	1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37080	BU30#,346,RZU300,340,XZU30#,33#,34#,350	05/1999 - 06/2002	1
51202-37080	BU30#,346,RZU300,340,XZU30#,33#,34#,350	05/1999 - 06/2002	1
51202-37120	XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG	06/2002 - 06/2004	1
51202-37120	XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG	06/2002 - 06/2004	1
51202-37150	XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5	06/2004 - 12/2999	1
51202-37150	XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5	06/2004 - 12/2999	1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37090	XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU307,337..(DCB,SCB)..4FC;XZU330,340,346,347,350..20T,35T,40T	05/1999 - 06/2004	1
51203-37090	XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU307,337..(DCB,SCB)..4FC;XZU330,340,346,347,350..20T,35T,40T	05/1999 - 06/2004	1
51203-37060	XZU334,344..35T,40T;XZU306,308,336,338,346,348,354..T2,T3,T4,T5	06/2004 - 10/2006	1
51203-37060	XZU334,344..35T,40T;XZU306,308,336,338,346,348,354..T2,T3,T4,T5	06/2004 - 10/2006	1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
51205-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
51205-37060	XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7)	06/2004 - 10/2006	1
51205-37060	XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7)	06/2004 - 10/2006	1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
51205-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
51205-37060	XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7)	06/2004 - 10/2006	1
51205-37060	XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7)	06/2004 - 10/2006	1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37010	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT	05/1999 - 06/2004	1
51206-37010	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT	05/1999 - 06/2004	1
51206-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 10/2006	1
51206-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 10/2006	1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37070	XZU307..T4..5F;XZU307..DCB..4FC;XZU306,307..T2,T5;BU306,XZU300,301,302,350..(DCB,SCB)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 03/2000	1
51291-37070	XZU307..T4..5F;XZU307..DCB..4FC;XZU306,307..T2,T5;BU306,XZU300,301,302,350..(DCB,SCB)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 03/2000	1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37070	XZU307..T4..5F;XZU307..DCB..4FC;XZU306,307..T2,T5;BU306,XZU300,301,302,350..(DCB,SCB)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 03/2000	1
51291-37070	XZU307..T4..5F;XZU307..DCB..4FC;XZU306,307..T2,T5;BU306,XZU300,301,302,350..(DCB,SCB)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 03/2000	1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37120	BU306,346,XZU306,307,337,346,347..SCB	05/1999 - 06/2002	1
51705-37120	BU306,346,XZU306,307,337,346,347..SCB	05/1999 - 06/2002	1
51705-37450	XZU306,308,336,338,346,348..SCB	06/2004 - 10/2006	1
51705-37450	XZU306,308,336,338,346,348..SCB	06/2004 - 10/2006	1
51705-37250	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB	06/2002 - 06/2004	1
51705-37250	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB	06/2002 - 06/2004	1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37120	BU306,346,XZU306,307,337,346,347..SCB	05/1999 - 06/2002	1
51705-37120	BU306,346,XZU306,307,337,346,347..SCB	05/1999 - 06/2002	1
51705-37450	XZU306,308,336,338,346,348..SCB	06/2004 - 10/2006	1
51705-37450	XZU306,308,336,338,346,348..SCB	06/2004 - 10/2006	1
51705-37250	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB	06/2002 - 06/2004	1
51705-37250	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB	06/2002 - 06/2004	1
Common parts
90119-12135
90119-12377
90179-08200
90179-12070
90179-12087
90201-12056
90467-09181C1
91112-81440
91642-81245
94130-01202
94130-01402
94622-11200
94622-11400
95121-01024
95121-01026
95121-01028
95121-01032
95121-01036
95121-01038
95121-01040
95121-01042

ILLUST NO. 2 OF 4(0406-0610)XZU306,308,336,338..DCB,SCB

Click highlighted areas on diagram

ﾌﾚｰﾑ

Part #	Description	Period	Qty
48414C - BRACKET, SPRING, NO.3 RH
48414-37050	XZU302..T5..20T..WT;XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301,362..(DM5,DM7,T4,T5)..20T;BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48414-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48415C - BRACKET, SPRING, NO.3 LH
48414-37050	XZU302..T5..20T..WT;XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301,362..(DM5,DM7,T4,T5)..20T;BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48414-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48416B - BRACKET, SPRING, NO.4 RH
48416-37050	XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301,302..T5..20T..WT;XZU301..(DM6,T4)..(CNG,LPG);BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48416-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48417D - BRACKET, SPRING, NO.4 LH
48416-37050	XZU301..T4..DSL..1NO;XZU301..DM3..4FC..30T;XZU301,302..T5..20T..WT;XZU301..(DM6,T4)..(CNG,LPG);BZU300,XZU302..T4..(295T,30T)..1NO;BU30#,BZU300,XZU306,307..(DM6,T5)..WT	05/1999 - 06/2004	1
48416-37050	XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT	06/2004 - 12/2999	1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37010	RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT	05/1999 - 06/2004	1
48505-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37010	RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT	05/1999 - 06/2004	1
48505-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37190	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 11/2003	1
51013-37191	BU306,346,XZU306,307,337,346,347	11/2003 - 06/2004	1
51013-37192	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37190	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 11/2003	1
51014-37191	BU306,346,XZU306,307,337,346,347	11/2003 - 06/2004	1
51014-37192	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37030	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51017-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51017-37150	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37020	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350	05/1999 - 11/2003	1
51018-37021	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350	11/2003 - 06/2004	1
51018-37021	XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388	06/2004 - 12/2999	1
51100F - FRAME SUB-ASSY
51002-37540	XZU306..T5;XZU307..T5..4FC	05/1999 - 06/2002	1
51001-3V630	XZU306..T5;XZU307..T5..4FC	06/2002 - 06/2004	1
51001-37E30	XZU306,308..T5	06/2004 - 05/2005	1
51001-37E31	XZU306,308..T5	05/2005 - 10/2006	1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT	05/1999 - 06/2004	2
51155-37060	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT	06/2004 - 12/2999	2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT	05/1999 - 06/2004	2
51155-37060	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT	06/2004 - 12/2999	2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350	05/1999 - 06/2004	1
51211-37090	XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#	06/2004 - 12/2999	1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37080	BU30#,346,RZU300,340,XZU30#,33#,34#,350	05/1999 - 06/2002	1
51202-37120	XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG	06/2002 - 06/2004	1
51202-37150	XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5	06/2004 - 12/2999	1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37090	XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU307,337..(DCB,SCB)..4FC;XZU330,340,346,347,350..20T,35T,40T	05/1999 - 06/2004	1
51203-37060	XZU334,344..35T,40T;XZU306,308,336,338,346,348,354..T2,T3,T4,T5	06/2004 - 10/2006	1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
51205-37060	XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7)	06/2004 - 10/2006	1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
51205-37060	XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7)	06/2004 - 10/2006	1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37010	XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT	05/1999 - 06/2004	1
51206-37010	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 10/2006	1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37070	XZU307..T4..5F;XZU307..DCB..4FC;XZU306,307..T2,T5;BU306,XZU300,301,302,350..(DCB,SCB)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 03/2000	1
Common parts
95121-01024
95121-01026
95121-01028
95121-01032
95121-01036
95121-01038

ILLUST NO. 1 OF 4(0406-0610)XZU306,308,336,338,346,348

Click highlighted areas on diagram

Part #	Description	Period	Qty
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37070	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
48512-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..DCB,SCB	06/2002 - 06/2004	1
48512-37120	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37070	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
48512-37120	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..DCB,SCB	06/2002 - 06/2004	1
48512-37120	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51100F - FRAME SUB-ASSY
51002-37540	XZU306..T5;XZU307..T5..4FC	05/1999 - 06/2002	1
51001-3V630	XZU306..T5;XZU307..T5..4FC	06/2002 - 06/2004	1
51001-37E30	XZU306,308..T5	06/2004 - 05/2005	1
51001-37E31	XZU306,308..T5	05/2005 - 10/2006	1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37120	BU306,346,XZU306,307,337,346,347..SCB	05/1999 - 06/2002	1
51705-37450	XZU306,308,336,338,346,348..SCB	06/2004 - 10/2006	1
51705-37250	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB	06/2002 - 06/2004	1
Common parts
90119-12377
90201-10012
91645-C1032
91651-61025
94130-01002
94130-61000

ILLUST NO. 3 OF 4(0406-0610)XZU306,308,336,338,346,348

Click highlighted areas on diagram

ｻｽﾍﾟﾝｼﾖﾝ

Part #	Description	Period	Qty
48311A - BRACKET, HOLLOW SPRING, RH
48311-37010	XZU306,308,336,338,346,348 NO.1	06/2004 - 10/2006	1
48311-37010	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
48312A - BRACKET, HOLLOW SPRING, LH
48311-37010	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
48311-37010	XZU306,308,336,338,346,348 NO.1	06/2004 - 10/2006	1
51032A - MEMBER SUB-ASSY, ANCHOR ARM SUPPORT
51032-37030	XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51032-37020	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51032-37030	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX
51065-37020	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	05/1999 - 06/2004	1
51065-37020	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51201F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-37080	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51201-37080	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	05/1999 - 06/2004	1
51210A - MEMBER ASSY, FRONT SUSPENSION
51210-37030	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51210-37020	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51210-37030	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51491A - BAR, UNDER GUARD, FRONT NO.1
51491-37030	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	05/1999 - 06/2004	1
51491-37030	XZU306,308,336,338,346,348,368,378,388..DCRL,DSL	06/2004 - 10/2006	1
51492B - BAR, UNDER GUARD, FRONT NO.2
51492-37020	XZU306,308,336,338,346,348,368,378,388..DCRL,DSL	06/2004 - 10/2006	1
51492-37020	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	05/1999 - 06/2004	1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-37020	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51501-37020	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51501-37011	BU306,346,XZU306,307,337,346,347	06/1999 - 06/2002	1
51501-37010	BU306,346,XZU306,307,337,346,347	05/1999 - 06/1999	1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-37010	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	1
51502-37020	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	1
51502-37040	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-37050	XZU306,336,346	06/2004 - 10/2006	1
51518-37030	XZU306,307,337,346,347	05/1999 - 06/2002	1
51508-37050	XZU306..DSL;XZU306..4FC..DSLL;XZU307,337,346,347;XZU306..5F..DSLL..CBU	06/2002 - 06/2004	1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51519-37030	XZU306,307,337,346,347	05/1999 - 06/2002	1
51509-37050	XZU306,336,346	06/2004 - 10/2006	1
51509-37050	XZU306..DSL;XZU306..4FC..DSLL;XZU307,337,346,347;XZU306..5F..DSLL..CBU	06/2002 - 06/2004	1
51515 - SUPPORT, UPPER ARM, NO.2 RH
51515-37010	BU306,346,XZU306,307,337,346,347	05/1999 - 06/2002	2
51515-37020	XZU306..DSL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU306,346,XZU307,337,346,347	06/2002 - 06/2004	2
51515-37020	XZU306,308,336,338,346,348	06/2004 - 10/2006	2
51568A - SUPPORT, ANCHOR ARM, LOWER RH
51568-37180	XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL	05/1999 - 06/2004	1
51568-37181	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51569B - SUPPORT, ANCHOR ARM, LOWER LH
51569-37171	XZU306,308,336,338,346,348	06/2004 - 10/2006	1
51569-37170	XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL	05/1999 - 06/2004	1
Common parts
90105-14065
90119-10740
90119-12377
90119-14100
90119-14104
90119-14107
90119-16008
90119-16012
90178-14002
90179-14061
90179-16029
90182-10003
91642-81235
94151-21200
94622-41400
94622-41600

ILLUST NO. 4 OF 4(0406- )

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞｰﾄﾞ

Part #	Description	Period	Qty
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-37160	RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2004	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
51569 - GUARD, PROPELLER SHAFT
51569-37140	XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG)	05/1999 - 06/2003	1
51569-37141	BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB	06/2003 - 06/2004	1
51569-37370	XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
Common parts
90119-08908
90179-08233

ILLUST NO. 1 OF 4(0610- )DCB,SCB

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-12377
90179-12070
90179-12087
90467-09101
91642-81245

ILLUST NO. 4 OF 4(0610- )

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ

Part #	Description	Period	Qty	Price
Common parts
90119-08908
90179-08233

ILLUST NO. 1 OF 2(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
51743-36011
51751-36020
51769-36040
90101-10096
90201-10489
90201-12002
91112-71030
91161-71230
94110-51000
94115-51200
94184-01000
Linked diagrams
1702

XZU306-TPMMS3 (1999)

ILLUST NO. 1 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 4 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 2 OF 4(9905-0406)BU306,XZU306,307,330,337..20T,40T

ILLUST NO. 2 OF 4(9905-0406)BU346,BZU340,XZU306,307,337,340,341,342,346,35#..SCB..DM5,T2,T3,T4,T5

ILLUST NO. 2 OF 4(0406-0610)XZU306,308,336,338..DCB,SCB

ILLUST NO. 1 OF 4(0406-0610)XZU306,308,336,338,346,348

ILLUST NO. 3 OF 4(0406-0610)XZU306,308,336,338,346,348

ILLUST NO. 4 OF 4(0406- )

ILLUST NO. 1 OF 4(0610- )DCB,SCB

ILLUST NO. 4 OF 4(0610- )

ILLUST NO. 1 OF 2(7708- )

ILLUST NO. 2 OF 2(7708- )

Part Price Details
