XZU306-TPMMS3 (1999)
Toyota Dyna/Toyoace

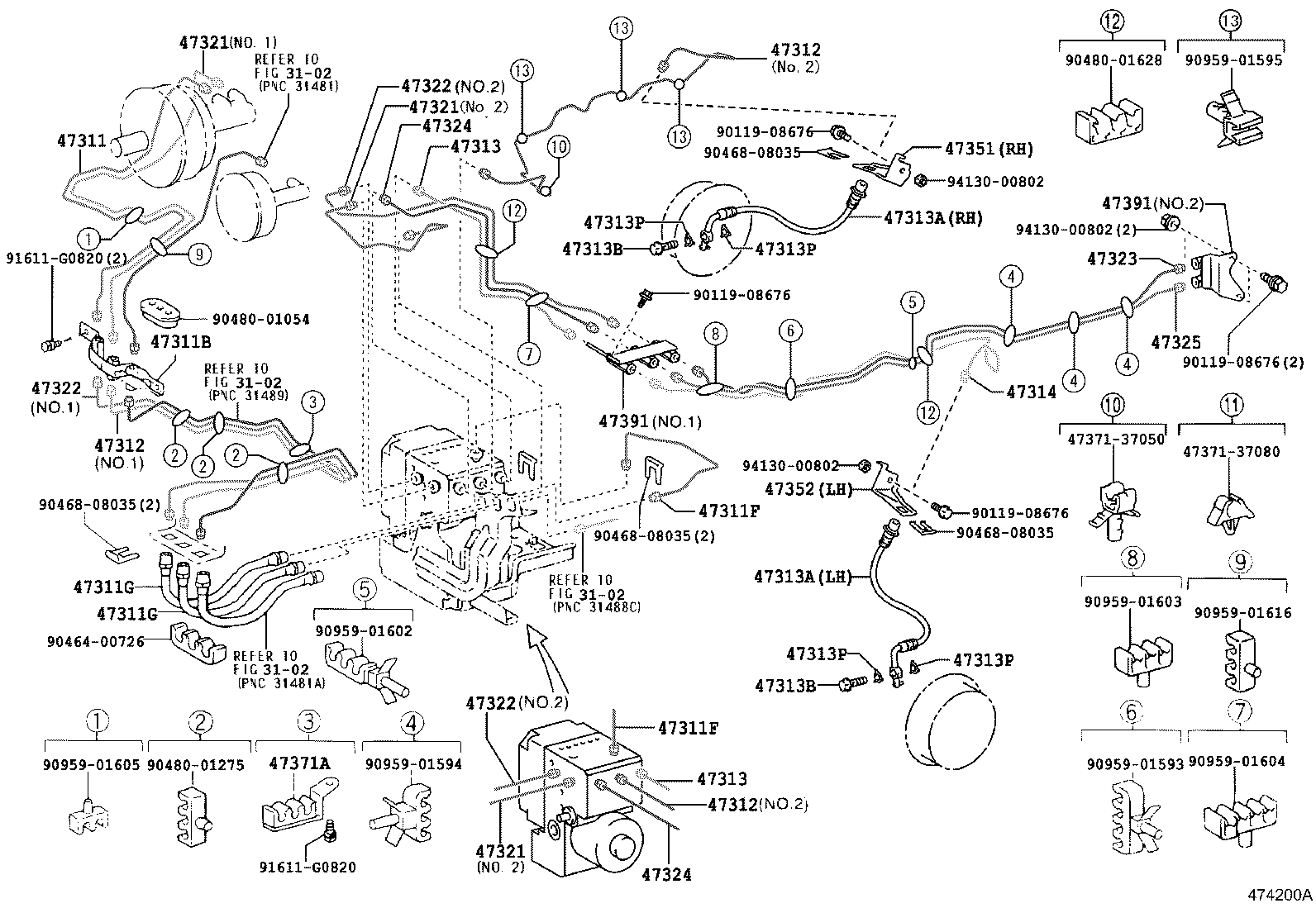

ILLUST NO. 1 OF 4(9905-0406)BU306,346,XZU306,307,337,346,347 ; (0005-0406)RZU340,XZU342
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37161 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311-37162 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311-37161 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47391-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37560 |
XZU306,308,336,338,346,348..DCB,SCB |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D27 |
BU306,346,XZU306,307,337,346,347..DSL 長さ=279.9､左側 |
1 | ||
| 90947-02D26 |
BU306,346,XZU306,307,337,346,347..DSL 長さ=279.9､右側 |
1 | ||
| 90947-02A68 |
BU306,346,XZU306,307,337,346,347 長さ=519.9､右側 |
1 | ||
| 90947-02A69 |
BU306,346,XZU306,307,337,346,347 長さ=519.9､左側 |
1 | ||
| 90947-02D26 |
BU306,346,XZU306,307,337,346,347 右側 |
1 | ||
| 90947-02D27 |
BU306,346,XZU306,307,337,346,347 左側 |
1 | ||
| 90947-02D26 |
XZU306,308,336,338,346,348 右側 |
1 | ||
| 90947-02D27 |
XZU306,308,336,338,346,348 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D27 |
BU306,346,XZU306,307,337,346,347..DSL 長さ=279.9､左側 |
1 | ||
| 90947-02D26 |
BU306,346,XZU306,307,337,346,347..DSL 長さ=279.9､右側 |
1 | ||
| 90947-02A68 |
BU306,346,XZU306,307,337,346,347 長さ=519.9､右側 |
1 | ||
| 90947-02A69 |
BU306,346,XZU306,307,337,346,347 長さ=519.9､左側 |
1 | ||
| 90947-02D26 |
BU306,346,XZU306,307,337,346,347 右側 |
1 | ||
| 90947-02D27 |
BU306,346,XZU306,307,337,346,347 左側 |
1 | ||
| 90947-02D26 |
XZU306,308,336,338,346,348 右側 |
1 | ||
| 90947-02D27 |
XZU306,308,336,338,346,348 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37080 |
BU306,346,XZU306,307,337,346,347..DCB,SCB |
1 | ||
| 47315-37081 |
BU306,346,XZU306,307,337,346,347..DCB,SCB |
1 | ||
| 47315-37081 |
BU306,346,XZU306,307,337,346,347..(DCB,SCB)..DSL |
1 | ||
| 47315-37082 |
BU306,346,XZU306,307,337,346,347..DCB,SCB |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37080 |
BU306,346,XZU306,307,337,346,347..DCB,SCB |
1 | ||
| 47315-37081 |
BU306,346,XZU306,307,337,346,347..DCB,SCB |
1 | ||
| 47315-37081 |
BU306,346,XZU306,307,337,346,347..(DCB,SCB)..DSL |
1 | ||
| 47315-37082 |
BU306,346,XZU306,307,337,346,347..DCB,SCB |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37050 |
XZU306,307,346,347..DCB,SCB |
1 | ||
| 47317-37051 |
XZU306,307,346,347..(DCB,SCB)..DSL |
1 | ||
| 47317-37051 |
XZU306,307,346,347..DCB,SCB |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37050 |
XZU306,307,346,347..DCB,SCB |
1 | ||
| 47317-37051 |
XZU306,307,346,347..(DCB,SCB)..DSL |
1 | ||
| 47317-37051 |
XZU306,307,346,347..DCB,SCB |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37050 |
XZU306,307,346,347..DCB,SCB |
1 | ||
| 47317-37051 |
XZU306,307,346,347..(DCB,SCB)..DSL |
1 | ||
| 47317-37051 |
XZU306,307,346,347..DCB,SCB |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37100 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47351-37330 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47351-37330 |
BU306,346,XZU306,307,337,346,347..DSL |
1 | ||
| 47351-37330 |
XZU306,308,336,338,346,348,368,378,388 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37200 |
BU306,346,XZU306,307,337,346,347..DSL |
1 | ||
| 47352-37200 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47351-37100 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47352-37200 |
XZU306,308,336,338,346,348,368,378,388 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37090 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47351-37240 |
BU306,346,XZU30#,33#,34# |
1 | ||
| 47354-37111 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350,362,37#,382 |
1 | ||
| 47354-37110 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350,362,37#,382 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37100 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47355-37020 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-37010 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47371-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01311 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 5251 | ||||
ILLUST NO. 2 OF 4(9905-0406)XZU302,306..CNG,DSL ; (9905-0406)XZU306..5F..DSLL..IV3 ; (9905-0406)XZU3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB |
1 | ||
| 44591-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB |
1 | ||
| 44591-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,331..5F..DSLL..(CBU,IV4);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,33#,350..(03S,06S,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
1 | ||
| 90412-12060 |
XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,331..5F..DSLL..(CBU,IV4);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,33#,350..(03S,06S,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
1 | ||
| 90412-12060 |
XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,331..5F..DSLL..(CBU,IV4);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,33#,350..(03S,06S,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4 |
1 | ||
| 90904-12076 |
BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4 |
1 | ||
| 90904-12076 |
BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37620 |
XZU306,308,336,338,346,348..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47314-37620 |
XZU306,308,336,338,346,348..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47314-37620 |
XZU306,308,336,338,346,348..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47314-37171 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,306..SCB..(T3,T4,T5)..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,340,341,342,346,347,350..(03S,06S,T2,T3,T4,T5)..WT |
1 | ||
| 47314-37171 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,306..SCB..(T3,T4,T5)..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,340,341,342,346,347,350..(03S,06S,T2,T3,T4,T5)..WT |
1 | ||
| 47314-37171 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,306..SCB..(T3,T4,T5)..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,340,341,342,346,347,350..(03S,06S,T2,T3,T4,T5)..WT |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-37050 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47319-37050 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47319-37050 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47319-37060 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-10229 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 90412-10229 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 90412-10229 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90904-13055 |
XZU302,341,342..LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(DM6,T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU302,341,342..LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(DM6,T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU302,341,342..LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(DM6,T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU302,341,342..LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU302,341,342..LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU302,341,342..LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37070 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37070 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37070 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37070 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37070 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37070 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 90412-12051 |
XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 90412-12051 |
XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 90412-12051 |
XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 90412-12051 |
XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37290 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47324-37290 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47324-37290 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47324-37310 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47325-37320 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47325-37320 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47325-37320 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47326-37490 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 47326-37490 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 47326-37490 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37220 |
XZU362..T4;XZU301,306..T5..20T |
1 | ||
| 47327-37220 |
XZU362..T4;XZU301,306..T5..20T |
1 | ||
| 47327-37220 |
XZU362..T4;XZU301,306..T5..20T |
1 | ||
| 47327-37220 |
XZU368..T4;BZU300,RZU300,XZU301,304..T4..30T;BZU300,XZU301,304,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 47327-37220 |
XZU368..T4;BZU300,RZU300,XZU301,304..T4..30T;BZU300,XZU301,304,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 47327-37220 |
XZU368..T4;BZU300,RZU300,XZU301,304..T4..30T;BZU300,XZU301,304,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47328-37340 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 47328-37340 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 47328-37340 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37080 |
XZU368..T4;BZU300,RZU300,XZU301,304..T4..30T;BZU300,XZU301,304,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 47329-37080 |
XZU368..T4;BZU300,RZU300,XZU301,304..T4..30T;BZU300,XZU301,304,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 47329-37080 |
XZU368..T4;BZU300,RZU300,XZU301,304..T4..30T;BZU300,XZU301,304,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 47329-37080 |
XZU362..T4;XZU301,306..T5..20T |
1 | ||
| 47329-37080 |
XZU362..T4;XZU301,306..T5..20T |
1 | ||
| 47329-37080 |
XZU362..T4;XZU301,306..T5..20T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT |
1 | ||
| 47345-36050 |
XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT |
1 | ||
| 47345-36050 |
XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT |
1 | ||
| 47345-36050 |
XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT |
1 | ||
| 47345-36050 |
XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT |
1 | ||
| 47345-36050 |
XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT |
1 | ||
| 47345-36050 |
XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT |
1 | ||
| 47345-36050 |
XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT |
1 | ||
| 47345-36050 |
XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT |
1 | ||
| 47345-36050 |
XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT |
1 | ||
| 47345-36050 |
XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 47353-37110 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 47353-37110 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 47353-37110 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 47353-37110 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 47353-37110 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47353-37240 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT |
1 | ||
| 47353-37240 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT |
1 | ||
| 47353-37240 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT |
1 | ||
| 47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK | ||||
| 47390-37011 |
XZU306..T5..4FC..IV3;XZU301..T4..4FC..IV3..1NO;BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL) |
1 | ||
| 47390-37011 |
XZU306..T5..4FC..IV3;XZU301..T4..4FC..IV3..1NO;BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL) |
1 | ||
| 47390-37011 |
XZU306..T5..4FC..IV3;XZU301..T4..4FC..IV3..1NO;BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL) |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01006 | ||||
| 90949-01970 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91615-60816 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-37010 |
BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 44540-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44050-37040 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37010 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
ILLUST NO. 1 OF 5(0406- )XZU306,308,336,338,346,348
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37161 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311-37162 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311-37161 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47391-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37560 |
XZU306,308,336,338,346,348..DCB,SCB |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37560 |
XZU306,308,336,338,346,348..DCB,SCB |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37560 |
XZU306,308,336,338,346,348..DCB,SCB |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D27 |
BU306,346,XZU306,307,337,346,347..DSL 長さ=279.9､左側 |
1 | ||
| 90947-02D26 |
BU306,346,XZU306,307,337,346,347..DSL 長さ=279.9､右側 |
1 | ||
| 90947-02A68 |
BU306,346,XZU306,307,337,346,347 長さ=519.9､右側 |
1 | ||
| 90947-02A69 |
BU306,346,XZU306,307,337,346,347 長さ=519.9､左側 |
1 | ||
| 90947-02D26 |
BU306,346,XZU306,307,337,346,347 右側 |
1 | ||
| 90947-02D27 |
BU306,346,XZU306,307,337,346,347 左側 |
1 | ||
| 90947-02D26 |
XZU306,308,336,338,346,348 右側 |
1 | ||
| 90947-02D27 |
XZU306,308,336,338,346,348 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D27 |
BU306,346,XZU306,307,337,346,347..DSL 長さ=279.9､左側 |
1 | ||
| 90947-02D26 |
BU306,346,XZU306,307,337,346,347..DSL 長さ=279.9､右側 |
1 | ||
| 90947-02A68 |
BU306,346,XZU306,307,337,346,347 長さ=519.9､右側 |
1 | ||
| 90947-02A69 |
BU306,346,XZU306,307,337,346,347 長さ=519.9､左側 |
1 | ||
| 90947-02D26 |
BU306,346,XZU306,307,337,346,347 右側 |
1 | ||
| 90947-02D27 |
BU306,346,XZU306,307,337,346,347 左側 |
1 | ||
| 90947-02D26 |
XZU306,308,336,338,346,348 右側 |
1 | ||
| 90947-02D27 |
XZU306,308,336,338,346,348 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37620 |
XZU306,308,336,338,346,348..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47314-37171 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,306..SCB..(T3,T4,T5)..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,340,341,342,346,347,350..(03S,06S,T2,T3,T4,T5)..WT |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37070 |
XZU306..5F..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37290 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47324-37310 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37290 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47324-37310 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU300,301,306,330,350..(T3,T4,T5)..5F..(IV3,IV6,IV7) |
1 | ||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47325-37320 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37100 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47351-37330 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47351-37330 |
BU306,346,XZU306,307,337,346,347..DSL |
1 | ||
| 47351-37330 |
XZU306,308,336,338,346,348,368,378,388 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37200 |
BU306,346,XZU306,307,337,346,347..DSL |
1 | ||
| 47352-37200 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47351-37100 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 47352-37200 |
XZU306,308,336,338,346,348,368,378,388 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47371-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 47371-37080 | ||||
| 90119-08676 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 5(0406- )XZU30#,33#,34#,354..DM3,DM6,T1,T2,T3,T4,T5..CBU,IV3,IV6,IV7
W(ABS) 4X2 SHORT,S/LONG,LONG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-10229 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47326-37490 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47328-37340 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-37010 |
BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 44540-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44050-37040 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37010 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
ILLUST NO. 4 OF 4(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
ILLUST NO. 2 OF 4(0610- )XZU30#,50#..T2,T4,T5..20T..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90959-01594 | ||||
ILLUST NO. 3 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91131-50840 | ||||
| 91611-40816 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 2 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06009 | ||||
| 90461-06178 | ||||
| 90461-06487 | ||||
| 90461-08058 | ||||
| 90461-10076 | ||||
| 90461-10625 | ||||
| 90461-12124 | ||||
| 90462-10033 | ||||
| 90480-01047 | ||||
| 90480-08343 | ||||
| 90949-01006 | ||||
| 90949-01019 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 91611-40812 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-60614 | ||||
| 91615-41040 | ||||
| 91616-40820 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 91661-40614 | ||||
| 94110-40800 | ||||
| 96221-20905 | ||||
| 96221-20906 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
