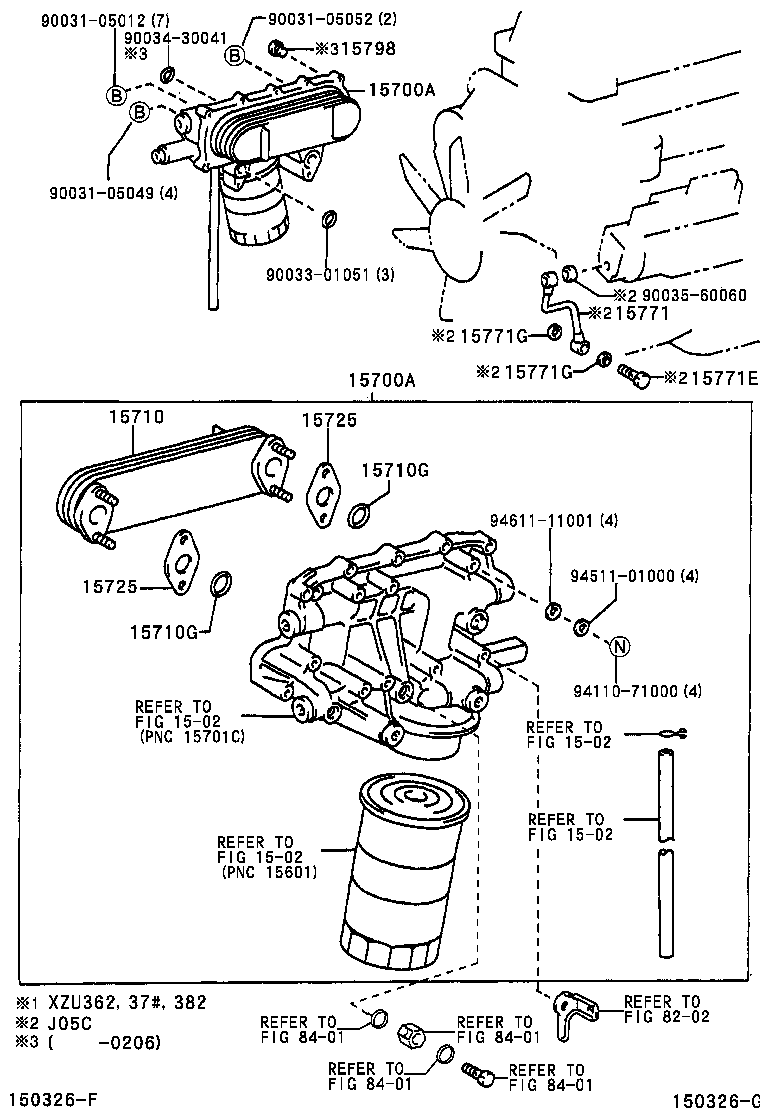

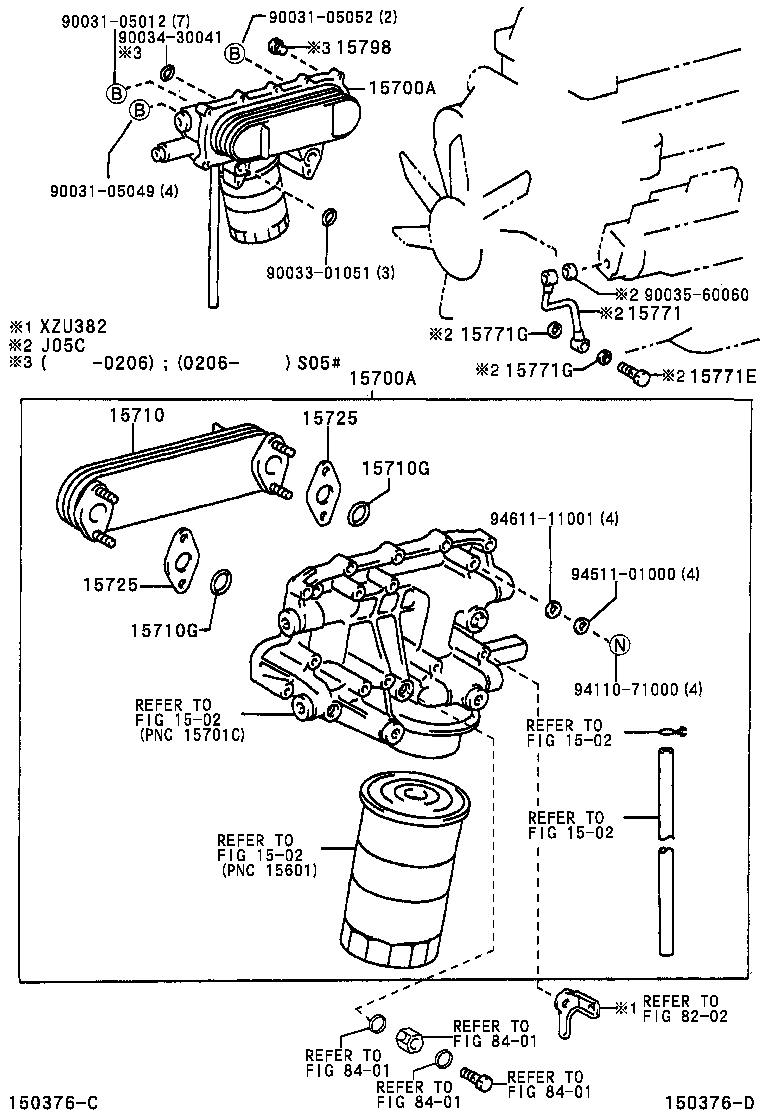

XZU306-TPMMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Oct 2006
Engine S05D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0206)J05C,S05#

Click highlighted areas on diagram

diagram 1502 1502 1502 1502 15700A 15700A 15710 15710G 15710G 15725 15725 15771 15771E 15771G 15771G 15798 8202 8401 8401 8401 8401 9003105012 9003105049 9003105052 9003301051 9003430041 9003560060 9411071000 9451101000 9461111001
Part # Description Qty Price
15700A - COOLER ASSY, OIL W/BRACKET
15700-78070

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15700-78071

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15700-78060

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL

 1
15700-78060

S05D..XZU301,306,311,321,331,336,341,346,351

 1
15700-78060

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
15700A - COOLER ASSY, OIL W/BRACKET
15700-78070

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15700-78071

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15700-78060

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL

 1
15700-78060

S05D..XZU301,306,311,321,331,336,341,346,351

 1
15700-78060

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
15710 - COOLER ASSY, OIL
15710-89102

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL

 1
15710-78030

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15710-89102

S05D..XZU301,306,311,321,331,336,341,346,351

 1
15710-89102

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
15710G - RING, O, NO.2
90033-01055

S05D..XZU301,306,311,321,331,336,341,346,351

 2
90033-01055

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
15710G - RING, O, NO.2
90033-01055

S05D..XZU301,306,311,321,331,336,341,346,351

 2
90033-01055

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
15725 - GASKET, OIL COOLER COVER
15781-89101

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
15781-89101

S05D..XZU301,306,311,321,331,336,341,346,351

 2
15725 - GASKET, OIL COOLER COVER
15781-89101

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
15781-89101

S05D..XZU301,306,311,321,331,336,341,346,351

 2
15798 - PLUG, OIL NOZZLE UNION BOLT
15798-89101

S05D..XZU301,306,311,321,331,336,341,346,351

 1
15798-89101

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
Common parts
90031-05012
90031-05049
90031-05052
90033-01051
90034-30041
90035-60060
94110-71000
94511-01000
94611-11001
Linked diagrams
1502
8202
8401

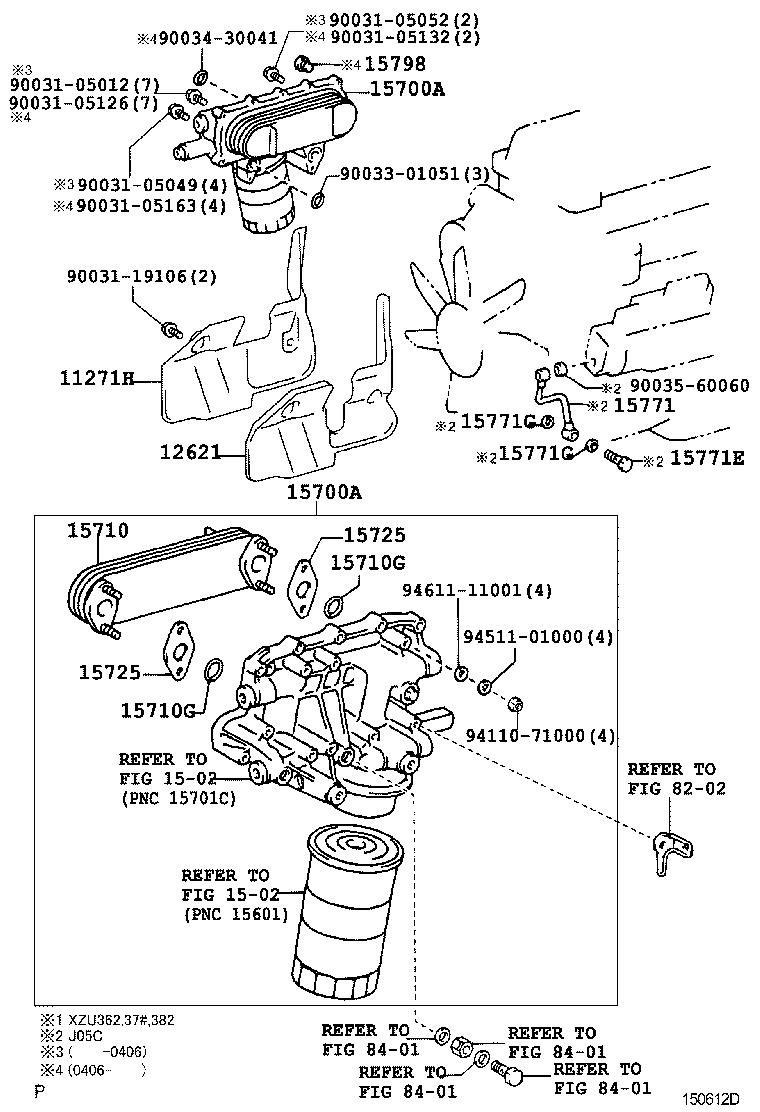

(0206-0610)J05C,S05#

Click highlighted areas on diagram

diagram 11271H 12621 1502 1502 15700A 15700A 15710 15710G 15710G 15725 15725 15771 15771E 15771G 15771G 15798 8202 8401 8401 8401 8401 9003105012 9003105049 9003105052 9003105126 9003105132 9003105163 9003119106 9003301051 9003430041 9003560060 9411071000 9451101000 9461111001
Part # Description Qty Price
11271H - COVER, CYLINDER BLOCK SIDE
11271-78091

S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382

 1
11271-78090

S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382

 1
11271-78092

S05D..XZU301,306,311,321,331,336,341,346,351

 1
11271-78092

S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382

 1
12621 - SILENCER, ENGINE COVER, NO.1
12621-78030

S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382

 1
12621-78031

S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382

 1
12621-78031

S05D..XZU301,306,311,321,331,336,341,346,351

 1
15700A - COOLER ASSY, OIL W/BRACKET
15700-78070

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15700-78071

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15700-78060

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL

 1
15700-78060

S05D..XZU301,306,311,321,331,336,341,346,351

 1
15700-78060

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
15700A - COOLER ASSY, OIL W/BRACKET
15700-78070

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15700-78071

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15700-78060

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL

 1
15700-78060

S05D..XZU301,306,311,321,331,336,341,346,351

 1
15700-78060

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
15710 - COOLER ASSY, OIL
15710-89102

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL

 1
15710-78030

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
15710-89102

S05D..XZU301,306,311,321,331,336,341,346,351

 1
15710-89102

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
15710G - RING, O, NO.2
90033-01055

S05D..XZU301,306,311,321,331,336,341,346,351

 2
90033-01055

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
15710G - RING, O, NO.2
90033-01055

S05D..XZU301,306,311,321,331,336,341,346,351

 2
90033-01055

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
15725 - GASKET, OIL COOLER COVER
15781-89101

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
15781-89101

S05D..XZU301,306,311,321,331,336,341,346,351

 2
15725 - GASKET, OIL COOLER COVER
15781-89101

J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
15781-89101

S05D..XZU301,306,311,321,331,336,341,346,351

 2
15798 - PLUG, OIL NOZZLE UNION BOLT
15798-89101

S05D..XZU301,306,311,321,331,336,341,346,351

 1
15798-89101

J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
Common parts
90031-05012
90031-05049
90031-05052
90031-05126
90031-05132
90031-05163
90031-19106
90033-01051
90034-30041
90035-60060
94110-71000
94511-01000
94611-11001
Linked diagrams
1502
8202
8401

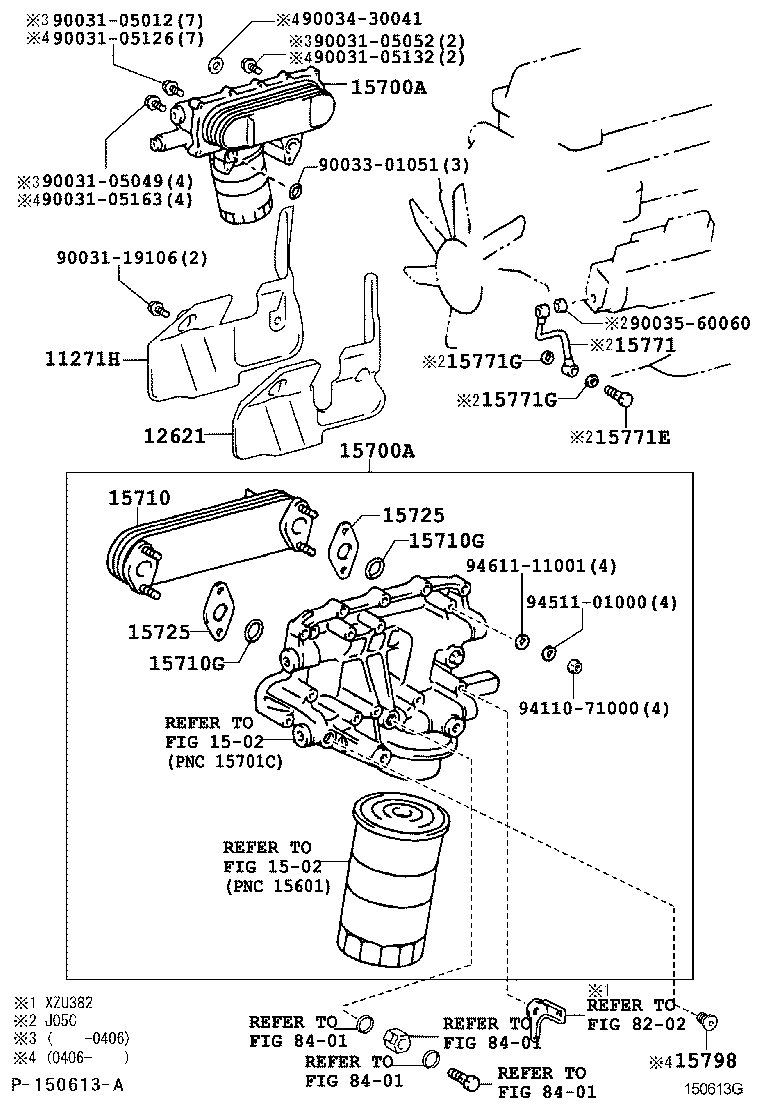

(9905-0206)J05C,S05#

Click highlighted areas on diagram

diagram 1502 1502 1502 1502 15700A 15700A 15710 15710G 15710G 15725 15725 15771 15771E 15771G 15771G 15798 8202 8401 8401 8401 8401 9003105012 9003105049 9003105052 9003301051 9003430041 9003560060 9411071000 9451101000 9461111001
Part # Description Qty Price
Common parts
90031-05012
90031-05049
90031-05052
90033-01051
90034-30041
90035-60060
94110-71000
94511-01000
94611-11001
Linked diagrams
1502
8202
8401

(0206- )J05C,S05#

Click highlighted areas on diagram

diagram 11271H 12621 1502 1502 15700A 15700A 15710 15710G 15710G 15725 15725 15771 15771E 15771G 15771G 15798 8202 8401 8401 8401 8401 9003105012 9003105049 9003105052 9003105126 9003105132 9003105163 9003119106 9003301051 9003430041 9003560060 9411071000 9451101000 9461111001
Part # Description Qty Price
Common parts
90031-05012
90031-05049
90031-05052
90031-05126
90031-05132
90031-05163
90031-19106
90033-01051
90034-30041
90035-60060
94110-71000
94511-01000
94611-11001
Linked diagrams
1502
8202
8401
